与华为 USG6000V 防火墙建立 IPSec VPN
大约 11 分钟
与华为 USG6000V 防火墙建立 IPSec VPN
网络需求

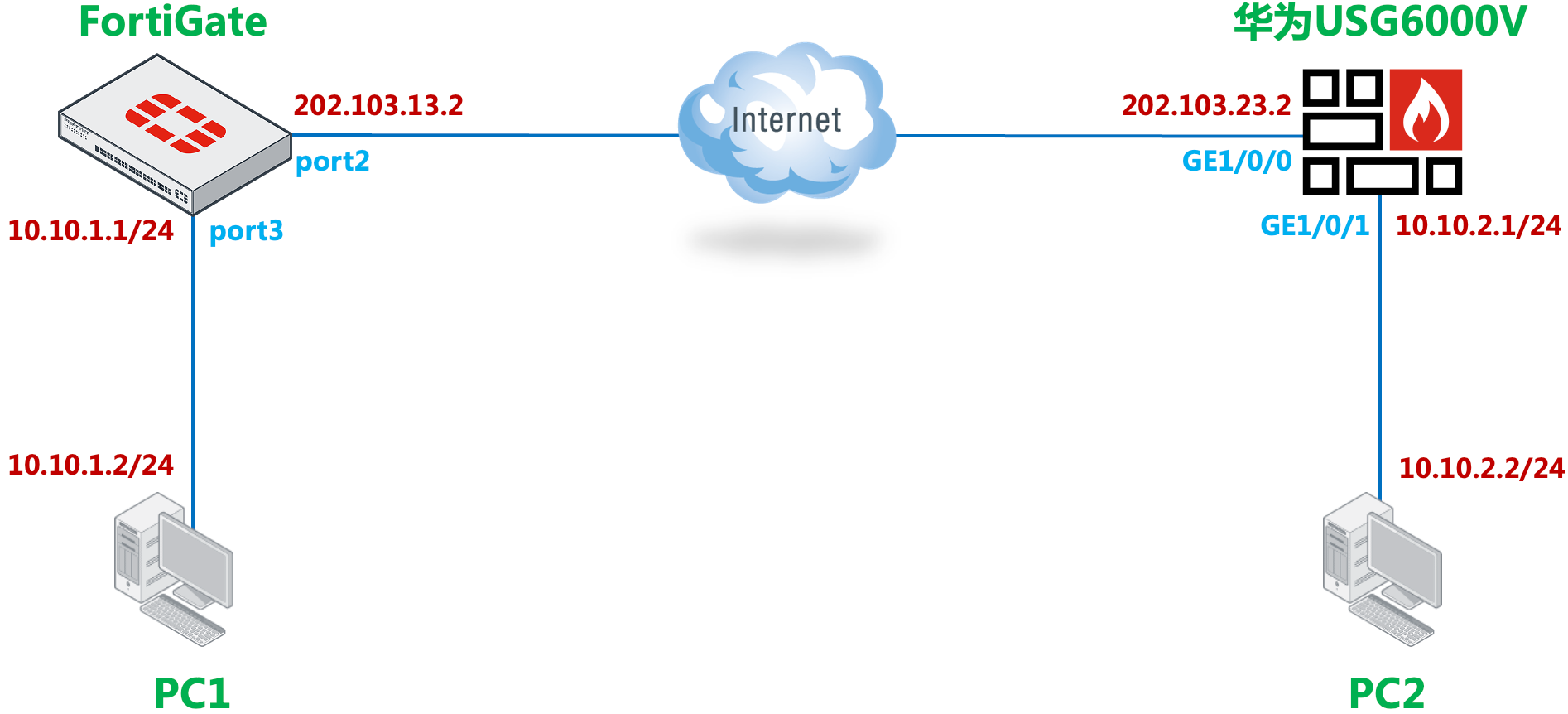

如图所示，通过 IPsec VPN（接口模式）将 2 个局域网连接起来，实现 10.10.1.0/24 与 10.10.2.0/24 两个网段的通信。与华为 USG6000V 防火墙进行 IPsec VPN（IKE v1）对接。
华为 USG6000V 防火墙版本：
<USG6000V2>display version
2023-04-06 17:43:15.520 +08:00
Huawei Versatile Routing Platform Software
VRP (R) Software, Version 5.170 (USG6000V2 V500R005C00SPC100)
Copyright (C) 2014-2018 Huawei Technologies Co., Ltd.
USG6000V2 uptime is 0 week, 0 day, 2 hours, 40 minutes
IPS Signature Database Version : 2018070605
IPS Engine Version : V200R005C00SPC037
AV Signature Database Version :
SA Signature Database Version : 2018062700
C&C Domain Name Database Version :
FILE Reputation Database Version :
Location Database Version : 2014010414网络拓扑
配置要点
- 配置 FortiGate
- 基本上网配置
- 配置 IPsec VPN
- 配置华为 USG6000V 防火墙
- 基本上网配置
- 配置 IPsec VPN
- 说明：如果要删除 IPSEC VPN 第一阶段、第二阶段时，需要先删除被调用的路由与防火墙安全策略。
配置步骤
FortiGate
基本上网配置。
配置 IPSec VPN，进入 VPN → IPSec 隧道，点击新建 → IPSec 隧道按钮。
选择 IPsec VPN 自定义模板进行配置，点击下一步。
如图配置网络、认证、第一阶段、第二阶段。
重要
不像和 Cisco/PA/Juniper/山石使用虚拟接口创建 IPSec，感兴趣流是全 0。华为防火墙通常都是使用物理口创建 IPSec，需要写明细的感兴趣流，所以 FortiGate 也要对应的写明细感兴趣数据流，不能写全 0。
config vpn ipsec phase1-interface edit "VPN-to-Remote" set interface "port2" set peertype any set net-device disable set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1 set dpd on-idle set remote-gw 202.103.23.2 set psksecret xxxxxxxx next end config vpn ipsec phase2-interface edit "VPN-to-Remote" set phase1name "VPN-to-Remote" set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305 set auto-negotiate enable set src-subnet 10.10.1.0 255.255.255.0 set dst-subnet 10.10.2.0 255.255.255.0 next end配置 VPN 相关的网段地址对象和防火墙策略。
config firewall address edit "Local_10.10.1.0/24" set subnet 10.10.1.0 255.255.255.0 next edit "Remote_10.10.2.0/24" set subnet 10.10.2.0 255.255.255.0 next end config firewall policy edit 2 set name "VPN-Local-to-Remote" set srcintf "port3" set dstintf "VPN-to-Remote" set action accept set srcaddr "Local_10.10.1.0/24" set dstaddr "Remote_10.10.2.0/24" set schedule "always" set service "ALL" next edit 3 set name "VPN-Remote-to-Local" set srcintf "VPN-to-Remote" set dstintf "port3" set action accept set srcaddr "Remote_10.10.2.0/24" set dstaddr "LAN_10.10.1.0/24" set schedule "always" set service "ALL" next end配置 VPN 业务网段的静态路由。
重要
相关 VPN 的路由配置中“黑洞路由的意义：
你可能会遇到以下的 VPN 业务问题：通过 VPN 的 SIP 电话，时不时中断，无法向服务器成功注册 ？通过 VPN 的 Radius 认证无法经常会无法认证成功？ 通过 VPN 的 AP 注册到总部时不时会中断？持续的 PRGT 监控 ping 总部的服务器，时不时会显示中断？
VPN 有时候会因为各种原因重新连接，比如互联网不稳定，PPPOE 重新连接更换公网 IP 地址等，VPN tunnel 此时会出现短暂的 DOWN，而去往对方的 VPN 业务网段的路由也会短暂消失，此时 VPN 的业务流量（SIP 注册请求/Radius/Capwap/ICMP）会因为查询到了默认路由而走向了 WAN（Internet），从而产生了错误的 UDP-NAT-Seesion，此时即便 VPN tunnel 再次 UP，VPN 业务网段的路由再次恢复，SIP 等 VPN 旧的业务流量依旧会走到错误的 Session 上去，从而引起该业务异常。
解决方法：
方法一：配置去往 VPN 业务网段的“黑洞路由”，管理距离为 254，VPN 正常的情况下此黑洞路由不生效，而当 VPN 中断的时候，黑洞路由浮起来并且生效，将 VPN 中断时候的 VPN 流量丢弃，避免将流量转发到互联网而产生错误的 session。配置 VPN 的备份黑洞路由的意义在此。
方法二：配置源接口：LAN，目的接口：WAN，源 IP：本地内网网段，目的 IP：对端内网网段，动作：丢包的策略。将此去往 Internet 的私网（无用的）流量丢弃掉，避免 FGT 产生这种错误的 session，从而避免了 UDP 业务时不时中断的问题。
方法三：在全局下开启“set snat-route-change enable”，一旦路由发生变化，将相关的会话 flag 置位为“Dirty”，清除路由缓存并重新查找目的 IP 的下一跳地址，这样 VPN 隧道恢复的时候，流量也会相应的切换到 VPN 隧道里面来。
FortiGate # config system global FortiGate (global) # set snat-route-change enable FortiGate (global) # end
三种方式任意选择一种即可。推荐使用黑洞路由方式。
config router static edit 1 set gateway 202.103.12.1 set device "port2" next edit 2 set dst 10.10.2.0 255.255.255.0 set device "VPN-to-Remote" next edit 3 set dst 10.10.2.0 255.255.255.0 set distance 254 set blackhole enable next end
华为 USG6000V
基本 IP 与路由配置。

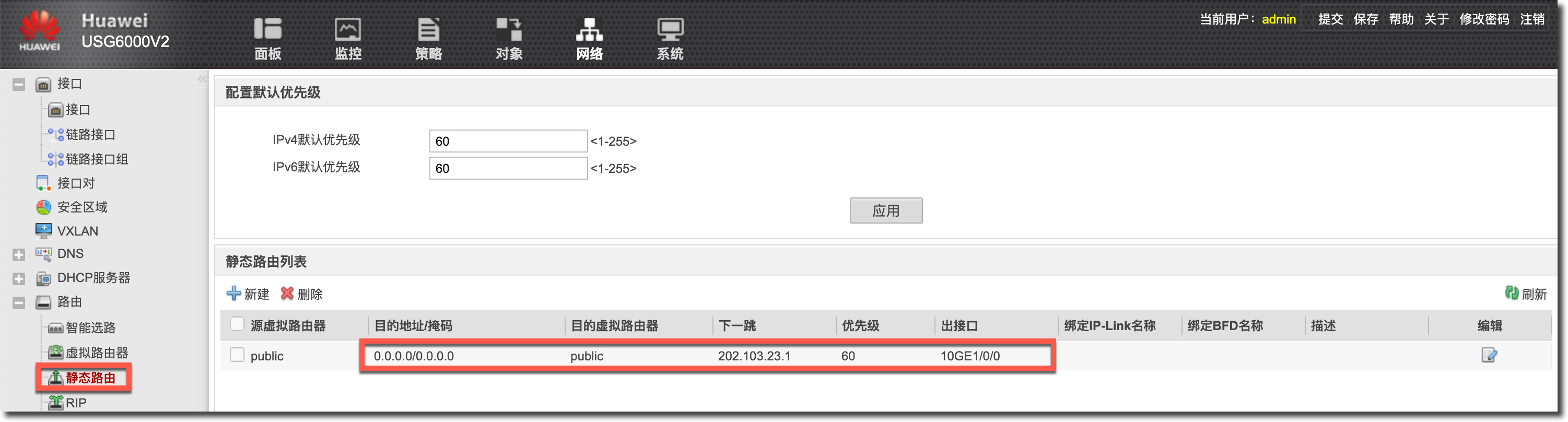

interface GigabitEthernet1/0/0 undo shutdown ip address 202.103.23.2 255.255.255.0 # interface GigabitEthernet1/0/1 undo shutdown ip address 10.10.2.1 255.255.255.0 # firewall zone trust set priority 85 add interface GigabitEthernet0/0/0 add interface GigabitEthernet1/0/1 # firewall zone untrust set priority 5 add interface GigabitEthernet1/0/0 # ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet1/0/0 202.103.23.1地址对象、策略、NAT 配置。

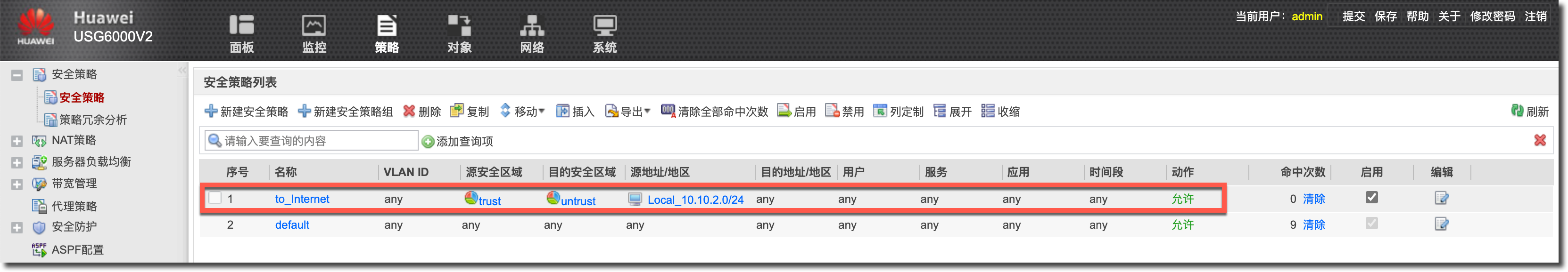

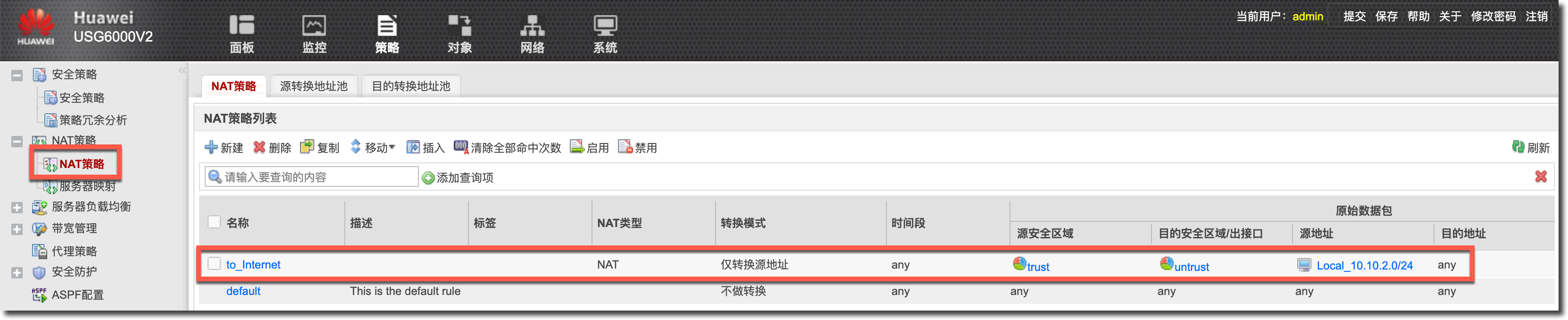

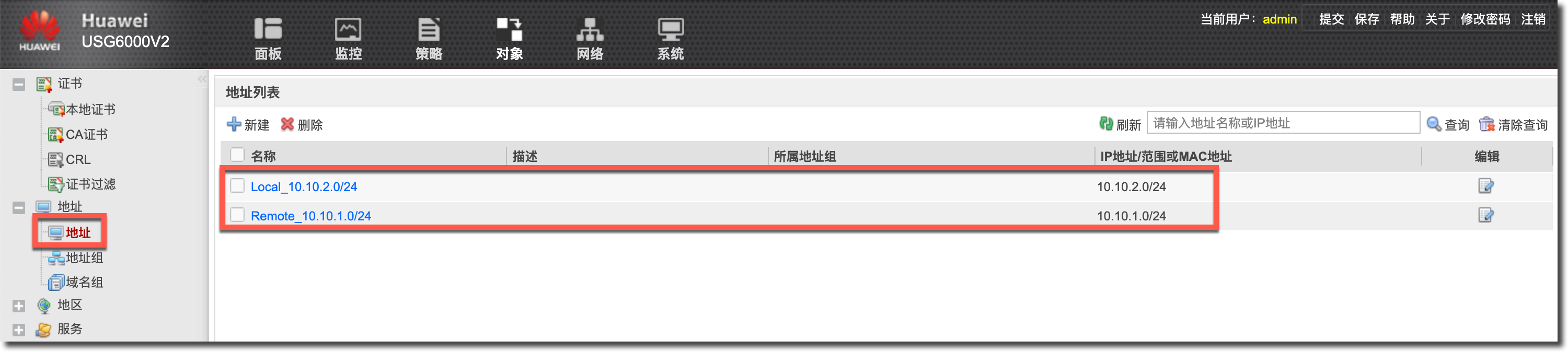

ip address-set Local_10.10.2.0/24 type object address 0 10.10.2.0 mask 24 # ip address-set Remote_10.10.1.0/24 type object address 0 10.10.1.0 mask 24 # security-policy default action permit rule name to_Internet source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 action permit # nat-policy rule name to_Internet source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 action source-nat easy-ip配置 IPSec，新建 IPSec VPN 策略。

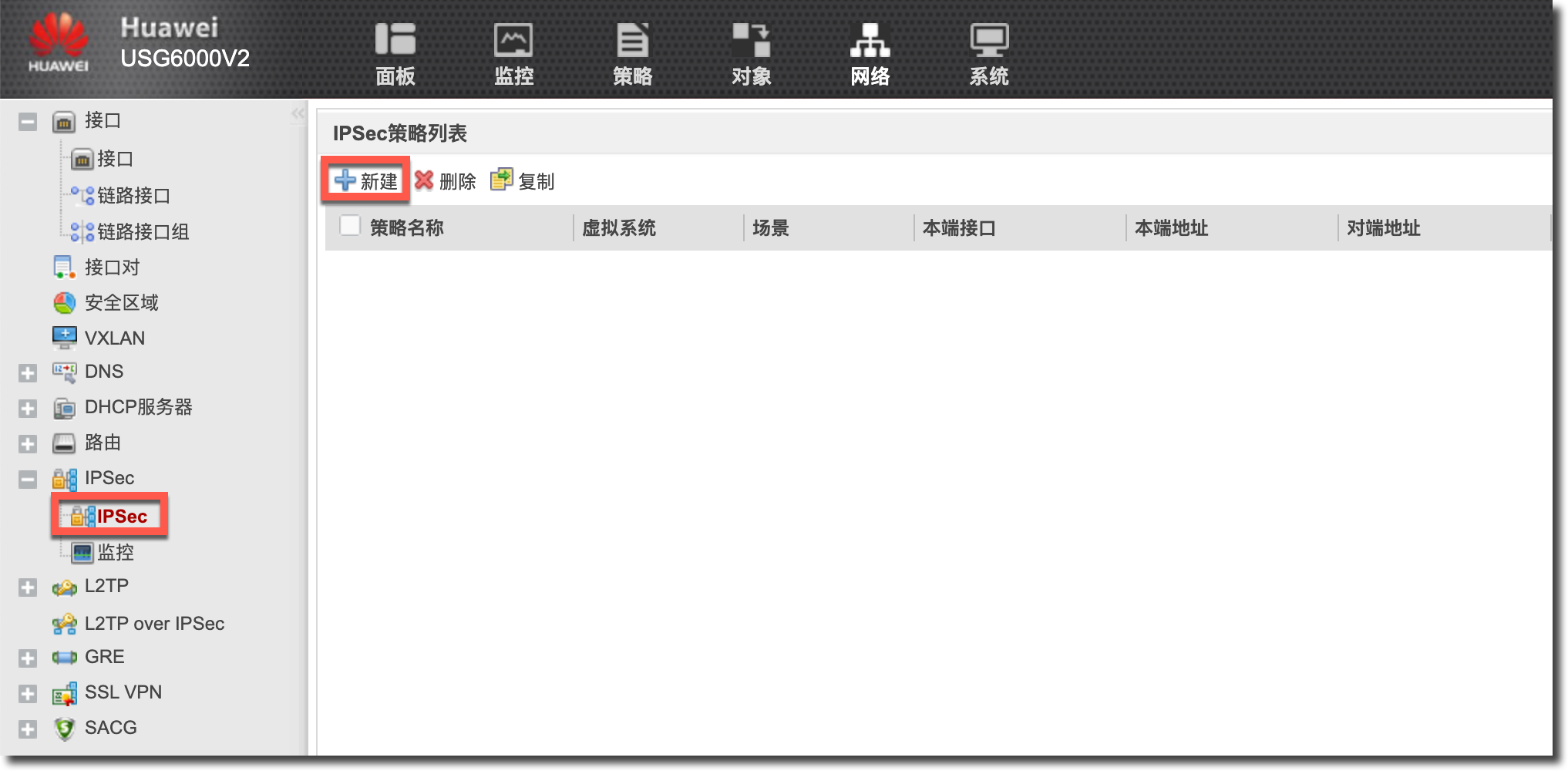

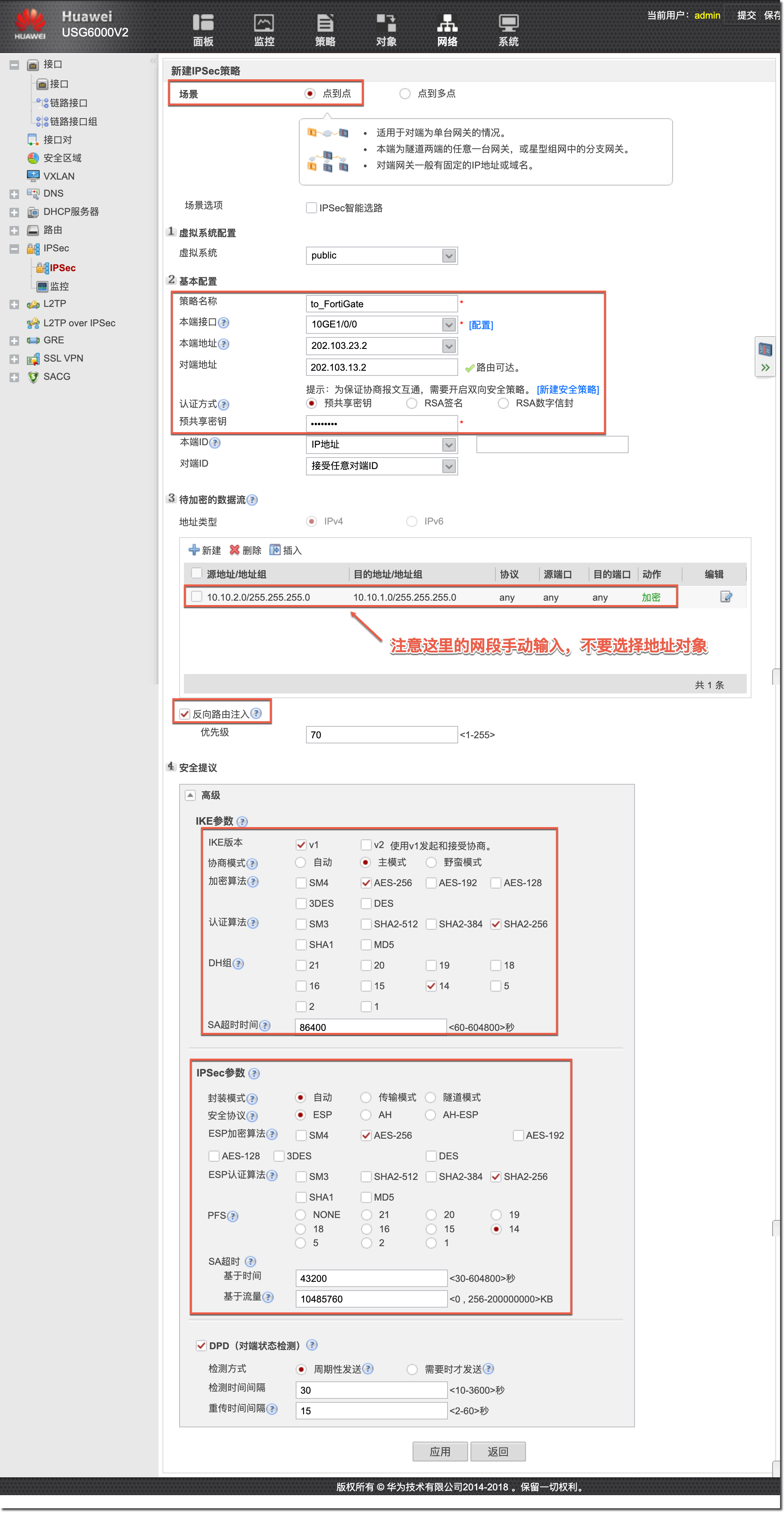

如下图参数配置，注意与 FortiGate 端的安全提议要一致（注意加密数据流不要选择地址对象，需要手动输入，否则第二阶段可能无法建立），开启反向路由注入。
acl number 3000 rule 5 permit ip source 10.10.2.0 0.0.0.255 destination 10.10.1.0 0.0.0.255 # ike proposal 1 encryption-algorithm aes-256 dh group14 authentication-algorithm sha2-256 authentication-method pre-share integrity-algorithm hmac-sha2-256 prf hmac-sha2-256 # ike peer ike64165343931 pre-shared-key %^%#GFRw6k/f}&DP2(A}Sh*9",ym@xVr%!NO~3!N]5u!%^%# ike-proposal 1 remote-id-type none dpd type periodic remote-address 202.103.13.2 # ipsec policy ipsec6416534390 1 isakmp security acl 3000 pfs dh-group14 ike-peer ike64165343931 proposal prop64165343931 tunnel local applied-interface alias to_FortiGate sa trigger-mode auto sa duration traffic-based 10485760 sa duration time-based 43200 route inject dynamic配置 IPSec VPN 相关网段放通的安全策略，并将他们移动至上网策略之前。

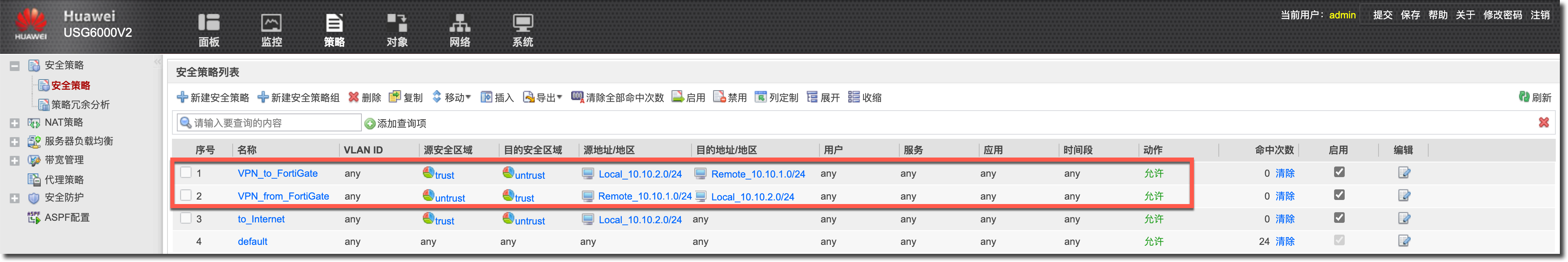

security-policy default action permit rule name VPN_to_FortiGate source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 destination-address address-set Remote_10.10.1.0/24 action permit rule name VPN_from_FortiGate source-zone untrust destination-zone trust source-address address-set Remote_10.10.1.0/24 destination-address address-set Local_10.10.2.0/24 action permit rule name to_Internet source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 action permit华为防火墙的转发流程是先做 SNAT，再做 IPsec VPN，也就是说，如果按照我们之前配置的 SNAT 规则，VPN 的流量 10.10.2.2 去访问 10.10.1.2 的流量会被 SNAT 成公网 IP 202.103.23.2，然后再进入到 IPsec VPN 流程，这个时候是无法匹配到感兴趣流的，因此流量将无法成功被 IPSec 加密。所以需要再配置一个 VPN 流量 bypass 的 SNAT 规则，让 VPN 流量不做 SNAT 转换，然后将其放置到最前面，优先匹配即可。

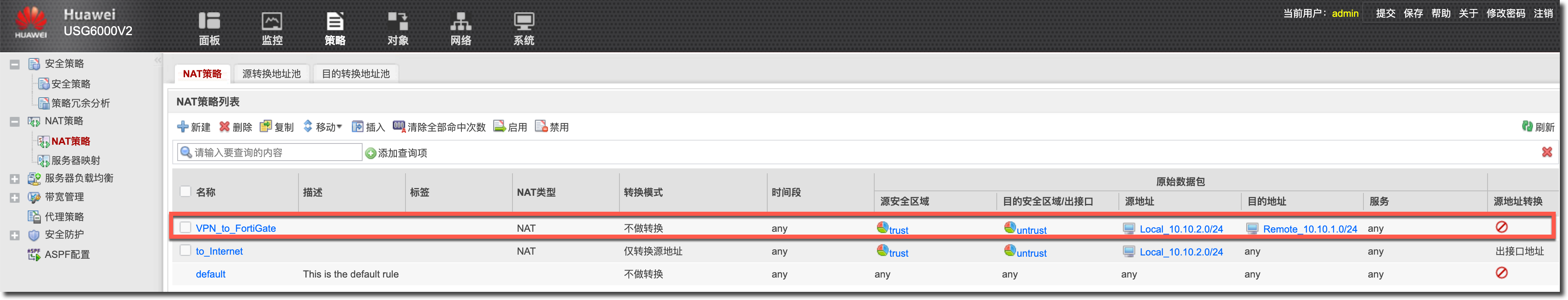

nat-policy rule name VPN_to_FortiGate source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 destination-address address-set Remote_10.10.1.0/24 action no-nat rule name to_Internet source-zone trust destination-zone untrust source-address address-set Local_10.10.2.0/24 action source-nat easy-ip
结果验证

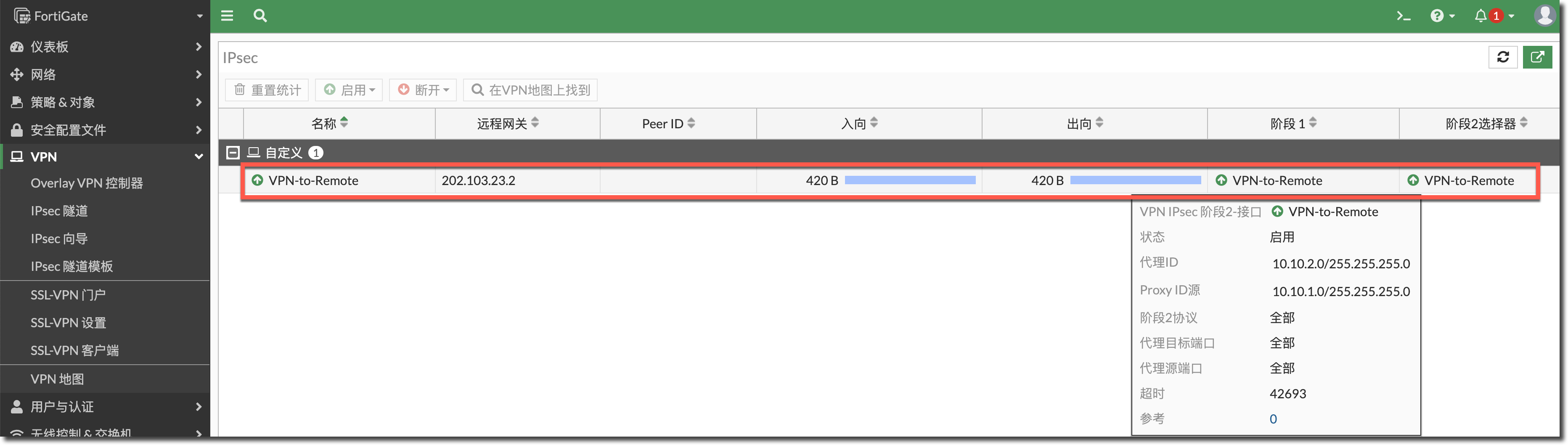

FortiGate 上查看 IPSec 隧道建立，在仪表盘新建 IPSec 监控，可以看到 IPSec 建立成功。
FortiGate # diagnose vpn ike gateway list vd: root/0 name: VPN-to-Remote version: 1 interface: port2 4 addr: 202.103.13.2:500 -> 202.103.23.2:500 tun_id: 202.103.23.2/::202.103.23.2 remote_location: 0.0.0.0 network-id: 0 created: 490s ago IKE SA: created 1/1 established 1/1 time 210/210/210 ms IPsec SA: created 1/2 established 1/1 time 390/390/390 ms id/spi: 257 05b470e04dc4363a/7f25ce9c15e94de3 direction: initiator status: established 490-490s ago = 210ms proposal: aes256-sha256 key: 9b5842bda3877c51-ebbc39ba4a960fde-f76d2defdebe67bd-de35bd7bc5720ec2 lifetime/rekey: 86400/85609 DPD sent/recv: 0000004d/135cb4c9 FortiGate # diagnose vpn tunnel list list all ipsec tunnel in vd 0 ------------------------------------------------------ name=VPN-to-Remote ver=1 serial=1 202.103.13.2:0->202.103.23.2:0 tun_id=202.103.23.2 tun_id6=::202.103.23.2 dst_mtu=1500 dpd-link=1 bound_if=4 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=10 proxyid_num=1 child_num=0 refcnt=4 ilast=15 olast=15 ad=/0 stat: rxp=12 txp=12 rxb=1008 txb=1008 dpd: mode=on-idle on=1 idle=20000ms retry=3 count=0 seqno=77 natt: mode=none draft=0 interval=0 remote_port=0 proxyid=VPN-to-Remote proto=0 sa=1 ref=4 serial=1 auto-negotiate src: 0:10.10.1.0-10.10.1.255:0 dst: 0:10.10.2.0-10.10.2.255:0 SA: ref=3 options=38203 type=00 soft=0 mtu=1438 expire=42436/0B replaywin=2048 seqno=d esn=0 replaywin_lastseq=0000000d qat=0 rekey=0 hash_search_len=1 life: type=01 bytes=0/0 timeout=42929/43200 dec: spi=34dc8977 esp=aes key=32 947441e7c4d219ad7c0cb909942e17d2c8e25b42346ea53f301ba37161d2fdef ah=sha256 key=32 df58345781028ba4ac18cc037ce667e974941e4ff544b7368f523307c83d4ea4 enc: spi=0b11f21b esp=aes key=32 d5dcfee82b332abf9bb62c620c3e42ee42c0f6c990fa380204b02b83f0acdbff ah=sha256 key=32 16b2afbcec0b0feb10cf4dedba31d99e3c59ce020823a88b9b99122b02bedf65 dec:pkts/bytes=24/2016, enc:pkts/bytes=24/2880 npu_flag=00 npu_rgwy=202.103.23.2 npu_lgwy=202.103.13.2 npu_selid=0 dec_npuid=0 enc_npuid=0 run_tally=0查看 FortiGate 的路由表。
FortiGate # get router info routing-table all Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area * - candidate default Routing table for VRF=0 S* 0.0.0.0/0 [10/0] via 202.103.13.1, port2, [1/0] C 10.10.1.0/24 is directly connected, port3 S 10.10.2.0/24 [10/0] via VPN-to-Remote tunnel 202.103.23.2, [1/0] C 192.168.100.0/24 is directly connected, port1 C 202.103.13.0/24 is directly connected, port2FortiGate 侧 PC1 业务测试。
VPCS> show NAME IP/MASK GATEWAY GATEWAY VPCS1 10.10.1.2/24 10.10.1.1 fe80::250:79ff:fe66:6804/64 VPCS> ping 10.10.2.2 84 bytes from 10.10.2.2 icmp_seq=1 ttl=62 time=5.413 ms 84 bytes from 10.10.2.2 icmp_seq=2 ttl=62 time=2.511 ms 84 bytes from 10.10.2.2 icmp_seq=3 ttl=62 time=2.242 ms 84 bytes from 10.10.2.2 icmp_seq=4 ttl=62 time=1.902 ms 84 bytes from 10.10.2.2 icmp_seq=5 ttl=62 time=2.080 ms华为防火墙查看 IPSec 连接状态。

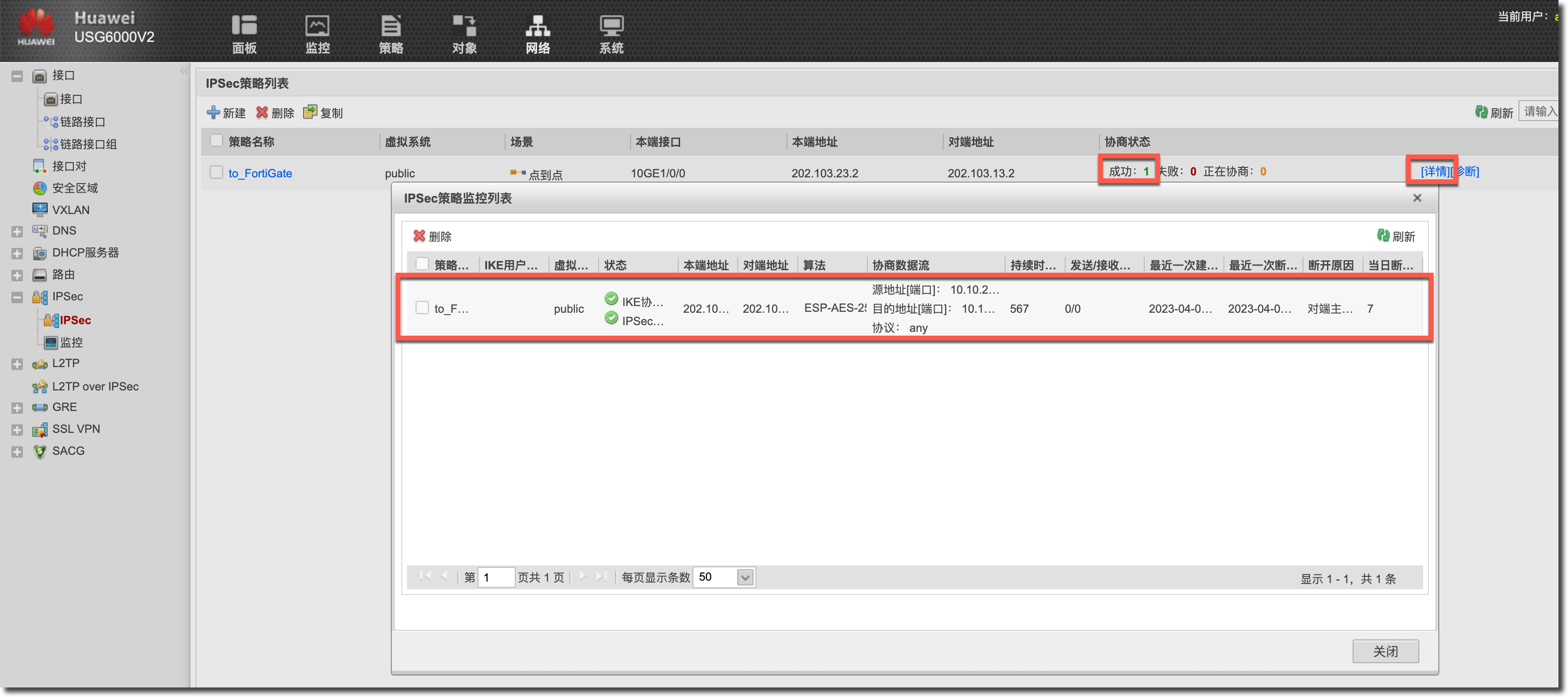

<USG6000V2>display ike sa verbose remote 202.103.13.2 2023-04-06 17:27:29.590 +08:00 Ike sa verbose information : --------------------------------------------------------------- Ike Sa phase : 1 Establish Time : 2023-04-06 17:16:56 PortCfg Index : 0x6 IKE Peer Name : ike64165343931 Connection Id : 347 Version : v1 Exchange Mode : Main Flow VPN : Peer VPN : --------------------------------------------------------------- Intiator Cookie : 0x05b470e04dc4363a Responder Cookie : 0x7f25ce9c15e94de3 Local Address : 202.103.23.2 Remote Address : 202.103.13.2:500 Encryption Algorithm : AES-256 Authentication Algorithm : SHA2-256 Authentication Method : Pre-Shared key DPD Capability : Yes DPD Enable : Yes Remaining Duration : 85766 Reference Counter : 1 Flags : RD|A Remote Id Type : IP Remote Id : 202.103.13.2 DH Group : 14 NAT Traversal Version : RFC3947 ModeCfg IP : - --------------------------------------------------------------- Number of IKE SA : 1<USG6000V2> display ipsec sa remote 202.103.13.2 2023-04-06 17:28:30.260 +08:00 ipsec sa information: =============================== Interface: GigabitEthernet1/0/0 =============================== ----------------------------- IPSec policy name: "ipsec6416534390" Sequence number : 1 Acl group : 3000 Acl rule : 5 Mode : ISAKMP ----------------------------- Connection ID : 350 Encapsulation mode: Tunnel Holding time : 0d 0h 11m 32s Tunnel local : 202.103.23.2:500 Tunnel remote : 202.103.13.2:500 Flow source : 10.10.2.0/255.255.255.0 0/0-65535 Flow destination : 10.10.1.0/255.255.255.0 0/0-65535 [Outbound ESP SAs] SPI: 886868343 (0x34dc8977) Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128 SA remaining key duration (kilobytes/sec): 10485759/42508 Max sent sequence-number: 18 UDP encapsulation used for NAT traversal: N SA encrypted packets (number/bytes): 17/1428 [Inbound ESP SAs] SPI: 185725467 (0xb11f21b) Proposal: ESP-ENCRYPT-AES-256 ESP-AUTH-SHA2-256-128 SA remaining key duration (kilobytes/sec): 10485759/42508 Max received sequence-number: 1 UDP encapsulation used for NAT traversal: N SA decrypted packets (number/bytes): 17/1428 Anti-replay : Enable Anti-replay window size: 1024查看华为防火墙的路由表，可以看到自动添加了到 FortiGate 内网的路由。
[USG6000V2]display ip routing-table 2023-04-06 17:32:20.280 +08:00 Route Flags: R - relay, D - download to fib ------------------------------------------------------------------------------ Routing Tables: Public Destinations : 8 Routes : 8 Destination/Mask Proto Pre Cost Flags NextHop Interface 0.0.0.0/0 Static 60 0 D 202.103.23.1 GigabitEthernet1/0/0 10.10.1.0/24 Unr 70 0 D 202.103.13.2 GigabitEthernet1/0/0 10.10.2.0/24 Direct 0 0 D 10.10.2.1 GigabitEthernet1/0/1 10.10.2.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet1/0/1 127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0 127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0 202.103.23.0/24 Direct 0 0 D 202.103.23.2 GigabitEthernet1/0/0 202.103.23.2/32 Direct 0 0 D 127.0.0.1 GigabitEthernet1/0/0华为防火墙侧 PC2 业务测试。
VPCS> show NAME IP/MASK GATEWAY GATEWAY VPCS1 10.10.2.2/24 10.10.2.1 fe80::250:79ff:fe66:6805/64 VPCS> ping 10.10.1.2 84 bytes from 10.10.1.2 icmp_seq=1 ttl=62 time=3.139 ms 84 bytes from 10.10.1.2 icmp_seq=2 ttl=62 time=2.126 ms 84 bytes from 10.10.1.2 icmp_seq=3 ttl=62 time=2.508 ms 84 bytes from 10.10.1.2 icmp_seq=4 ttl=62 time=2.257 ms 84 bytes from 10.10.1.2 icmp_seq=5 ttl=62 time=1.767 msFortiGate 侧抓包查看。
FortiGate # diagnose sniffer packet any 'host 10.10.2.2 and host 10.10.1.2 and icmp' 4 0 l Using Original Sniffing Mode interfaces=[any] filters=[host 10.10.2.2 and host 10.10.1.2 and icmp] 2023-04-06 17:30:20.440445 VPN-to-Remote in 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:20.441055 port3 out 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:20.441296 port3 in 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:20.441308 VPN-to-Remote out 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:21.444661 VPN-to-Remote in 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:21.444753 port3 out 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:21.444962 port3 in 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:21.444969 VPN-to-Remote out 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:22.447197 VPN-to-Remote in 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:22.447332 port3 out 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:22.447520 port3 in 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:22.447527 VPN-to-Remote out 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:23.451289 VPN-to-Remote in 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:23.451454 port3 out 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:23.451667 port3 in 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:23.451676 VPN-to-Remote out 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:24.453906 VPN-to-Remote in 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:24.453939 port3 out 10.10.2.2 -> 10.10.1.2: icmp: echo request 2023-04-06 17:30:24.454165 port3 in 10.10.1.2 -> 10.10.2.2: icmp: echo reply 2023-04-06 17:30:24.454176 VPN-to-Remote out 10.10.1.2 -> 10.10.2.2: icmp: echo reply
说明
关于 sniffer 抓 VPN 业务和 ESP 的包：
抓取 IPsec VPN 的 IKE 协商包：
diagnose sniffer packet any "host 101.1.1.1 and (port 500 or port 4500)" 4抓取 IPsec VPN 的 ESP 加密数据包：
diagnose sniffer packet any "host 101.1.1.1 and esp" 4抓取 IPsec VPN 的明文业务数据包：
diagnose sniffer packet any "host 192.168.112.100 and icmp" 4注意：由于硬件设备存在 IPsec VPN 芯片加速，因此可能数据包会抓不完全，主要指“ESP 数据和明文业务数据”抓不全，因此有时候需要将 VPN 隧道的 NP 加速关闭：
FortiGate # config vpn ipsec phase1-interface FortiGate (phase1-interface) # edit BJ-OSPF-TO-SH FortiGate (BJ-OSPF-TO-SH) # set npu-offload disable FortiGate (BJ-OSPF-TO-SH) # end
