与思科 ASA 防火墙建立 IPSec VPN (IKE v2)
大约 8 分钟
与思科 ASA 防火墙建立 IPSec VPN (IKE v2)
网络需求
如图所示，通过 IPsec VPN（接口模式）将 2 个局域网连接起来，实现 192.168.111.0/24 与 192.168.112.0/24 两个网段的通信。与思科 ASA 防火墙进行 IPsec VPN（IKE v2）对接。

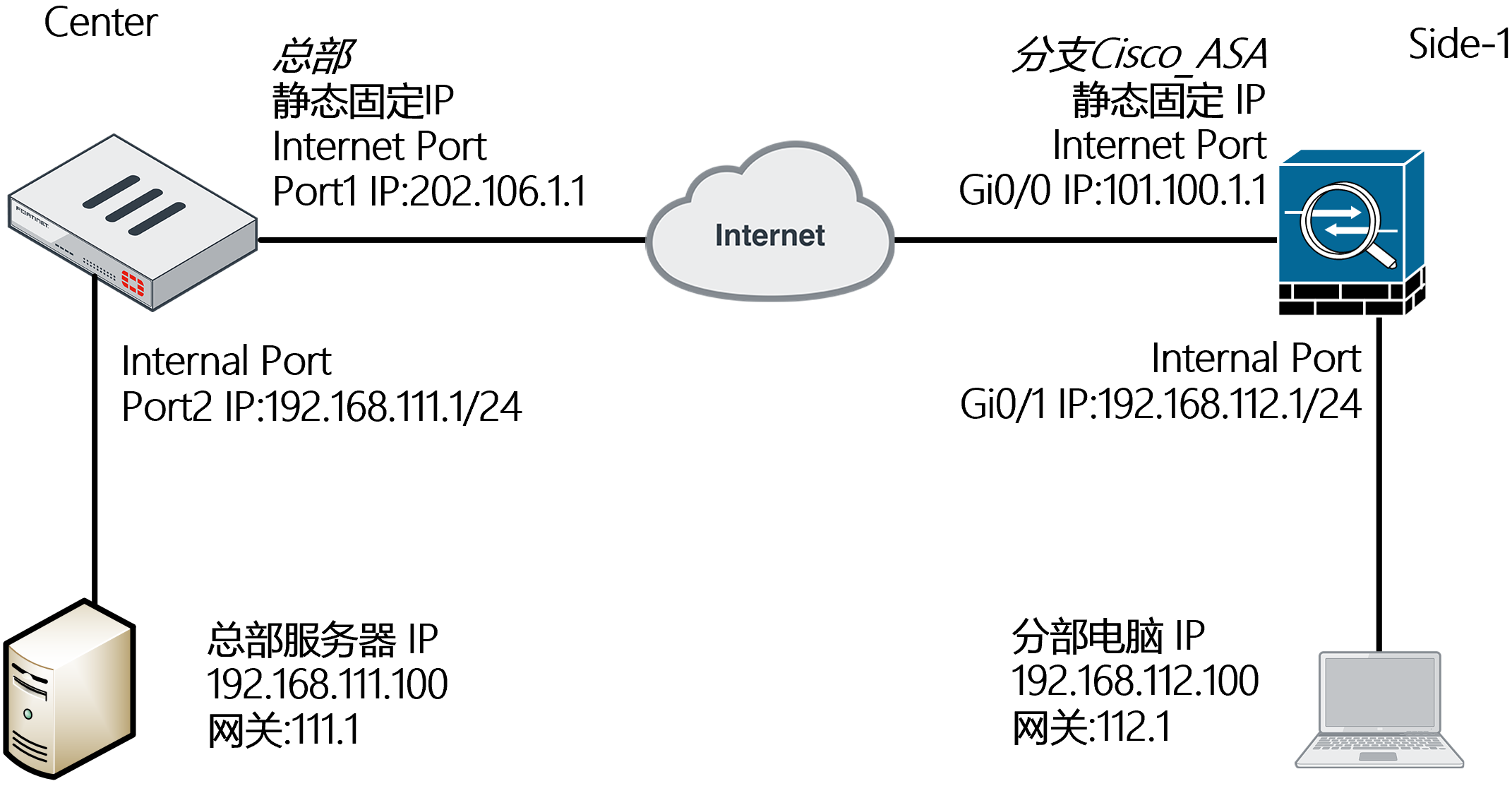

网络拓扑
配置要点
- 配置 FortiGate
- 基本上网配置
- 配置 IPsec VPN
- 配置 Cisco_ASA 防火墙
- 基本上网配置
- 配置 IPsec VPN
- 说明：如果要删除 IPSEC VPN 第一阶段、第二阶段时，需要先删除被调用的路由与防火墙安全策略
配置步骤
FortiGate
基本上网配置。
配置 IPSec VPN，进入 VPN → IPSec 隧道，点击新建 → IPSec 隧道按钮。
选择 IPsec VPN 自定义模板进行配置，点击下一步。
配置网络、认证、第一阶段。
config vpn ipsec phase1-interface edit "VPN-to-Side1" set interface "port1" set ike-version 2 set peertype any set net-device disable set proposal aes128-sha1 set dpd on-idle set remote-gw 101.100.1.1 set psksecret ENC /HISpjoxUQ1RoRXahwT2OpZmuyYsDY818arB4Q93PztlW0oynlDWuKIk1WIAXFLNldoVFlgOOjBk9Bf9tc6LdI/BeD6CmRvgokNIKa5fVnVgxXLzHM9fPGvtRXb362jpxZkMxuKHcNGVrJCimmjVGAS+gixHgh8mRLj5kaMAbyhNX1odwNNgxYcxqap5iAwncL3ZzQ== next end配置第二阶段。
config vpn ipsec phase2-interface edit "VPN-to-Side1" set phase1name "VPN-to-Side1" set proposal aes128-sha1 set auto-negotiate enable next end配置 VPN 相关的网段地址对象和防火墙策略。
config firewall address edit "Local_192.168.111.0/24" set subnet 192.168.111.0 255.255.255.0 next edit "Remote_192.168.112.0/24" set subnet 192.168.112.0 255.255.255.0 next end config firewall policy edit 1 set name "VPN-Local-to-Side1" set srcintf "port2" set dstintf "VPN-to-Side1" set action accept set srcaddr "Local_192.168.111.0/24" set dstaddr "Remote_192.168.112.0/24" set schedule "always" set service "ALL" next edit 2 set name "VPN-Side1-to-Local" set srcintf "VPN-to-Side1" set dstintf "port2" set action accept set srcaddr "Remote_192.168.112.0/24" set dstaddr "Local_192.168.111.0/24" set schedule "always" set service "ALL" next end配置 VPN 业务网段的静态路由。
config router static edit 1 set gateway 202.106.1.254 set device "port1" next edit 2 set dst 192.168.112.0 255.255.255.0 set device "VPN-to-Side1" next edit 3 set dst 192.168.112.0 255.255.255.0 set distance 254 set blackhole enable next end
Cisco Router
基本上网配置。
interface GigabitEthernet0/0 nameif Outside security-level 0 ip address 101.100.1.1 255.255.255.0 no shutdown ! interface GigabitEthernet0/1 nameif Inside security-level 100 ip address 192.168.112.1 255.255.255.0 no shutdown ! route Outside 0.0.0.0 0.0.0.0 101.100.1.254 object network Inside_Net_192.168.112.0 subnet 192.168.112.0 255.255.255.0 object network Inside_Net_192.168.112.0 nat (Inside,Outside) dynamic interface policy-map global_policy class inspection_default inspect icmp inspect icmp errorIPsec IKEv2 的配置。
crypto ikev2 enable Outside crypto ikev2 policy 10 encryption aes-256 aes-192 aes 3des integrity sha256 sha md5 group 14 5 prf sha256 sha md5 lifetime seconds 86400 ! tunnel-group 202.106.1.1 type ipsec-l2l tunnel-group 202.106.1.1 ipsec-attributes ikev2 remote-authentication pre-shared-key Fortinet123# ikev2 local-authentication pre-shared-key Fortinet123# ! crypto ipsec ikev2 ipsec-proposal MY_IPsec_Proposal protocol esp encryption aes-256 aes-192 aes 3des protocol esp integrity sha-256 sha-1 md5 crypto ipsec profile MY_IPsec_Profile set ikev2 ipsec-proposal MY_IPsec_Proposal set security-association lifetime seconds 43200 set security-association lifetime kilobytes unlimited set pfs group5 interface Tunnel0 nameif VPN ip address 1.1.1.2 255.255.255.0 tunnel source interface Outside tunnel destination 202.106.1.1 tunnel mode ipsec ipv4 tunnel protection ipsec profile MY_IPsec_Profile ! management-access Inside //为了可以让Inside接口可以被ping通。 ! route VPN 192.168.111.0 255.255.255.0 1.1.1.1
结果验证
FortiGate 上查看 IPSec 隧道建立，在仪表盘新建 IPSec 监控，可以看到 IPSec 建立成功。
查看 FortiGate 的路由表。
FortiGate # get router info routing-table all Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area * - candidate default Routing table for VRF=0 S* 0.0.0.0/0 [10/0] via 202.106.1.254, port1, [1/0] C 192.168.111.0/24 is directly connected, port2 S 192.168.112.0/24 [10/0] via VPN-to-Side1 tunnel 101.100.1.1, [1/0] C 202.106.1.0/24 is directly connected, port1FortiGate 侧业务测试。
FortiGate # execute ping-options source 192.168.111.1 FortiGate # execute ping 192.168.112.1 PING 192.168.112.1 (192.168.112.1): 56 data bytes 64 bytes from 192.168.112.1: icmp_seq=0 ttl=255 time=1.0 ms 64 bytes from 192.168.112.1: icmp_seq=1 ttl=255 time=1.2 ms 64 bytes from 192.168.112.1: icmp_seq=2 ttl=255 time=0.9 ms 64 bytes from 192.168.112.1: icmp_seq=3 ttl=255 time=1.1 ms 64 bytes from 192.168.112.1: icmp_seq=4 ttl=255 time=1.0 ms --- 192.168.112.1 ping statistics --- 5 packets transmitted, 5 packets received, 0% packet loss round-trip min/avg/max = 0.9/1.0/1.2 ms查看 FortiGate 隧道状态。
FortiGate # diagnose vpn ike gateway list vd: root/0 name: VPN-to-Side1 version: 2 interface: port1 3 addr: 202.106.1.1:500 -> 101.100.1.1:500 tun_id: 101.100.1.1/::101.100.1.1 remote_location: 0.0.0.0 network-id: 0 created: 36s ago PPK: no IKE SA: created 1/1 established 1/1 time 0/0/0 ms IPsec SA: created 1/1 established 1/1 time 0/0/0 ms id/spi: 134 11aa3d39fcd93c44/852e6b5523a3345d direction: initiator status: established 36-36s ago = 0ms proposal: aes256-sha1 child: no SK_ei: 88ce24e4a2611994-bffb25c2d0ba869b-57e6a55b89508df1-b570966836823c48 SK_er: 0dadc56cac99ad39-b507dff27d037bb1-33c8ef3555410c03-7e8383322010cb35 SK_ai: 7481bc53c4d20b62-c9770a0695f2a2a1-0209ff70 SK_ar: 150cadb3c206c29d-49f33c62d553fb0c-f87d3bf1 PPK: no message-id sent/recv: 2/3 lifetime/rekey: 86400/86063 DPD sent/recv: 00000000/00000000 FortiGate # diagnose vpn tunnel list list all ipsec tunnel in vd 0 ------------------------------------------------------ name=VPN-to-Side1 ver=2 serial=1 202.106.1.1:0->101.100.1.1:0 tun_id=101.100.1.1 tun_id6=::101.100.1.1 dst_mtu=1500 dpd-link=on weight=1 bound_if=3 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0 proxyid_num=1 child_num=0 refcnt=4 ilast=12 olast=12 ad=/0 stat: rxp=0 txp=0 rxb=0 txb=0 dpd: mode=on-idle on=1 idle=20000ms retry=3 count=0 seqno=37 natt: mode=none draft=0 interval=0 remote_port=0 proxyid=VPN-to-Side1 proto=0 sa=1 ref=2 serial=1 auto-negotiate src: 0:0.0.0.0-255.255.255.255:0 dst: 0:0.0.0.0-255.255.255.255:0 SA: ref=3 options=38203 type=00 soft=0 mtu=1438 expire=42847/0B replaywin=2048 seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1 life: type=01 bytes=0/0 timeout=42903/43200 dec: spi=24c2ab68 esp=aes key=16 3de80d9ea806f7d02167116ef729d135 ah=sha1 key=20 f05476e4cee8fab25811105c92ea6e5ccf8fd1e4 enc: spi=0dd3fc4c esp=aes key=16 def29e57dd9b54801a3f31b9a6a920cb ah=sha1 key=20 adbfb39e5fe95fb385215da6a73113902bed6c4f dec:pkts/bytes=0/0, enc:pkts/bytes=0/0 npu_flag=00 npu_rgwy=101.100.1.1 npu_lgwy=202.106.1.1 npu_selid=0 dec_npuid=0 enc_npuid=0 run_tally=0Cisco_Router 侧业务测试。
ciscoasa#ping 192.168.111.1 source 192.168.112.1 repeat 100 Type escape sequence to abort. Sending 100, 100-byte ICMP Echos to 192.168.111.1, timeout is 2 seconds: Packet sent with a source address of 192.168.112.1 !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!! Success rate is 100 percent (100/100), round-trip min/avg/max = 1/4/7 ms ciscoasa(config)# show crypto ikev2 sa IKEv2 SAs: Session-id:2, Status:UP-ACTIVE, IKE count:1, CHILD count:1 Tunnel-id Local Remote Status Role 38557965 101.100.1.1/500 202.106.1.1/500 READY RESPONDER Encr: AES-CBC, keysize: 256, Hash: SHA96, DH Grp:14, Auth sign: PSK, Auth verify: PSK Life/Active Time: 86400/73 sec Child sa: local selector 0.0.0.0/0 - 255.255.255.255/65535 remote selector 0.0.0.0/0 - 255.255.255.255/65535 ESP spi in/out: 0xdd3fc4c/0x24c2ab68FortiGate 侧抓包查看。
FortiGate # dia sni pa any "host 192.168.112.1 or host 101.100.1.1" 4 Using Original Sniffing Mode interfaces=[any] filters=[host 192.168.112.1 or host 101.100.1.1] 9.068586 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request 9.068748 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x0dd3fc4c,seq=0x2) 9.072619 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x24c2ab68,seq=0x1) 9.072669 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply 10.069075 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request 10.069097 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x0dd3fc4c,seq=0x3) 10.071135 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x24c2ab68,seq=0x2) 10.071155 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply 11.069398 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request 11.069418 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x0dd3fc4c,seq=0x4) 11.071456 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x24c2ab68,seq=0x3) 11.071483 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply 12.069674 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request 12.069695 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x0dd3fc4c,seq=0x5) 12.071430 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x24c2ab68,seq=0x4) 12.071450 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply 13.069841 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request 13.069861 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x0dd3fc4c,seq=0x6) 13.071790 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x24c2ab68,seq=0x5) 13.071809 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply
说明
关于 sniffer 抓 VPN 业务和 ESP 的包：
抓取 IPsec VPN 的 IKE 协商包：
diagnose sniffer packet any "host 101.1.1.1 and (port 500 or port 4500)" 4抓取 IPsec VPN 的 ESP 加密数据包：
diagnose sniffer packet any "host 101.1.1.1 and esp" 4抓取 IPsec VPN 的明文业务数据包：
diagnose sniffer packet any "host 192.168.112.100 and icmp" 4注意：由于硬件设备存在 IPsec VPN 芯片加速，因此可能数据包会抓不完全，主要指“ESP 数据和明文业务数据”抓不全，因此有时候需要将 VPN 隧道的 NP 加速关闭：
FortiGate # config vpn ipsec phase1-interface FortiGate (phase1-interface) # edit BJ-OSPF-TO-SH FortiGate (BJ-OSPF-TO-SH) # set npu-offload disable FortiGate (BJ-OSPF-TO-SH) # end
Cisco Router IPsec VPN 传统的 Crypto MAP 的配置方式（上述为 VTI 方式的 IPsec VPN）。
FortiGate 只需要修改IPsec VPN的第二阶段（添加明确的感兴趣流即可），其他的所有配置不变： config vpn ipsec phase2-interface edit "VPN-TO-Side1" set phase1name "VPN-TO-Side1" set proposal 3des-md5 aes128-sha1 set auto-negotiate enable set src-subnet 192.168.111.0 255.255.255.0 set dst-subnet 192.168.112.0 255.255.255.0 next end Cisco_ASA配置： hostname ASA-FW ! interface GigabitEthernet0/0 nameif Outside security-level 0 ip address 101.100.1.1 255.255.255.0 ! interface GigabitEthernet0/1 nameif Inside security-level 100 ip address 192.168.112.1 255.255.255.0 ! route Outside 0.0.0.0 0.0.0.0 101.100.1.254 1 object network Inside_Net_192.168.112.0 subnet 192.168.112.0 255.255.255.0 object network Inside_Net_192.168.112.0 nat (Inside,Outside) dynamic interface object network Remote_VPN_Net_192.168.111.0 subnet 192.168.111.0 255.255.255.0 policy-map global_policy class inspection_default inspect icmp inspect icmp error crypto ikev2 enable Outside crypto ikev2 policy 10 encryption aes-256 aes-192 aes 3des integrity sha256 sha md5 group 14 5 prf sha256 sha md5 lifetime seconds 86400 tunnel-group 202.106.1.1 type ipsec-l2l tunnel-group 202.106.1.1 ipsec-attributes ikev2 remote-authentication pre-shared-key Fortinet123# ikev2 local-authentication pre-shared-key Fortinet123# crypto ipsec ikev2 ipsec-proposal MY_IPsec_Proposal protocol esp encryption aes-256 aes-192 aes 3des protocol esp integrity sha-256 sha-1 md5 access-list VPN-Traffic extended permit ip object Inside_Net_192.168.112.0 object Remote_VPN_Net_192.168.111.0 crypto map MY_IPsec_MAP 10 match address VPN-Traffic crypto map MY_IPsec_MAP 10 set pfs group5 crypto map MY_IPsec_MAP 10 set peer 202.106.1.1 crypto map MY_IPsec_MAP 10 set ikev2 ipsec-proposal MY_IPsec_Proposal crypto map MY_IPsec_MAP interface Outside nat (Inside,Outside) source static Inside_Net_192.168.112.0 Inside_Net_192.168.112.0 destination static Remote_VPN_Net_192.168.111.0 Remote_VPN_Net_192.168.111.0 //使用Twice NAT将VPN流量在NAT中Bypass掉
注意事项

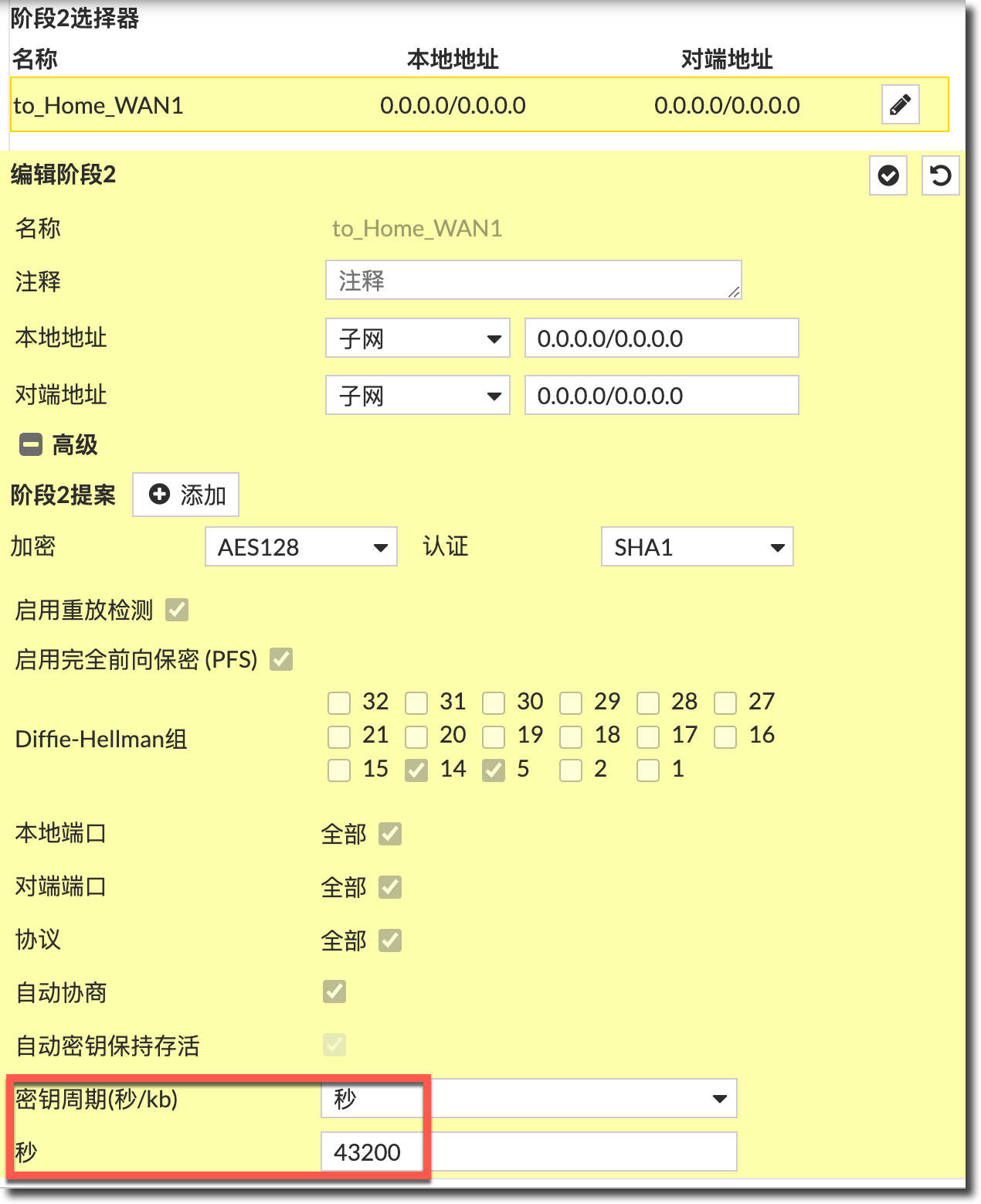

默认配置下，FortiGate 只使用时间到期作为二阶段 rekey 的条件，当二阶段配置的时间倒计时结束，则发起二阶段的 rekey。

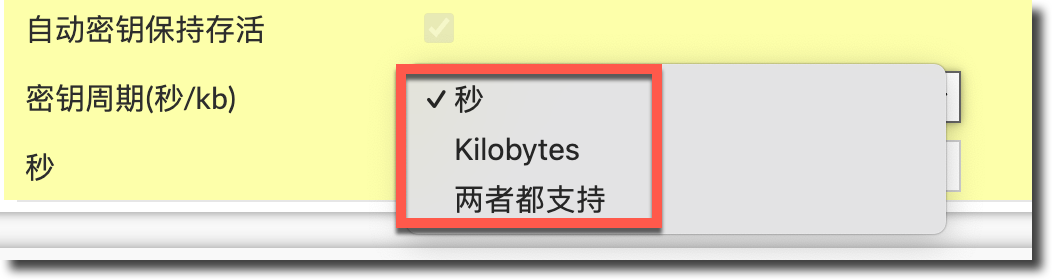

FortiGate 可以使用流量作为 rekey 的条件，也可以同时使用时间（秒）和流量（KB）同时作为 rekey 的条件，当其中一个条件达到配置的数量时，则发起二阶段 rekey。
对于 Cisco ASA 防火墙，默认配置下同时使用时间（秒）和流量（KB）同时作为 rekey 的条件，默认的配置为 4608000 KB 和 3600 秒。当其中一个条件达到配置的数量时，则发起二阶段 rekey。这样可能会导致 IPSec 隧道二阶段频繁的 rekey。
通过如下命令配置 Cisco ASA 只使用时间作为二阶段 rekey 条件。
crypto ipsec profile MY_IPsec_Pro set security-association lifetime kilobytes unlimited
