与思科路由器建立 IPSec VPN (IKE v1)

大约 6 分钟

与思科路由器建立 IPSec VPN (IKE v1)

网络需求

如图所示，通过 IPsec VPN（接口模式）将 2 个局域网连接起来，实现 192.168.111.0/24 与 192.168.112.0/24 两个网段的通信。与思科路由器进行 IPsec VPN（IKE v1）对接。

网络拓扑

image-20230107184945158

配置要点

  • 配置 FortiGate
    • 基本上网配置
    • 配置 IPsec VPN
  • 配置 Cisco_Router
    • 基本上网配置
    • 配置 IPsec VPN
  • 说明：如果要删除 IPSEC VPN 第一阶段、第二阶段时，需要先删除被调用的路由与防火墙安全策略

配置步骤

FortiGate

  1. 基本上网配置。

    image-20230107185414663image-20230107185524335

  2. 配置 IPSec VPN，进入 VPN → IPSec 隧道，点击新建 → IPSec 隧道按钮。

    image-20230107185632247

  3. 选择 IPsec VPN 自定义模板进行配置，点击下一步。

    image-20230107185800178

  4. 配置网络、认证、第一阶段。

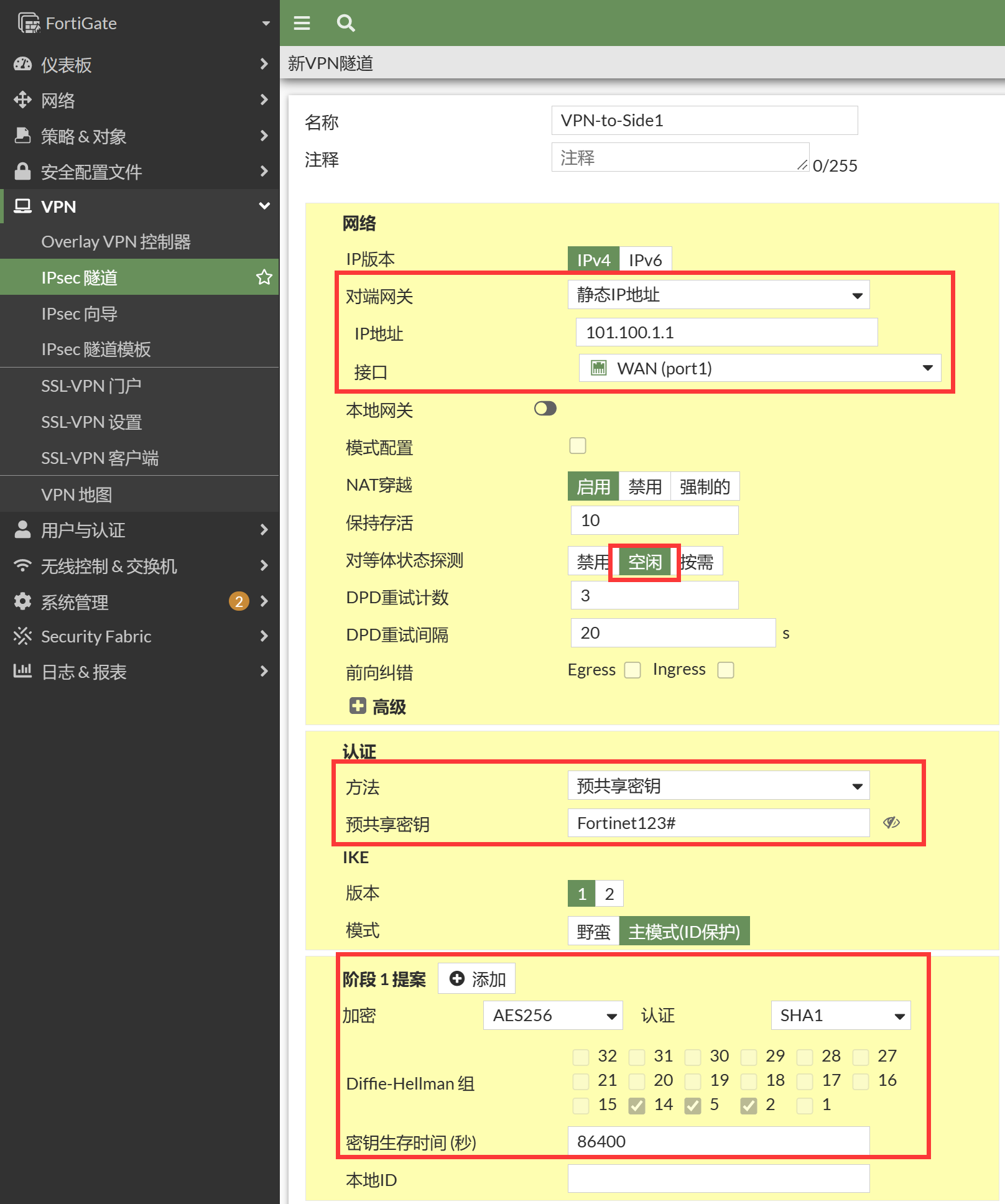

    image-20230107190014497
    config vpn ipsec phase1-interface
    edit "VPN-to-Side1"
        set interface "port1"
        set peertype any
        set net-device disable
        set proposal aes256-sha1
        set dpd on-idle
        set dhgrp 14 5 2
        set remote-gw 101.100.1.1
        set psksecret ENC /HISpjoxUQ1RoRXahwT2OpZmuyYsDY818arB4Q93PztlW0oynlDWuKIk1WIAXFLNldoVFlgOOjBk9Bf9tc6LdI/BeD6CmRvgokNIKa5fVnVgxXLzHM9fPGvtRXb362jpxZkMxuKHcNGVrJCimmjVGAS+gixHgh8mRLj5kaMAbyhNX1odwNNgxYcxqap5iAwncL3ZzQ==
    next
end

  5. 配置第二阶段。

    image-20230107190227294
    config vpn ipsec phase2-interface
    edit "VPN-to-Side1"
        set phase1name "VPN-to-Side1"
        set proposal aes128-sha1
        set auto-negotiate enable
    next
end

  6. 配置 VPN 相关的网段地址对象和防火墙策略。

    image-20230107190621545image-20230107190854693
    config firewall address
    edit "Local_192.168.111.0/24"
        set uuid 3bff7c90-8e7b-51ed-5311-ca9abc900a91
        set subnet 192.168.111.0 255.255.255.0
    next
    edit "Remote_192.168.112.0/24"
        set uuid 4647b500-8e7b-51ed-ea6f-c0ec2647bb42
        set subnet 192.168.112.0 255.255.255.0
    next
end

config firewall policy
    edit 1
        set name "VPN-Local-to-Side1"
        set uuid 7d1e7ce4-8e7b-51ed-19ea-001e373a03f3
        set srcintf "port2"
        set dstintf "VPN-to-Side1"
        set action accept
        set srcaddr "Local_192.168.111.0/24"
        set dstaddr "Remote_192.168.112.0/24"
        set schedule "always"
        set service "ALL"
    next
    edit 2
        set name "VPN-Side1-to-Local"
        set uuid 96c924d2-8e7b-51ed-f2d1-a61215d677f8
        set srcintf "VPN-to-Side1"
        set dstintf "port2"
        set action accept
        set srcaddr "Remote_192.168.112.0/24"
        set dstaddr "Local_192.168.111.0/24"
        set schedule "always"
        set service "ALL"
    next
end

  7. 配置 VPN 业务网段的静态路由。

    image-20230107191059898
    config router static
    edit 1
        set gateway 202.106.1.254
        set device "port1"
    next
    edit 2
        set dst 192.168.112.0 255.255.255.0
        set device "VPN-to-Side1"
    next
    edit 3
        set dst 192.168.112.0 255.255.255.0
        set distance 254
        set blackhole enable
    next
end

Cisco Router

  1. 基本上网配置。

     interface Ethernet0/0
 ip address 101.100.1.1 255.255.255.0
 ip nat outside
 no shutdown
 !
 interface Ethernet0/1
 ip address 192.168.112.1 255.255.255.0
 ip nat inside
 no shutdown
 !
 ip nat inside source list 101 interface Ethernet0/0 overload
 ip route 0.0.0.0 0.0.0.0 101.100.1.254
 !
 access-list 101 permit ip any any

  2. IPsec IKE v1 的配置。

    crypto isakmp policy 10
 encr aes 256
 hash sha
 authentication pre-share
 group 5
 !
 crypto isakmp key Fortinet123# address 202.106.1.1
 crypto isakmp keepalive 10 periodic
 !
 crypto ipsec transform-set MY-Trans esp-aes esp-sha-hmac
  mode tunnel
 !
 crypto ipsec profile MY-IPsec-Pro
  set transform-set MY-Trans
  set pfs group5
 !
 interface Tunnel0
  ip address 1.1.1.2 255.255.255.0
  ip mtu 1400
  tunnel source Ethernet0/0
  tunnel mode ipsec ipv4
  tunnel destination 202.106.1.1
  tunnel protection ipsec profile MY-IPsec-Pro
 !
 ip route 192.168.111.0 255.255.255.0 Tunnel0 1.1.1.1

结果验证

  1. FortiGate 上查看 IPSec 隧道建立，在仪表盘新建 IPSec 监控，可以看到 IPSec 建立成功。

    image-20230107193250578

  2. 查看 FortiGate 的路由表。

    FortiGate # get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 202.106.1.254, port1, [1/0]
C       192.168.111.0/24 is directly connected, port2
S       192.168.112.0/24 [10/0] via VPN-to-Side1 tunnel 101.100.1.1, [1/0]
C       202.106.1.0/24 is directly connected, port1

  3. FortiGate 侧业务测试。

    FortiGate # execute ping-options source 192.168.111.1
FortiGate # execute ping 192.168.112.1
PING 192.168.112.1 (192.168.112.1): 56 data bytes
64 bytes from 192.168.112.1: icmp_seq=0 ttl=255 time=1.0 ms
64 bytes from 192.168.112.1: icmp_seq=1 ttl=255 time=1.2 ms
64 bytes from 192.168.112.1: icmp_seq=2 ttl=255 time=0.9 ms
64 bytes from 192.168.112.1: icmp_seq=3 ttl=255 time=1.1 ms
64 bytes from 192.168.112.1: icmp_seq=4 ttl=255 time=1.0 ms
--- 192.168.112.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.9/1.0/1.2 ms

  4. FortiGate 查看隧道建立状态。

    FortiGate # diagnose vpn ike gateway list
vd: root/0
name: VPN-to-Side1
version: 1
interface: port1 3
addr: 202.106.1.1:500 -> 101.100.1.1:500
tun_id: 101.100.1.1/::101.100.1.1
remote_location: 0.0.0.0
network-id: 0
created: 449s ago
IKE SA: created 1/2  established 1/1  time 0/0/0 ms
IPsec SA: created 2/2  established 1/1  time 0/0/0 ms
  id/spi: 58 584e6c9052795a25/a433e7123ece6706
  direction: responder
  status: established 423-423s ago = 0ms
  proposal: aes256-sha1
  key: 447062de7f9b419b-37148f8d51b0e3be-dab2d73c40ed2fcc-48619811c9f95b96
  lifetime/rekey: 86400/85706
  DPD sent/recv: 00000000/6f07eaf6

FortiGate # diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=VPN-to-Side1 ver=1 serial=1 202.106.1.1:0->101.100.1.1:0 tun_id=101.100.1.1 tun_id6=::101.100.1.1 dst_mtu=1500 dpd-link=on weight=1
bound_if=3 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overla0
proxyid_num=1 child_num=0 refcnt=4 ilast=5 olast=5 ad=/0
stat: rxp=110 txp=115 rxb=10840 txb=11260
dpd: mode=on-idle on=1 idle=20000ms retry=3 count=0 seqno=2
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=VPN-to-Side1 proto=0 sa=1 ref=2 serial=1 auto-negotiate
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=38203 type=00 soft=0 mtu=1438 expire=2905/0B replaywin=2048
       seqno=74 esn=0 replaywin_lastseq=0000006e qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=3333/3600
  dec: spi=148a81f0 esp=aes key=16 810f57e8981275c305be8c7fe3e6231d
       ah=sha1 key=20 7f9b004e1340ab3614dc359e50bf1ba5110ca6b6
  enc: spi=41a02d8a esp=aes key=16 81e238bdfb77856910326d4b40ac4bef
       ah=sha1 key=20 8785688516cc98c13b79d0008333db7b0a6f6dc7
  dec:pkts/bytes=220/21680, enc:pkts/bytes=230/30340
  npu_flag=00 npu_rgwy=101.100.1.1 npu_lgwy=202.106.1.1 npu_selid=0 dec_npuid=0 enc_npuid=0
run_tally=0

  5. Cisco_Router 侧业务测试。

    Router#ping 192.168.111.1 source 192.168.112.1 repeat 100
Type escape sequence to abort.
Sending 100, 100-byte ICMP Echos to 192.168.111.1, timeout is 2 seconds:
Packet sent with a source address of 192.168.112.1
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Success rate is 100 percent (100/100), round-trip min/avg/max = 1/4/7 ms

Router#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst             src             state          conn-id status
202.106.1.1     101.100.1.1     QM_IDLE           1002 ACTIVE

  6. FortiGate 侧抓包查看。

    FortiGate # dia sni pa any "host 192.168.112.1 or host 101.100.1.1" 4
Using Original Sniffing Mode
interfaces=[any]
filters=[host 192.168.112.1 or host 101.100.1.1]
2.729115 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request
2.729136 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x41a02d8a,seq=0x7a)
2.730083 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x148a81f0,seq=0x74)
2.730098 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply
3.729410 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request
3.729430 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x41a02d8a,seq=0x7b)
3.730364 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x148a81f0,seq=0x75)
3.730382 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply
4.729580 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request
4.729600 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x41a02d8a,seq=0x7c)
4.730377 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x148a81f0,seq=0x76)
4.730397 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply
5.729921 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request
5.729941 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x41a02d8a,seq=0x7d)
5.731016 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x148a81f0,seq=0x77)
5.731031 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply
6.730170 VPN-to-Side1 out 192.168.111.1 -> 192.168.112.1: icmp: echo request
6.730191 port1 out 202.106.1.1 -> 101.100.1.1: ESP(spi=0x41a02d8a,seq=0x7e)
6.731200 port1 in 101.100.1.1 -> 202.106.1.1: ESP(spi=0x148a81f0,seq=0x78)
6.731219 VPN-to-Side1 in 192.168.112.1 -> 192.168.111.1: icmp: echo reply

说明

  1. 关于 sniffer 抓 VPN 业务和 ESP 的包：

    • 抓取 IPsec VPN 的 IKE 协商包：

      diagnose sniffer packet any "host 101.1.1.1 and (port 500 or port 4500)" 4

    • 抓取 IPsec VPN 的 ESP 加密数据包：

      diagnose sniffer packet any "host 101.1.1.1 and esp" 4

    • 抓取 IPsec VPN 的明文业务数据包：

      diagnose sniffer packet any "host 192.168.112.100 and icmp" 4

    • 注意：由于硬件设备存在 IPsec VPN 芯片加速，因此可能数据包会抓不完全，主要指“ESP 数据和明文业务数据”抓不全，因此有时候需要将 VPN 隧道的 NP 加速关闭：

      FortiGate # config vpn ipsec phase1-interface
FortiGate (phase1-interface) # edit BJ-OSPF-TO-SH
FortiGate (BJ-OSPF-TO-SH) # set npu-offload disable
FortiGate (BJ-OSPF-TO-SH) # end

  2. 附 Cisco Router IPsec VPN 传统的 Crypto MAP 的配置方式（上述为 VTI 方式的 IPsec VPN）。

    FortiGate二阶段配置：

config vpn ipsec phase2-interface
    edit "VPN-TO-Side1"
        set phase1name "VPN-TO-Side1"
        set proposal 3des-md5 aes128-sha1
        set auto-negotiate enable
        set src-subnet 192.168.111.0 255.255.255.0
        set dst-subnet 192.168.112.0 255.255.255.0
    next
end

Cisco_Router 配置：

hostname Side_Router
!
interface Ethernet0/0
ip address 101.100.1.1 255.255.255.0
ip nat outside
crypto map MY_MAP
!
interface Ethernet0/1
ip address 192.168.112.1 255.255.255.0
ip nat inside
!
ip route 0.0.0.0 0.0.0.0 101.100.1.254

access-list 101 deny ip 192.168.112.0 0.0.0.255 192.168.111.0 0.0.0.255  //NAT Bypass掉VPN的流量
access-list 101 permit ip any any

ip nat inside source list 101 interface Ethernet0/0 overload
!
!
crypto isakmp policy 10
 encr aes 256
 hash sha
 authentication pre-share
 group 5

crypto isakmp key Fortinet123# address 202.106.1.1
crypto isakmp keepalive 10 periodic
!
!
crypto ipsec transform-set MY-Trans esp-aes esp-sha-hmac
 mode tunnel
!
access-list 102 permit ip 192.168.112.0 0.0.0.255 192.168.111.0 0.0.0.255
!
crypto map MY_MAP 10 ipsec-isakmp
 set peer 202.106.1.1
 set transform-set MY-Trans
 set pfs group5
 match address 102
