VPN 隧道上运行 OSPF 或 BGP

2025/10/29大约 4 分钟

VPN 隧道上运行 OSPF 或 BGP

网络需求

通过 IPsec VPN（接口模式）将 2 个局域网连接起来，实现 192.168.0.0/24 与 192.168.1.0/24 两个网段的通信。FGT - BJ 和 FGT - SH 通过 OSPF 或者 BGP 协议动态的学习到对方的路由。

网络拓扑

配置步骤

以 FGT - BJ 配置步骤为例，FGT - SH 同理。

1.基本配置

配置接口 IP 和路由

2.配置 IPSEC VPN

选择“VPN”-->“IPsec 隧道”，点击“新建”，选择“IPsec 隧道”。

选择“自定义”

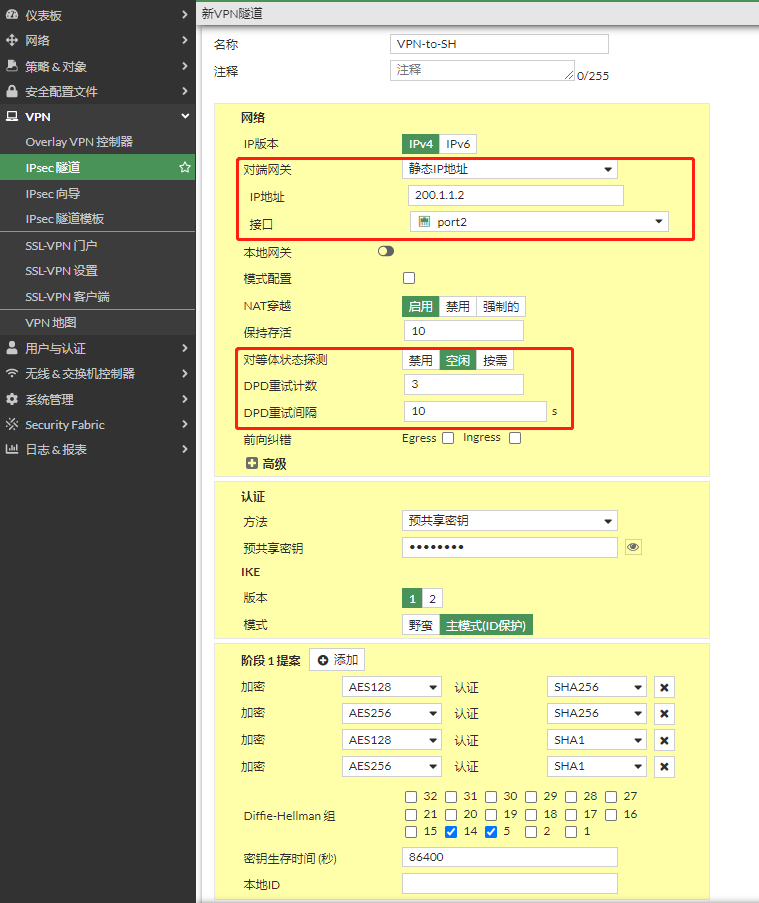

IPSEC VPN 阶段一配置

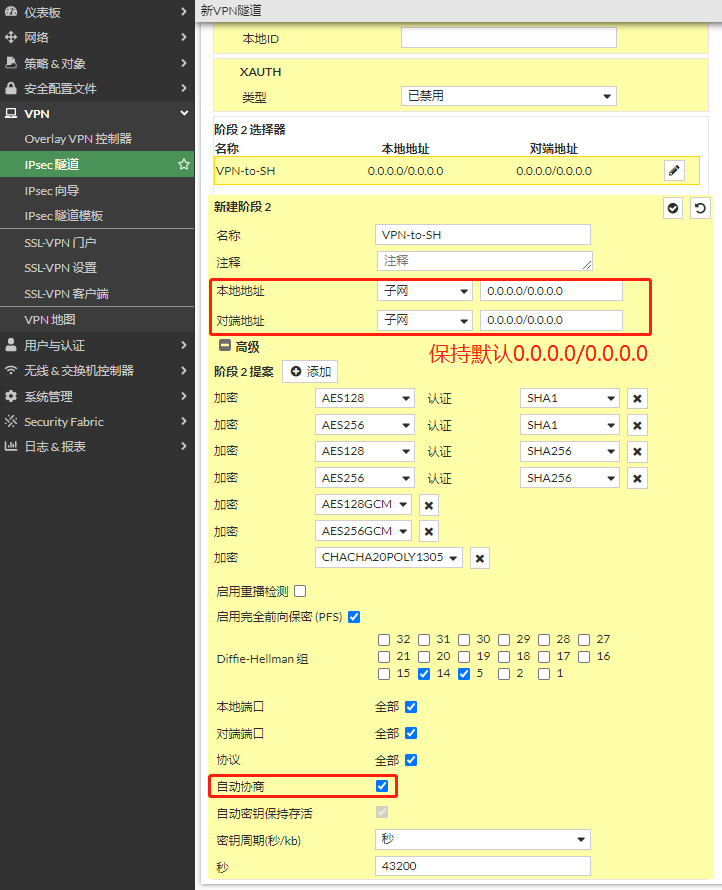

IPSEC VPN 阶段二配置

3.配置 IPSEC 策略

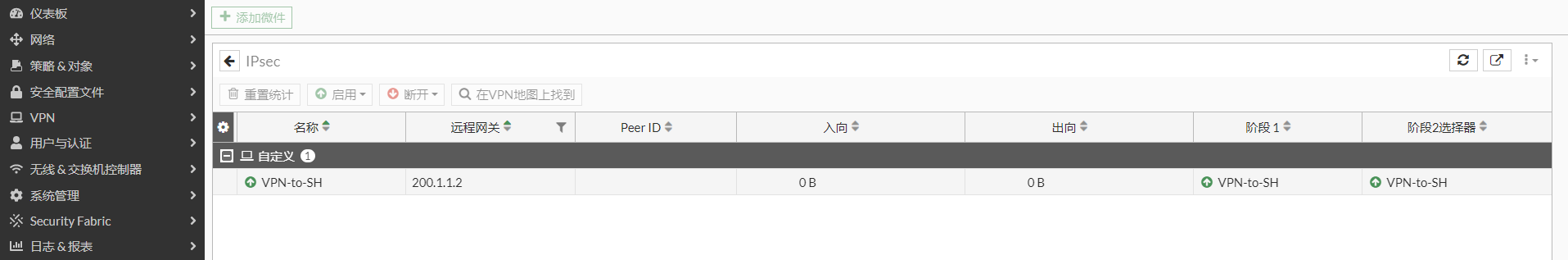

4.查看 IPSEC 状态

如果对端配置已配置完成，此时 IPSEC 状态是 UP 的。

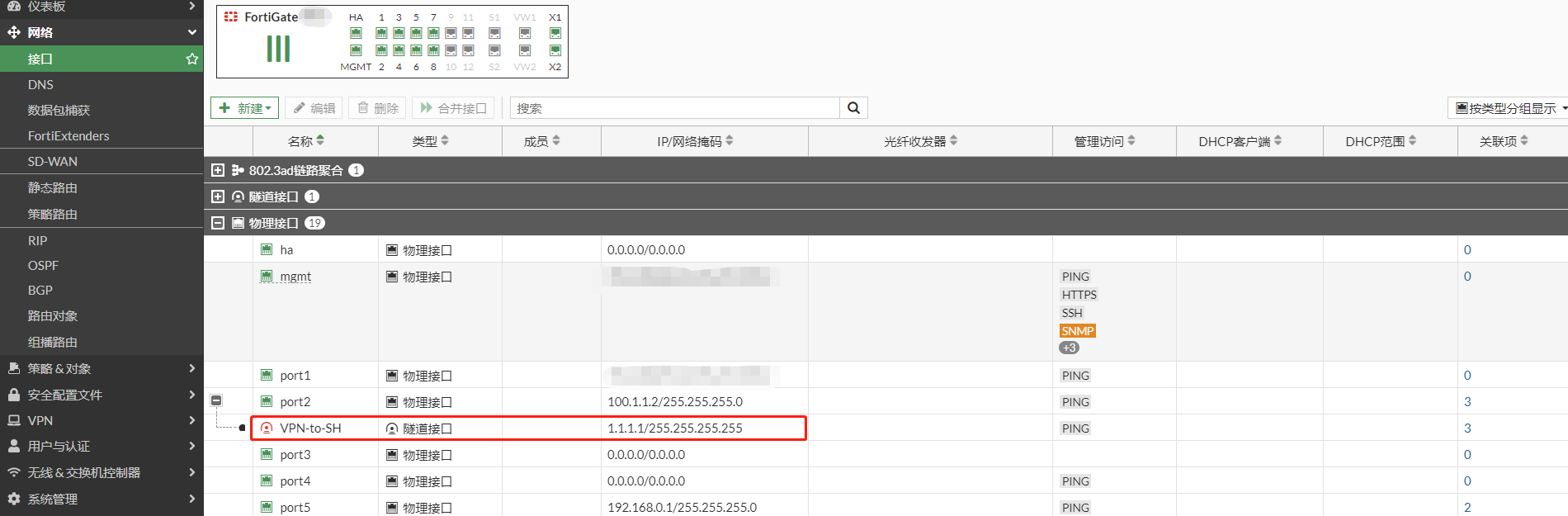

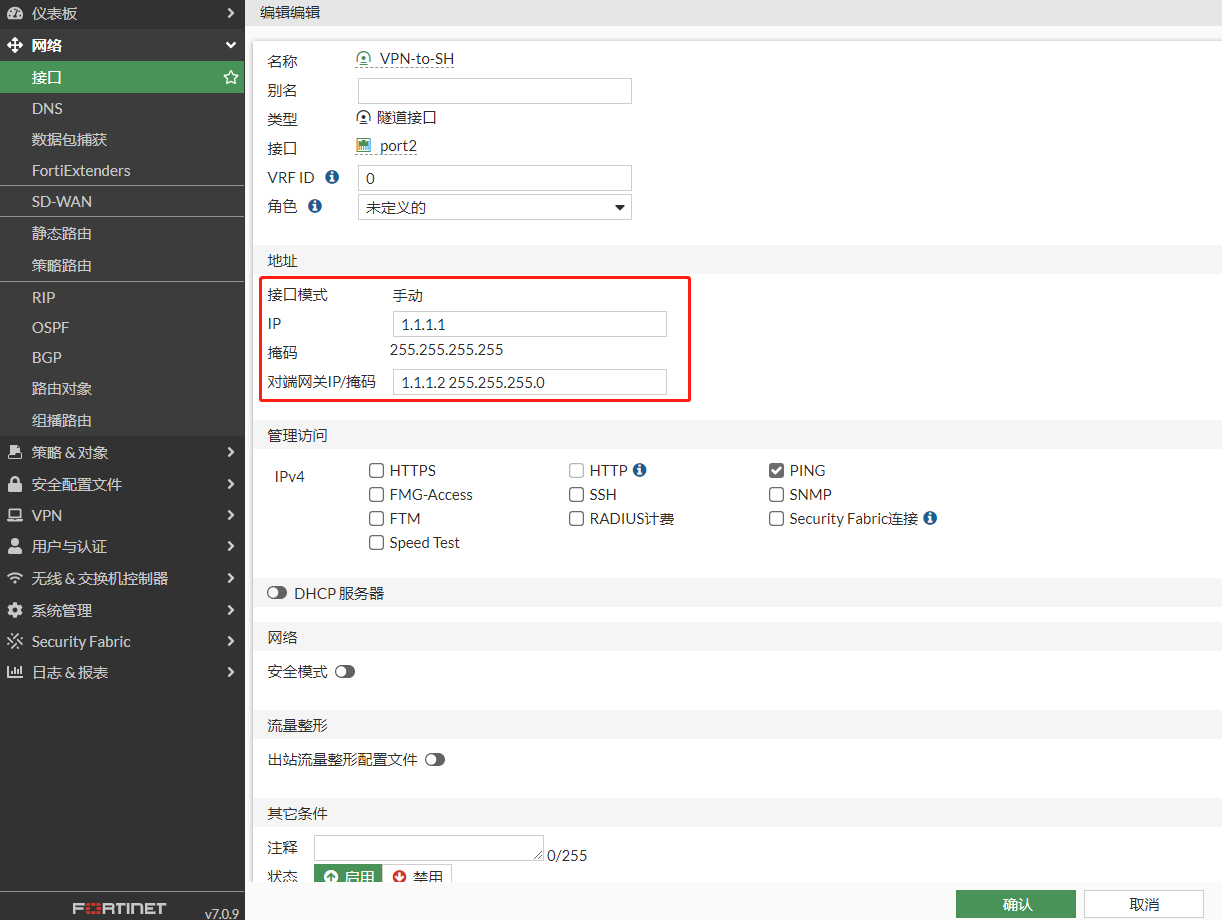

5.配置 IPSEC 接口 IP

为隧道接口分配 IP 用于动态路由协议

对应的命令行

config system interface
    edit "VPN-to-SH"
        set vdom "root"
        set ip 1.1.1.1 255.255.255.255
        set allowaccess ping
        set type tunnel
        set remote-ip 1.1.1.2 255.255.255.0
        set interface "port2"
    next
end

查看路由表

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port2, [1/0]
S       1.1.1.0/24 [5/0] via VPN-to-SH tunnel 200.1.1.2, [1/0]
C       1.1.1.1/32 is directly connected, VPN-to-SH
C       100.1.1.0/24 is directly connected, port2
C       192.168.0.0/24 is directly connected, port5

ping 测试，能够正常 ping 通对端的 IPSEC 接口地址

# execute ping-options source 1.1.1.1
# execute ping 1.1.1.2
PING 1.1.1.2 (1.1.1.2): 56 data bytes
64 bytes from 1.1.1.2: icmp_seq=0 ttl=255 time=0.5 ms
64 bytes from 1.1.1.2: icmp_seq=1 ttl=255 time=0.4 ms
64 bytes from 1.1.1.2: icmp_seq=2 ttl=255 time=0.5 ms
64 bytes from 1.1.1.2: icmp_seq=3 ttl=255 time=0.6 ms
64 bytes from 1.1.1.2: icmp_seq=4 ttl=255 time=0.5 ms

--- 1.1.1.2 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.4/0.5/0.6 ms

6.使用 OSPF 或者 BGP 学习路由

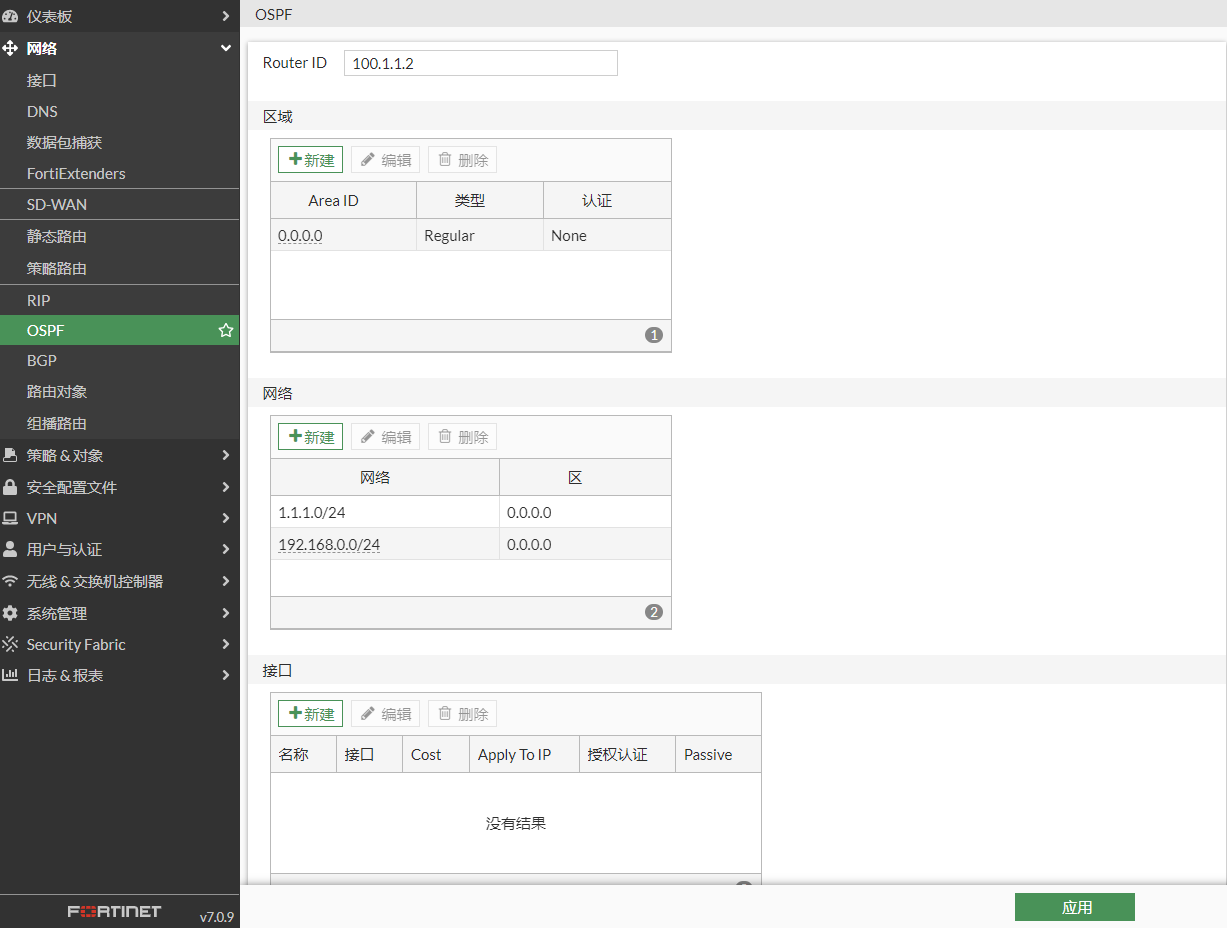

配置 OSPF

当对端也配置完成后，则可以建立 OSPF 邻居，并学习到对端的路由。

# get router info ospf neighbor
OSPF process 0, VRF 0:
Neighbor ID     Pri   State           Dead Time   Address         Interface
200.1.1.2         1   Full/ -         00:00:39    1.1.1.2         VPN-to-SH(tun-id:200.1.1.2)

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port2, [1/0]
S       1.1.1.0/24 [5/0] via VPN-to-SH tunnel 200.1.1.2, [1/0]
C       1.1.1.1/32 is directly connected, VPN-to-SH
O       1.1.1.2/32 [110/100] via VPN-to-SH tunnel 200.1.1.2, 00:01:44
C       100.1.1.0/24 is directly connected, port2
C       192.168.0.0/24 is directly connected, port5
O       192.168.1.0/24 [110/101] via VPN-to-SH tunnel 200.1.1.2, 00:01:4

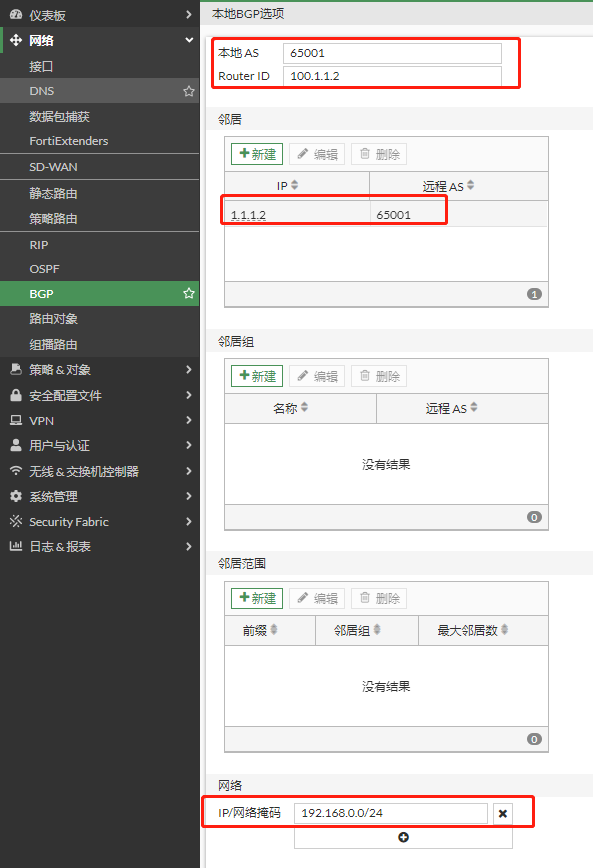

配置 BGP

当对端也配置完成后，则可以建立 BGP 邻居，并学习到对端的路由。

# get router info bgp neighbors
VRF 0 neighbor table:
BGP neighbor is 1.1.1.2, remote AS 65001, local AS 65001, internal link
  BGP version 4, remote router ID 200.1.1.2
  BGP state = Established, up for 00:08:37
  Last read 00:00:03, hold time is 180, keepalive interval is 60 seconds
  Configured hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    Route refresh: advertised and received (old and new)
    Address family IPv4 Unicast: advertised and received
    Address family IPv6 Unicast: advertised and received
  Received 12 messages, 0 notifications, 0 in queue
  Sent 12 messages, 0 notifications, 0 in queue
  Route refresh request: received 0, sent 0
  NLRI treated as withdraw: 0
  Minimum time between advertisement runs is 30 seconds
  Update source is VPN-to-SH
 For address family: IPv4 Unicast
  BGP table version 1, neighbor version 1
  Index 1, Offset 0, Mask 0x2
  Inbound soft reconfiguration allowed
  NEXT_HOP is always this router
  Community attribute sent to this neighbor (both)
  0 accepted prefixes, 0 prefixes in rib
  1 announced prefixes
 For address family: IPv6 Unicast
  BGP table version 1, neighbor version 1
  Index 1, Offset 0, Mask 0x2
  Community attribute sent to this neighbor (both)
  0 accepted prefixes, 0 prefixes in rib
  0 announced prefixes
 Connections established 1; dropped 0
Local host: 1.1.1.1, Local port: 179
Foreign host: 1.1.1.2, Foreign port: 15455
Egress interface: 41
Nexthop: 1.1.1.1
Nexthop interface: VPN-to-SH
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network

# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port2, [1/0]
S       1.1.1.0/24 [5/0] via VPN-to-SH tunnel 200.1.1.2, [1/0]
C       1.1.1.1/32 is directly connected, VPN-to-SH
C       100.1.1.0/24 is directly connected, port2
C       192.168.0.0/24 is directly connected, port5
