FortiGuard DDNS 方式建立 IPSec VPN

2025/10/29大约 4 分钟

FortiGuard DDNS 方式建立 IPSec VPN

网络需求

FGT - BJ port2 为静态固定 IP 地址，FGT - SH port2 为 PPPOE/DHCP 动态拨号获取的 IP 地址，需要通过 IPsec VPN 将两个局域网连接起来，实现 192.168.0.0/24 与 192.168.1.0/24 两个网段的通信。

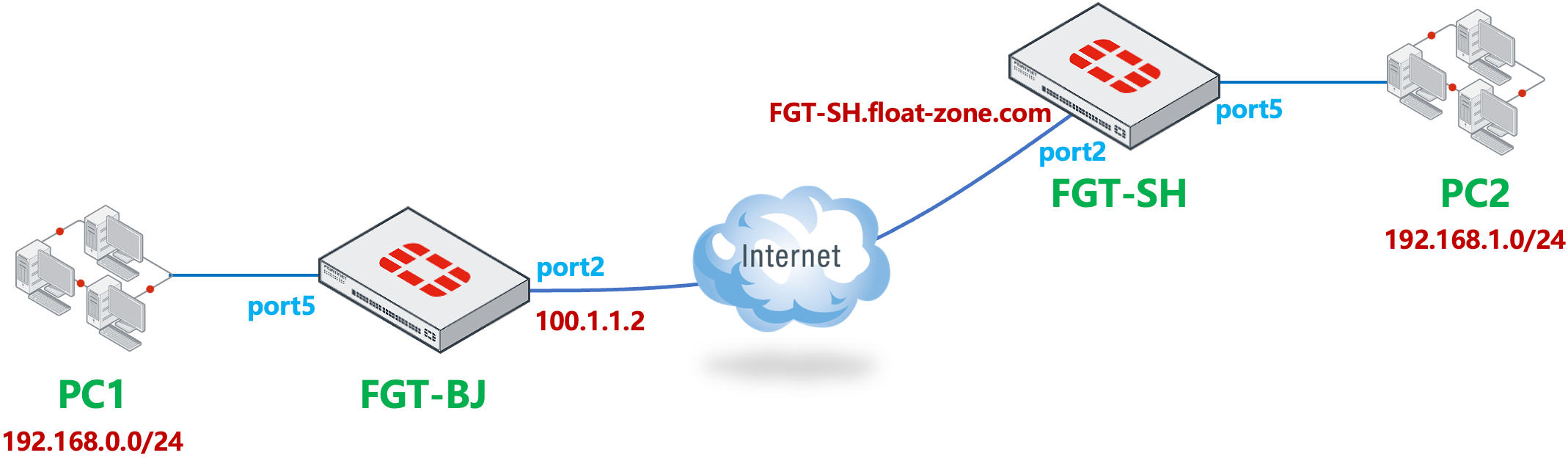

网络拓扑

image-20240102141130052

配置步骤

FGT - BJ 配置

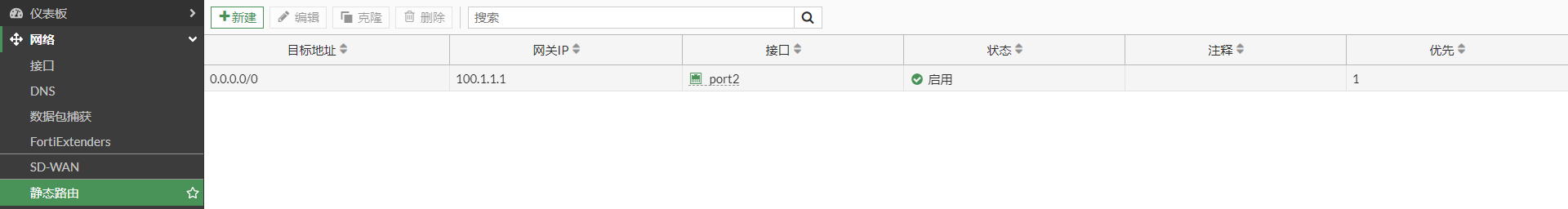

1.基本配置

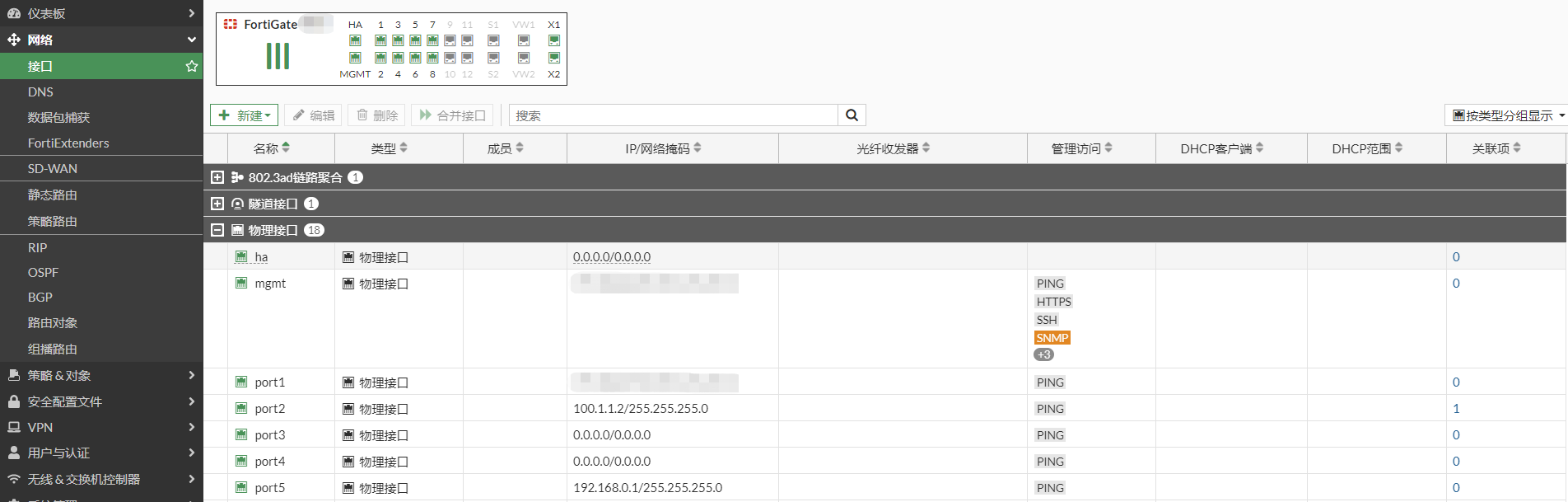

image-20221211170845723

image-20221211171221837

2.配置 IPSEC VPN

FGT - BJ 使用域名 FGT - SH.float-zone.com 与对端发起连接，在配置 IPSEC VPN 前，先从 FGT - BJ 上测试是否能解析该域名。

# execute ping FGT-SH.float-zone.com
PING FGT-SH.float-zone.com (200.1.1.2): 56 data bytes
64 bytes from 200.1.1.2: icmp_seq=0 ttl=254 time=0.4 ms
64 bytes from 200.1.1.2: icmp_seq=1 ttl=254 time=0.3 ms
64 bytes from 200.1.1.2: icmp_seq=2 ttl=254 time=0.6 ms
64 bytes from 200.1.1.2: icmp_seq=3 ttl=254 time=0.4 ms
64 bytes from 200.1.1.2: icmp_seq=4 ttl=254 time=0.5 ms

--- FGT-SH.float-zone.com ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.3/0.4/0.6 ms

选择“VPN”-->“IPsec 隧道”，点击“新建”，选择“IPsec 隧道”。

image-20221211171730033

选择“自定义”

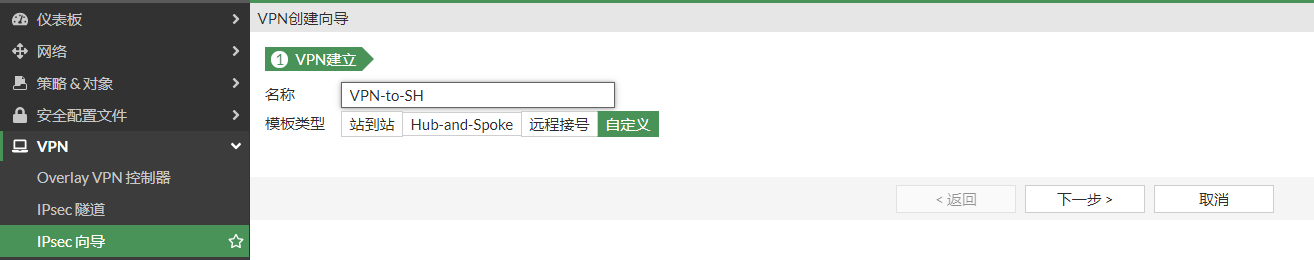

image-20221211171634754

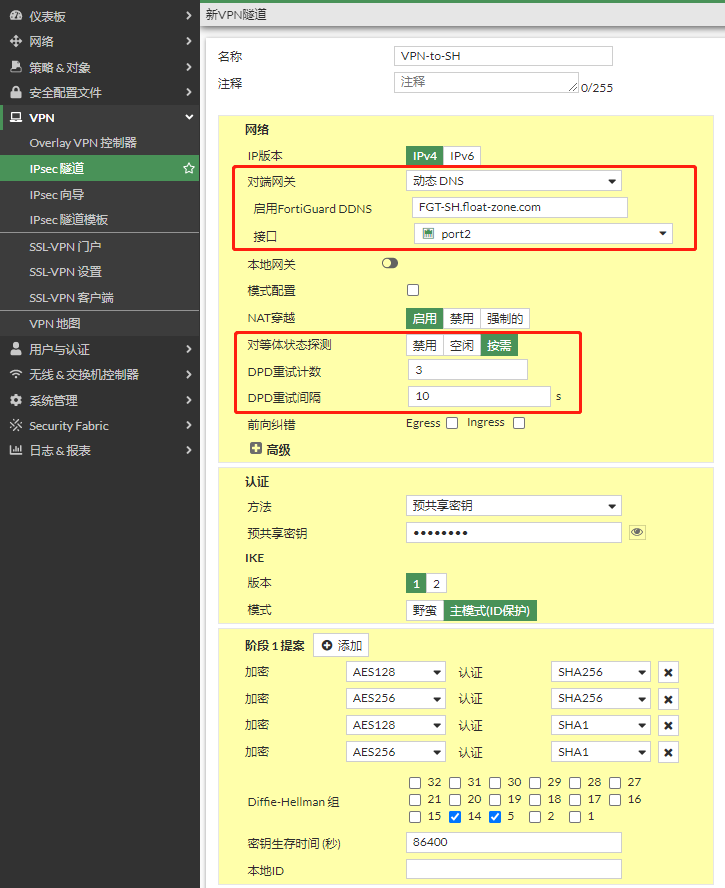

IPSEC VPN 阶段一配置

image-20221211172508691

IPSEC VPN 阶段二配置

image-20221211172555655

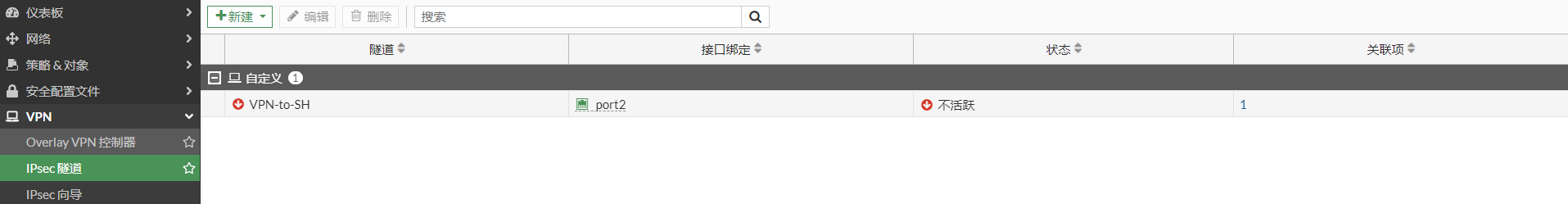

image-20221211172021311

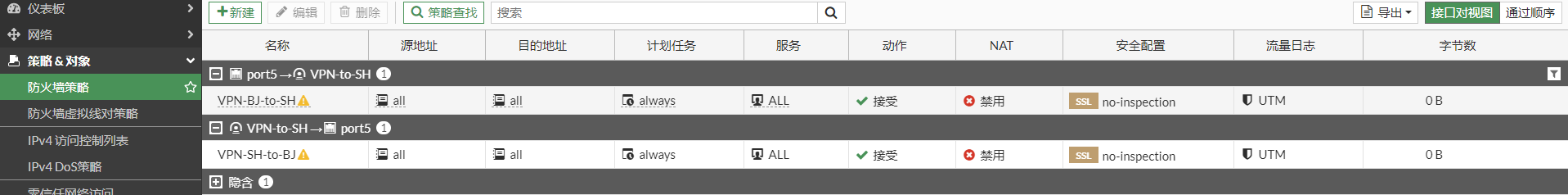

3.配置 IPSEC 策略

image-20221208200834097

4.配置路由

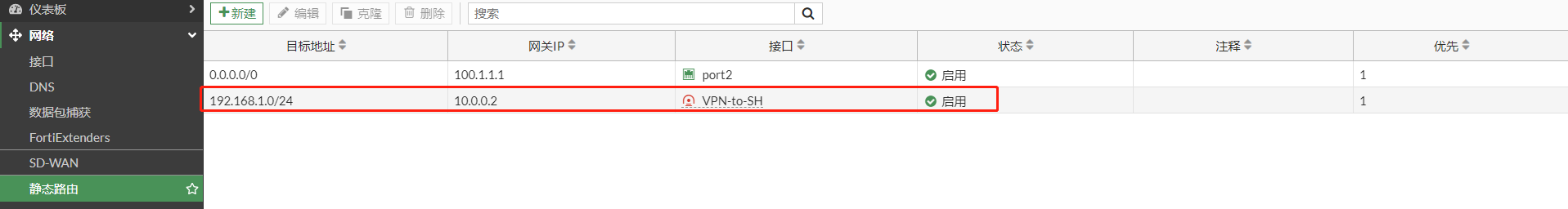

image-20221211172822092

FGT - SH 配置

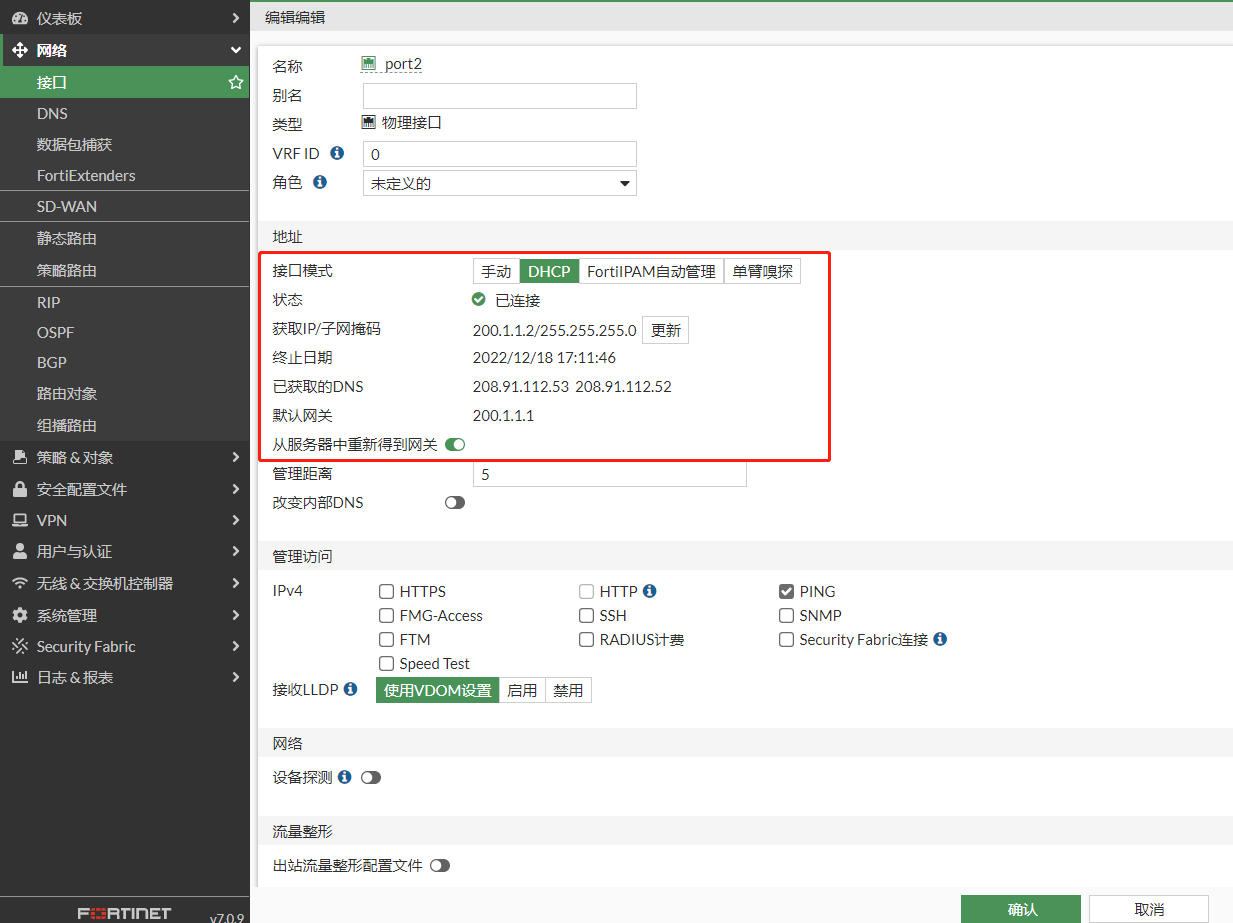

1.基本配置image-20221211173648219

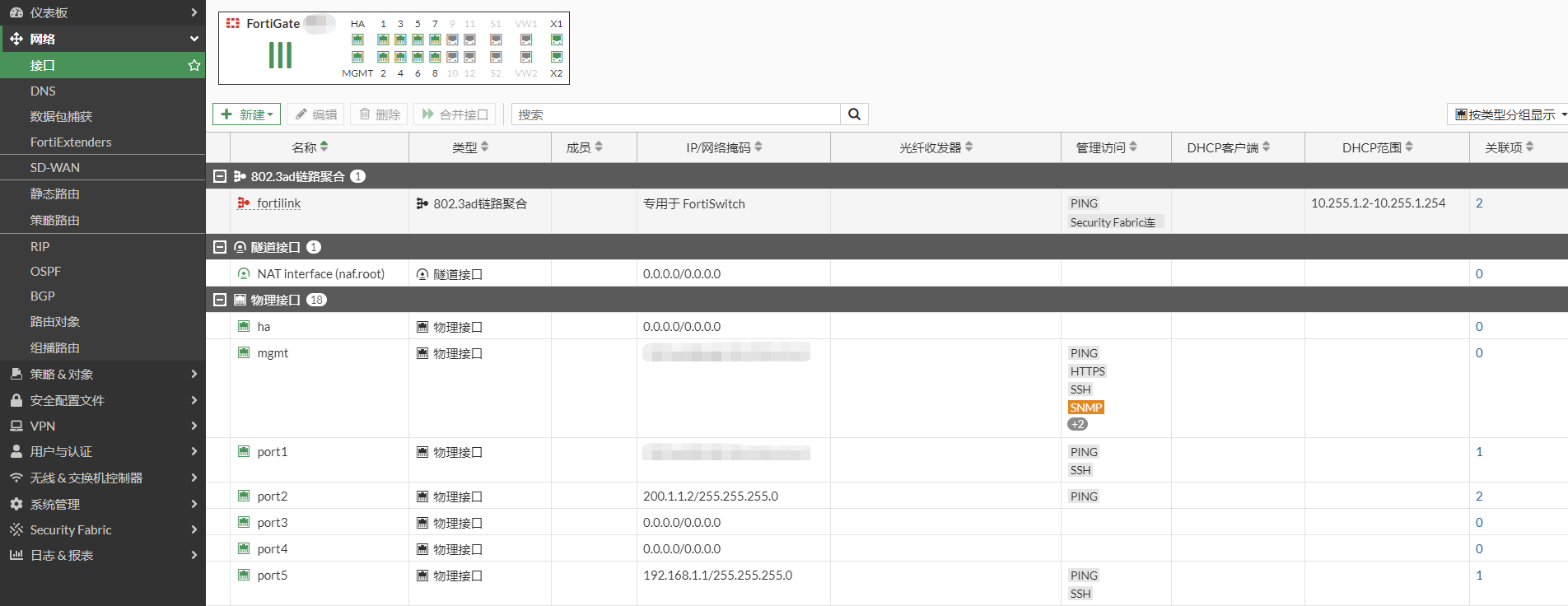

image-20221211173814444

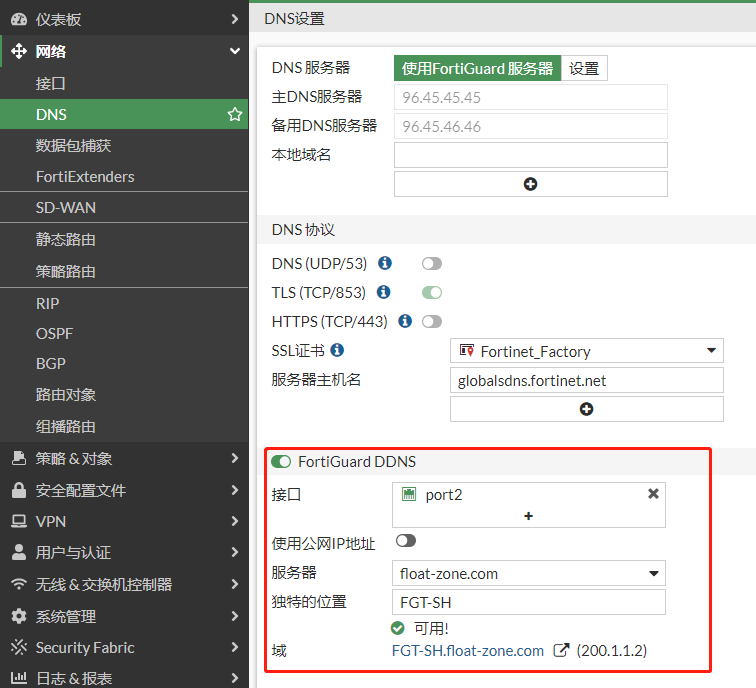

2.配置 FortiGuard DDNS

FGT - SH port2 接口使用 DHCP 获取地址，地址是会变化的，但建立 IPSEC VPN 时，对端需要一个固定的地址，因此使用域名替代 port2 接口的 IP。

image-20221211170159545

3.配置 IPSEC VPN

选择“VPN”-->“IPsec 隧道”，点击“新建”，选择“IPsec 隧道”。

image-20221211171730033

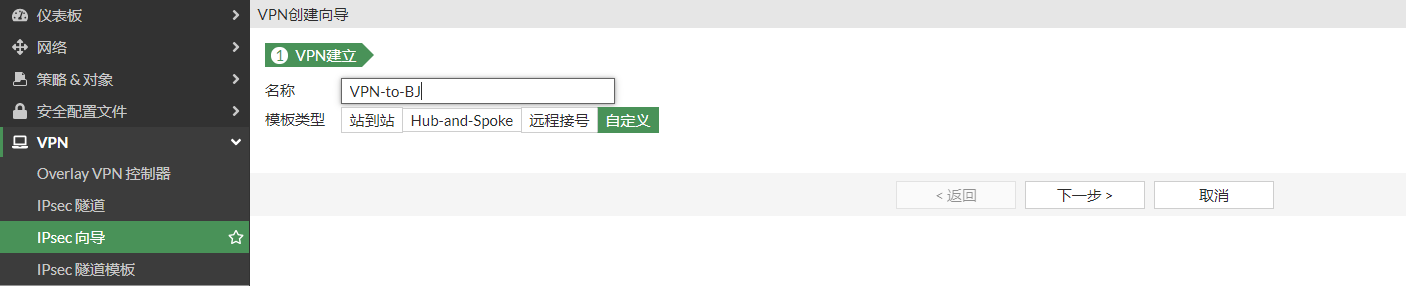

这里依然使用自定义

image-20221211174145690

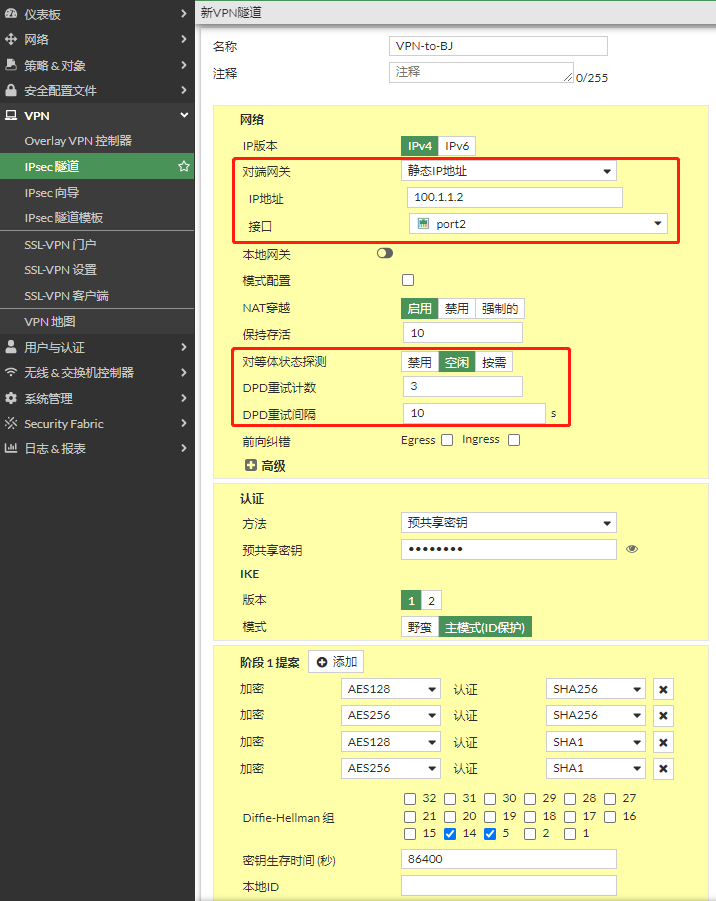

IPSEC VPN 阶段一配置

image-20221211180624684

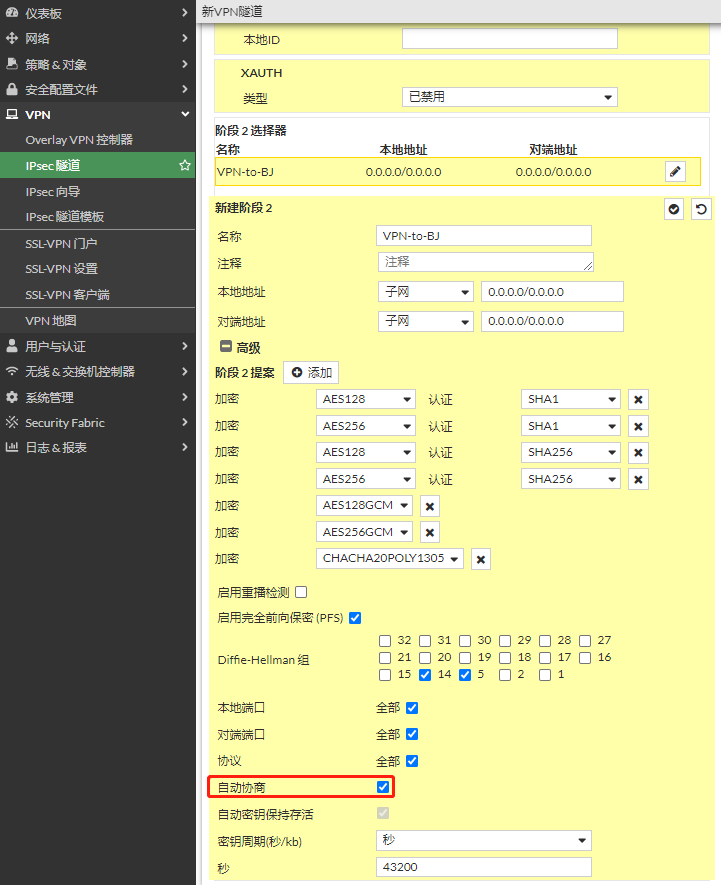

IPSEC VPN 阶段二配置

image-20221211174759038

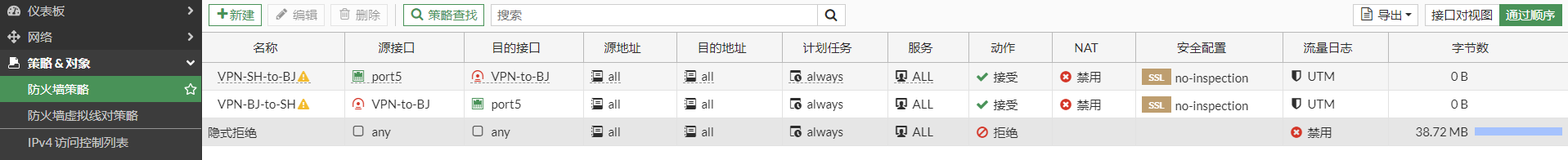

4.配置防火墙策略

image-20221211175153357

5.配置路由

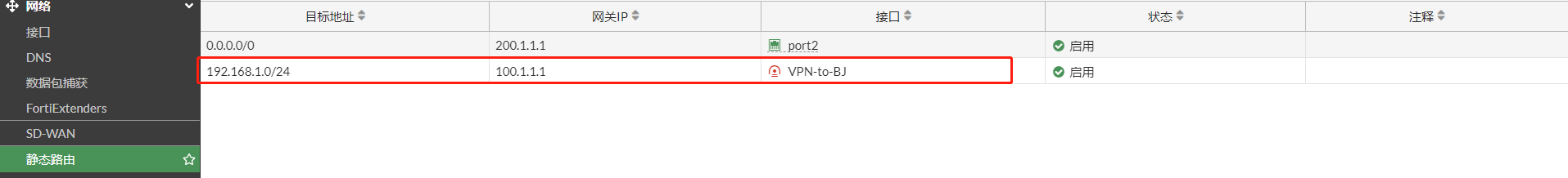

image-20221211175321897

查看 IPSEC VPN 状态

1.FGT - BJ IPSEC VPN 状态

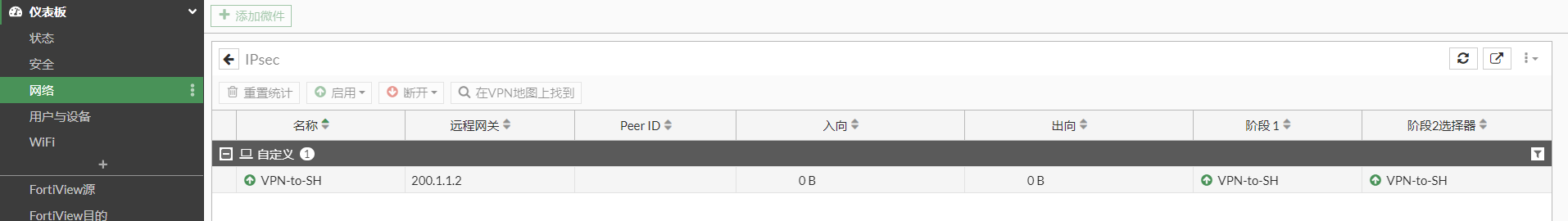

image-20221211180227750

# diagnose vpn ike gateway list

vd: root/0
name: VPN-to-SH
version: 1
interface: port2 10
addr: 100.1.1.2:500 -> 200.1.1.2:500
tun_id: 10.0.0.2/::10.0.0.2
remote_location: 0.0.0.0
network-id: 0
created: 195s ago
IKE SA: created 2/2  established 2/2  time 0/10500/21000 ms
IPsec SA: created 1/2  established 1/1  time 0/0/0 ms

  id/spi: 10 e3498ed0f017b22b/a19990e821f3733e
  direction: responder
  status: established 177-177s ago = 0ms
  proposal: aes128-sha256
  key: c9c4dd7d0bdea34b-e9425ad0fe0a17bc
  lifetime/rekey: 86400/85952
  DPD sent/recv: 00000000/00000000

  id/spi: 9 d46c45f0f50d9ce8/fcaf35fab405c65a
  direction: initiator
  status: established 195-174s ago = 21000ms
  proposal: aes128-sha256
  key: 27f09a3f144bf8da-85d9c19874786059
  lifetime/rekey: 86400/85925
  DPD sent/recv: 00000000/00000012

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=VPN-to-SH ver=1 serial=b 100.1.1.2:0->200.1.1.2:0 tun_id=10.0.0.2 tun_id6=::10.0.0.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=3 olast=3 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-demand on=1 idle=10000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=VPN-to-SH proto=0 sa=1 ref=2 serial=1 auto-negotiate
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=18225 type=00 soft=0 mtu=1438 expire=42750/0B replaywin=0
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42933/43200
  dec: spi=03ff1e97 esp=aes key=16 e44c72247f93456bb0191fb24eee8a8f
       ah=sha1 key=20 884f93d1f1212a08eb7e99fe6153408554d1e7f2
  enc: spi=a7236c3f esp=aes key=16 712b50eed56e1d231956ed11c595220b
       ah=sha1 key=20 0bede372f1a608d05df1c793d25c8939afb995a4
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=200.1.1.2 npu_lgwy=100.1.1.2 npu_selid=16 dec_npuid=0 enc_npuid=0
run_tally=0

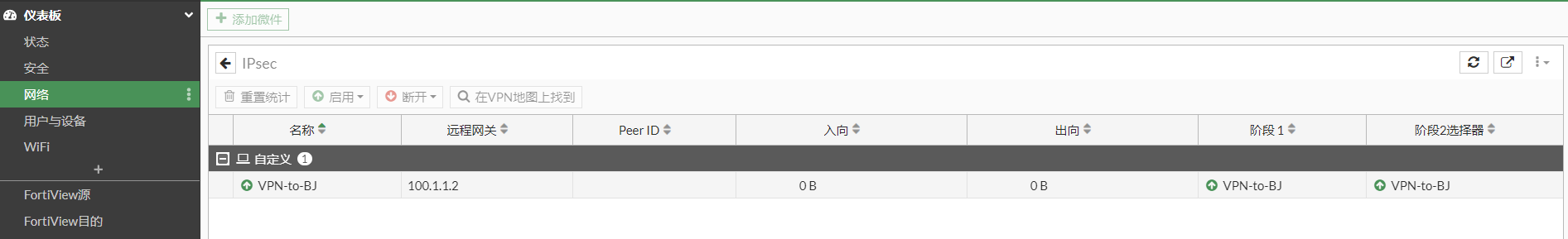

2.FGT - SH IPSEC VPN 状态

image-20221211180340619

# diagnose vpn ike gateway  list

vd: root/0
name: VPN-to-BJ
version: 1
interface: port2 10
addr: 200.1.1.2:500 -> 100.1.1.2:500
tun_id: 100.1.1.1/::100.1.1.1
remote_location: 0.0.0.0
network-id: 0
created: 261s ago
IKE SA: created 2/2  established 2/2  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 59 d46c45f0f50d9ce8/fcaf35fab405c65a
  direction: responder
  status: established 258-258s ago = 0ms
  proposal: aes128-sha256
  key: 27f09a3f144bf8da-85d9c19874786059
  lifetime/rekey: 86400/85871
  DPD sent/recv: 0000001b/00000000

  id/spi: 58 e3498ed0f017b22b/a19990e821f3733e
  direction: initiator
  status: established 261-261s ago = 0ms
  proposal: aes128-sha256
  key: c9c4dd7d0bdea34b-e9425ad0fe0a17bc
  lifetime/rekey: 86400/85838
  DPD sent/recv: 00000000/00000000

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=VPN-to-BJ ver=1 serial=d 200.1.1.2:0->100.1.1.2:0 tun_id=100.1.1.1 tun_id6=::100.1.1.1 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=3 olast=3 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=27
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=VPN-to-BJ proto=0 sa=1 ref=2 serial=1 auto-negotiate
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=18225 type=00 soft=0 mtu=1438 expire=42637/0B replaywin=0
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42900/43200
  dec: spi=a7236c3f esp=aes key=16 712b50eed56e1d231956ed11c595220b
       ah=sha1 key=20 0bede372f1a608d05df1c793d25c8939afb995a4
  enc: spi=03ff1e97 esp=aes key=16 e44c72247f93456bb0191fb24eee8a8f
       ah=sha1 key=20 884f93d1f1212a08eb7e99fe6153408554d1e7f2
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=100.1.1.2 npu_lgwy=200.1.1.2 npu_selid=f dec_npuid=0 enc_npuid=0
run_tally=0
