Hub-and-spoke 模式

2025/10/29大约 14 分钟

Hub-and-spoke 模式

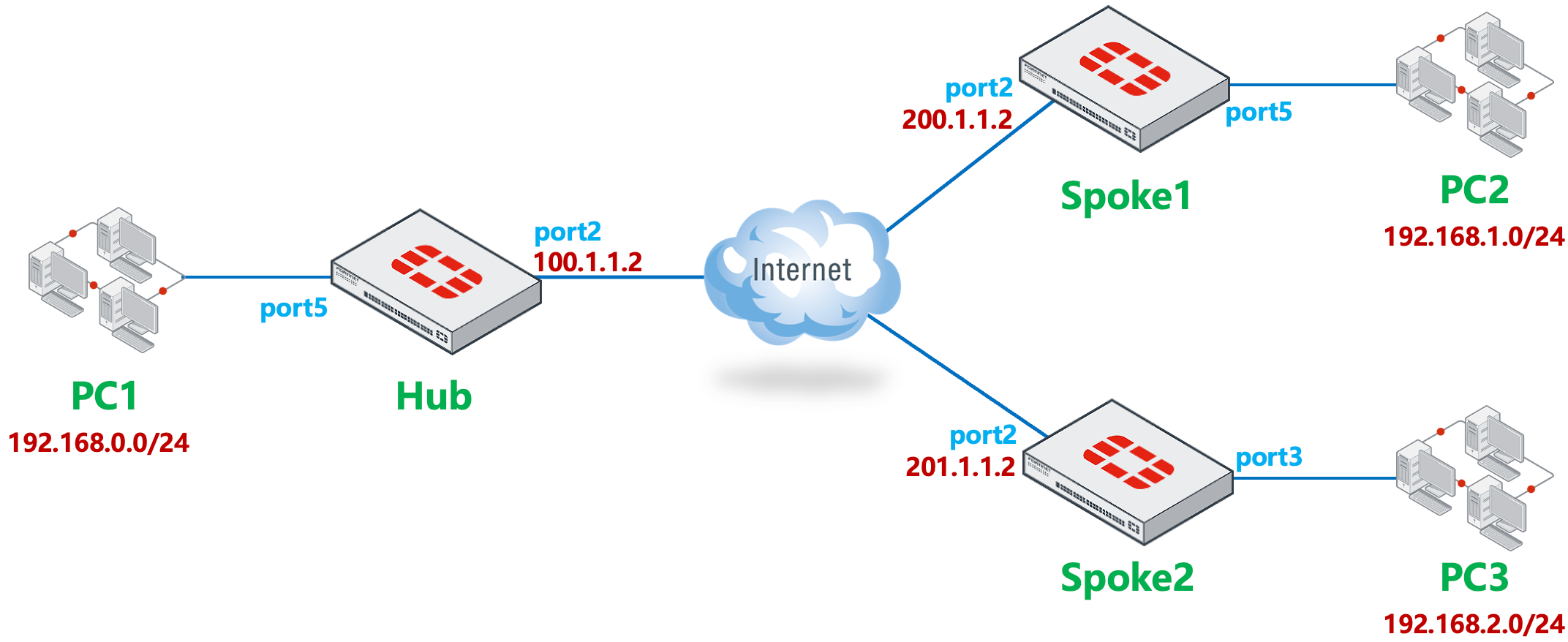

网络需求

某公司总部内部有一台 OA 服务器，其余分 2 个支机构都需要通过 vpn 拨入总部内网对 OA 服务器进行访问，为了方便配置，总部不想有太多的配置，总部只建立一条 vpn 隧道，实现所有分支机构和总部的通讯，SPOKE 之间的流量通过 HUB 进行中转。

配置步骤

###HUB 配置

1.基本配置

配置接口 IP 和路由

2.配置 IPSEC VPN

总部（HUB）IPsec VPN 配置说明：

HUB 使用动态拨号的 VPN 方式。因为分支可能来自任意地方的 IP，另外分支可能使用 PPPOE 拨号，公网 IP 随时会变更，因此没有办法确认对方的公网 IP，只能动态拨号方式的 IPsec VPN。
HUB 使用主模式。
其实 HUB 的阶段 1 使用主模式或野蛮模式二者都是可以工作的，只要 hub 和 spoke 之间使用相同的阶段 1 模式即可。
如果 HUB 相同接口下（如 wan1 口）只有一条动态拨号的 IPsec VPN，可以简单的直接使用主模式，接收 Peer ID 为 any 即可。
如果 HUB 相同接口下（如 wan1 口）有两条或以上 type 是 dynamic 的阶段 1，就必须使用野蛮模式，因为阶段 1 type 是 dynamic 的 remote-gw 为 0.0.0.0，存在多个时会导致冲突，结果匹配到非预期的阶段 1，这时候必须使用野蛮模式的 Peer ID 来区分/匹配）。
一条动态拨号 VPN 的场景下我们 HUB 选择最简单的主动模式 + 任意 Peer ID + 预共享密钥。这种选择优势是在 SPOKE 看来感觉就像是建立一个很普通的 LAN - TO - LAN 的 IPsec VPN。
HUB 第二阶段感兴趣流保持默认的 0.0.0.0/0.0.0.0↔︎0.0.0.0/0.0.0.0。
重要
如果使用静态路由来转发 Hub 与 Spoke 之间的流量，由于 Hub 是被动的接受 Spoke 的协商，在没有协商之前 Hub 不知道 Spoke 的具体网段/感兴趣流，Hub 保持默认 0.0.0.0/0↔︎0.0.0.0/0 即可，会自动学习分支的源保护网段，同时自动产生反向的去往感兴趣流的回程静态路由（一阶段开启了 add-route 功能），不要在 Hub 上手动配置去往 Spoke 内网的静态路由，否则会出现 VPN 技术 → IPSec VPN → IPSec VPN 排错 → Hub-Spoke 静态路由问题章节的问题。
而 Spoke 是需要配置明细的源保护网段的，如 192.168.1.0/24↔︎0.0.0.0/0，Hub 通过 add-route 功能自动添加去往 Spoke 源保护网段（192.168.1.0/24）的静态路由。

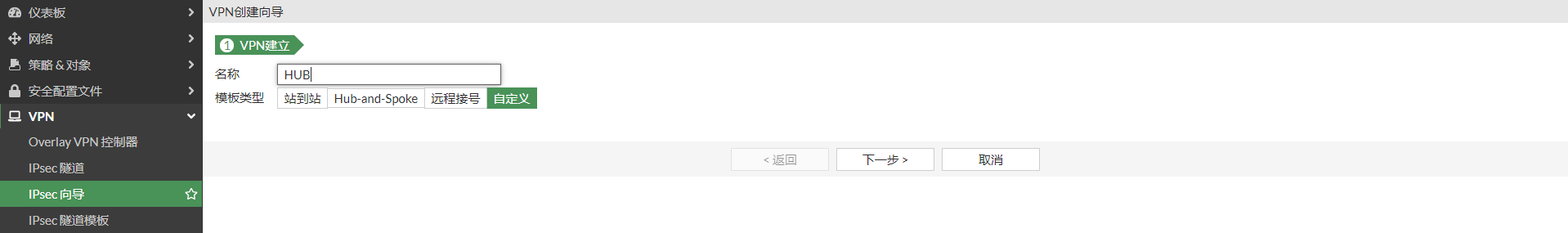

创建 IPSEC VPN。

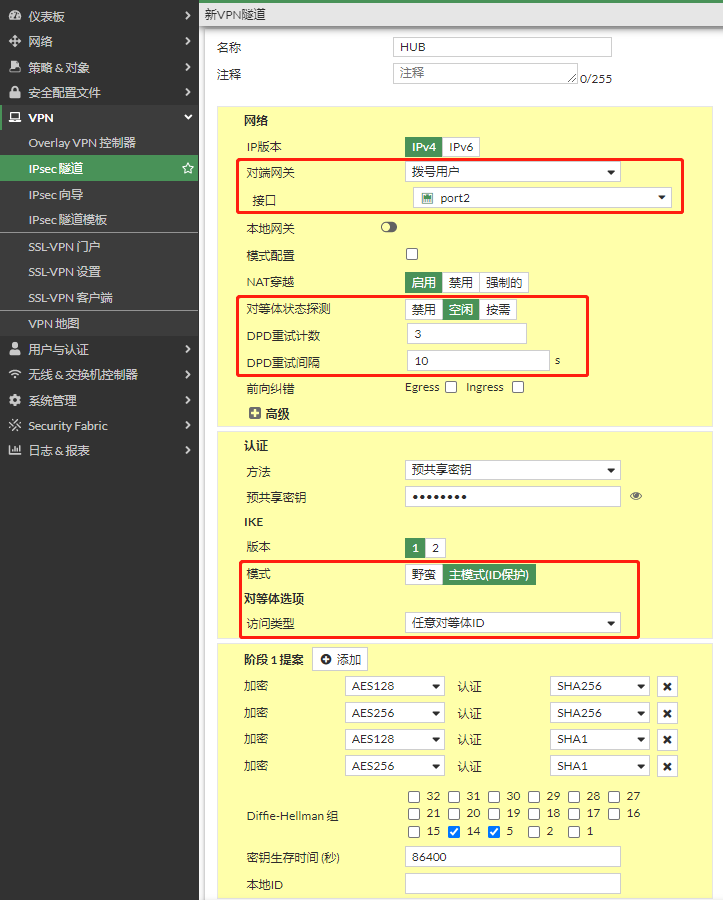

IPSEC VPN 阶段一配置。

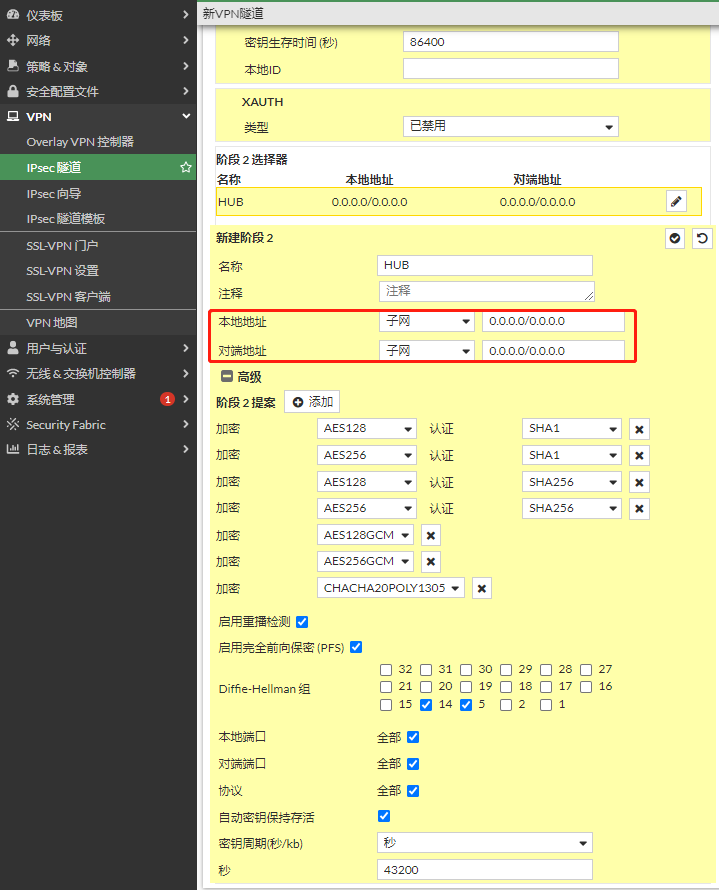

IPSEC VPN 阶段二配置。

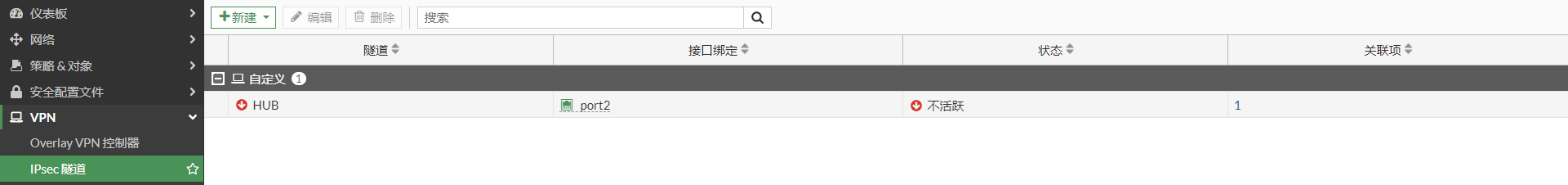

VPN 创建完成。

对应的命令行

config vpn ipsec phase1-interface
    edit "HUB"
        set type dynamic
        set interface "port2"
        set peertype any
        set net-device disable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set add-route enable    //确保Hub的add-route开启，默认开启//
        set dpd on-idle
        set psksecret ENC o00sB0EFtnTN9mJd5/xShv4v22vbn3NpgGIepVJSXGup1iQ++HB0zjDaOuj8jIyKjxZ3yhYqjtQXL9HJ5aoTQ4rlVRiBlw7jcxbSB8lzbU0As8YhUob3Z6T2StvFeRC1VUDac8wmjsPbkUkOq0YlRZ22DoQMe2t+lG6orUAgDlY6iko6mlodLfmMiRxOFNIASP5UNg==
        set dpd-retryinterval 10
    next
end
config vpn ipsec phase2-interface
    edit "HUB"
        set phase1name "HUB"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set keepalive enable
    next
end

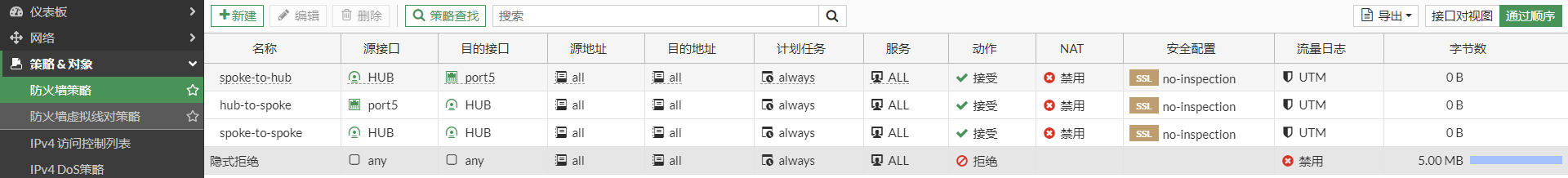

3.配置策略

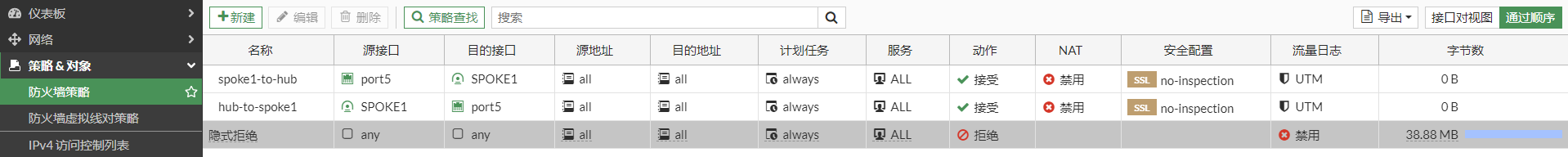

创建 3 条策略，从上到下分别是：分支到总部的放通策略；总部到分支的放通策略；分支到分支的放通策略。

SPOKE1 配置

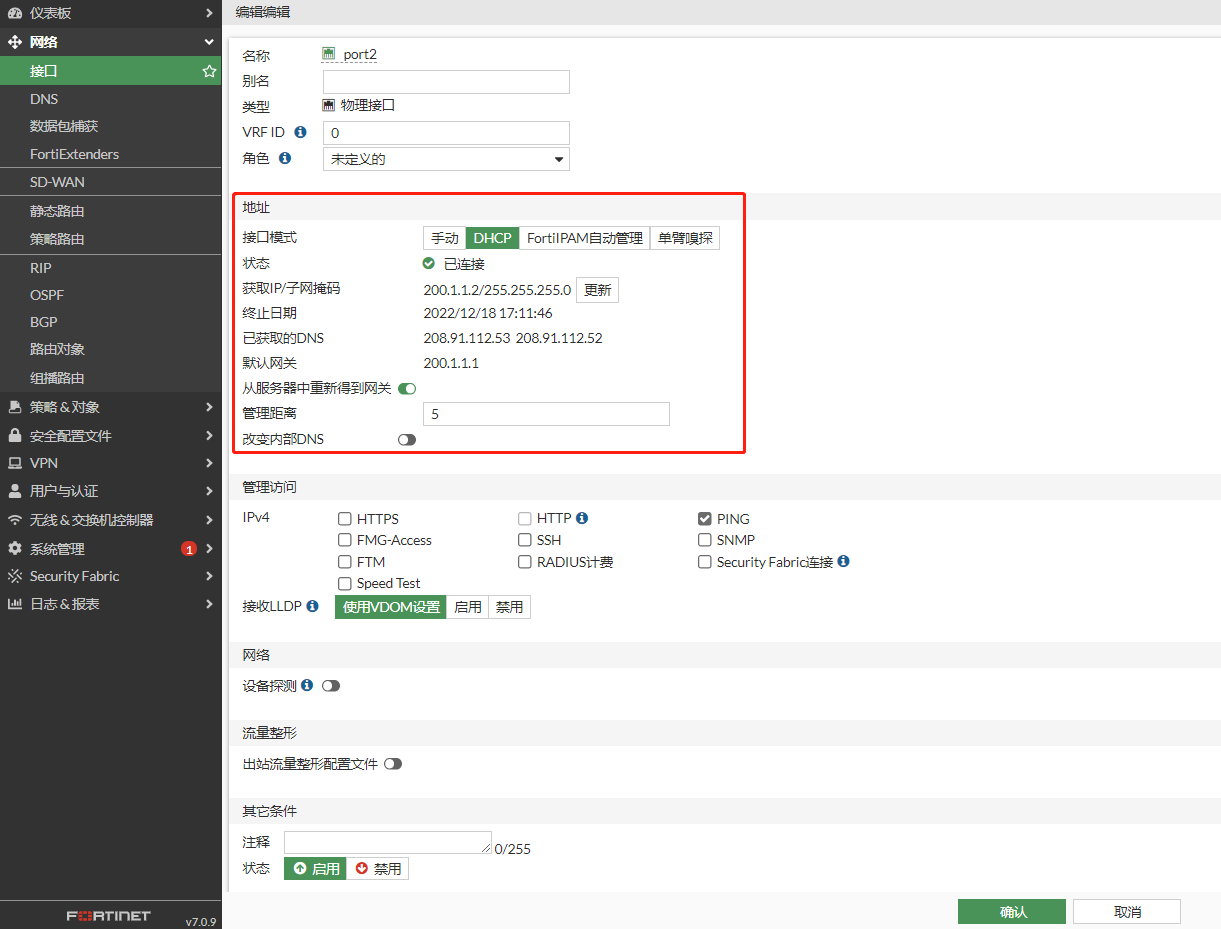

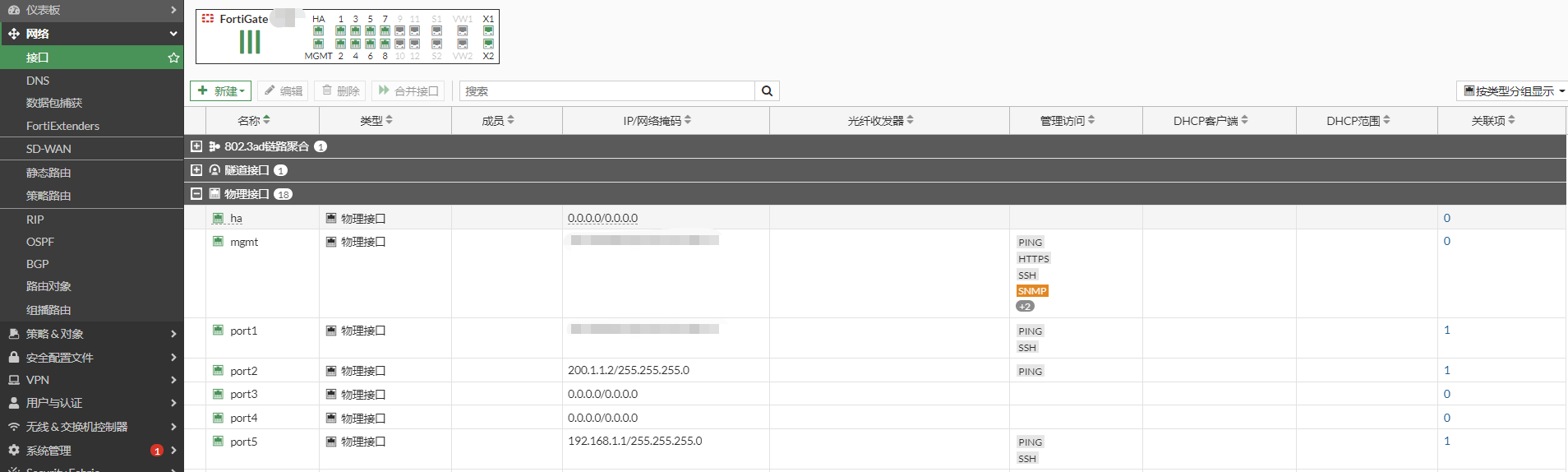

1.基本配置

2.配置 IPSEC VPN

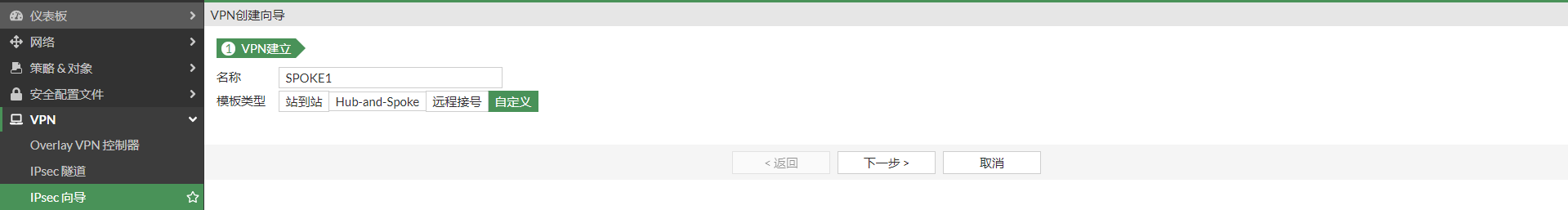

创建 IPSEC VPN。

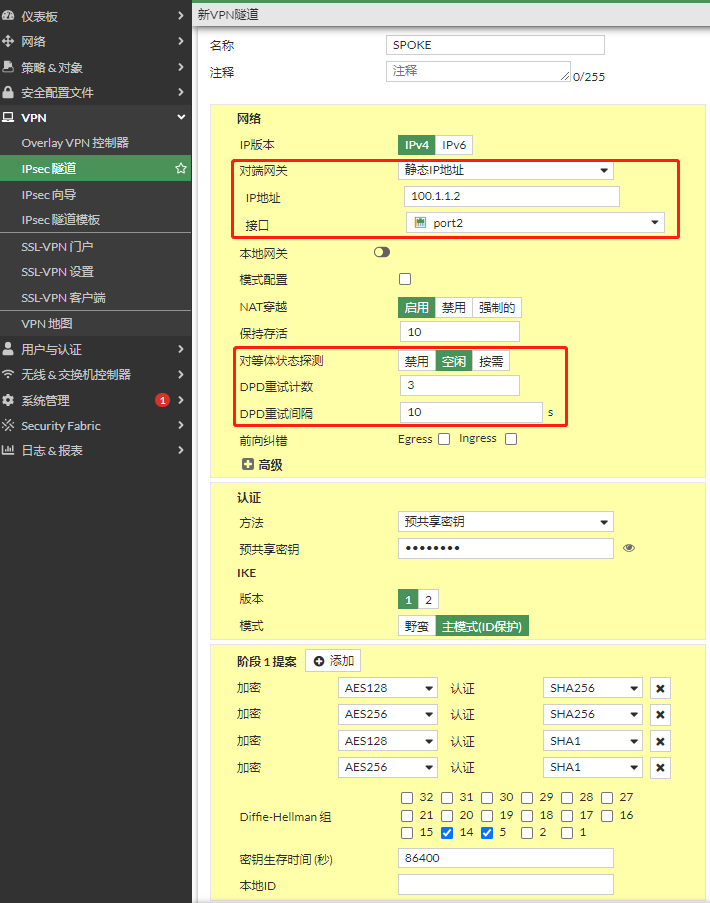

IPSEC VPN 阶段一配置

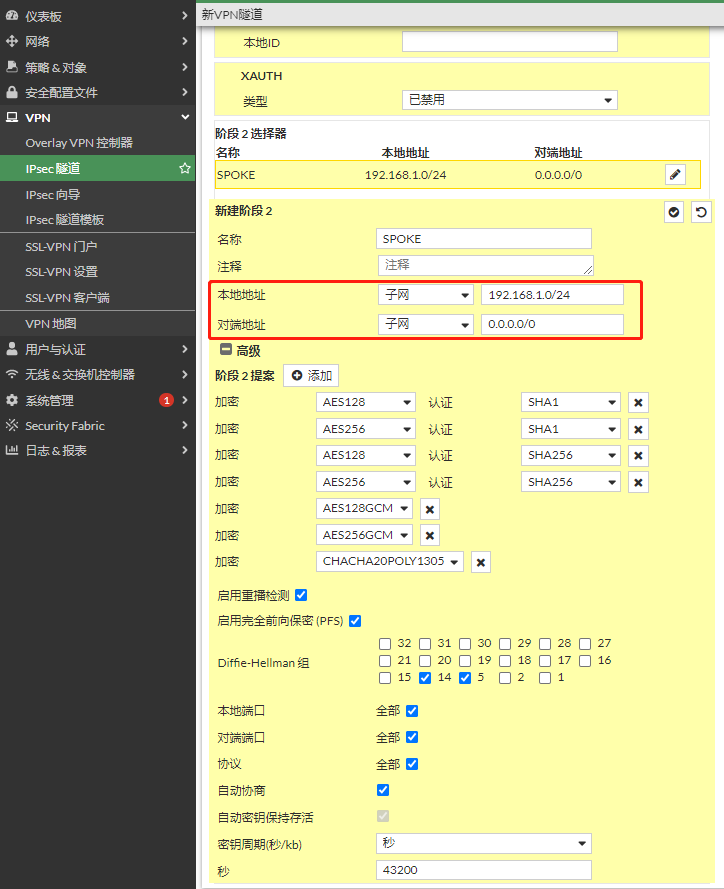

IPSEC VPN 阶段二配置。

重要

如果使用静态路由来转发 Hub 与 Spoke 之间的流量，由于 Hub 是被动的接受 Spoke 的协商，在没有协商之前 Hub 不知道 Spoke 的具体网段/感兴趣流，Hub 保持默认 0.0.0.0/0↔︎0.0.0.0/0 即可，会自动学习分支的源保护网段，同时自动产生反向的去往感兴趣流的回程静态路由（一阶段开启了 add-route 功能），不要在 Hub 上手动配置去往 Spoke 内网的静态路由，否则会出现 VPN 技术 → IPSec VPN → IPSec VPN 排错 → Hub-Spoke 静态路由问题章节的问题。

而 Spoke 是需要配置明细的源保护网段的，如 192.168.1.0/24↔︎0.0.0.0/0，Hub 通过 add-route 功能自动添加去往 Spoke 源保护网段（192.168.1.0/24）的静态路由。

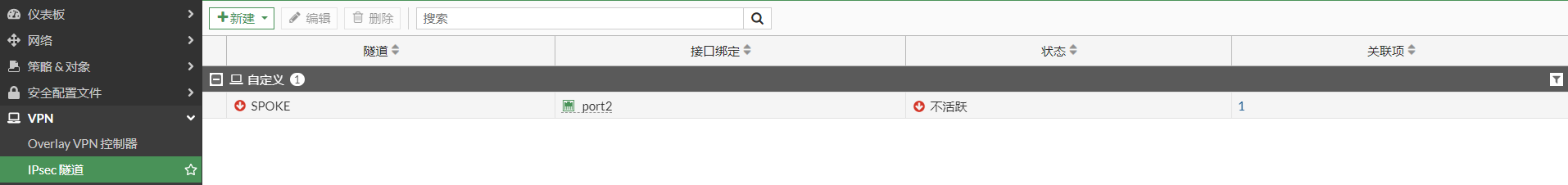

VPN 创建完成。

对应的命令行

config vpn ipsec phase1-interface
    edit "SPOKE1"
        set interface "port2"
        set peertype any
        set net-device disable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set dpd on-idle
        set remote-gw 100.1.1.2
        set psksecret ENC /nQqtlGc19JE/tKd0G4lHD1r7279qcDTpVAlNPW1djHDvxMhIuZctGGr1lw1l/Odi3WkvMrhEDydpVxEtvSWPBUp2+pbhB8fXowEkkoYtaGvvmA0ohj+Bk7NOETHZKUQw9D7b8ibhF5HjbbEphvWb6QwDgI+pjwhp56AZp6sF05L3RLR2nLMEqJKCf6CBog5Se/MbA==
        set dpd-retryinterval 10
    next
end
config vpn ipsec phase2-interface
    edit "SPOKE1"
        set phase1name "SPOKE1"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set auto-negotiate enable
        set src-subnet 192.168.1.0 255.255.255.0
    next
end

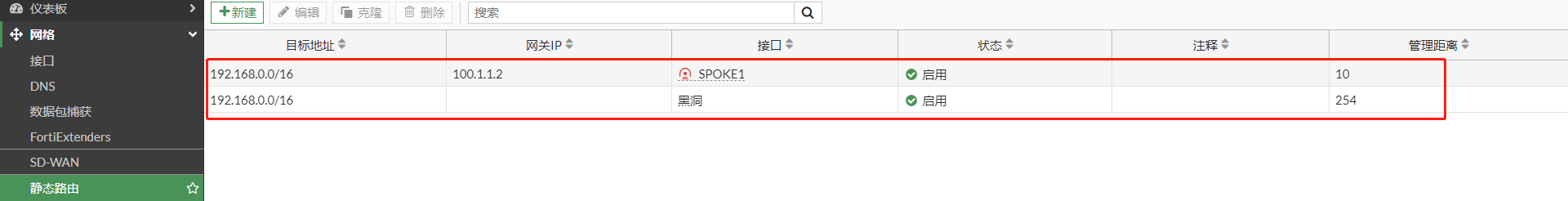

3.配置路由

这里路由的目标是 192.168.0.0/16，是 HUB 和其他 SPOKE 的业务网段汇总（分支之间没有单独建立 VPN，从 HUB 互通）。如果只需要访问总部，则写总部的明细网段即可，即 192.168.0.0/24。

管理距离为 254 的黑洞路由是为了 VPN 中断的时候防止产生错误的 NAT 会话。

4.配置策略

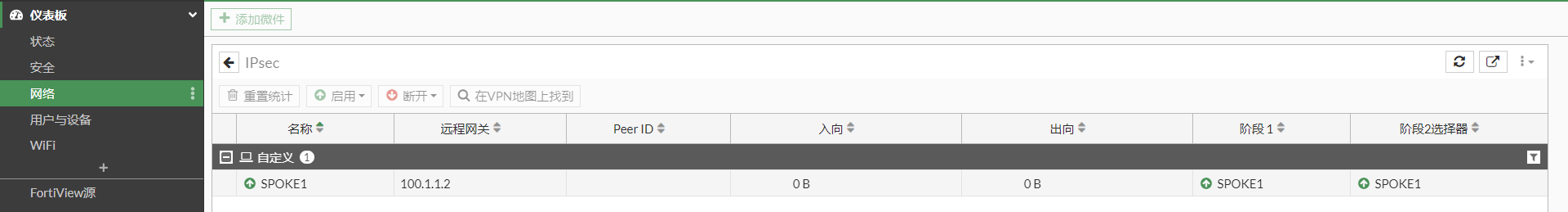

由于 SPOKE1 开启了自动连接，当配置策略后，就会主动与 HUB 协商，策略中的接口已经是绿色的，说明 VPN 接口已经 UP。

SPOKE2 配置

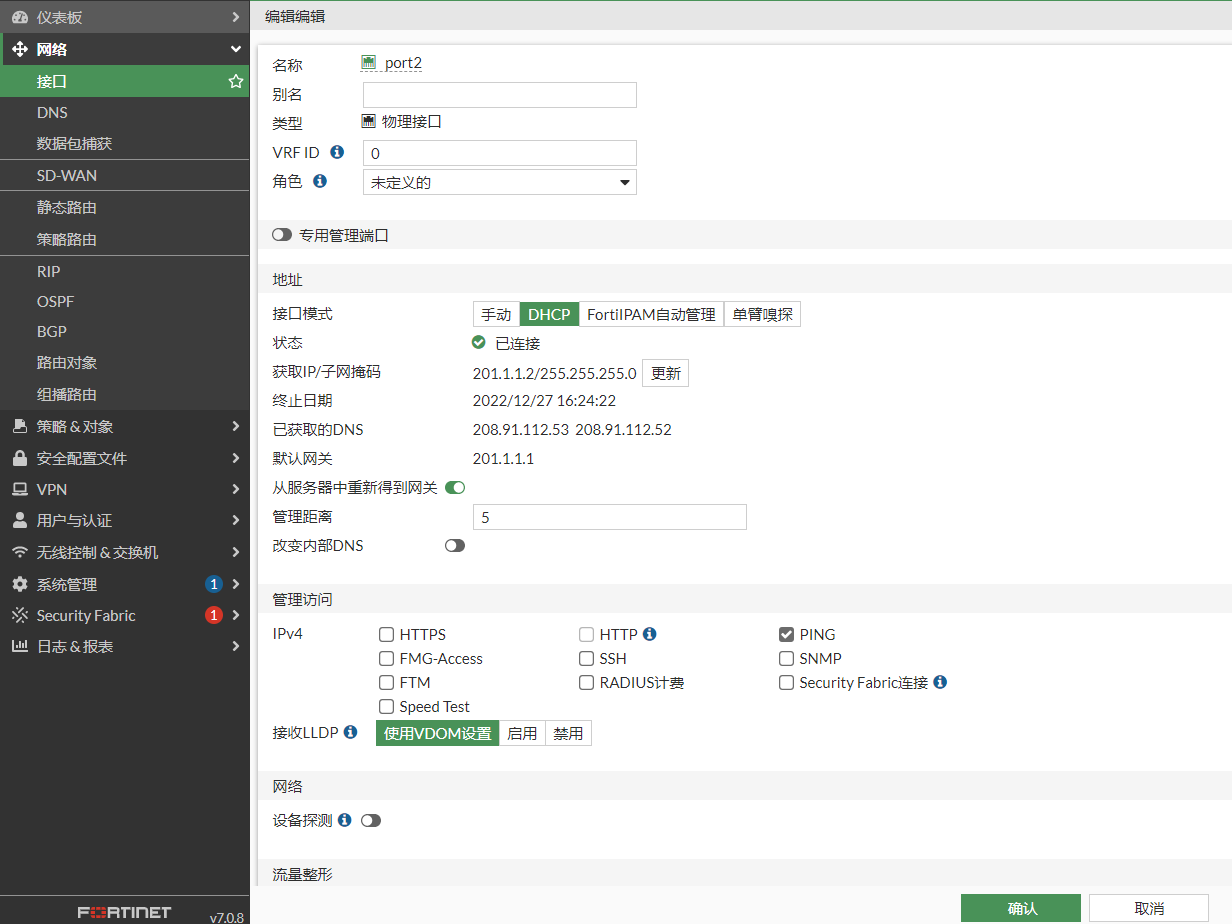

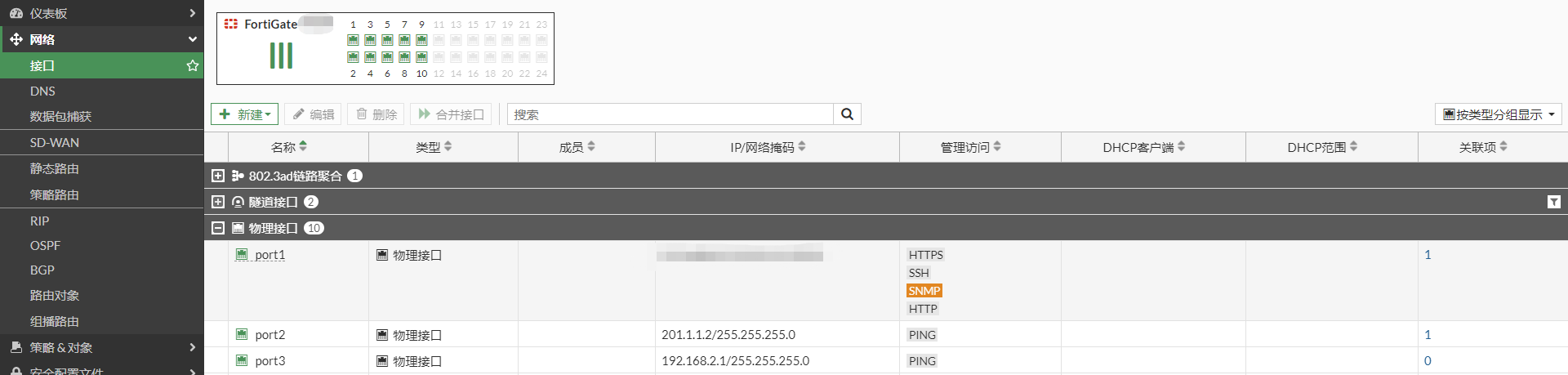

1.基本配置

2.配置 IPSEC VPN

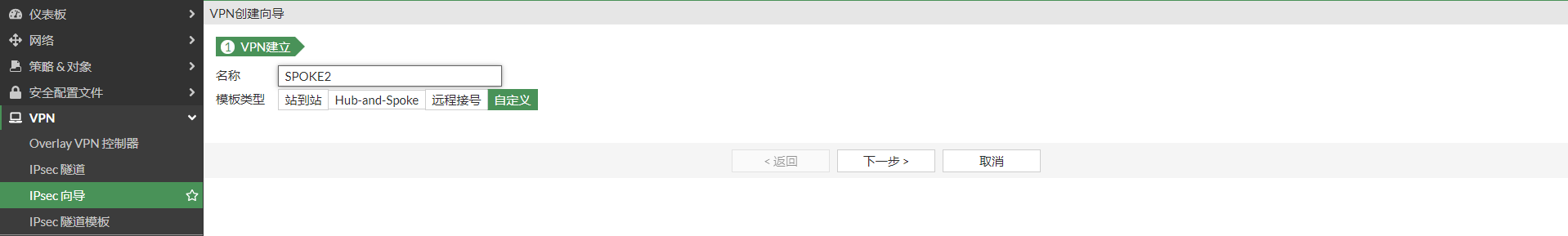

创建 IPSEC VPN。

IPSEC VPN 阶段一配置

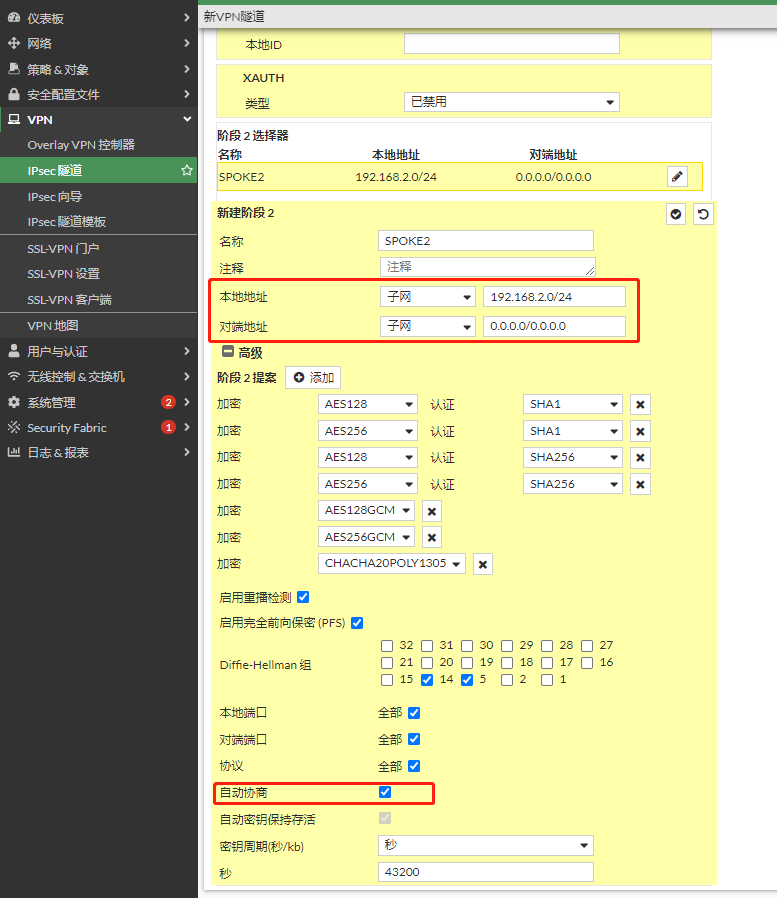

IPSEC VPN 阶段二配置。

重要

而 Spoke 是需要配置明细的源保护网段的，如 192.168.1.0/24↔︎0.0.0.0/0，Hub 通过 add-route 功能自动添加去往 Spoke 源保护网段（192.168.1.0/24）的静态路由。

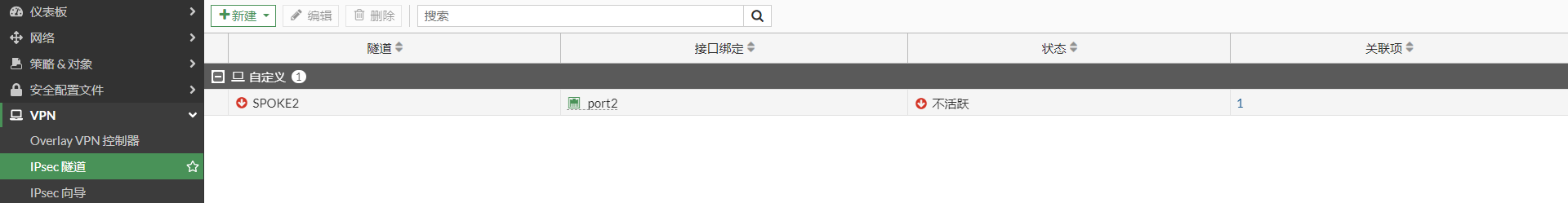

完成 VPN 创建。

对应的命令行

config vpn ipsec phase1-interface
    edit "SPOKE2"
        set interface "port2"
        set peertype any
        set net-device disable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set dpd on-idle
        set remote-gw 100.1.1.2
        set psksecret ENC tW+gF8+AfteBwl7HXJwMXlNTH3LGBMv0D0d1krXTNETF4/AFPUWOQvD96qoK7aQNOGOben9RUCqQ7BX2GT9lisno5ilp1zp1HlFaqkTe2l6BPL3rM1BLMVYF7kCW/ozSPHSXU14OIlZ+sNQioiskUhMk7RFHbkXALqDBDVMIIfM/odiP+kpHZmya3+mQDDYCjnEA3Q==
        set dpd-retryinterval 10
    next
end
config vpn ipsec phase2-interface
    edit "SPOKE2"
        set phase1name "SPOKE2"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set auto-negotiate enable
        set src-subnet 192.168.2.0 255.255.255.0
    next
end

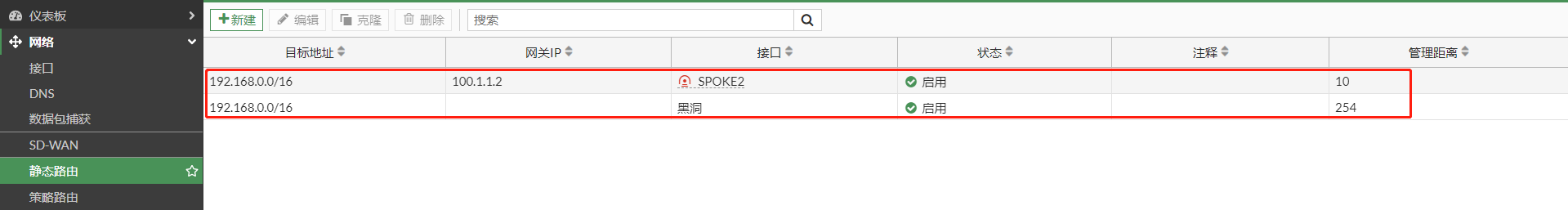

3.配置路由

管理距离为 254 的黑洞路由是为了 VPN 中断的时候防止产生错误的 NAT 会话。

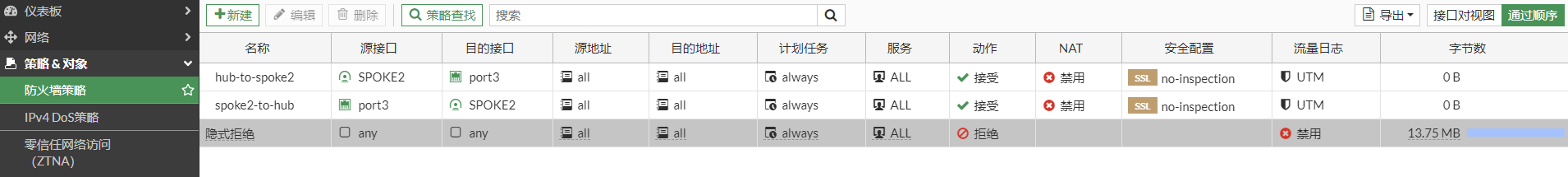

4.配置策略

由于 SPOKE2 开启了自动连接，当配置策略后，就会主动与 HUB 协商，策略中的接口已经是绿色的，说明 VPN 接口已经 UP。

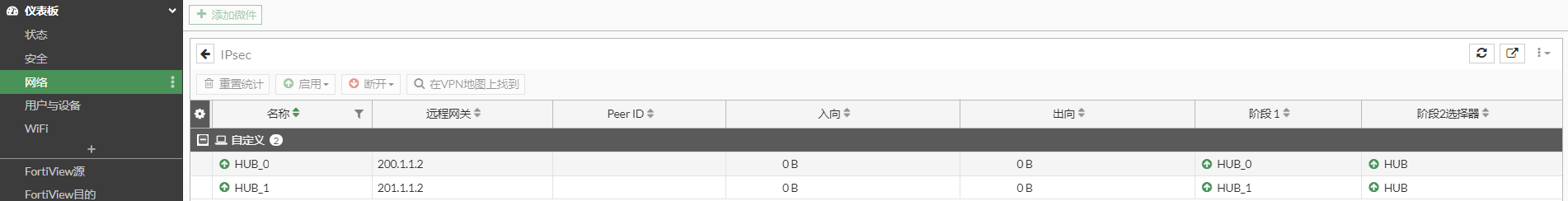

查看 VPN 状态

1.HUB 端 VPN 状态

# diagnose vpn  ike gateway list

vd: root/0
name: HUB_0
version: 1
interface: port2 10
addr: 100.1.1.2:500 -> 200.1.1.2:500
tun_id: 200.1.1.2/::10.0.0.38
remote_location: 0.0.0.0
network-id: 0
created: 222s ago
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 5 9e99b894d5de25e7/f6f50471f8504b5c
  direction: responder
  status: established 222-222s ago = 0ms
  proposal: aes128-sha256
  key: 12b4b577207df3b1-72d0c8ab630bca42
  lifetime/rekey: 86400/85907
  DPD sent/recv: 00000017/00000000

vd: root/0
name: HUB_1
version: 1
interface: port2 10
addr: 100.1.1.2:500 -> 201.1.1.2:500
tun_id: 201.1.1.2/::10.0.0.39
remote_location: 0.0.0.0
network-id: 0
created: 115s ago
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 6 61a95053c4a2a7bc/283be8ae94d730cc
  direction: responder
  status: established 115-115s ago = 0ms
  proposal: aes128-sha256
  key: 29af7f5a8312e219-5b96fb7006b7bab6
  lifetime/rekey: 86400/86014
  DPD sent/recv: 0000000a/00000005

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=HUB_0 ver=1 serial=41 100.1.1.2:0->200.1.1.2:0 tun_id=200.1.1.2 tun_id6=::10.0.0.38 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/8872 options[22a8]=npu rgwy-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=HUB index=0
proxyid_num=1 child_num=0 refcnt=5 ilast=4 olast=4 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=23
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=HUB proto=0 sa=1 ref=2 serial=1 add-route
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:192.168.1.0-192.168.1.255:0
  SA:  ref=3 options=2a6 type=00 soft=0 mtu=1438 expire=42969/0B replaywin=2048
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=43191/43200
  dec: spi=14b71563 esp=aes key=16 8c3637326e7c38dbefc9bac5333125ca
       ah=sha1 key=20 a8fe40c940d8f4321d72ff9f0b0018c5b52d4f1e
  enc: spi=bcdbb5b1 esp=aes key=16 d24189aae387a6a13930e4998c7fc653
       ah=sha1 key=20 58cbd4a72ea1ad459c322ab483fe0c78f483c170
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=200.1.1.2 npu_lgwy=100.1.1.2 npu_selid=3e dec_npuid=0 enc_npuid=0
------------------------------------------------------
name=HUB_1 ver=1 serial=42 100.1.1.2:0->201.1.1.2:0 tun_id=201.1.1.2 tun_id6=::10.0.0.39 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/8872 options[22a8]=npu rgwy-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=HUB index=1
proxyid_num=1 child_num=0 refcnt=5 ilast=7 olast=7 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=10
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=HUB proto=0 sa=1 ref=2 serial=1 add-route
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:192.168.2.0-192.168.2.255:0
  SA:  ref=3 options=2a6 type=00 soft=0 mtu=1438 expire=43069/0B replaywin=2048
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=43187/43200
  dec: spi=14b71564 esp=aes key=16 2a26ef846d7b8174388e862859ea7680
       ah=sha1 key=20 8915e7b5a2f18de14e3f239a7921653949a2c205
  enc: spi=1719f302 esp=aes key=16 1b704defe11ffdf2f26f4f2482f65eab
       ah=sha1 key=20 0b6a0e5d527eed61ca2b002ea8797b270a61eb87
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=201.1.1.2 npu_lgwy=100.1.1.2 npu_selid=3f dec_npuid=0 enc_npuid=0
------------------------------------------------------
name=HUB ver=1 serial=3f 100.1.1.2:0->0.0.0.0:0 tun_id=10.0.0.15 tun_id6=::10.0.0.15 dst_mtu=0 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dialup/2 encap=none/552 options[0228]=npu frag-rfc  role=primary accept_traffic=1 overlay_id=0

proxyid_num=0 child_num=2 refcnt=4 ilast=44854899 olast=44854899 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-idle on=0 idle=10000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
run_tally=0

查看 HUB 端生成的路由

# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port2, [1/0]
C       100.1.1.0/24 is directly connected, port2
C       192.168.0.0/24 is directly connected, port5
S       192.168.1.0/24 [15/0] via HUB tunnel 200.1.1.2, [1/0]
S       192.168.2.0/24 [15/0] via HUB tunnel 201.1.1.2, [1/0]

2.SPOKE1 端 VPN 状态

# diagnose vpn ike gateway  list

vd: root/0
name: SPOKE1
version: 1
interface: port2 10
addr: 200.1.1.2:500 -> 100.1.1.2:500
tun_id: 100.1.1.2/::100.1.1.2
remote_location: 0.0.0.0
network-id: 0
created: 293s ago
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 0 9e99b894d5de25e7/f6f50471f8504b5c
  direction: initiator
  status: established 293-293s ago = 0ms
  proposal: aes128-sha256
  key: 12b4b577207df3b1-72d0c8ab630bca42
  lifetime/rekey: 86400/85806
  DPD sent/recv: 00000000/0000001e

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=SPOKE1 ver=1 serial=17 200.1.1.2:0->100.1.1.2:0 tun_id=100.1.1.2 tun_id6=::100.1.1.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=5 olast=5 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-demand on=1 idle=10000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE1 proto=0 sa=1 ref=2 serial=2 auto-negotiate
  src: 0:192.168.1.0-192.168.1.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=18227 type=00 soft=0 mtu=1438 expire=42607/0B replaywin=2048
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42900/43200
  dec: spi=bcdbb5b1 esp=aes key=16 d24189aae387a6a13930e4998c7fc653
       ah=sha1 key=20 58cbd4a72ea1ad459c322ab483fe0c78f483c170
  enc: spi=14b71563 esp=aes key=16 8c3637326e7c38dbefc9bac5333125ca
       ah=sha1 key=20 a8fe40c940d8f4321d72ff9f0b0018c5b52d4f1e
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=100.1.1.2 npu_lgwy=200.1.1.2 npu_selid=18 dec_npuid=0 enc_npuid=0
run_tally=0

查看 SPOKE1 端的路由

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 200.1.1.1, port2, [1/0]
S       192.168.0.0/16 [10/0] via SPOKE1 tunnel 100.1.1.2, [1/0]
C       192.168.1.0/24 is directly connected, port5
C       200.1.1.0/24 is directly connected, port2

3.SPOKE2 端 VPN 状态

# diagnose vpn  ike gateway list

vd: root/0
name: SPOKE2
version: 1
interface: port2 6
addr: 201.1.1.2:500 -> 100.1.1.2:500
tun_id: 100.1.1.2/::100.1.1.2
remote_location: 0.0.0.0
network-id: 0
created: 302s ago
IKE SA: created 1/1  established 1/1  time 10/10/10 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 0 61a95053c4a2a7bc/283be8ae94d730cc
  direction: initiator
  status: established 302-302s ago = 10ms
  proposal: aes128-sha256
  key: 29af7f5a8312e219-5b96fb7006b7bab6
  lifetime/rekey: 86400/85797
  DPD sent/recv: 00000018/0000000a

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=SPOKE2 ver=1 serial=d 201.1.1.2:0->100.1.1.2:0 tun_id=100.1.1.2 tun_id6=::100.1.1.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=6 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=4 olast=4 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=24
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE2 proto=0 sa=1 ref=2 serial=1 auto-negotiate
  src: 0:192.168.2.0-192.168.2.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=18203 type=00 soft=0 mtu=1438 expire=42596/0B replaywin=2048
       seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42902/43200
  dec: spi=1719f302 esp=aes key=16 1b704defe11ffdf2f26f4f2482f65eab
       ah=sha1 key=20 0b6a0e5d527eed61ca2b002ea8797b270a61eb87
  enc: spi=14b71564 esp=aes key=16 2a26ef846d7b8174388e862859ea7680
       ah=sha1 key=20 8915e7b5a2f18de14e3f239a7921653949a2c205
  dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
  npu_flag=00 npu_rgwy=100.1.1.2 npu_lgwy=201.1.1.2 npu_selid=a dec_npuid=0 enc_npuid=0
run_tally=0

# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 201.1.1.1, port2, [1/0]
S       192.168.0.0/16 [10/0] via SPOKE2 tunnel 100.1.1.2, [1/0]
C       192.168.2.0/24 is directly connected, port3
C       201.1.1.0/24 is directly connected, port2

业务测试

HUB 端业务测试

PC1# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.0.10  netmask 255.255.255.0  broadcast 192.168.0.255
        inet6 fe80::82c8:edfd:199d:70b0  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:e8:ad:a9  txqueuelen 1000  (Ethernet)
        RX packets 6140132  bytes 1760274153 (1.6 GiB)
        RX errors 0  dropped 3749603  overruns 0  frame 0
        TX packets 51686  bytes 3833219 (3.6 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

访问SPOKE1
PC1# ping 192.168.1.10 -c 4
PING 192.168.1.10 (192.168.1.10) 56(84) bytes of data.
64 bytes from 192.168.1.10: icmp_seq=1 ttl=62 time=1.42 ms
64 bytes from 192.168.1.10: icmp_seq=2 ttl=62 time=0.788 ms
64 bytes from 192.168.1.10: icmp_seq=3 ttl=62 time=0.751 ms
64 bytes from 192.168.1.10: icmp_seq=4 ttl=62 time=0.688 ms

--- 192.168.1.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3001ms
rtt min/avg/max/mdev = 0.688/0.913/1.427/0.300 ms

访问SPOKE2
PC1# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=62 time=1.09 ms
64 bytes from 192.168.2.10: icmp_seq=2 ttl=62 time=0.935 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=62 time=0.991 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=62 time=1.06 ms

--- 192.168.2.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.935/1.021/1.098/0.070 ms

SPOKE1 端业务测试

PC2# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.10  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::1a6c:e61:d2b9:a415  prefixlen 64  scopeid 0x20<link>
        inet6 2001::2  prefixlen 64  scopeid 0x0<global>
        ether 00:0c:29:0e:4e:c5  txqueuelen 1000  (Ethernet)
        RX packets 5904889  bytes 459674552 (438.3 MiB)
        RX errors 0  dropped 58  overruns 0  frame 0
        TX packets 3224540  bytes 205411564402 (191.3 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

访问HUB
PC2# ping 192.168.0.10 -c 4
PING 192.168.0.10 (192.168.0.10) 56(84) bytes of data.
64 bytes from 192.168.0.10: icmp_seq=1 ttl=62 time=0.746 ms
64 bytes from 192.168.0.10: icmp_seq=2 ttl=62 time=0.765 ms
64 bytes from 192.168.0.10: icmp_seq=3 ttl=62 time=0.862 ms
64 bytes from 192.168.0.10: icmp_seq=4 ttl=62 time=0.677 ms

--- 192.168.0.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 2999ms
rtt min/avg/max/mdev = 0.677/0.762/0.862/0.071 ms

访问SPOKE2
PC2# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=61 time=1.14 ms
64 bytes from 192.168.2.10: icmp_seq=2 ttl=61 time=0.952 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=61 time=1.51 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=61 time=0.886 ms

--- 192.168.2.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 0.886/1.124/1.519/0.248 ms

SPOKE2 端业务测试

PC3# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.2.10  netmask 255.255.255.0  broadcast 192.168.2.255
        inet6 fe80::2652:4dd7:5d0e:941d  prefixlen 64  scopeid 0x20<link>
        inet6 240e:604:109:39::216  prefixlen 64  scopeid 0x0<global>
        ether 00:0c:29:37:f0:ac  txqueuelen 1000  (Ethernet)
        RX packets 9638867  bytes 205844622412 (191.7 GiB)
        RX errors 0  dropped 118  overruns 0  frame 0
        TX packets 5737914  bytes 378901312 (361.3 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

访问HUB
PC2# ping 192.168.0.10 -c 4
PING 192.168.0.10 (192.168.0.10) 56(84) bytes of data.
64 bytes from 192.168.0.10: icmp_seq=1 ttl=62 time=0.848 ms
64 bytes from 192.168.0.10: icmp_seq=2 ttl=62 time=0.935 ms
64 bytes from 192.168.0.10: icmp_seq=3 ttl=62 time=0.899 ms
64 bytes from 192.168.0.10: icmp_seq=4 ttl=62 time=1.04 ms
--- 192.168.0.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.848/0.931/1.045/0.081 ms

访问SPOKE1
PC3# ping 192.168.1.10 -c 4
PING 192.168.1.10 (192.168.1.10) 56(84) bytes of data.
64 bytes from 192.168.1.10: icmp_seq=1 ttl=61 time=1.13 ms
64 bytes from 192.168.1.10: icmp_seq=2 ttl=61 time=1.22 ms
64 bytes from 192.168.1.10: icmp_seq=3 ttl=61 time=1.21 ms
64 bytes from 192.168.1.10: icmp_seq=4 ttl=61 time=1.04 ms
--- 192.168.1.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 1.043/1.151/1.220/0.075 ms
