ADVPN 模式

2025/10/29大约 17 分钟

ADVPN 模式

网络需求

传统的 Hub-Spoke 方式中，Spoke 只能和 Hub 建立永久隧道，Spoke 之间的流量需要通过 Hub 来转发，这种方式减轻了 Spoke 的负担，增加了 Hub 的性能要求，同时利于总部对分支间流量的监控；使用 ADVPN 技术实现的 Full-Mesh 方式中，Spoke 之间可以建立动态直连隧道，分支间的流量可以直接转发。相比而言，Hub 负担减轻，同时减少分支间流量的延迟，更有利于 SPOKE 之间的流量传输，在实际使用的过程中可按照自身需求进行选择。

网络拓扑

VPN Tunnel IP 地址分配，以及 BGP 的规划：

角色	公网 IP	私网网段	VPN 隧道 IP	BGP 信息
HUB	100.1.1.2	192.168.0.1/24	10.10.10.1	AS 65001 RR 反射器
SPOKE1	200.1.1.2	192.168.1.1/24	10.10.10.2	AS 65001 RR Client
SPOKE2	201.1.1.2	192.168.2.1/24	10.10.10.3	AS 65001 RR Client
SPOKE3	...	...	...	...
SPOKEX	...	...	...	...

配置步骤

这里使用 IPSEC “Hub and Spoke”模板创建 ADVPN。

HUB 端配置

1.基本配置

配置接口 IP 和路由

2.配置 IPSEC VPN

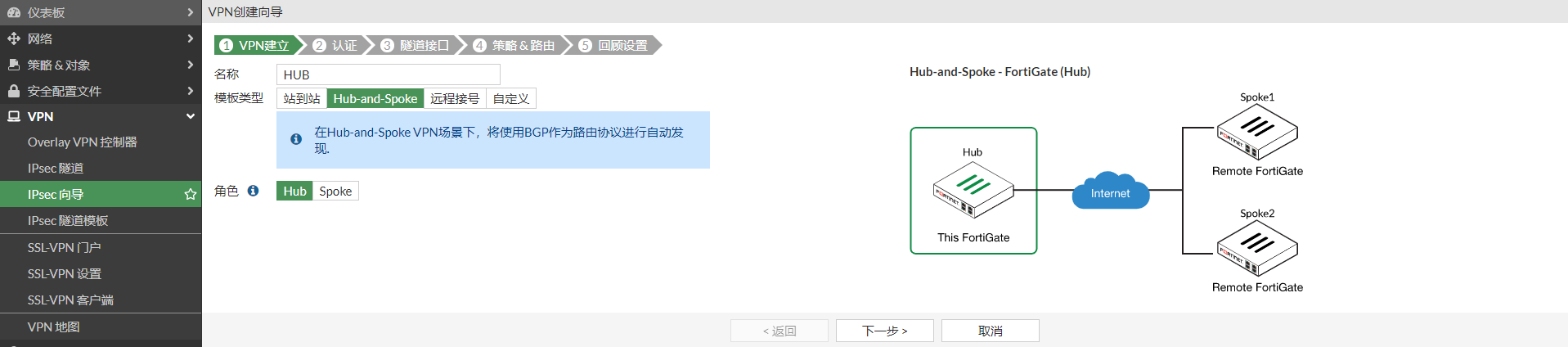

选择“Hub and Spoke”模板

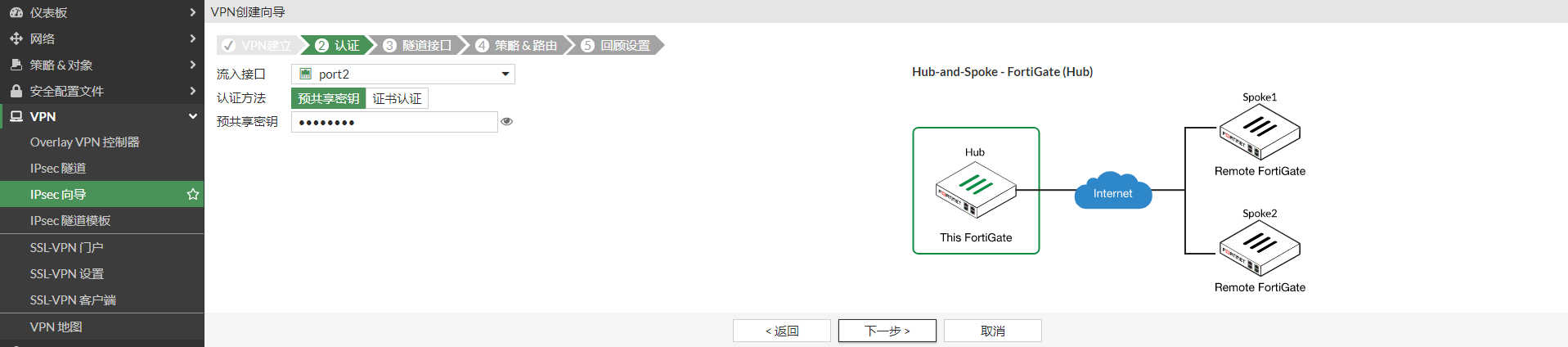

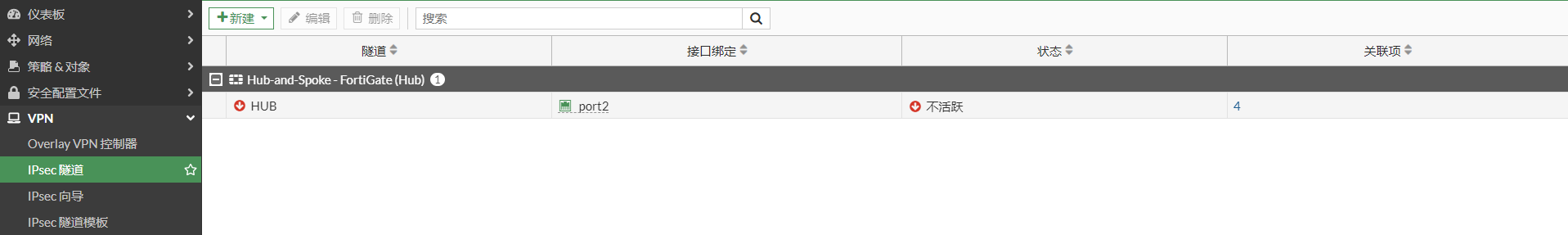

选择创建 IPSEC 的接口及预共享秘钥。

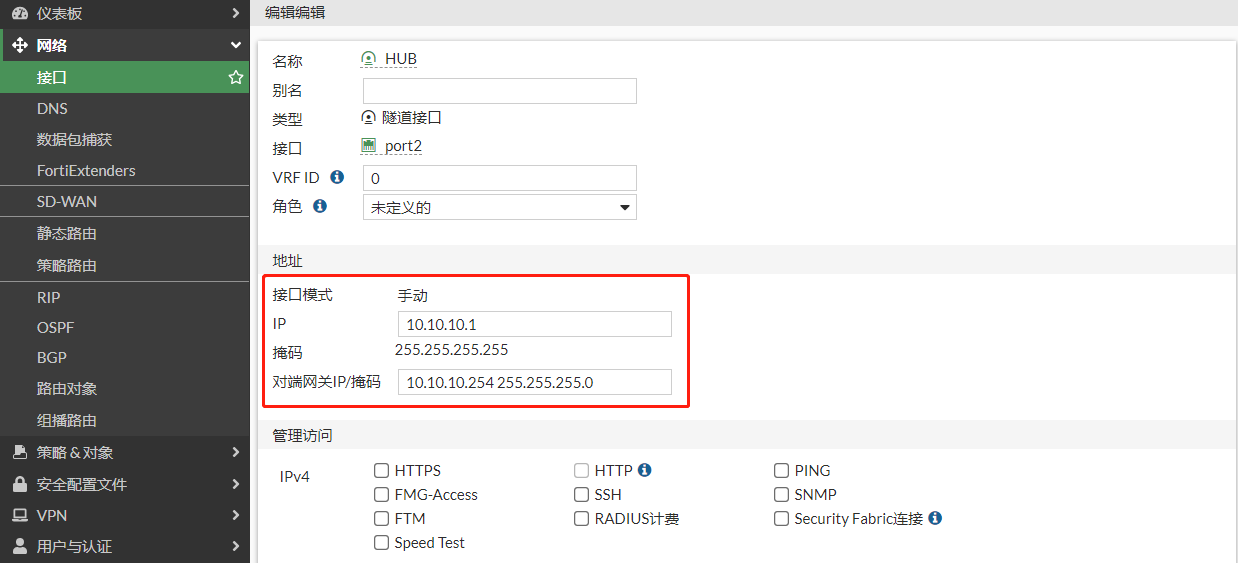

HUB 端的 tunnel ip 是 10.10.10.1，远程 IP 地址/掩码是 10.10.10.254/24。10.10.10.254 是不被 Spoke 所使用的预留 IP，IPsec Tunnel 是一个点对点的隧道，但是 ADVPN 中这条隧道需要同时对应多个 SPOKE，因此不能将 Remote IP 写成一个存在的 SPOKE 端 IP。

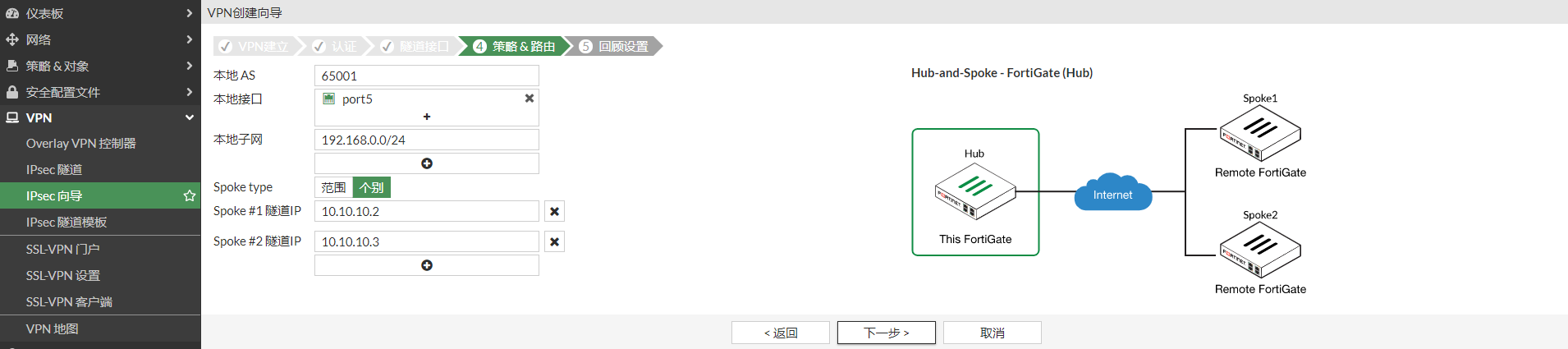

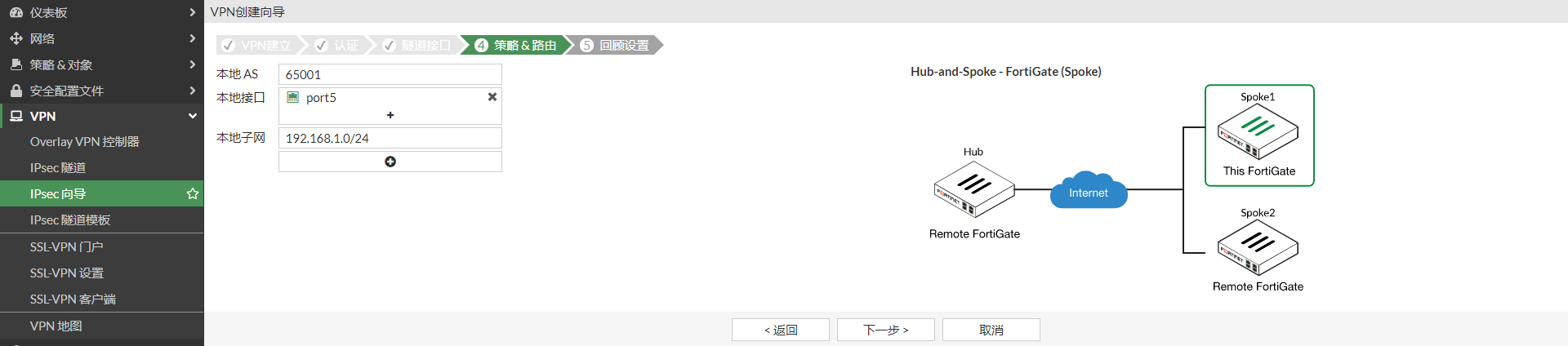

输入 BGP AS 号，本地的内网接口及本地的内网网段，这里有两个 spoke，分别设置对应隧道 IP。

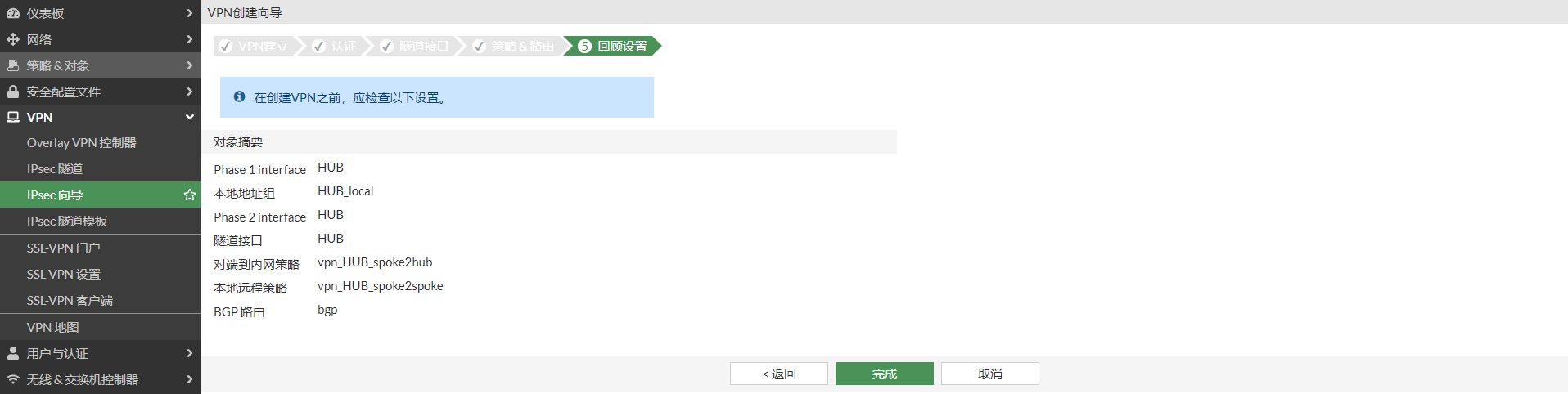

VPN 向导即将创建的内容。

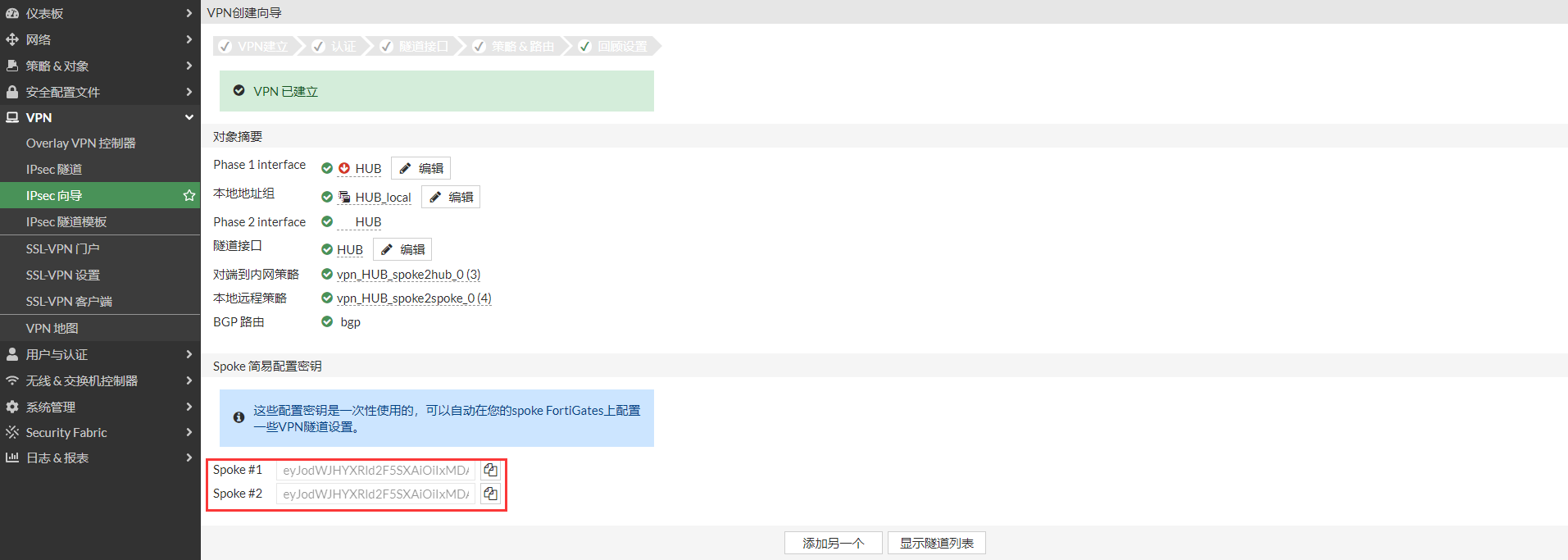

VPN 创建完成，Spoke#1 和 Spoke#2 需要复制下来用于 SPOKE 端创建 VPN。

查看 HUB 端 IPSEC 向导创建的配置

通过“VPN 创建向导”可以很方便的配置 VPN，但我们需要知道向导具体做了哪些配置。

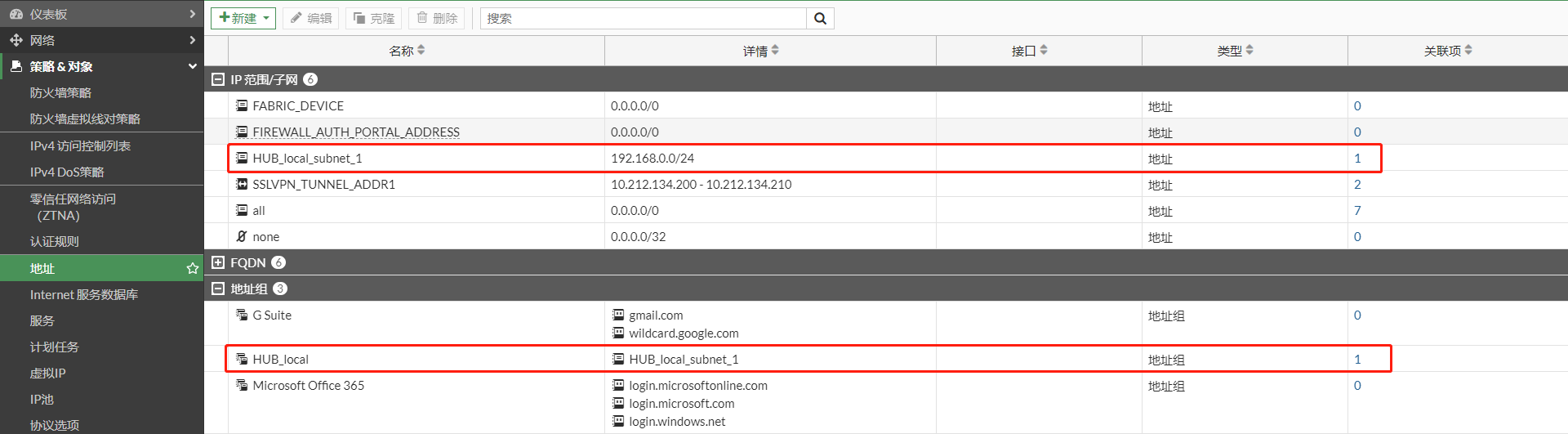

1.创建地址对象和地址对象组

2.创建 IPSEC VPN

对应的命令行

config vpn ipsec phase1-interface
    edit "HUB"
        set type dynamic
        set interface "port2"
        set peertype any
        set net-device disable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set add-route disable
        set dpd on-idle
        set comments "VPN: HUB (Created by VPN wizard)"
        set wizard-type hub-fortigate-auto-discovery
        set auto-discovery-sender enable
        set psksecret ENC SKVqWAT1K2iJB8U5T26IVmwtHjbLPes7VloWfh1ARXPGobKTYHruFIVEe/RjNKZrNj3j1GdXrvp1GlPLt7DExzLGKKyIoQ/1q5owciyhpLn753JL0kRW86eR/C2h0aDcGZVKI8U9MagbU1pEy7RC71rtRr3dJjSd95eu6oeyq9FssYpAq9jCdyDbiSpbZoEVoYEwiw==
    next
end
config vpn ipsec phase2-interface
    edit "HUB"
        set phase1name "HUB"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set comments "VPN: HUB (Created by VPN wizard)"
    next
end

3.创建策略

重要

模板中只创建了 SPOKE 到 HUB 端的策略以及 SPOKE 到 SPOKE 端的策略，没有创建 HUB 到 SPOKE 端的策略，可以根据业务的需求添加。

4.创建 VPN 接口 IP

5.创建 BGP

针对向导配置的优化建议

在第一阶段中开启 DPD 周期性检测（每隔 10s 检测一次 Peer 状态），实现快速的检测并切换 VPN 隧道的目的。

config vpn ipsec phase1-interface
    edit "VPN-to-SH"
        set dpd on-idle
        set dpd-retrycount 3
        set dpd-retryinterval 10
    next
end

SPOKE1 端配置

1.基本配置

2.配置 IPSEC VPN

选择“Hub and Spoke”模板。输入在 HUB 生成的 Spoke#1 的秘钥并点击应用，然后点击下一步。

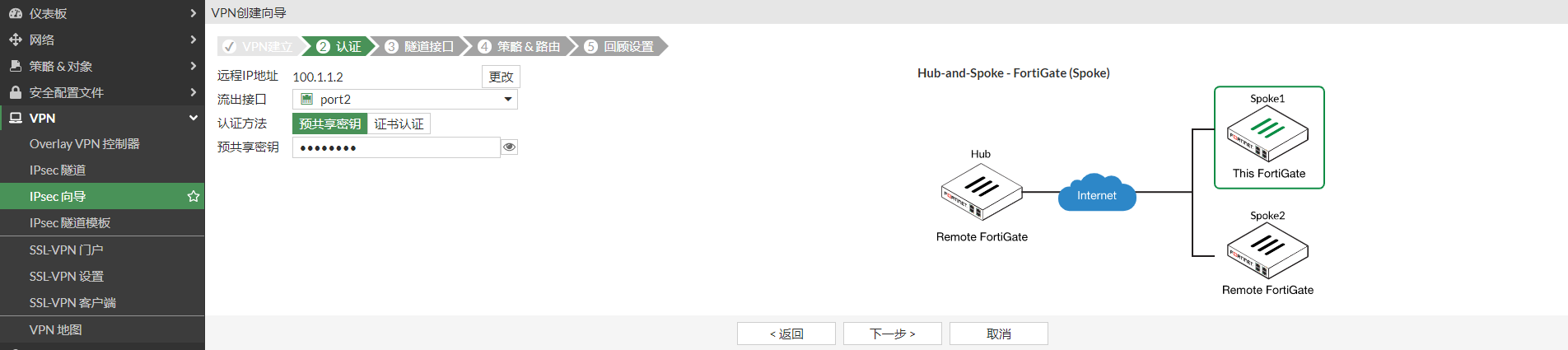

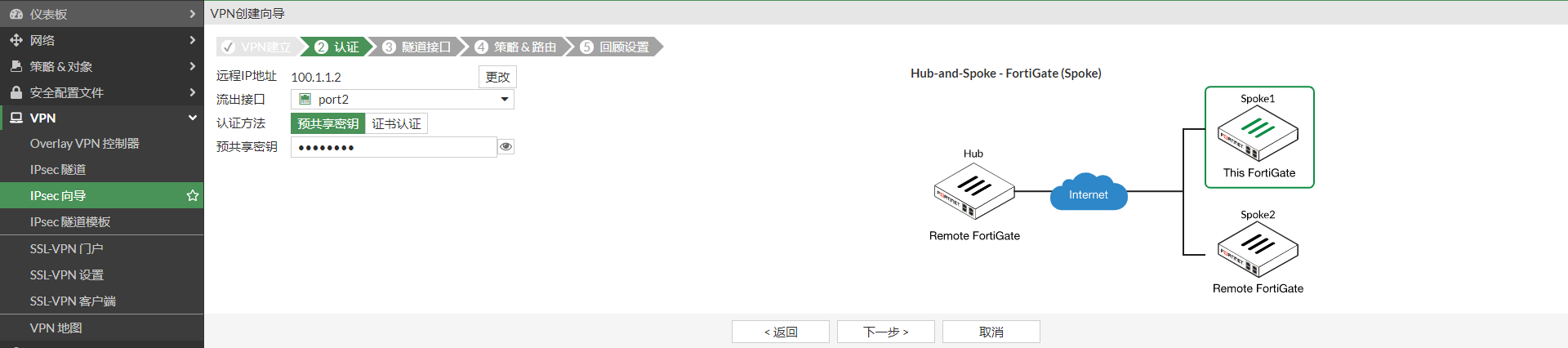

远程 IP 地址和流出接口会自动生成，需要输入预共享秘钥。点击下一步。

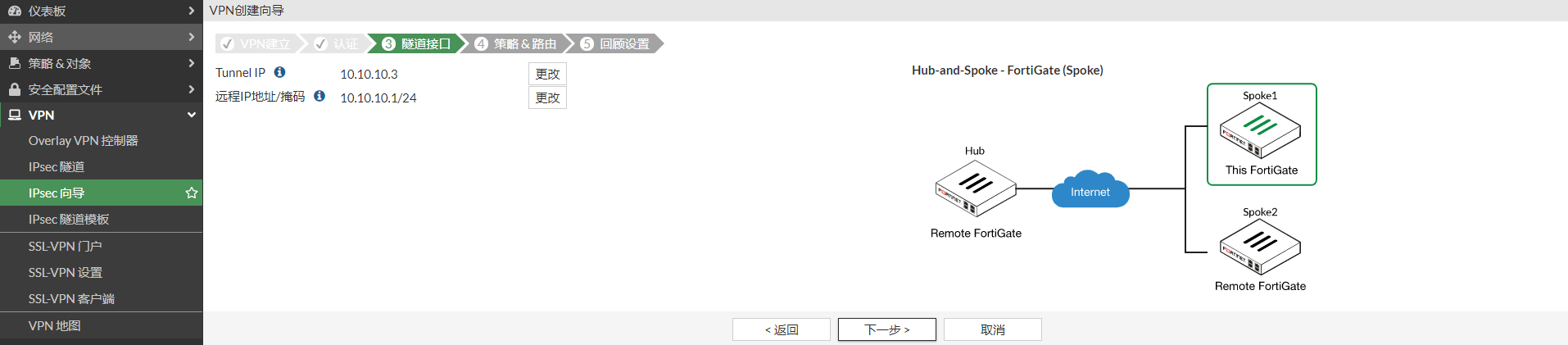

自动生成隧道 IP，点击下一步。

自动生成本地 AS 号，需要生成 SPOKE1 本地的内网接口及需要保护的内网网段，点击下一步。

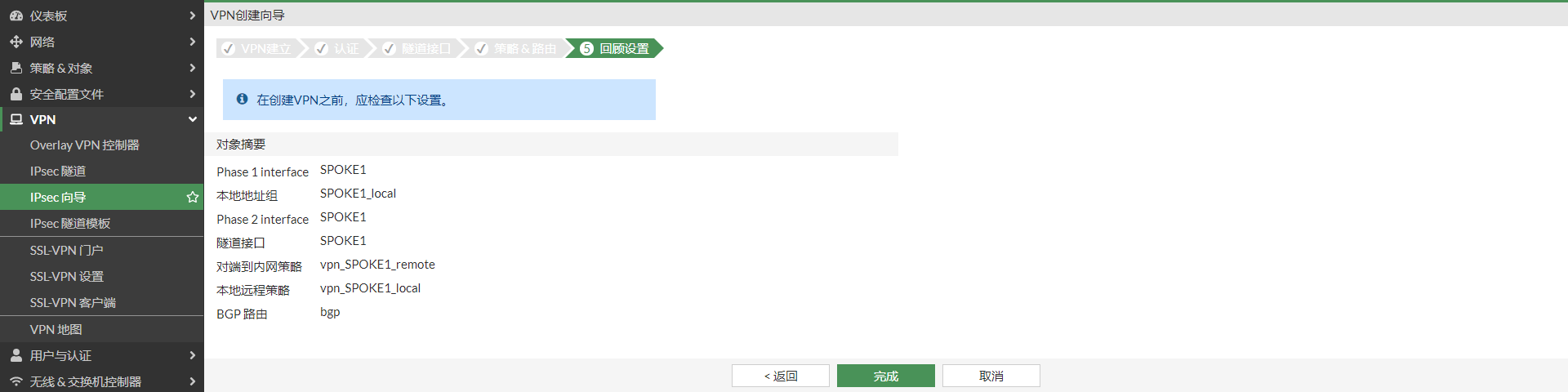

VPN 向导即将创建的内容，点击完成。

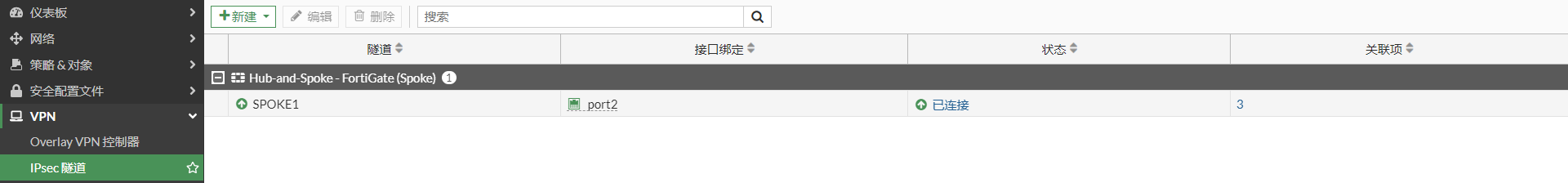

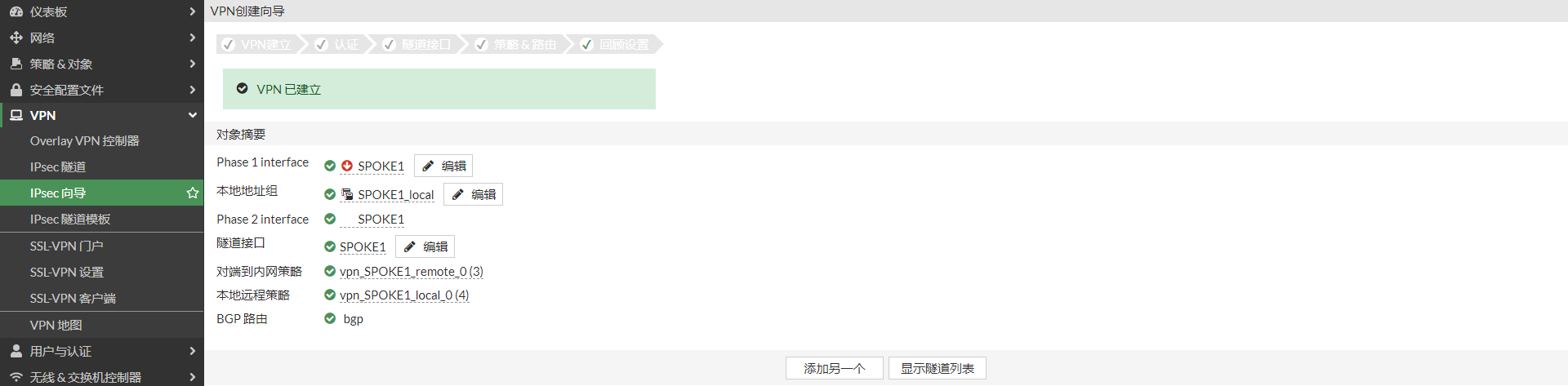

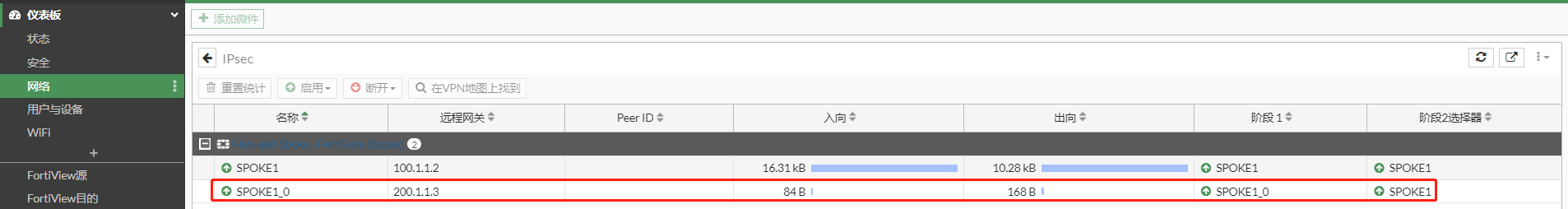

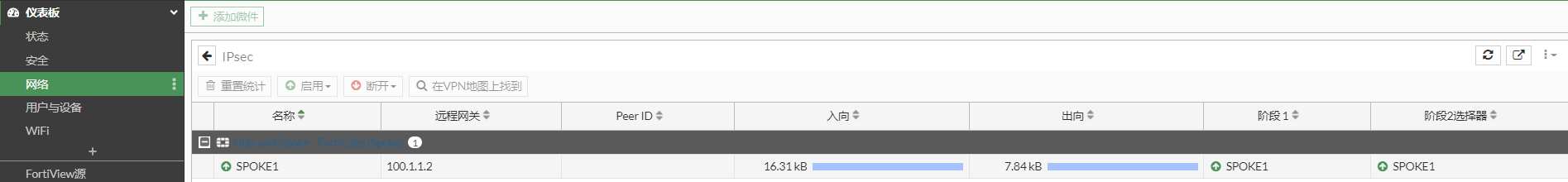

VPN 创建完成。

查看 SPOKE1 端 IPSEC 向导创建的配置

通过“VPN 创建向导”可以很方便的配置 VPN，但我们需要知道向导具体做了哪些配置。

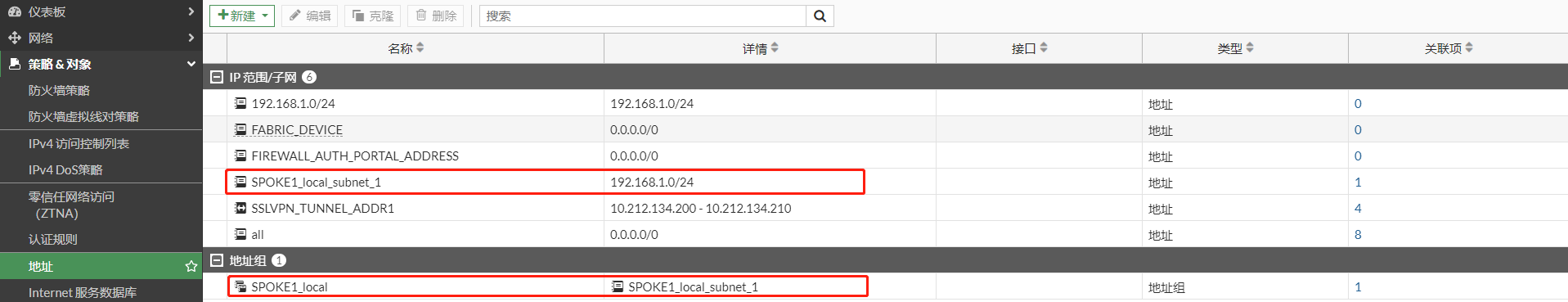

1.创建地址对象和地址对象组

2.创建 VPN

对应的命令行

config vpn ipsec phase1-interface
    edit "SPOKE1"
        set interface "port2"
        set peertype any
        set net-device enable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set add-route disable
        set dpd on-idle
        set comments "VPN: SPOKE1 (Created by VPN wizard)"
        set wizard-type spoke-fortigate-auto-discovery
        set auto-discovery-receiver enable
        set remote-gw 100.1.1.2
        set psksecret ENC zVXgULIXvCQPfG0ubZ8R36jhME7KanJ9V/NyV8zt5tXA5jlwPAli6alNN6g26Udtb04sWU/veKHuorIFmj9fO0J9vBi6Da6+pRlhnfSZ/f3fcxG7hj7ydbk72PyXw2mDdDKsMty+27VVqTNG8OEyxdX+/vCG82iT5NjaLM84V/P1/YNUlIWqrnte2PEjuw9tzzbbDQ==
    next
end
config vpn ipsec phase2-interface
    edit "SPOKE1"
        set phase1name "SPOKE1"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set comments "VPN: SPOKE1 (Created by VPN wizard)"
    next
end

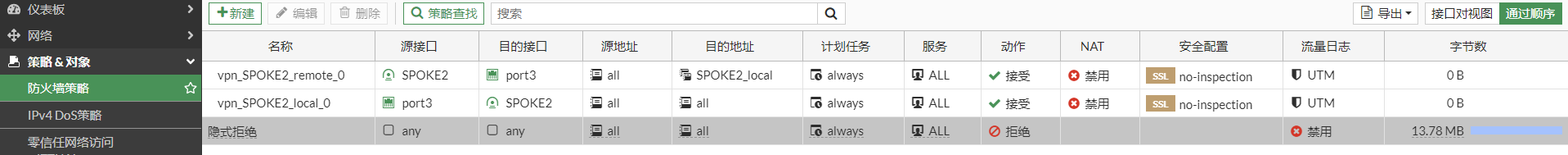

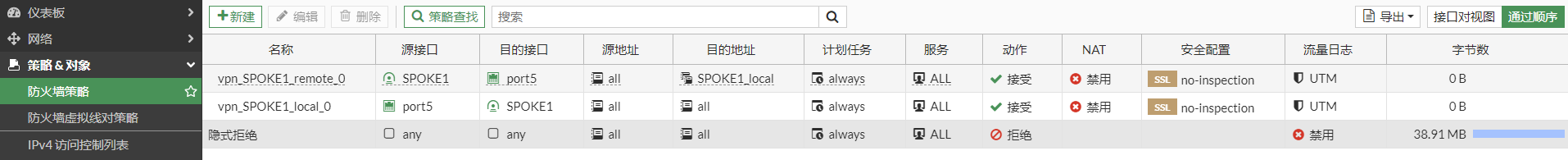

3.创建策略

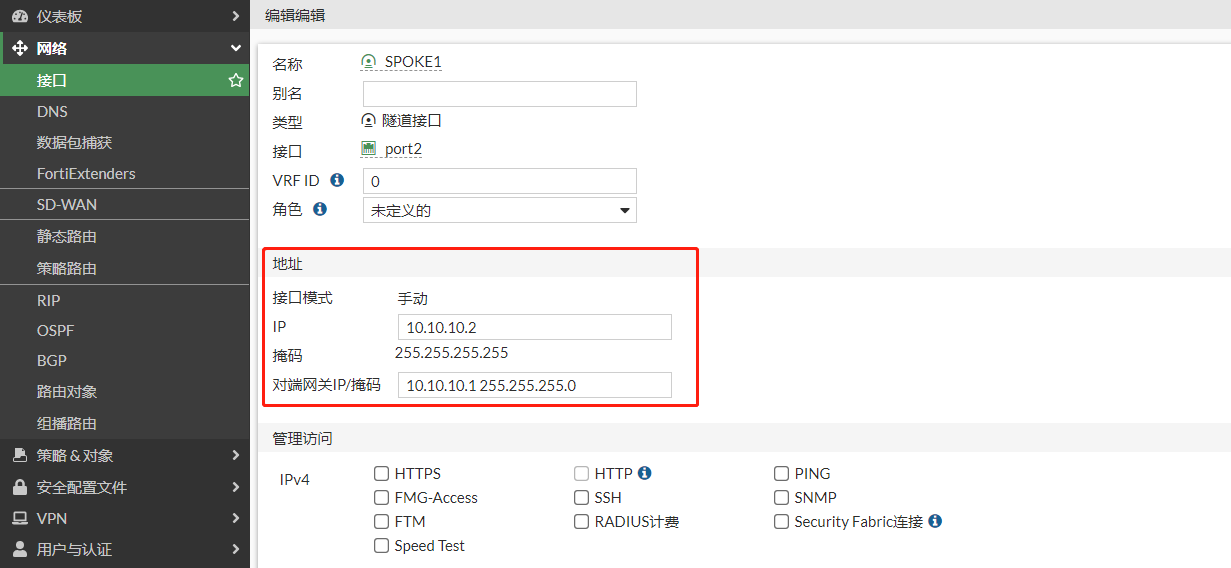

4.创建 VPN 接口 IP

5.创建 BGP

针对向导配置的优化建议

在第一阶段中开启 DPD 周期性检测（每隔 10s 检测一次 Peer 状态），实现快速的检测并切换 VPN 隧道的目的。

config vpn ipsec phase1-interface
    edit "VPN-to-SH"
        set dpd on-idle
        set dpd-retrycount 3
        set dpd-retryinterval 10
    next
end

开启自动协商，主动让隧道 UP 起来，而非使用 VPN 业务的时候再去触发 VPN 的协商，这样可以减少业务的丢包。在 VPN 主动发起方开启即可。
IPSEC VPN 阶段一自动协商是默认开启的。
```
config vpn ipsec phase1-interface
    edit "VPN-to-SH"
        set auto-negotiate enable
    next
end
```
IPSEC VPN 阶段二自动协商默认关闭，需要开启。
```
config vpn ipsec phase2-interface
    edit "VPN-to-SH"
        set auto-negotiate enable
    next
end
```

SPOKE2 配置

基本配置

2.配置 IPSEC VPN

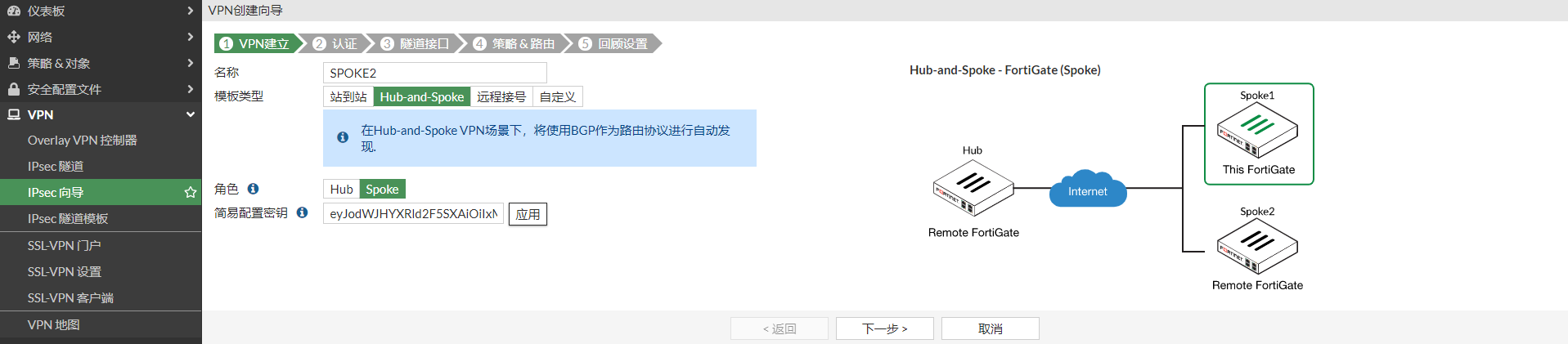

选择“Hub and Spoke”模板。输入在 HUB 生成的 Spoke#2 的秘钥并点击应用，然后点击下一步。

远程 IP 地址和流出接口会自动生成，需要输入预共享秘钥。点击下一步。

自动生成隧道 IP，点击下一步。

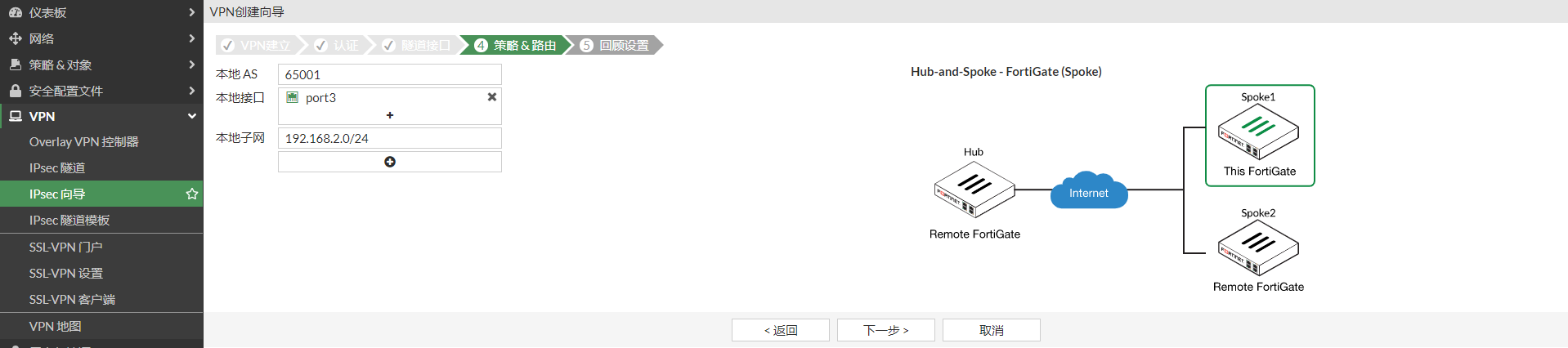

自动生成本地 AS 号，需要生成 SPOKE1 本地的内网接口及需要保护的内网网段，点击下一步。

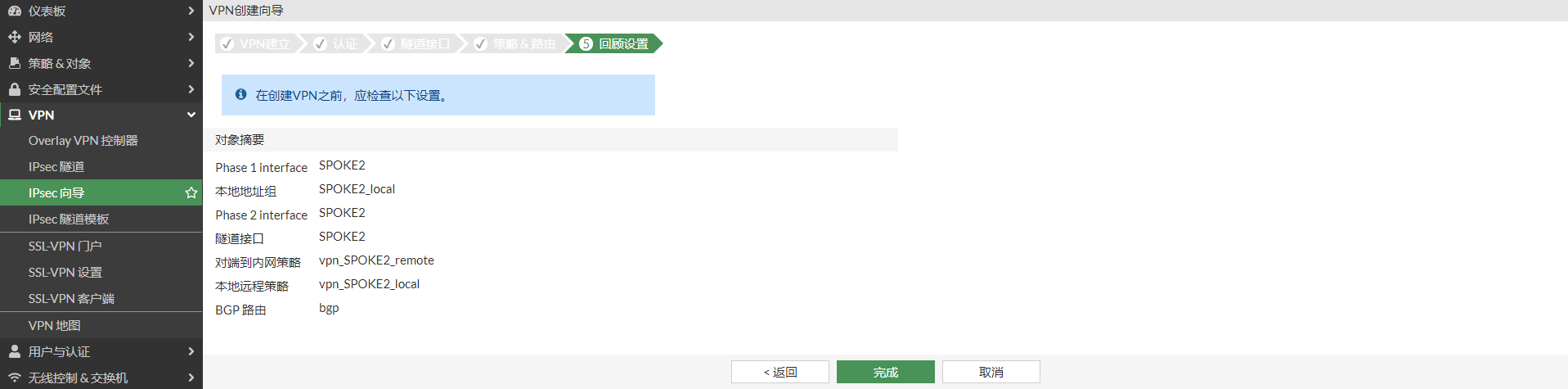

VPN 向导即将创建的内容，点击完成。

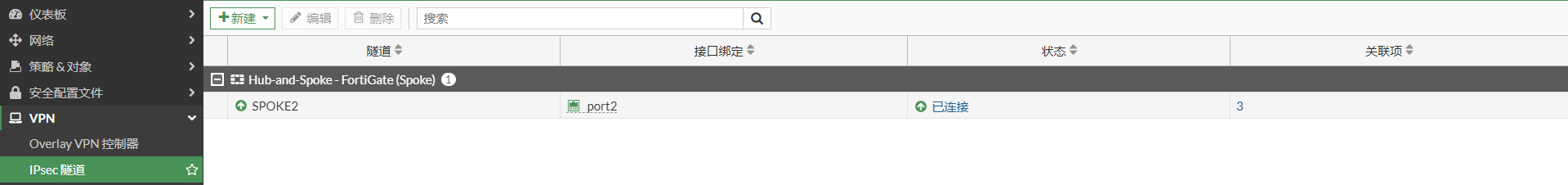

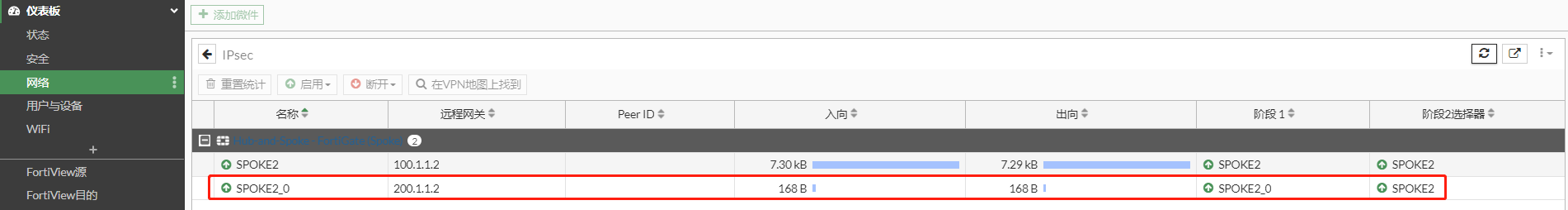

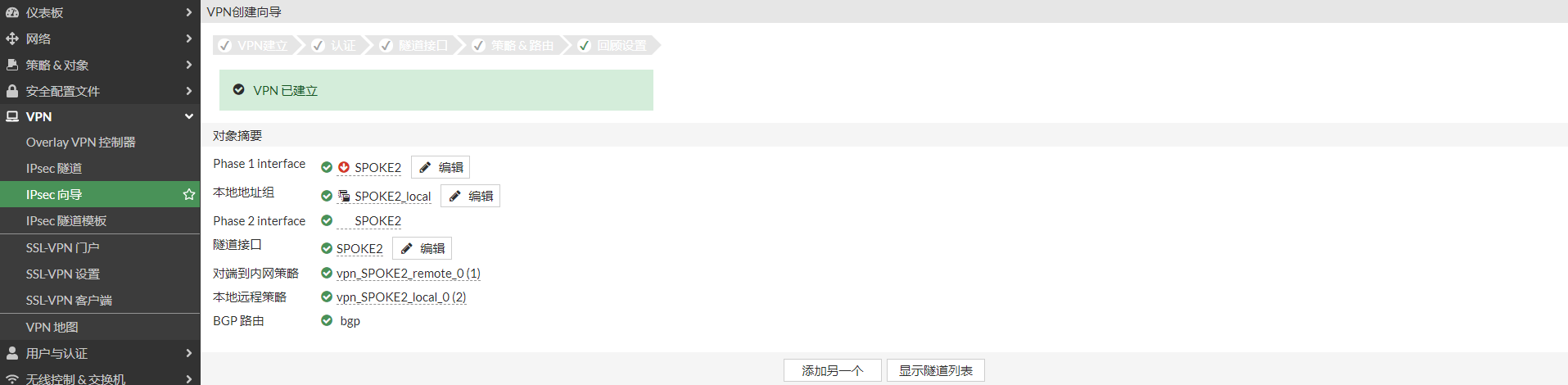

VPN 创建成功。

查看 SPOKE2 端 IPSEC 向导创建的配置

通过“VPN 创建向导”可以很方便的配置 VPN，但我们需要知道向导具体做了哪些配置。

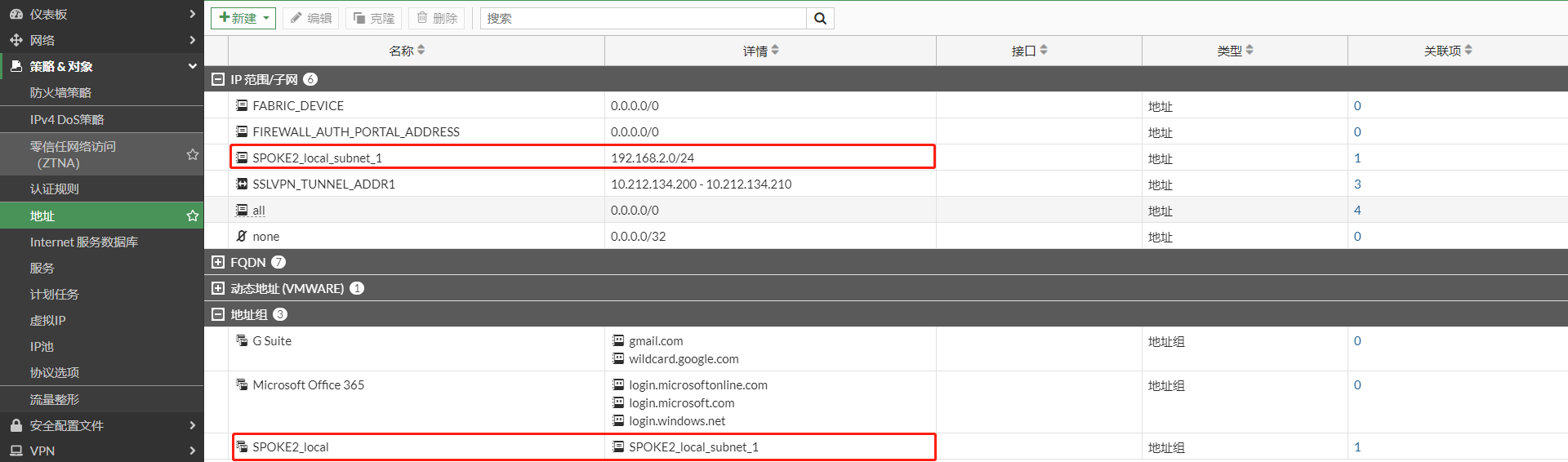

1.创建地址对象和地址对象组

2.创建 VPN

对应的命令行

config vpn ipsec phase1-interface
    edit "SPOKE2"
        set interface "port2"
        set peertype any
        set net-device enable
        set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
        set add-route disable
        set dpd on-idle
        set comments "VPN: SPOKE2 (Created by VPN wizard)"
        set wizard-type spoke-fortigate-auto-discovery
        set auto-discovery-receiver enable
        set remote-gw 100.1.1.2
        set psksecret ENC Hhob5itx47wX/q8zqk2vgdQqbTGPVR3Ks4Bti+eH4AOK/4vS+a1JTnh4IwhyrQ8J8APUDv6ttVJDUV00lROhiXPy3XNqtZR1Vw8mlAv1I3KQTvEWV9/AUZRWRqoEKN8uo98qbPR97LC5NPQ7OIiZYvsh8T5XQhHGzRNiQpL4sSWBRbJDTvKrxarnuJr8UIdzHqO7xA==
    next
end
config vpn ipsec phase2-interface
    edit "SPOKE2"
        set phase1name "SPOKE2"
        set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
        set comments "VPN: SPOKE2 (Created by VPN wizard)"
    next
end

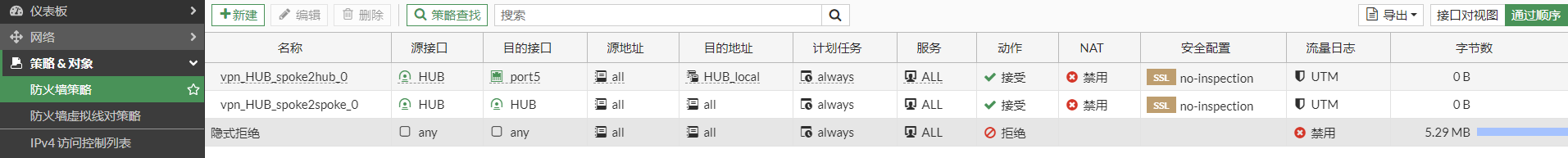

3.创建策略

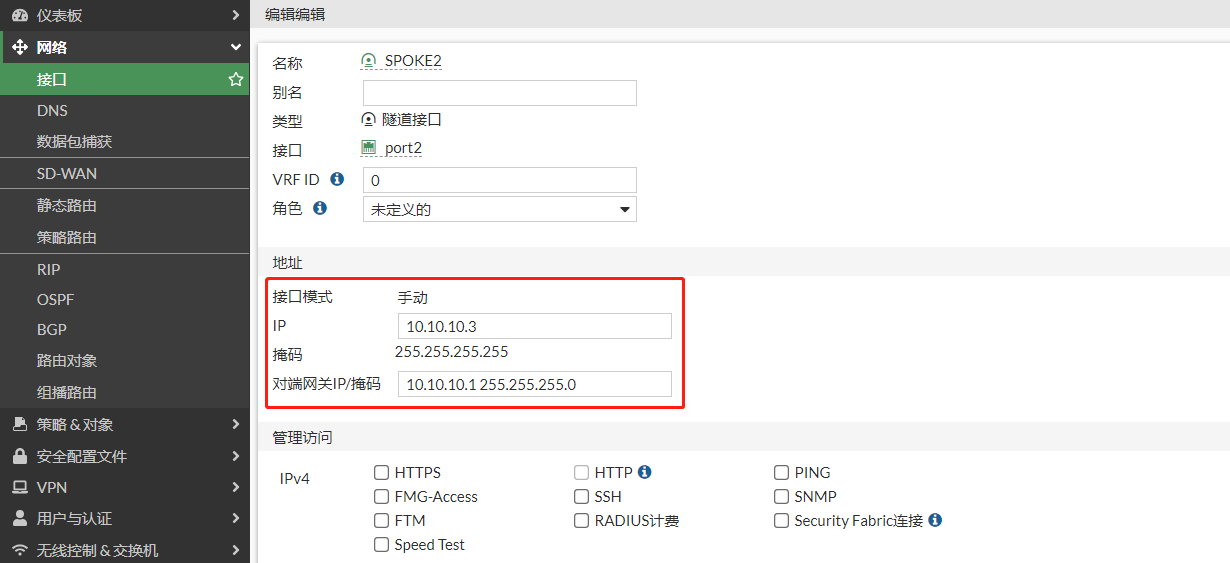

4.创建 VPN 接口 IP

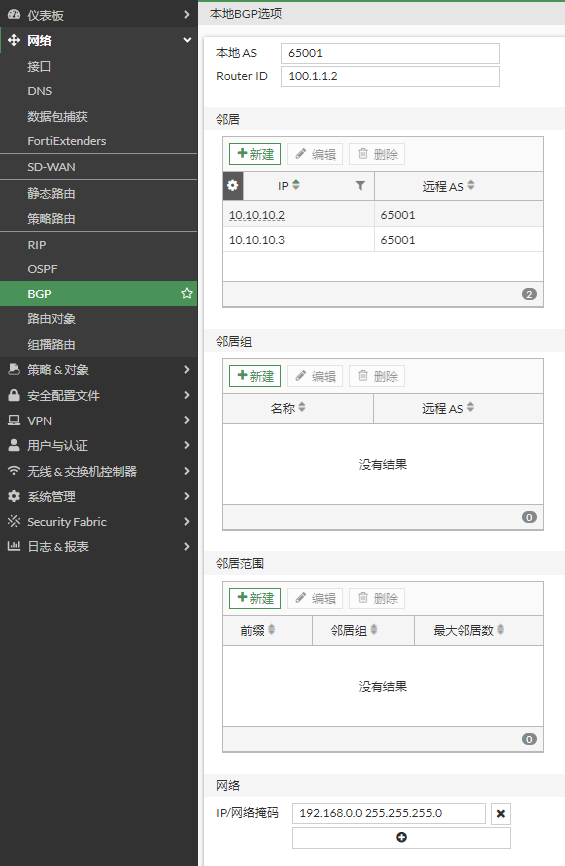

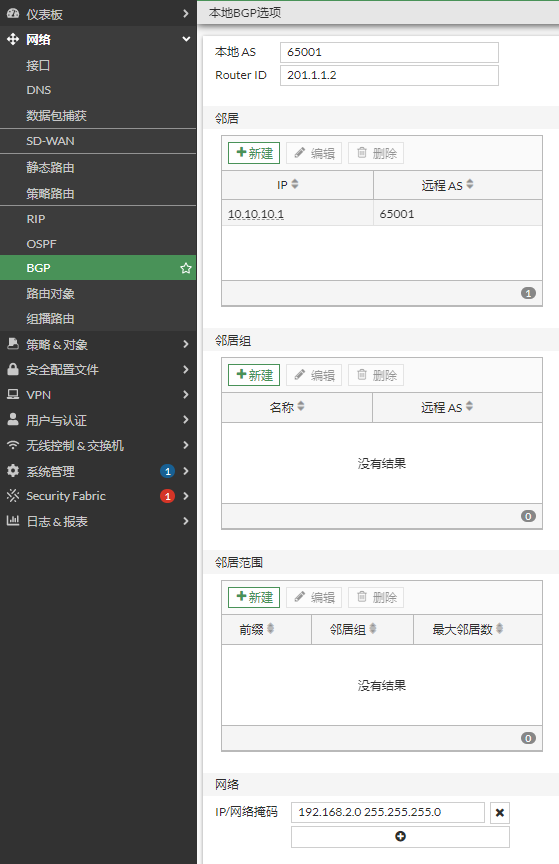

5.创建 BGP

针对向导配置的优化建议

在第一阶段中开启 DPD 周期性检测（隧道没有流量时，每隔 10s 检测一次 Peer 状态），实现快速的检测并切换 VPN 隧道的目的。

config vpn ipsec phase1-interface
    edit "VPN-to-SH"
        set dpd on-idle
        set dpd-retrycount 3
        set dpd-retryinterval 10
    next
end

开启自动协商，主动让隧道 UP 起来，而非使用 VPN 业务的时候再去触发 VPN 的协商，这样可以减少业务的丢包。在 VPN 主动发起方开启即可。
IPSEC VPN 阶段一自动协商是默认开启的。
```
config vpn ipsec phase1-interface
    edit "VPN-to-SH"
        set auto-negotiate enable
    next
end
```
IPSEC VPN 阶段二自动协商默认关闭，需要开启。
```
config vpn ipsec phase2-interface
    edit "VPN-to-SH"
        set auto-negotiate enable
    next
end
```

查看 VPN 和路由状态

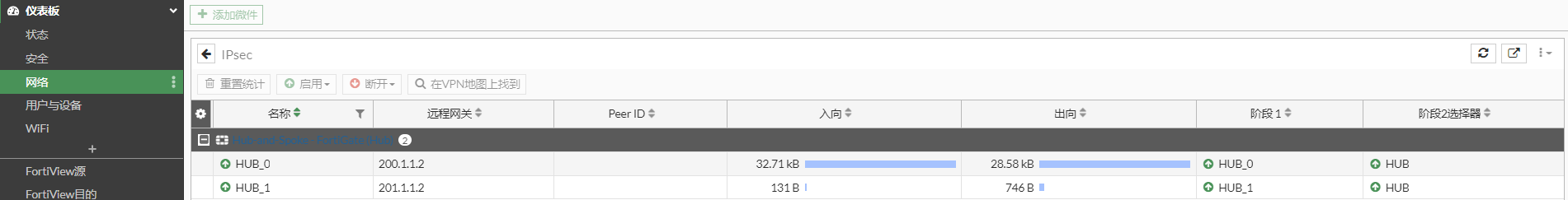

1.HUB 端 VPN 和路由状态

# diagnose vpn  ike gateway list

vd: root/0
name: HUB_0
version: 1
interface: port2 10
addr: 100.1.1.2:500 -> 200.1.1.2:500
tun_id: 10.10.10.2/::10.0.0.4
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.1 -> 10.10.10.2
created: 212s ago
auto-discovery: 1 sender
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/2  established 1/2  time 0/0/0 ms

  id/spi: 0 1f454ba48eb31ef1/779d7de61a925ba5
  direction: responder
  status: established 212-212s ago = 0ms
  proposal: aes128-sha256
  key: 26b761298dff1684-03a1e6994809ae6d
  lifetime/rekey: 86400/85917
  DPD sent/recv: 00000000/00000000

vd: root/0
name: HUB_1
version: 1
interface: port2 10
addr: 100.1.1.2:500 -> 201.1.1.2:500
tun_id: 10.10.10.3/::10.0.0.5
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.1 -> 10.10.10.3
created: 155s ago
auto-discovery: 1 sender
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/2  established 1/2  time 0/0/0 ms

  id/spi: 1 4b28344cdc4862a2/c0f31569b4326560
  direction: responder
  status: established 155-155s ago = 0ms
  proposal: aes128-sha256
  key: 5e6660c76dfafef8-062dfbfdc7c83d2d
  lifetime/rekey: 86400/85974
  DPD sent/recv: 00000000/00000008

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=HUB_0 ver=1 serial=5 100.1.1.2:0->200.1.1.2:0 tun_id=10.10.10.2 tun_id6=::10.0.0.4 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/8872 options[22a8]=npu rgwy-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=HUB index=0
proxyid_num=1 child_num=0 refcnt=5 ilast=0 olast=0 ad=s/1
stat: rxp=2 txp=482 rxb=32710 txb=34637
dpd: mode=on-idle on=1 idle=20000ms retry=3 count=0 seqno=1
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=HUB proto=0 sa=1 ref=4 serial=1 ads
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=6 options=a26 type=00 soft=0 mtu=1438 expire=43082/0B replaywin=2048
       seqno=f2 esn=0 replaywin_lastseq=00000002 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=43186/43200
  dec: spi=9fbaba90 esp=aes key=16 a779f017a79a7e25bebcd73a8729ca4d
       ah=sha1 key=20 032444a21009bb1ed477c1b1c9fff594761031d5
  enc: spi=54b85815 esp=aes key=16 c4dcfc64ac2175b63e9e35198755e4ac
       ah=sha1 key=20 9b19cfd19c928ae8d12de4c6a76a7040e9baf274
  dec:pkts/bytes=2/16392, enc:pkts/bytes=482/47064
  npu_flag=03 npu_rgwy=200.1.1.2 npu_lgwy=100.1.1.2 npu_selid=2 dec_npuid=1 enc_npuid=1
------------------------------------------------------
name=HUB_1 ver=1 serial=6 100.1.1.2:0->201.1.1.2:0 tun_id=10.10.10.3 tun_id6=::10.0.0.5 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/8872 options[22a8]=npu rgwy-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=HUB index=1
proxyid_num=1 child_num=0 refcnt=5 ilast=0 olast=0 ad=s/1
stat: rxp=2 txp=12 rxb=131 txb=798
dpd: mode=on-idle on=1 idle=20000ms retry=3 count=0 seqno=2
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=HUB proto=0 sa=1 ref=3 serial=1 ads
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=6 options=a26 type=00 soft=0 mtu=1438 expire=43120/0B replaywin=2048
       seqno=4 esn=0 replaywin_lastseq=00000002 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=43190/43200
  dec: spi=9fbaba91 esp=aes key=16 2670729ad842dd91c879db020170554b
       ah=sha1 key=20 1b6eb76171659fc431e7ffaed7e90bb9d7daa1fe
  enc: spi=f01e0450 esp=aes key=16 e4ed2f14faac5e5ddf7dec37ac8d6843
       ah=sha1 key=20 12f6d432f0a1ebef51de6e32d811dba066f54741
  dec:pkts/bytes=2/142, enc:pkts/bytes=6/551
  npu_flag=03 npu_rgwy=201.1.1.2 npu_lgwy=100.1.1.2 npu_selid=3 dec_npuid=1 enc_npuid=1
------------------------------------------------------
name=HUB ver=1 serial=4 100.1.1.2:0->0.0.0.0:0 tun_id=10.0.0.2 tun_id6=::10.0.0.2 dst_mtu=0 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dialup/2 encap=none/552 options[0228]=npu frag-rfc  role=primary accept_traffic=1 overlay_id=0

proxyid_num=0 child_num=2 refcnt=4 ilast=42953655 olast=42953655 ad=/0
stat: rxp=4 txp=494 rxb=32841 txb=35435
dpd: mode=on-idle on=0 idle=10000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
run_tally=0

查看路由表

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port2, [1/0]
C       10.10.10.0/24 is directly connected, HUB
C       10.10.10.1/32 is directly connected, HUB
C       100.1.1.0/24 is directly connected, port2
C       192.168.0.0/24 is directly connected, port5
B       192.168.1.0/24 [200/0] via 10.10.10.2 (recursive is directly connected, HUB), 00:50:01
B       192.168.2.0/24 [200/0] via 10.10.10.3 (recursive is directly connected, HUB), 00:29:13

2.SPOKE1 端 VPN 和路由状态

# diagnose vpn ike gateway list

vd: root/0
name: SPOKE1
version: 1
interface: port2 10
addr: 200.1.1.2:500 -> 100.1.1.2:500
tun_id: 100.1.1.2/::100.1.1.2
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.2 -> 10.10.10.1
created: 397s ago
auto-discovery: 2 receiver
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/2  established 1/2  time 0/0/0 ms

  id/spi: 0 1f454ba48eb31ef1/779d7de61a925ba5
  direction: initiator
  status: established 397-397s ago = 0ms
  proposal: aes128-sha256
  key: 26b761298dff1684-03a1e6994809ae6d
  lifetime/rekey: 86400/85702
  DPD sent/recv: 00000004/00000000

# diagnose vpn  tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=SPOKE1 ver=1 serial=1 200.1.1.2:0->100.1.1.2:0 tun_id=100.1.1.2 tun_id6=::100.1.1.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=auto/1 encap=none/568 options[0238]=npu create_dev frag-rfc  role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=11 olast=11 ad=r/2
stat: rxp=2 txp=649 rxb=32678 txb=45413
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=4
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE1 proto=0 sa=1 ref=3 serial=2 auto-negotiate adr
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=6 options=1a227 type=00 soft=0 mtu=1438 expire=42643/0B replaywin=2048
       seqno=1bf esn=0 replaywin_lastseq=00000002 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42933/43200
  dec: spi=54b85815 esp=aes key=16 c4dcfc64ac2175b63e9e35198755e4ac
       ah=sha1 key=20 9b19cfd19c928ae8d12de4c6a76a7040e9baf274
  enc: spi=9fbaba90 esp=aes key=16 a779f017a79a7e25bebcd73a8729ca4d
       ah=sha1 key=20 032444a21009bb1ed477c1b1c9fff594761031d5
  dec:pkts/bytes=2/16342, enc:pkts/bytes=892/90448
  npu_flag=03 npu_rgwy=100.1.1.2 npu_lgwy=200.1.1.2 npu_selid=1 dec_npuid=1 enc_npuid=1

查看路由表

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 200.1.1.1, port2, [1/0]
S       10.10.10.0/24 [5/0] via SPOKE1 tunnel 100.1.1.2, [1/0]
S       10.10.10.1/32 [15/0] via SPOKE1 tunnel 100.1.1.2, [1/0]
C       10.10.10.2/32 is directly connected, SPOKE1
C       192.168.1.0/24 is directly connected, port5
C       200.1.1.0/24 is directly connected, port2
B       192.168.0.0/24 [200/0] via 10.10.10.1 (recursive via SPOKE1 tunnel 100.1.1.2), 00:52:00
B       192.168.2.0/24 [200/0] via 10.10.10.3 (recursive via SPOKE1 tunnel 100.1.1.2), 00:30:43

3.SPOKE2 端 VPN 和路由状态

# diagnose vpn ike gateway list

vd: root/0
name: SPOKE2
version: 1
interface: port2 6
addr: 201.1.1.2:500 -> 100.1.1.2:500
tun_id: 100.1.1.2/::100.1.1.2
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.3 -> 10.10.10.1
created: 429s ago
auto-discovery: 2 receiver
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/2  established 1/2  time 0/0/0 ms

  id/spi: 0 4b28344cdc4862a2/c0f31569b4326560
  direction: initiator
  status: established 429-429s ago = 0ms
  proposal: aes128-sha256
  key: 5e6660c76dfafef8-062dfbfdc7c83d2d
  lifetime/rekey: 86400/85671
  DPD sent/recv: 00000017/00000003

# diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=SPOKE2 ver=1 serial=2 201.1.1.2:0->100.1.1.2:0 tun_id=100.1.1.2 tun_id6=::100.1.1.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=6 lgwy=static/1 tun=intf mode=auto/1 encap=none/568 options[0238]=npu create_dev frag-rfc  role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=9 olast=9 ad=r/2
stat: rxp=27 txp=24 rxb=1863 txb=1536
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=23
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE2 proto=0 sa=1 ref=3 serial=2 auto-negotiate adr
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=1a203 type=00 soft=0 mtu=1438 expire=42552/0B replaywin=2048
       seqno=f esn=0 replaywin_lastseq=00000013 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42897/43200
  dec: spi=f01e0450 esp=aes key=16 e4ed2f14faac5e5ddf7dec37ac8d6843
       ah=sha1 key=20 12f6d432f0a1ebef51de6e32d811dba066f54741
  enc: spi=9fbaba91 esp=aes key=16 2670729ad842dd91c879db020170554b
       ah=sha1 key=20 1b6eb76171659fc431e7ffaed7e90bb9d7daa1fe
  dec:pkts/bytes=36/2480, enc:pkts/bytes=28/2653
  npu_flag=00 npu_rgwy=100.1.1.2 npu_lgwy=201.1.1.2 npu_selid=2 dec_npuid=0 enc_npuid=0

查看路由表

# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 200.1.1.1, port2, [1/0
S       10.10.10.0/24 [5/0] via SPOKE2 tunnel 100.1.1.2, [1/0]
S       10.10.10.1/32 [15/0] via SPOKE2 tunnel 100.1.1.2, [1/0]
C       10.10.10.3/32 is directly connected, SPOKE2
C       192.168.2.0/24 is directly connected, port3
C       200.1.1.0/24 is directly connected, port2
B       192.168.0.0/24 [200/0] via 10.10.10.1 (recursive via SPOKE2 tunnel 100.1.1.2), 00:34:25
B       192.168.1.0/24 [200/0] via 10.10.10.2 (recursive via SPOKE2 tunnel 100.1.1.2), 00:34:25

业务测试

1.SPOKE1 端访问 HUB

PC2# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.10  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::1a6c:e61:d2b9:a415  prefixlen 64  scopeid 0x20<link>
        inet6 2001::2  prefixlen 64  scopeid 0x0<global>
        ether 00:0c:29:0e:4e:c5  txqueuelen 1000  (Ethernet)
        RX packets 5904889  bytes 459674552 (438.3 MiB)
        RX errors 0  dropped 58  overruns 0  frame 0
        TX packets 3224540  bytes 205411564402 (191.3 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC2# ping 192.168.0.10 -c 4
PING 192.168.0.10 (192.168.0.10) 56(84) bytes of data.
64 bytes from 192.168.0.10: icmp_seq=1 ttl=62 time=0.746 ms
64 bytes from 192.168.0.10: icmp_seq=2 ttl=62 time=0.765 ms
64 bytes from 192.168.0.10: icmp_seq=3 ttl=62 time=0.862 ms
64 bytes from 192.168.0.10: icmp_seq=4 ttl=62 time=0.677 ms

--- 192.168.0.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 2999ms
rtt min/avg/max/mdev = 0.677/0.762/0.862/0.071 ms

2.SPOKE2 端访问 HUB

PC3# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.2.10  netmask 255.255.255.0  broadcast 192.168.2.255
        inet6 fe80::2652:4dd7:5d0e:941d  prefixlen 64  scopeid 0x20<link>
        inet6 240e:604:109:39::216  prefixlen 64  scopeid 0x0<global>
        ether 00:0c:29:37:f0:ac  txqueuelen 1000  (Ethernet)
        RX packets 9638867  bytes 205844622412 (191.7 GiB)
        RX errors 0  dropped 118  overruns 0  frame 0
        TX packets 5737914  bytes 378901312 (361.3 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC3# ping 192.168.0.10 -c 4
PING 192.168.0.10 (192.168.0.10) 56(84) bytes of data.
64 bytes from 192.168.0.10: icmp_seq=1 ttl=62 time=0.848 ms
64 bytes from 192.168.0.10: icmp_seq=2 ttl=62 time=0.935 ms
64 bytes from 192.168.0.10: icmp_seq=3 ttl=62 time=0.899 ms
64 bytes from 192.168.0.10: icmp_seq=4 ttl=62 time=1.04 ms

--- 192.168.0.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.848/0.931/1.045/0.081 ms

3.SPOKE 之间访问

PC2# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.10  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::1a6c:e61:d2b9:a415  prefixlen 64  scopeid 0x20<link>
        inet6 2001::2  prefixlen 64  scopeid 0x0<global>
        ether 00:0c:29:0e:4e:c5  txqueuelen 1000  (Ethernet)
        RX packets 5908666  bytes 460902918 (439.5 MiB)
        RX errors 0  dropped 58  overruns 0  frame 0
        TX packets 3225276  bytes 205411619294 (191.3 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

SPOKE1访问SPOKE2
PC2# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=61 time=1.27 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=62 time=0.925 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=62 time=0.812 ms

--- 192.168.2.10 ping statistics ---
4 packets transmitted, 3 received, 25% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.812/1.004/1.276/0.199 ms

SPOKE 之间访问时，会触发 SPOKE 之间创建单独的 VPN。

在 SPOKE1 上查看与 SPOKE2 之间的 VPN 和路由。

# diagnose vpn ike gateway list name SPOKE1_0

vd: root/0
name: SPOKE1_0
version: 1
interface: port2 10
addr: 200.1.1.2:500 -> 201.1.1.2:500
tun_id: 201.1.1.2/::201.1.1.2
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.2 -> 10.10.10.3
created: 30s ago
auto-discovery: 2 receiver
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 2 c9a21426384683c3/9ec0d3e19cd425e1
  direction: initiator
  status: established 30-30s ago = 0ms
  proposal: aes128-sha256
  key: 8caa0db523816e6c-c1c1d43ab5961a5a
  lifetime/rekey: 86400/86069
  DPD sent/recv: 00000003/00000000

# diagnose vpn tunnel list name SPOKE1_0
list ipsec tunnel by names in vd 0
------------------------------------------------------
name=SPOKE1_0 ver=1 serial=3 200.1.1.2:0->201.1.1.2:0 tun_id=201.1.1.2 tun_id6=::201.1.1.2 dst_mtu=1500 dpd-link=on weight=1
bound_if=10 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/760 options[02f8]=npu create_dev no-sysctl rgwy-chg frag-rfc  role=primary accept_traffic=1 overlay_id=0

parent=SPOKE1 index=0
proxyid_num=1 child_num=0 refcnt=6 ilast=2 olast=2 ad=r/2
stat: rxp=1 txp=2 rxb=84 txb=168
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=4
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE1 proto=0 sa=1 ref=3 serial=1 auto-negotiate adr
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=6 options=1a227 type=00 soft=0 mtu=1438 expire=42855/0B replaywin=2048
       seqno=3 esn=0 replaywin_lastseq=00000002 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=42897/43200
  dec: spi=54b85816 esp=aes key=16 0478ea93933324f29cf01524e7d28ec4
       ah=sha1 key=20 5fb7754757facf499e85b1bdb314520d3cf10faa
  enc: spi=f01e0451 esp=aes key=16 183a97d565d45c86096969afeacd60ec
       ah=sha1 key=20 7f1cf1f622146d60453f68f35ed9804ab4566d46
  dec:pkts/bytes=2/168, enc:pkts/bytes=4/472
  npu_flag=03 npu_rgwy=201.1.1.2 npu_lgwy=200.1.1.2 npu_selid=3 dec_npuid=1 enc_npuid=1

  # get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 200.1.1.1, port2, [1/0]
S       10.10.10.0/24 [5/0] via SPOKE1 tunnel 100.1.1.2, [1/0]
S       10.10.10.1/32 [15/0] via SPOKE1 tunnel 100.1.1.2, [1/0]
C       10.10.10.2/32 is directly connected, SPOKE1
                      is directly connected, SPOKE1_0
C       10.10.10.3/32 is directly connected, SPOKE1_0
B       192.168.0.0/24 [200/0] via 10.10.10.1 (recursive via SPOKE1 tunnel 100.1.1.2), 00:07:22
B       192.168.2.0/24 [200/0] via 10.10.10.3 (recursive is directly connected, SPOKE1_0), 00:00:26
C       200.1.1.0/24 is directly connected, port2
C       192.168.1.0/24 is directly connected, port5

在 SPOKE2 上查看与 SPOKE1 之间的 VPN。

# diagnose vpn ike gateway list name SPOKE2_0

vd: root/0
name: SPOKE2_0
version: 1
interface: port2 6
addr: 201.1.1.2:500 -> 200.1.1.2:500
tun_id: 10.10.10.2/::10.0.0.1
remote_location: 0.0.0.0
network-id: 0
virtual-interface-addr: 10.10.10.3 -> 10.10.10.2
created: 150s ago
auto-discovery: 2 receiver
IKE SA: created 1/1  established 1/1  time 0/0/0 ms
IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

  id/spi: 2 c9a21426384683c3/9ec0d3e19cd425e1
  direction: responder
  status: established 150-150s ago = 0ms
  proposal: aes128-sha256
  key: 8caa0db523816e6c-c1c1d43ab5961a5a
  lifetime/rekey: 86400/85979
  DPD sent/recv: 00000000/0000000f

# diagnose vpn  tunnel list name SPOKE2_0
list ipsec tunnel by names in vd 0
------------------------------------------------------
name=SPOKE2_0 ver=1 serial=3 201.1.1.2:0->200.1.1.2:0 tun_id=10.10.10.2 tun_id6=::10.0.0.1 dst_mtu=1500 dpd-link=on weight=1
bound_if=6 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/760 options[02f8]=npu create_dev no-sysctl rgwy-chg frag-rfc  role=primary accept_traffic=1 overlay_id=0

parent=SPOKE2 index=0
proxyid_num=1 child_num=0 refcnt=6 ilast=6 olast=6 ad=r/2
stat: rxp=2 txp=2 rxb=168 txb=168
dpd: mode=on-idle on=1 idle=10000ms retry=3 count=0 seqno=1
natt: mode=none draft=0 interval=0 remote_port=0
proxyid=SPOKE2 proto=0 sa=1 ref=2 serial=1 auto-negotiate adr
  src: 0:0.0.0.0-255.255.255.255:0
  dst: 0:0.0.0.0-255.255.255.255:0
  SA:  ref=3 options=1a203 type=00 soft=0 mtu=1438 expire=43034/0B replaywin=2048
       seqno=3 esn=0 replaywin_lastseq=00000003 qat=0 rekey=0 hash_search_len=1
  life: type=01 bytes=0/0 timeout=43191/43200
  dec: spi=f01e0451 esp=aes key=16 183a97d565d45c86096969afeacd60ec
       ah=sha1 key=20 7f1cf1f622146d60453f68f35ed9804ab4566d46
  enc: spi=54b85816 esp=aes key=16 0478ea93933324f29cf01524e7d28ec4
       ah=sha1 key=20 5fb7754757facf499e85b1bdb314520d3cf10faa
  dec:pkts/bytes=4/336, enc:pkts/bytes=4/472
  npu_flag=00 npu_rgwy=200.1.1.2 npu_lgwy=201.1.1.2 npu_selid=3 dec_npuid=0 enc_npuid=0

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [5/0] via 201.1.1.1, port2, [1/0]
S       10.10.10.0/24 [5/0] via SPOKE2 tunnel 100.1.1.2, [1/0]
S       10.10.10.1/32 [15/0] via SPOKE2 tunnel 100.1.1.2, [1/0]
C       10.10.10.2/32 is directly connected, SPOKE2_0
C       10.10.10.3/32 is directly connected, SPOKE2
                      is directly connected, SPOKE2_0
B       192.168.0.0/24 [200/0] via 10.10.10.1 (recursive via SPOKE2 tunnel 100.1.1.2), 00:13:13
B       192.168.1.0/24 [200/0] via 10.10.10.2 (recursive is directly connected, SPOKE2_0), 00:01:48
C       192.168.2.0/24 is directly connected, port3
C       201.1.1.0/24 is directly connected, port2
