VDOM 间通信

2025/10/29大约 8 分钟

VDOM 间通信

网络需求

OA 业务 vdom 的用户通过 Internet vdom 上网。

##网络拓扑

有两个方式可以让 VDOM 之间通信：

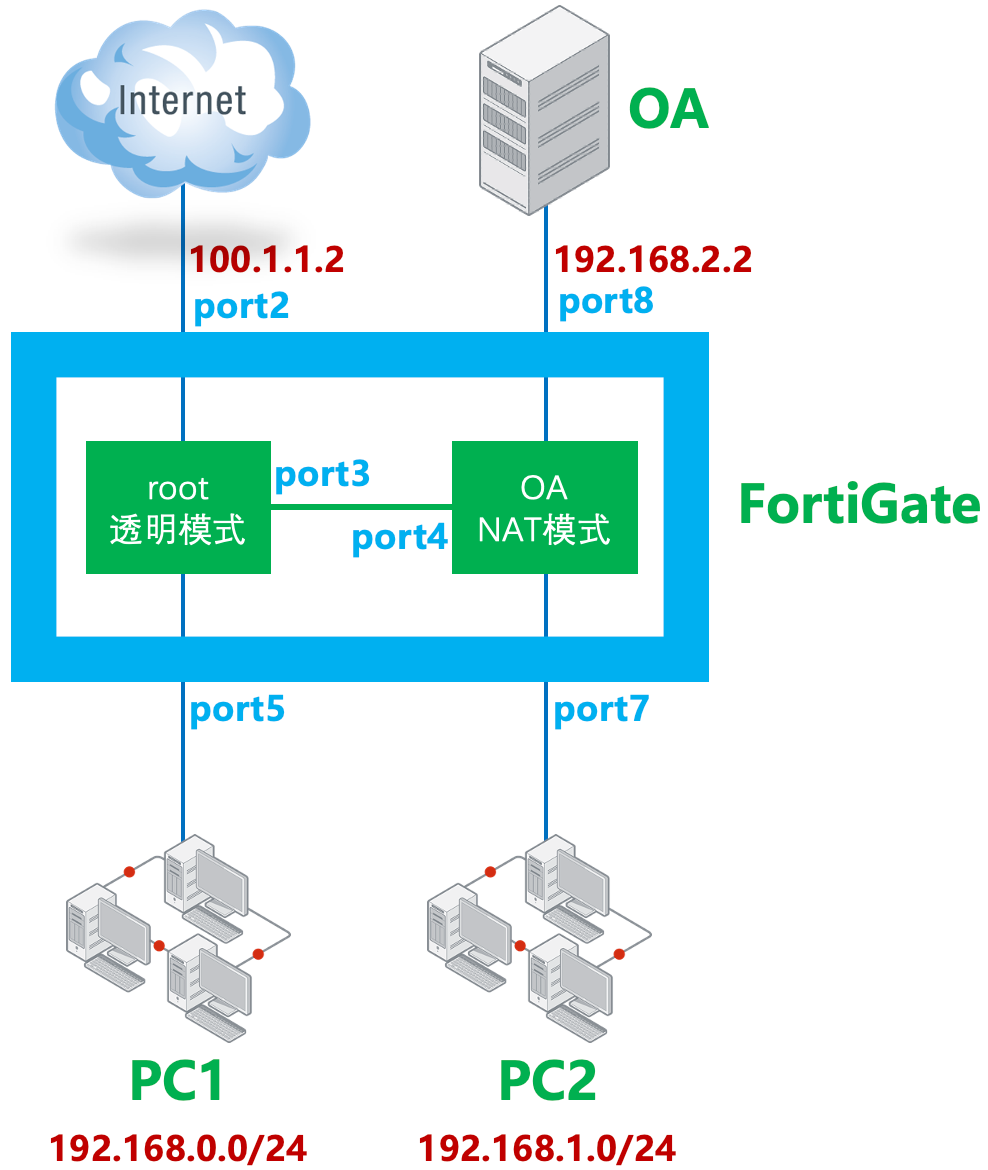

  1. 通过物理线路连接；

    image-20240102165035526

  2. 通过 NPU link 内部线路连接，部分硬件设备支持（也可以手动创建虚拟 link 进行连接，但无法被 NP 加速）。

    image-20240102165103998

配置步骤

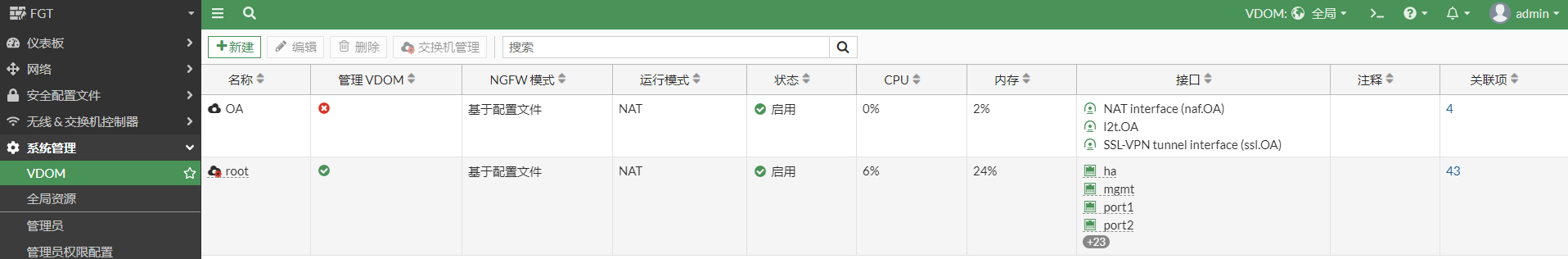

  1. 开启 vdom 并创建 vdom。

    image-20230106164322905
    config system global
    set vdom-mode multi-vdom
end

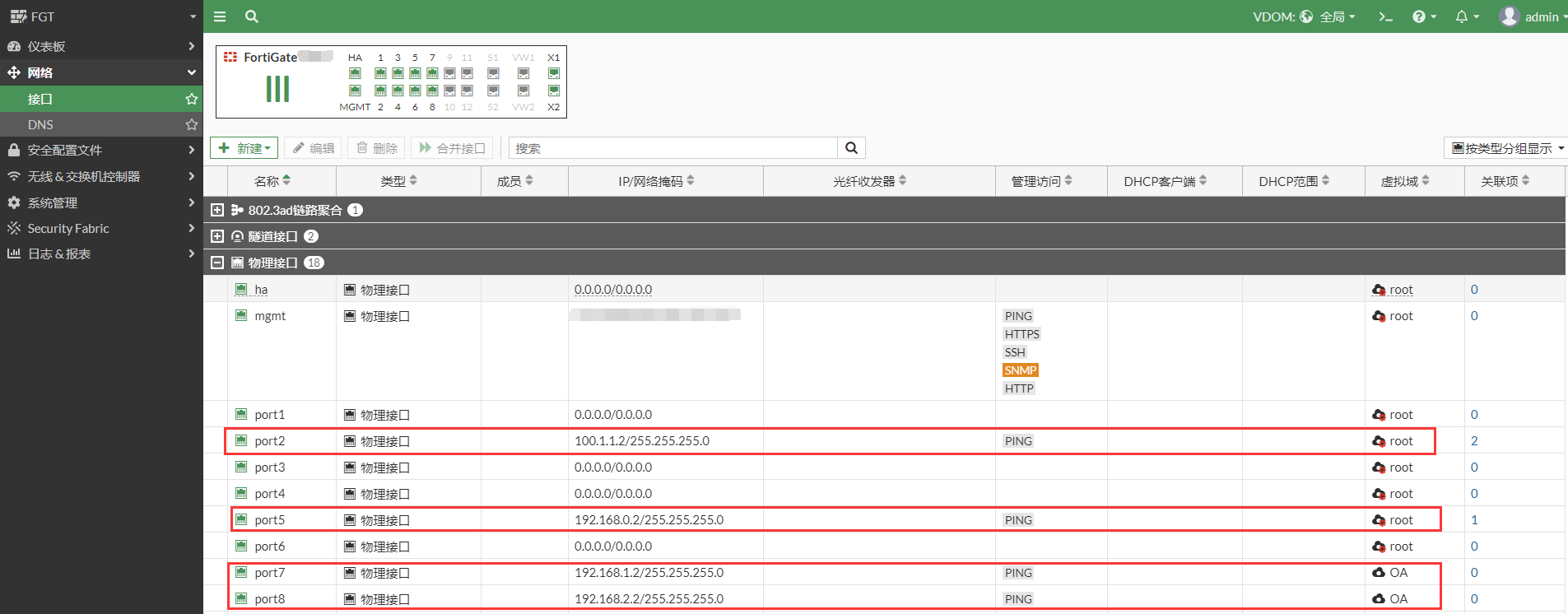

  2. 将接口划入 vdom，所有的接口默认都在 root vdom 中，因此只需要将 port7 和 port8 划入 OA vdom 即可。

    image-20230106165349355

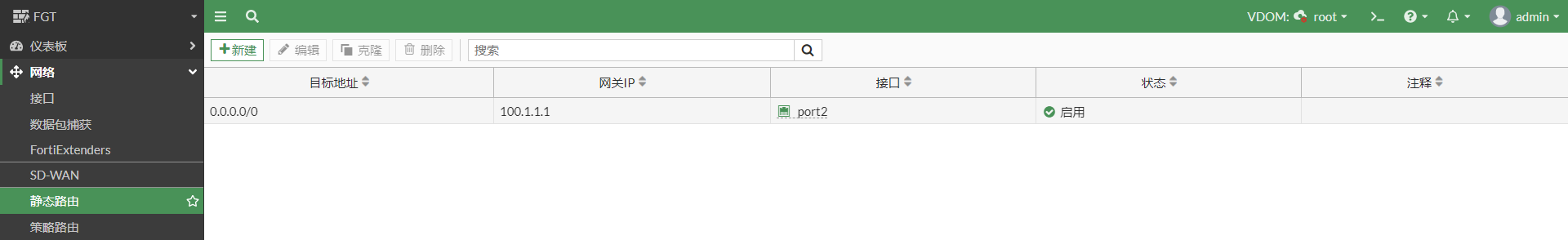

  3. root vdom 配置路由和策略，这是 root vdom 自身业务转发的配置。配置路由。

    image-20230106154304485

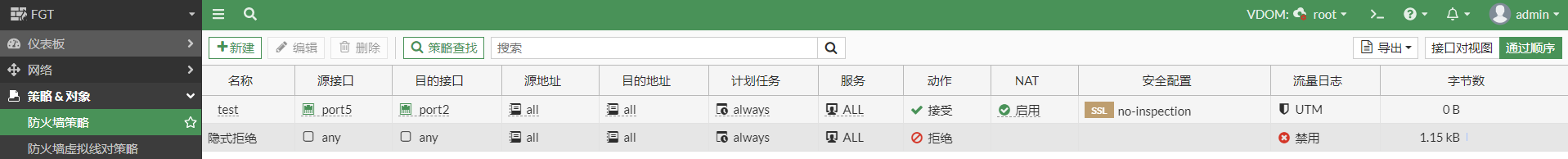

  4. 配置策略。

    image-20230106154334360

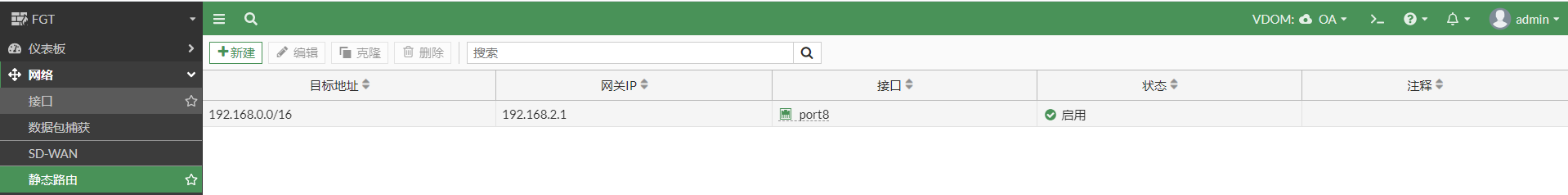

  5. OA vdom 配置路由和策略，这是 OA vdom 自身业务转发的配置，配置路由，OA 的目的地址范围假设是 192.168.0.0/16。

    image-20230106165811306

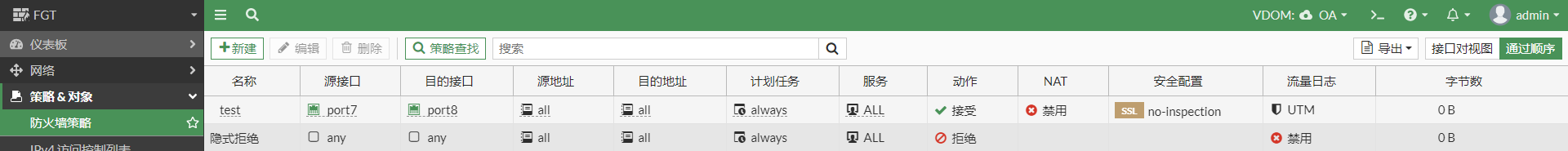

  6. 配置策略。

    image-20230106165904266

VDOM 间通信配置

物理线路方式

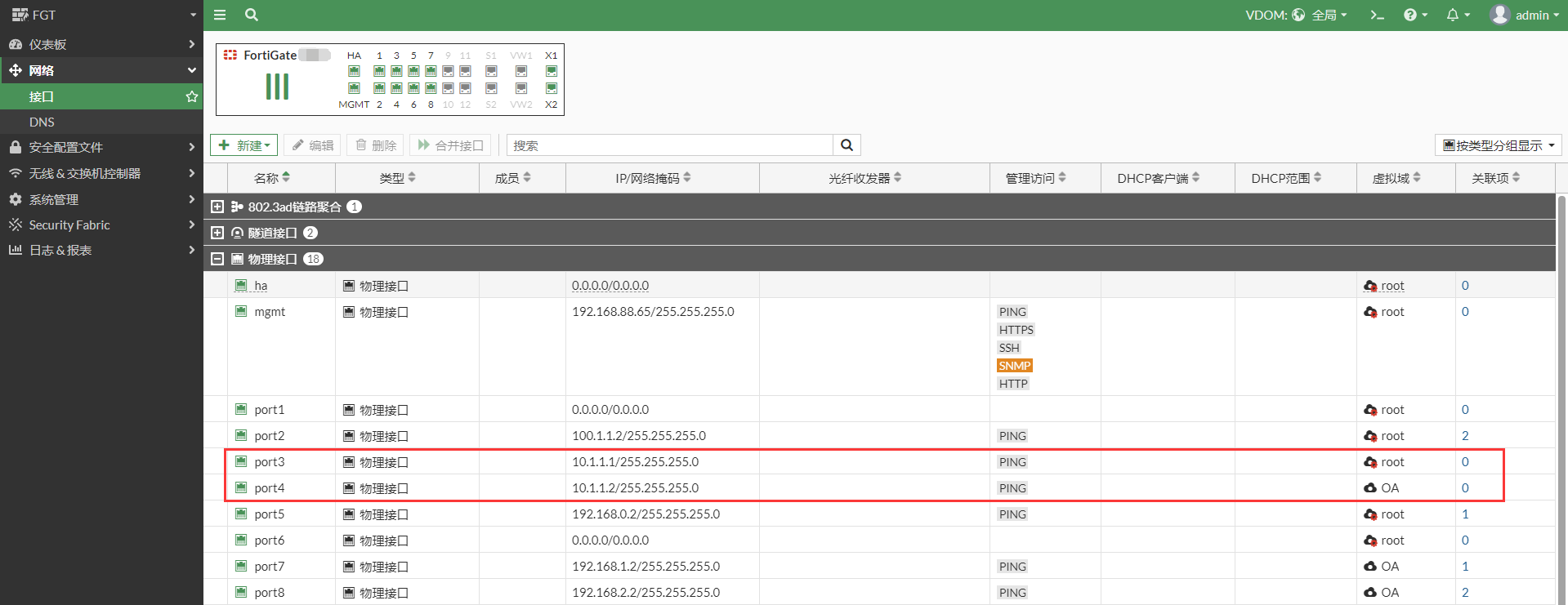

  1. 将接口划入 vdom，将 port3 划入 root vdom，将 port4 划入 OA vdom，配置 ip 地址，然后使用网线连接 port3 和 port4。

    image-20230106170750109

  2. 测试 port3 和 port4 之间的连通性。进入 root vdom，从 root vdom ping OA vdom port4 接口地址。

    进入root vdom，从root vdom ping OA vdom port4接口地址
#config vdom
#edit root
# execute ping 10.1.1.2
PING 10.1.1.2 (10.1.1.2): 56 data bytes
64 bytes from 10.1.1.2: icmp_seq=0 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=1 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=2 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=3 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=4 ttl=255 time=0.0 ms

--- 10.1.1.2 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms

  3. 进入 OA vdom，从 OA vdom Ping root vdom port3 接口地址。

    #config vdom
#edit OA
#execute ping 10.1.1.1
PING 10.1.1.1 (10.1.1.1): 56 data bytes
64 bytes from 10.1.1.1: icmp_seq=0 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=1 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=2 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=3 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=4 ttl=255 time=0.0 ms

--- 10.1.1.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms

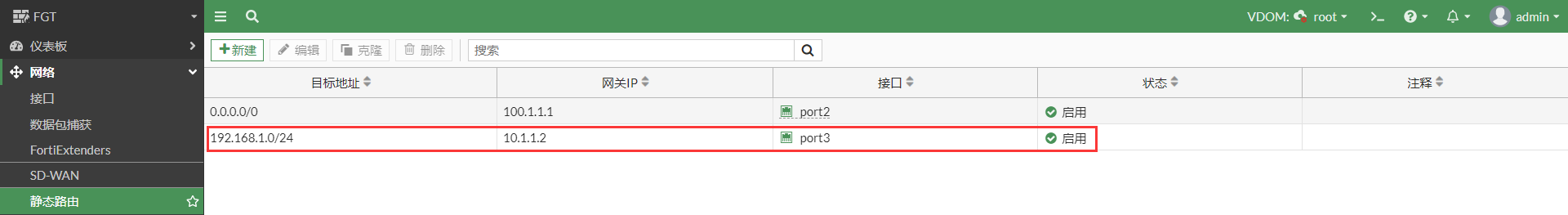

  4. root vdom 配置路由和策略，配置路由，配置 root vdom 到 OA vdom 子网的回程路由。

    image-20230106172123418

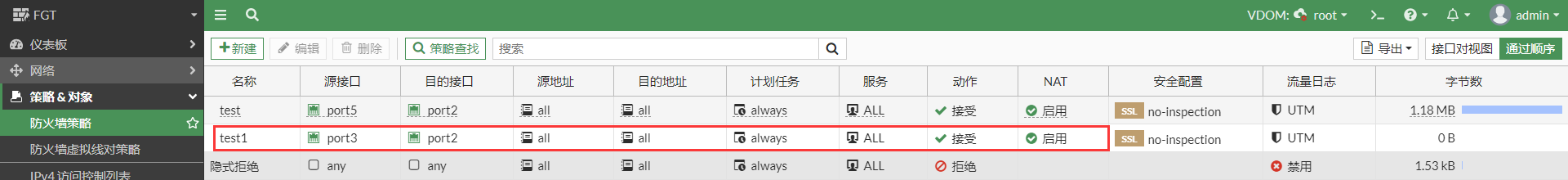

  5. 配置策略，允许 OA vdom 到 Internet 的流量。

    image-20230106172229664

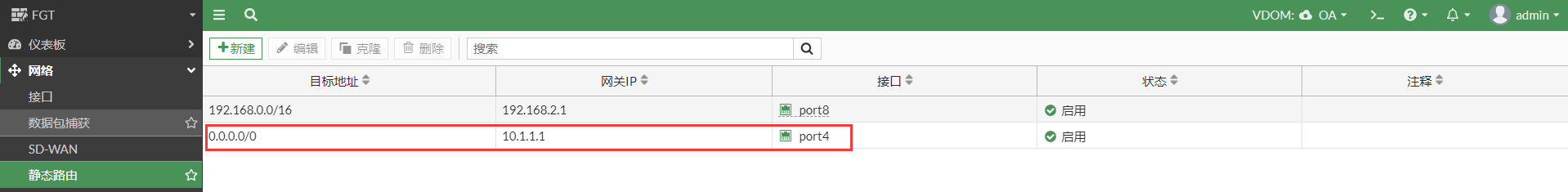

  6. OA vdom 配置路由和策略，配置路由，使 OA vdom 访问 Internet 的路由指向 root vdom。

    image-20230106172333305

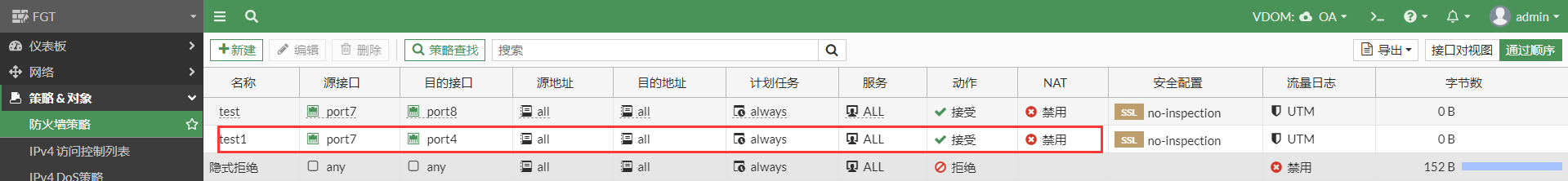

  7. 配置策略，允许 OA vdom 到 root vdom 的流量。

    image-20230106172530971

VDOM 间通信测试

  1. PC2 访问 Internet。

    PC2# ping 114.114.114.114
PING 114.114.114.114 (114.114.114.114) 56(84) bytes of data.
64 bytes from 114.114.114.114: icmp_seq=1 ttl=69 time=23.5 ms
64 bytes from 114.114.114.114: icmp_seq=2 ttl=85 time=23.2 ms
64 bytes from 114.114.114.114: icmp_seq=3 ttl=86 time=23.2 ms
64 bytes from 114.114.114.114: icmp_seq=4 ttl=73 time=23.2 ms

  2. FortiGate 抓包可以看出数据流穿过了 port3 和 port4 接口（在 root vdom 或者在 OA vdom 下抓包都是可以的）。

    # diagnose sniffer packet any icmp 4
interfaces=[any]
filters=[icmp]
2.923717 port7 in 192.168.1.10 -> 114.114.114.114: icmp: echo request
2.923771 port4 out 192.168.1.10 -> 114.114.114.114: icmp: echo request
2.923782 port3 in 192.168.1.10 -> 114.114.114.114: icmp: echo request
2.923794 port2 out 100.1.1.2 -> 114.114.114.114: icmp: echo request
2.946967 port2 in 114.114.114.114 -> 100.1.1.2: icmp: echo reply
2.946978 port3 out 114.114.114.114 -> 192.168.1.10: icmp: echo reply
2.946989 port4 in 114.114.114.114 -> 192.168.1.10: icmp: echo reply
2.947163 port7 out 114.114.114.114 -> 192.168.1.10: icmp: echo reply

  3. FortiGate 查看会话，ping 流量在 root vdom 和 OA vdom 都产生了会话。在 root vdom 或者在 OA vdom 下查看都可以看到会话，vd = 0 是 root vdom，vd = 3 是 OA vdom。

    # diagnose sys session list
session info: proto=1 proto_state=00 duration=29 expire=31 timeout=0 flags=00000000 socktype=0 sockport=0 av_idx=0 use=3
origin-shaper=
reply-shaper=
per_ip_shaper=
class_id=0 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/255
state=may_dirty npu
statistic(bytes/packets/allow_err): org=168/2/1 reply=168/2/1 tuples=2
tx speed(Bps/kbps): 0/0 rx speed(Bps/kbps): 0/0
orgin->sink: org pre->post, reply pre->post dev=11->10/10->11 gwy=100.1.1.1/10.1.1.2
hook=post dir=org act=snat 192.168.1.10:2691->114.114.114.114:8(100.1.1.2:63107)
hook=pre dir=reply act=dnat 114.114.114.114:63107->100.1.1.2:0(192.168.1.10:2691)
misc=0 policy_id=4 pol_uuid_idx=636 auth_info=0 chk_client_info=0 vd=0
serial=00036a12 tos=ff/ff app_list=0 app=0 url_cat=0
rpdb_link_id=00000000 ngfwid=n/a
npu_state=0x4000c00 ofld-O ofld-R
npu info: flag=0x81/0x81, offload=8/8, ips_offload=0/0, epid=150/152, ipid=152/150, vlan=0x0000/0x0000
vlifid=152/150, vtag_in=0x0000/0x0000 in_npu=1/1, out_npu=1/1, fwd_en=0/0, qid=2/7

session info: proto=1 proto_state=00 duration=29 expire=31 timeout=0 flags=00000000 socktype=0 sockport=0 av_idx=0 use=3
origin-shaper=
reply-shaper=
per_ip_shaper=
class_id=0 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/255
state=may_dirty npu
statistic(bytes/packets/allow_err): org=168/2/1 reply=168/2/1 tuples=2
tx speed(Bps/kbps): 0/0 rx speed(Bps/kbps): 0/0
orgin->sink: org pre->post, reply pre->post dev=15->12/12->15 gwy=10.1.1.1/192.168.1.10
hook=pre dir=org act=noop 192.168.1.10:2691->114.114.114.114:8(0.0.0.0:0)
hook=post dir=reply act=noop 114.114.114.114:2691->192.168.1.10:0(0.0.0.0:0)
misc=0 policy_id=2 pol_uuid_idx=637 auth_info=0 chk_client_info=0 vd=3
serial=00036a11 tos=ff/ff app_list=0 app=0 url_cat=0
rpdb_link_id=00000000 ngfwid=n/a
npu_state=0x4000c00 ofld-O ofld-R
npu info: flag=0x81/0x81, offload=8/8, ips_offload=0/0, epid=154/160, ipid=160/154, vlan=0x0000/0x0000
vlifid=160/154, vtag_in=0x0000/0x0000 in_npu=1/1, out_npu=1/1, fwd_en=0/0, qid=2/3

  4. 进入全局，查看 vdom 索引。

    #config global
# diagnose sys vd list  | grep name=root
name=root/root index=0 enabled fib_ver=49 rpdb_ver=2 use=162 rt_num=46 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0

# diagnose sys vd list  | grep name=OA
name=OA/OA index=3 enabled fib_ver=18 rpdb_ver=0 use=65 rt_num=7 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0

NPU link 方式和物理线路方式思路是一样的，只是接口不一样。

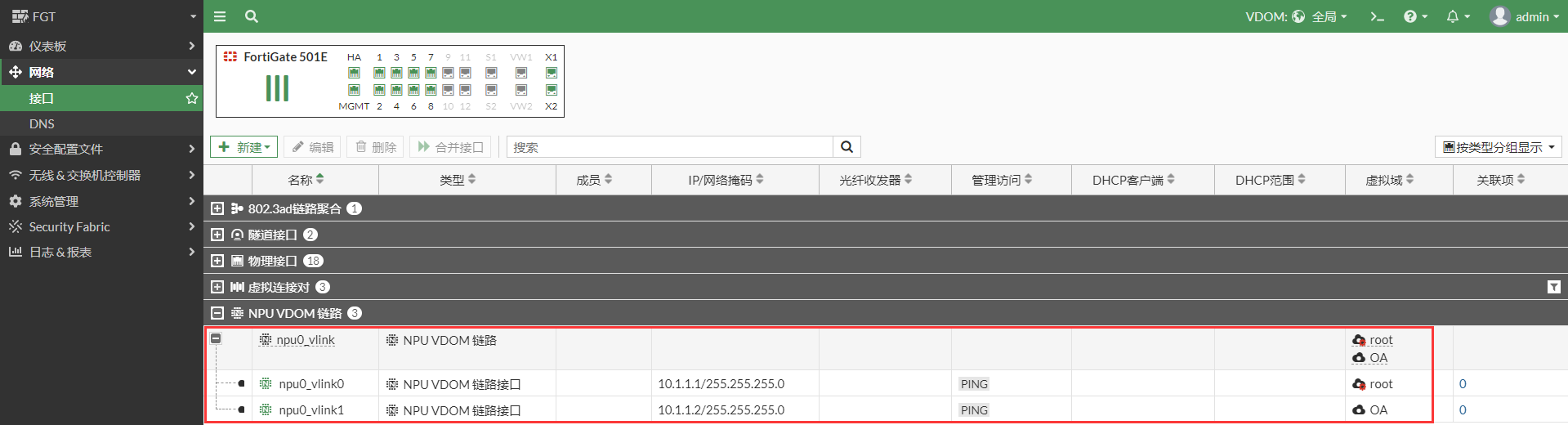

  1. 将 NPU link 接口划入 vdom，中高端设备支持 NPU link 接口，NPU link 接口支持 NP 加速。可以使用 NPU link 接口进行 vdom 之间的通信。将 npu0_vlink0 划入 root vdom，将 npu0_vlink1 划入 OA vdom，并配置 IP 地址。

    image-20230106175328403

  2. 测试 NPU link 之间的连通性，进入 root vdom，从 root vdom ping OA vdom npu_vlink1 接口地址。

    #config vdom
#edit root
# execute ping 10.1.1.2
PING 10.1.1.2 (10.1.1.2): 56 data bytes
64 bytes from 10.1.1.2: icmp_seq=0 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=1 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=2 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=3 ttl=255 time=0.0 ms
64 bytes from 10.1.1.2: icmp_seq=4 ttl=255 time=0.0 ms

--- 10.1.1.2 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms

  3. 进入 OA vdom，从 OA vdom ping root vdom npu_vlink0 接口地址。

    #config vdom
#edit OA
#execute ping 10.1.1.1
PING 10.1.1.1 (10.1.1.1): 56 data bytes
64 bytes from 10.1.1.1: icmp_seq=0 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=1 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=2 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=3 ttl=255 time=0.0 ms
64 bytes from 10.1.1.1: icmp_seq=4 ttl=255 time=0.0 ms

--- 10.1.1.1 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms

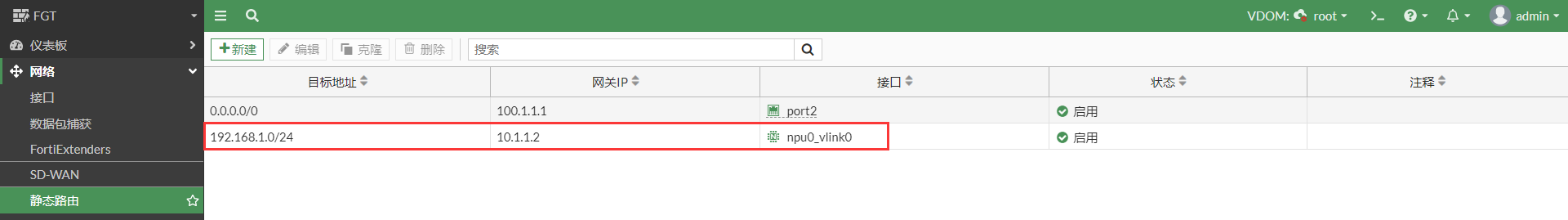

  4. root vdom 配置路由和策略：配置路由，配置 root vdom 到 OA vdom 子网的回程路由。

    image-20230106175946465

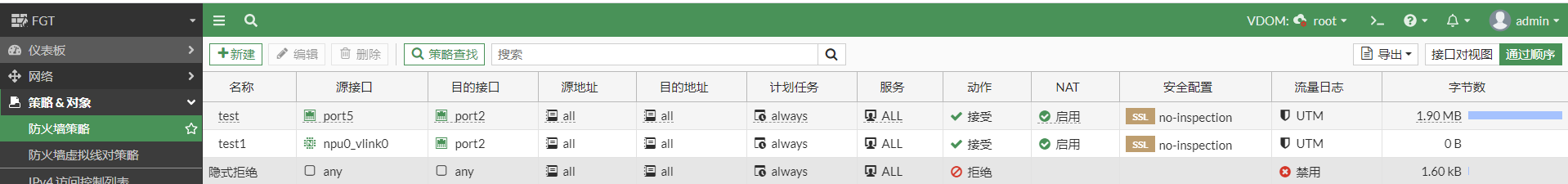

  5. 配置策略，允许 OA vdom 到 Internet 的流量。

    image-20230106180031719

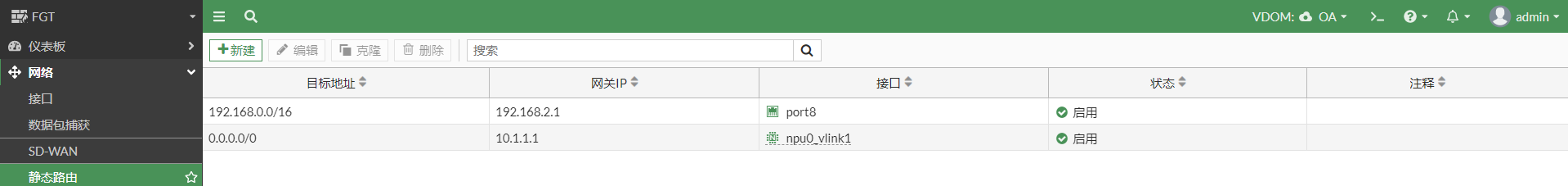

  6. OA vdom 配置路由和策略：配置路由，使 OA vdom 访问 Internet 的路由指向 root vdom。

    image-20230106180127700

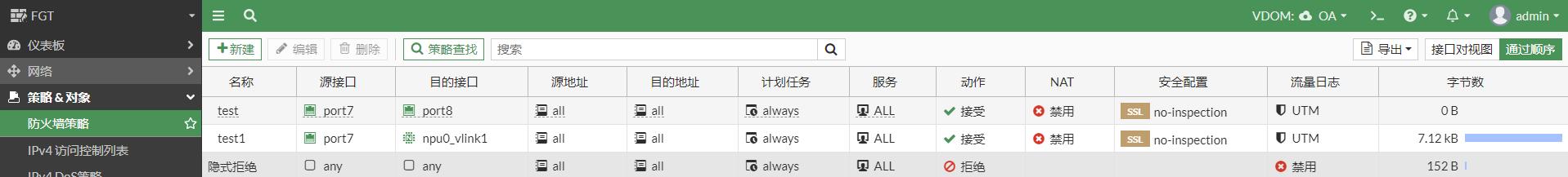

  7. 配置策略，允许 OA vdom 到 root vdom 的流量。

    image-20230106180147977

VDOM 间通信测试

  1. PC2 ping 114.114.114.114。

    PC2# ping 114.114.114.114
PING 114.114.114.114 (114.114.114.114) 56(84) bytes of data.
64 bytes from 114.114.114.114: icmp_seq=1 ttl=69 time=23.5 ms
64 bytes from 114.114.114.114: icmp_seq=2 ttl=85 time=23.2 ms
64 bytes from 114.114.114.114: icmp_seq=3 ttl=86 time=23.2 ms
64 bytes from 114.114.114.114: icmp_seq=4 ttl=73 time=23.2 ms

  2. FortiGate 抓包可以看出数据流穿过了 npu_vlink0 和 npu_vlink1 接口（在 root vdom 或者在 OA vdom 下抓包都是可以的）。

    # diagnose sniffer packet any icmp 4
interfaces=[any]
filters=[icmp]
3.064987 port7 in 192.168.1.10 -> 114.114.114.114: icmp: echo request
3.065007 npu0_vlink1 out 192.168.1.10 -> 114.114.114.114: icmp: echo request
3.065012 npu0_vlink0 in 192.168.1.10 -> 114.114.114.114: icmp: echo request
3.065024 port2 out 100.1.1.2 -> 114.114.114.114: icmp: echo request
3.088172 port2 in 114.114.114.114 -> 100.1.1.2: icmp: echo reply
3.088199 npu0_vlink0 out 114.114.114.114 -> 192.168.1.10: icmp: echo reply
3.088205 npu0_vlink1 in 114.114.114.114 -> 192.168.1.10: icmp: echo reply
3.088431 port7 out 114.114.114.114 -> 192.168.1.10: icmp: echo reply

  3. FortiGate 查看会话，ping 流量在 root vdom 和 OA vdom 都产生了会话，在 root vdom 或者在 OA vdom 下查看会话都是可以的, vd = 0 是 root vdom，vd = 3 是 OA vdom。

    # diagnose sys session list

session info: proto=1 proto_state=00 duration=3 expire=57 timeout=0 flags=00000000 socktype=0 sockport=0 av_idx=0 use=3
origin-shaper=
reply-shaper=
per_ip_shaper=
class_id=0 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/255
state=may_dirty npu
statistic(bytes/packets/allow_err): org=168/2/1 reply=168/2/1 tuples=2
tx speed(Bps/kbps): 0/0 rx speed(Bps/kbps): 0/0
orgin->sink: org pre->post, reply pre->post dev=7->10/10->7 gwy=100.1.1.1/10.1.1.2
hook=post dir=org act=snat 192.168.1.10:2733->114.114.114.114:8(100.1.1.2:63149)
hook=pre dir=reply act=dnat 114.114.114.114:63149->100.1.1.2:0(192.168.1.10:2733)
misc=0 policy_id=4 pol_uuid_idx=638 auth_info=0 chk_client_info=0 vd=0
serial=00037b32 tos=ff/ff app_list=0 app=0 url_cat=0
rpdb_link_id=00000000 ngfwid=n/a
npu_state=0x4000c00 ofld-O ofld-R
npu info: flag=0x81/0x91, offload=8/8, ips_offload=0/0, epid=150/142, ipid=132/150, vlan=0x0000/0x0000
vlifid=132/150, vtag_in=0x0000/0x0000 in_npu=1/1, out_npu=1/1, fwd_en=0/0, qid=0/5

session info: proto=1 proto_state=00 duration=3 expire=57 timeout=0 flags=00000000 socktype=0 sockport=0 av_idx=0 use=3
origin-shaper=
reply-shaper=
per_ip_shaper=
class_id=0 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/255
state=may_dirty npu
statistic(bytes/packets/allow_err): org=168/2/1 reply=168/2/1 tuples=2
tx speed(Bps/kbps): 0/0 rx speed(Bps/kbps): 0/0
orgin->sink: org pre->post, reply pre->post dev=15->8/8->15 gwy=10.1.1.1/192.168.1.10
hook=pre dir=org act=noop 192.168.1.10:2733->114.114.114.114:8(0.0.0.0:0)
hook=post dir=reply act=noop 114.114.114.114:2733->192.168.1.10:0(0.0.0.0:0)
misc=0 policy_id=2 pol_uuid_idx=637 auth_info=0 chk_client_info=0 vd=3
serial=00037b31 tos=ff/ff app_list=0 app=0 url_cat=0
rpdb_link_id=00000000 ngfwid=n/a
npu_state=0x4000c00 ofld-O ofld-R
npu info: flag=0x91/0x81, offload=8/8, ips_offload=0/0, epid=132/160, ipid=160/142, vlan=0x0000/0x0000
vlifid=160/142, vtag_in=0x0000/0x0000 in_npu=1/1, out_npu=1/1, fwd_en=0/0, qid=0/1

  4. 进入全局，查看 vdom 索引。

    # config global
# diagnose sys vd list  | grep name=root
name=root/root index=0 enabled fib_ver=49 rpdb_ver=2 use=162 rt_num=46 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0

# diagnose sys vd list  | grep name=OA
name=OA/OA index=3 enabled fib_ver=18 rpdb_ver=0 use=65 rt_num=7 asym_rt=0 sip_helper=0, sip_nat_trace=1, mc_fwd=0, mc_ttl_nc=0, tpmc_sk_pl=0
