GRE

2025/10/29大约 7 分钟

GRE

GRE 简介

GRE（Generic Routing Encapsulation，通用路由封装）协议是对某些网络层协议（如 IPv4，IPv6，IPX）的数据报文进行封装，使这些被封装的数据报文能够在另一个网络层协议中传输。

网络需求

通过 GRE 将 2 个局域网连接起来，实现 192.168.0.0/24 与 192.168.2.0/24 两个网段的通信。

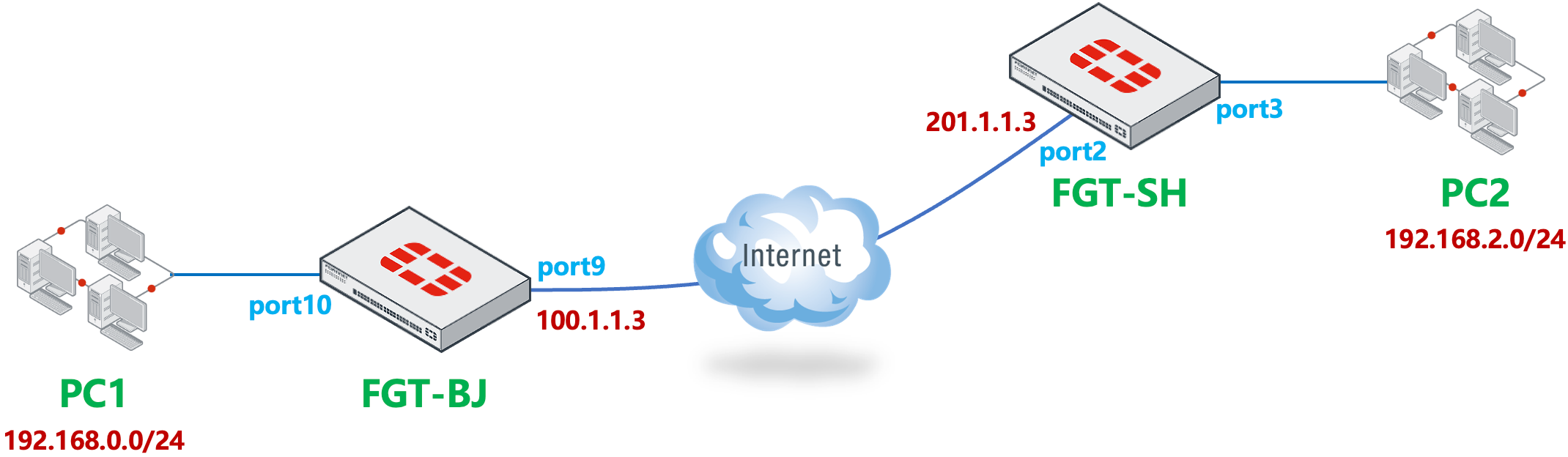

网络拓扑

配置步骤

FGT - BJ GRE 配置

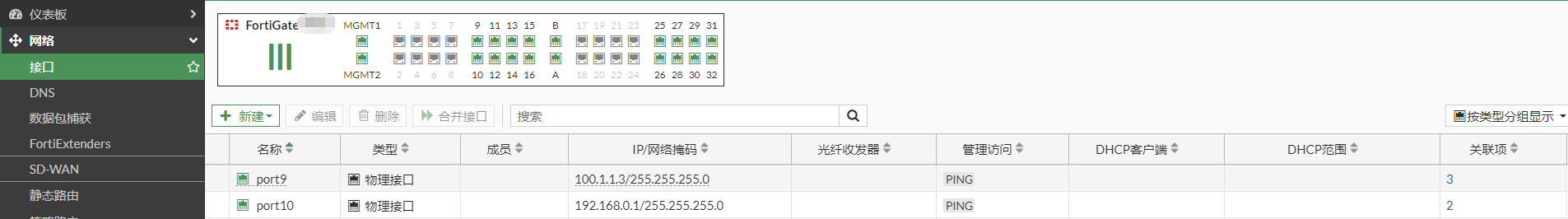

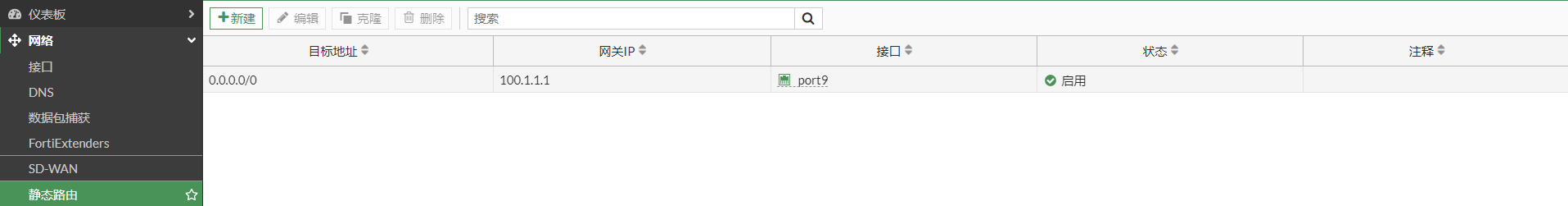

1.基础配置

2.配置 GRE

config system gre-tunnel
    edit "to-fgt_sh"
        set interface "port9"
        set remote-gw 201.1.1.3
        set local-gw 100.1.1.3
    next
end

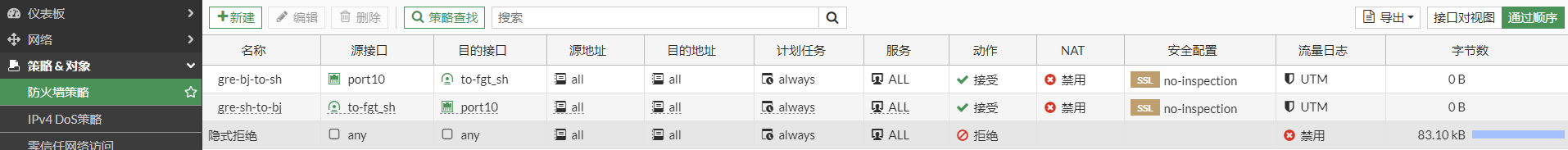

3.配置策略

FGT - SH GRE 配置

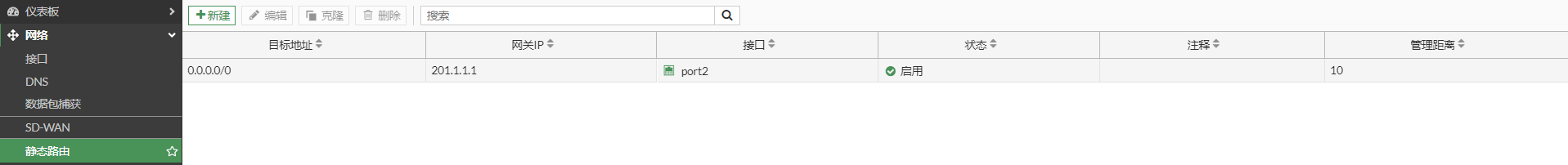

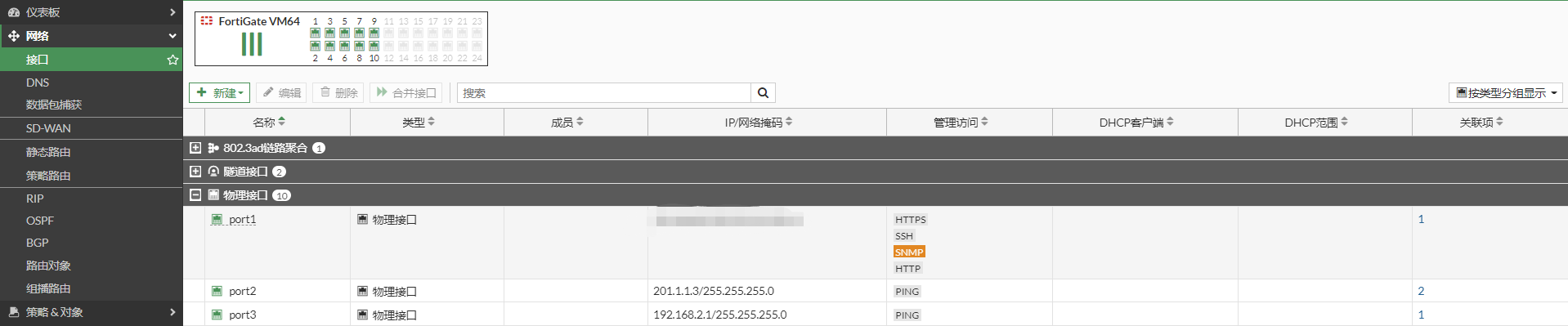

1.基础配置

2.配置 GRE

config system gre-tunnel
    edit "to-fgt_bj"
        set interface "port2"
        set remote-gw 100.1.1.3
        set local-gw 201.1.1.3
    next
end

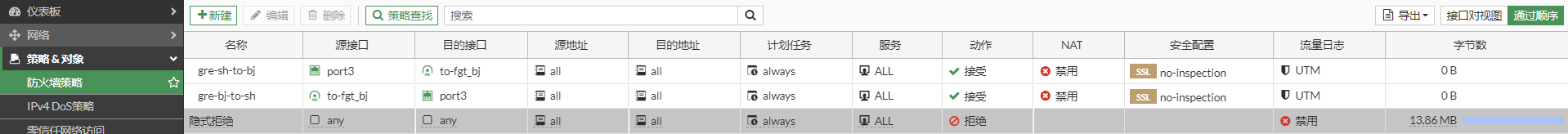

3.配置策略

路由及业务测试

静态路由互通

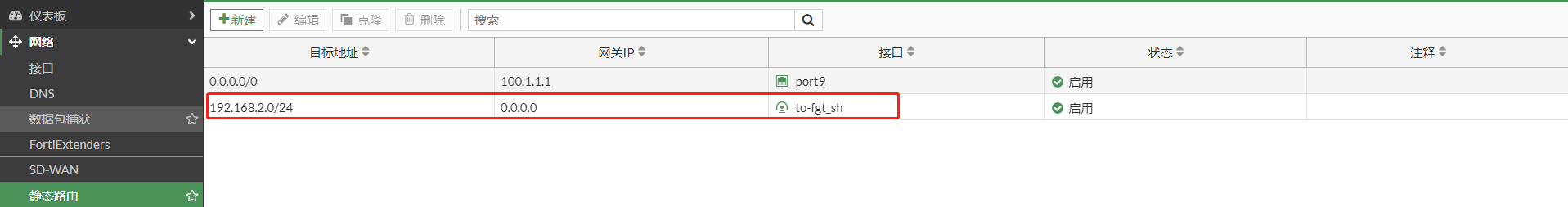

1.FGT - BJ 配置静态路由

2.FGT - SH 配置静态路由

3.业务测试

从 FGT - BJ 内网能 ping 通 FGT - SH 的内网

PC1# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.0.10  netmask 255.255.255.0  broadcast 192.168.0.255
        inet6 fe80::82c8:edfd:199d:70b0  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:e8:ad:a9  txqueuelen 1000  (Ethernet)
        RX packets 6225014  bytes 1799326210 (1.6 GiB)
        RX errors 0  dropped 3749612  overruns 0  frame 0
        TX packets 75758  bytes 5398290 (5.1 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC1# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=62 time=1.15 ms
64 bytes from 192.168.2.10: icmp_seq=2 ttl=62 time=0.931 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=62 time=0.994 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=62 time=0.673 ms

--- 192.168.2.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.673/0.938/1.155/0.174 ms

动态路由互通

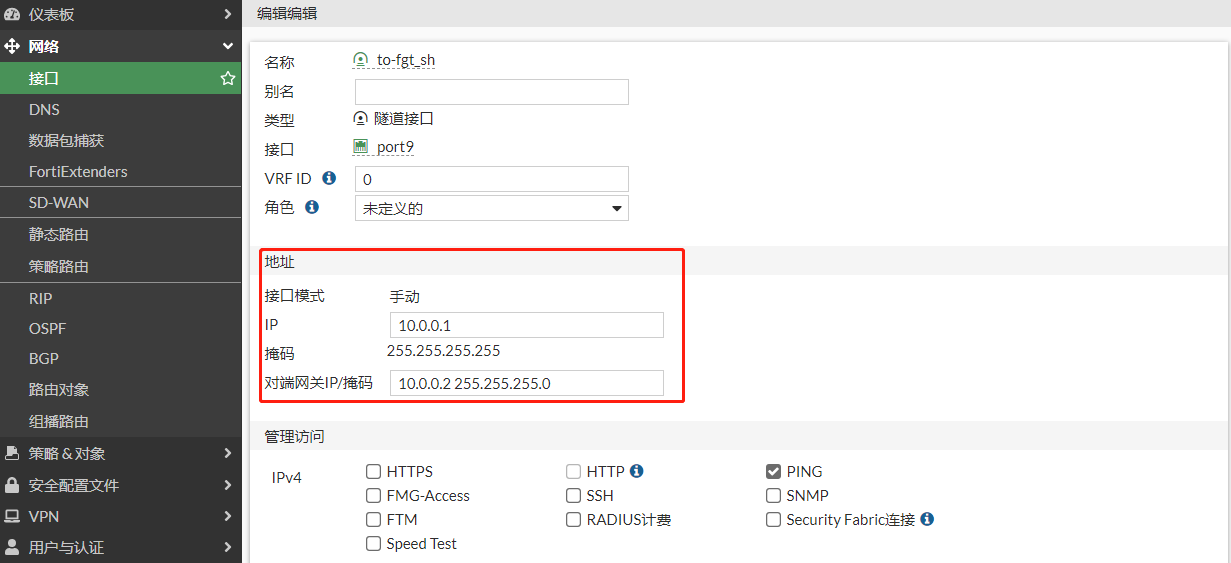

1.FGT - BJ 配置 GRE 隧道接口 IP

查看路由表

# get router info routing-table  all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port9, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_sh
C       10.0.0.1/32 is directly connected, to-fgt_sh
C       100.1.1.0/24 is directly connected, port9
C       192.168.0.0/24 is directly connected, port10

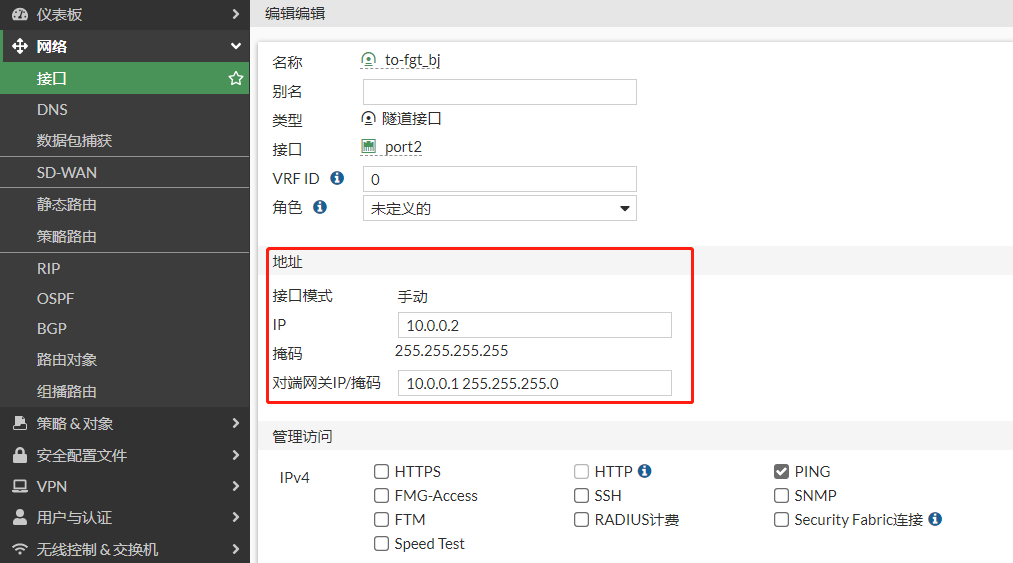

2.FGT - SH 配置 GRE 隧道接口 IP

查看路由表

# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
       O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default

Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 201.1.1.1, port2, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_bj
C       10.0.0.2/32 is directly connected, to-fgt_bj
C       192.168.2.0/24 is directly connected, port3
C       201.1.1.0/24 is directly connected

3.GRE 接口连通性测试

从FGT-BJ的GRE接口地址 ping FGT-SH的GRE接口地址
# execute ping-options source 10.0.0.1
# execute ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=255 time=0.5 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=255 time=0.5 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=255 time=0.5 ms
64 bytes from 10.0.0.2: icmp_seq=3 ttl=255 time=0.4 ms
64 bytes from 10.0.0.2: icmp_seq=4 ttl=255 time=0.1 ms

--- 10.0.0.2 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.1/0.4/0.5 ms

4.配置动态路由

BGP 互通

1.配置 BGP

FGT - BJ 配置 BGP

config router bgp
    set as 65001
    set router-id 100.1.1.3
    config neighbor
        edit "10.0.0.2"
            set next-hop-self enable
            set soft-reconfiguration enable
            set interface "to-fgt_sh"
            set remote-as 65001
        next
    end
    config network
        edit 1
            set prefix 192.168.0.0 255.255.255.0
        next
    end
end

FGT - SH 配置 BGP

config router bgp
    set as 65001
    set router-id 201.1.1.3
    config neighbor
        edit "10.0.0.1"
            set next-hop-self enable
            set soft-reconfiguration enable
            set remote-as 65001
        next
    end
    config network
        edit 1
            set prefix 192.168.2.0 255.255.255.0
        next
    end
end

2.查看 BGP 邻居和路由

FGT - BJ 查看 BGP 邻居和路由

# get router info bgp neighbors
VRF 0 neighbor table:
BGP neighbor is 10.0.0.2, remote AS 65001, local AS 65001, internal link
  BGP version 4, remote router ID 201.1.1.3
  BGP state = Established, up for 04:22:48
  Last read 00:00:13, hold time is 180, keepalive interval is 60 seconds
  Configured hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    Route refresh: advertised and received (old and new)
    Address family IPv4 Unicast: advertised and received
    Address family IPv6 Unicast: advertised and received
  Received 302 messages, 0 notifications, 0 in queue
  Sent 302 messages, 0 notifications, 0 in queue
  Route refresh request: received 0, sent 0
  NLRI treated as withdraw: 0
  Minimum time between advertisement runs is 30 seconds
 For address family: IPv4 Unicast
  BGP table version 2, neighbor version 1
  Index 1, Offset 0, Mask 0x2
  Inbound soft reconfiguration allowed
  NEXT_HOP is always this router
  Community attribute sent to this neighbor (both)
  1 accepted prefixes, 1 prefixes in rib
  1 announced prefixes
 For address family: IPv6 Unicast
  BGP table version 1, neighbor version 1
  Index 1, Offset 0, Mask 0x2
  Community attribute sent to this neighbor (both)
  0 accepted prefixes, 0 prefixes in rib
  0 announced prefixes
 Connections established 1; dropped 0
Local host: 10.0.0.1, Local port: 179
Foreign host: 10.0.0.2, Foreign port: 14233
Egress interface: 55
Nexthop: 10.0.0.1
Nexthop interface: to-fgt_sh
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network

# get router info routing-table all
Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port9, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_sh
C       10.0.0.1/32 is directly connected, to-fgt_sh
C       100.1.1.0/24 is directly connected, port9
C       192.168.0.0/24 is directly connected, port10
B       192.168.2.0/24 [200/0] via 10.0.0.2 (recursive is directly connected, to-fgt_sh), 04:22:34

FGT - SH 查看 BGP 邻居和路由

# get router info bgp neighbors
VRF 0 neighbor table:
BGP neighbor is 10.0.0.1, remote AS 65001, local AS 65001, internal link
  BGP version 4, remote router ID 100.1.1.3
  BGP state = Established, up for 04:24:18
  Last read 00:00:30, hold time is 180, keepalive interval is 60 seconds
  Configured hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    Route refresh: advertised and received (old and new)
    Address family IPv4 Unicast: advertised and received
    Address family IPv6 Unicast: advertised and received
  Received 303 messages, 0 notifications, 0 in queue
  Sent 304 messages, 0 notifications, 0 in queue
  Route refresh request: received 0, sent 0
  NLRI treated as withdraw: 0
  Minimum time between advertisement runs is 30 seconds
 For address family: IPv4 Unicast
  BGP table version 8, neighbor version 7
  Index 1, Offset 0, Mask 0x2
  Inbound soft reconfiguration allowed
  NEXT_HOP is always this router
  Community attribute sent to this neighbor (both)
  1 accepted prefixes, 1 prefixes in rib
  1 announced prefixes
 For address family: IPv6 Unicast
  BGP table version 1, neighbor version 1
  Index 1, Offset 0, Mask 0x2
  Community attribute sent to this neighbor (both)
  0 accepted prefixes, 0 prefixes in rib
  0 announced prefixes
 Connections established 1; dropped 0
Local host: 10.0.0.2, Local port: 14233
Foreign host: 10.0.0.1, Foreign port: 179
Egress interface: 34
Nexthop: 10.0.0.2
Nexthop interface: to-fgt_bj
Nexthop global: ::
Nexthop local: ::
BGP connection: non shared network

FGVM08TM22000410 # get router info routing-table  all
Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 201.1.1.1, port2, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_bj
C       10.0.0.2/32 is directly connected, to-fgt_bj
B       192.168.0.0/24 [200/0] via 10.0.0.1 (recursive is directly connected, to-fgt_bj), 04:23:24
C       192.168.2.0/24 is directly connected, port3
C       201.1.1.0/24 is directly connected, port2

3.业务测试

从 FGT - BJ 内网能 ping 通 FGT - SH 的内网

PC1# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.0.10  netmask 255.255.255.0  broadcast 192.168.0.255
        inet6 fe80::82c8:edfd:199d:70b0  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:e8:ad:a9  txqueuelen 1000  (Ethernet)
        RX packets 6225014  bytes 1799326210 (1.6 GiB)
        RX errors 0  dropped 3749612  overruns 0  frame 0
        TX packets 75758  bytes 5398290 (5.1 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC1# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=62 time=1.15 ms
64 bytes from 192.168.2.10: icmp_seq=2 ttl=62 time=0.931 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=62 time=0.994 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=62 time=0.673 ms

--- 192.168.2.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.673/0.938/1.155/0.174 ms

OSPF 互通

1.配置 OSPF

FGT - BJ 配置 OSPF

config router ospf
    set router-id 100.1.1.3
    config area
        edit 0.0.0.0
        next
    end
    config network
        edit 1
            set prefix 10.0.0.0 255.255.255.0
        next
        edit 2
            set prefix 192.168.0.0 255.255.255.0
        next
    end
end

FGT - SH 配置 OSPF

config router ospf
    set router-id 201.1.1.3
    config area
        edit 0.0.0.0
        next
    end
    config network
        edit 1
            set prefix 10.0.0.0 255.255.255.0
        next
        edit 2
            set prefix 192.168.2.0 255.255.255.0
        next
    end
en

2.查看 OSPF 邻居和路由

FGT - BJ 查看 OSPF 邻居和路由

# get router info ospf neighbor
OSPF process 0, VRF 0:
Neighbor ID     Pri   State           Dead Time   Address         Interface
201.1.1.3         1   Full/ -         00:00:33    10.0.0.2        to-fgt_sh

# get router info routing-table  all
Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 100.1.1.1, port9, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_sh
C       10.0.0.1/32 is directly connected, to-fgt_sh
C       100.1.1.0/24 is directly connected, port9
C       192.168.0.0/24 is directly connected, port10
O       192.168.2.0/24 [110/101] via 10.0.0.2, to-fgt_sh, 00:01:12

FGT - SH 查看 OSPF 邻居和路由

# get router info ospf neighbor
OSPF process 0, VRF 0:
Neighbor ID     Pri   State           Dead Time   Address         Interface
100.1.1.3         1   Full/ -         00:00:34    10.0.0.1        to-fgt_bj

# get router info routing-table all
Routing table for VRF=0
S*      0.0.0.0/0 [10/0] via 201.1.1.1, port2, [1/0]
C       10.0.0.0/24 is directly connected, to-fgt_bj
C       10.0.0.2/32 is directly connected, to-fgt_bj
O       192.168.0.0/24 [110/101] via 10.0.0.1, to-fgt_bj, 00:01:43
C       192.168.2.0/24 is directly connected, port3
C       201.1.1.0/24 is directly connected, port2

3.业务测试

从 FGT - BJ 内网能 ping 通 FGT - SH 的内网

PC1# ifconfig ens224
ens224: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.0.10  netmask 255.255.255.0  broadcast 192.168.0.255
        inet6 fe80::82c8:edfd:199d:70b0  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:e8:ad:a9  txqueuelen 1000  (Ethernet)
        RX packets 6225014  bytes 1799326210 (1.6 GiB)
        RX errors 0  dropped 3749612  overruns 0  frame 0
        TX packets 75758  bytes 5398290 (5.1 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC1# ping 192.168.2.10 -c 4
PING 192.168.2.10 (192.168.2.10) 56(84) bytes of data.
64 bytes from 192.168.2.10: icmp_seq=1 ttl=62 time=1.15 ms
64 bytes from 192.168.2.10: icmp_seq=2 ttl=62 time=0.931 ms
64 bytes from 192.168.2.10: icmp_seq=3 ttl=62 time=0.994 ms
64 bytes from 192.168.2.10: icmp_seq=4 ttl=62 time=0.673 ms
--- 192.168.2.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.673/0.938/1.155/0.174 ms
