LDAP 认证配置与排错

2025/10/29大约 11 分钟

LDAP 认证配置与排错

配置 LDAP 认证

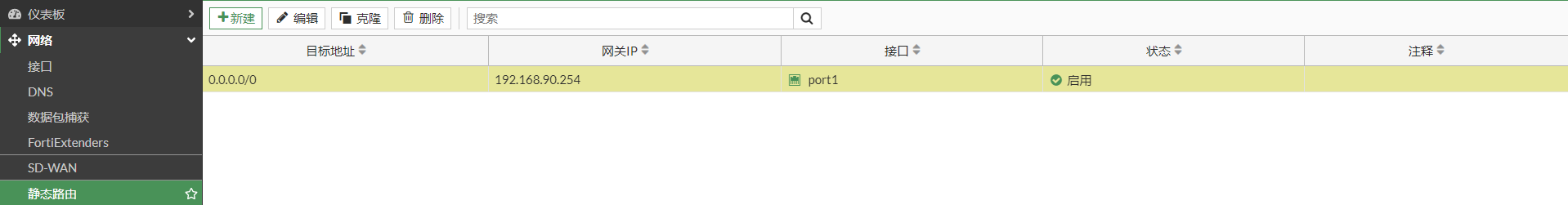

1.配置接口地址和路由

image-20230208163834235

image-20230208163852215

ping 测试 FortiGate 与 LDAP 服务器之间的连通性。测试环境使用 Windows AD 作为 LDAP 服务器，地址是 192.168.91.208。

# execute ping 192.168.91.208
PING 192.168.91.208 (192.168.91.208): 56 data bytes
64 bytes from 192.168.91.208: icmp_seq=0 ttl=127 time=0.3 ms
64 bytes from 192.168.91.208: icmp_seq=1 ttl=127 time=0.2 ms
64 bytes from 192.168.91.208: icmp_seq=2 ttl=127 time=0.2 ms
64 bytes from 192.168.91.208: icmp_seq=3 ttl=127 time=0.2 ms
64 bytes from 192.168.91.208: icmp_seq=4 ttl=127 time=0.2 ms

--- 192.168.91.208 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.2/0.2/0.3 ms

2.配置 LDAP

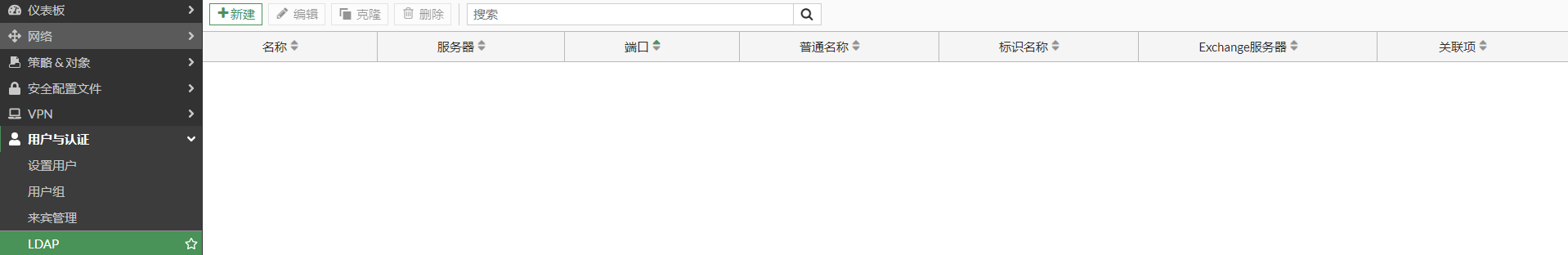

选择”用户与认证“-->LDAP，点击”新建“。

image-20230209155530826

配置参数：

名称：输入一个名称，不冲突即可；

服务器 IP/名称：LDAP 服务器的 IP 地址；

服务器端口：LDAP 通信端口，默认 TCP 389；

Common Name 标识符：FortiGate 用于识别连接用户的 LDAP 中对象的属性字段。Windows AD 域使用 sAMAccountName，OpenLDAP 使用 uid。这里使用 Windows AD 域；

**Distinguished Name：**用于在 LDAP 服务器上查找用户帐户条目，反映了查找的 CN 标识符之上的 LDAP 的层次结构； 输入 dc = fortibj,dc = com 指定包含所有对象的域根； 输入 ou = tac,dc = fortibj,dc = com 查询指定组织单元下的用户；

绑定类型：选择常规，使用提供的用户名和密码进行绑定，并从 DN 开始搜索并递归遍历子树；

用户名：用户名支持的格式：格式 1：CN = Administrator,CN = Users,DC = fortibj,DC = com；格式 2：Administrator@fortibj.com。

C:\Users\Administrator>dsquery user -name administrator
"CN=Administrator,CN=Users,DC=fortibj,DC=com"

密码：用户的密码；

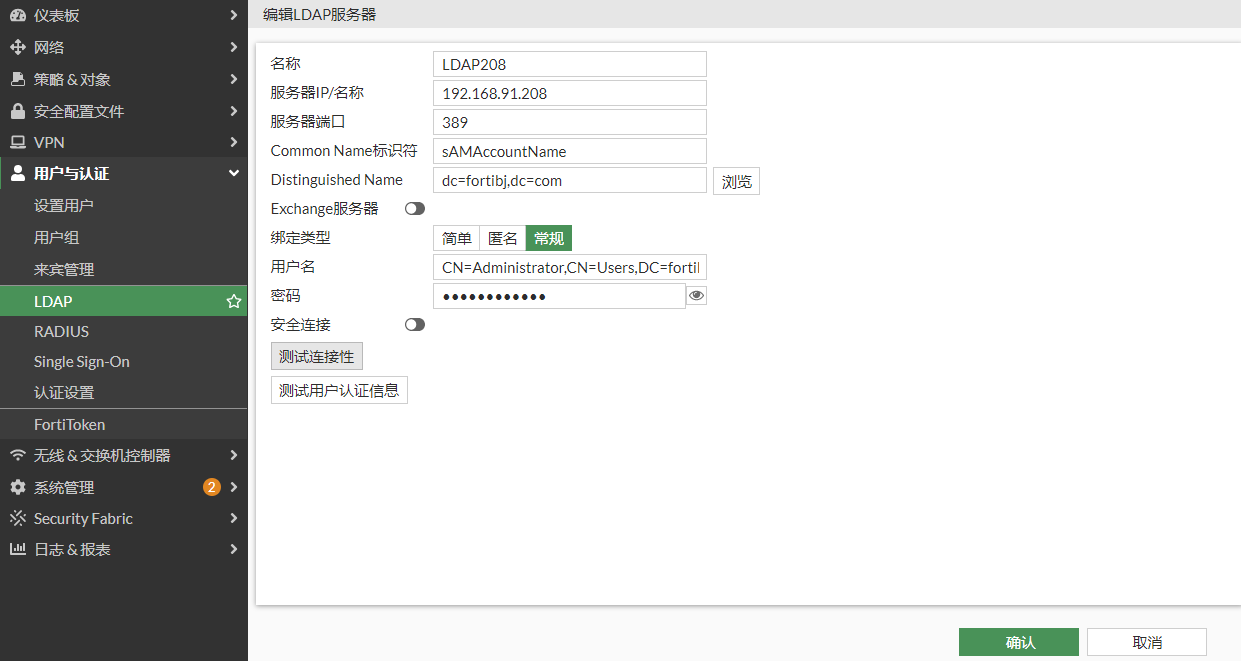

image-20230209161956136

点击”确定“，配置完成。

image-20230209162011229

对应的命令行如下：

config user ldap
    edit "LDAP208"
        set server "192.168.91.208"
        set cnid "sAMAccountName"
        set dn "dc=fortibj,dc=com"
        set type regular
        set username "CN=Administrator,CN=Users,DC=fortibj,DC=com"
        set password xxxxxxxx
    next
end

3.查看 LDAP 目录结构

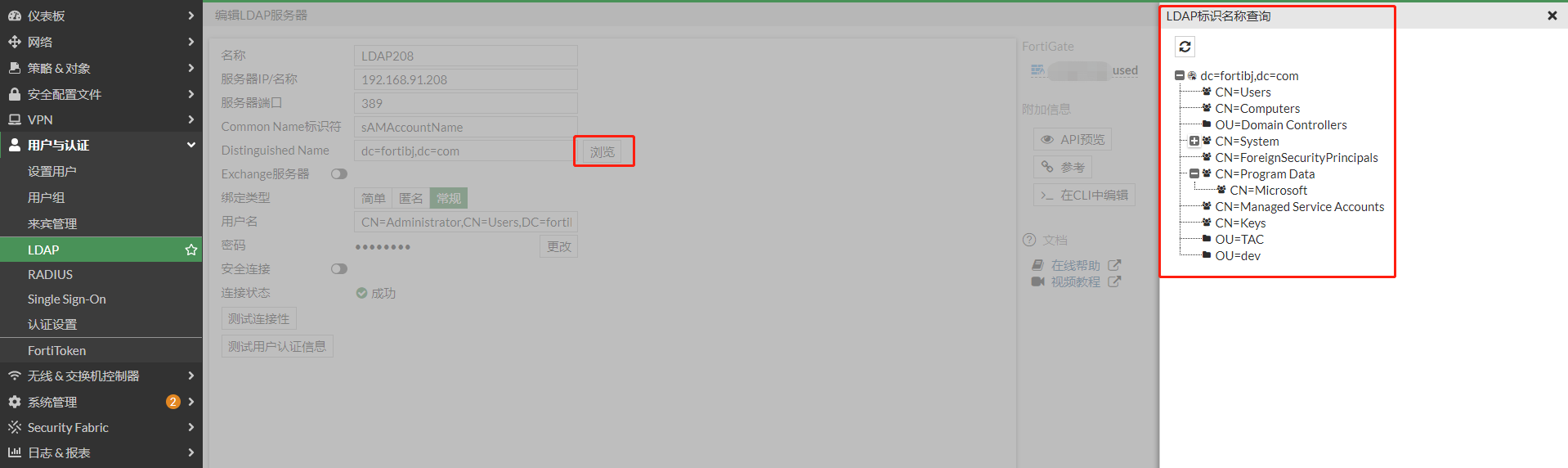

当 LDAP 配置正确时，可以点击”浏览“，查看 LDAP 目录结构。

image-20230209171849115

LDAP 服务器测试

1.FortiGate 与 LDAP 服务器之间连通性测试

GUI 编辑 LDAP 服务器的配置界面，点击”测试连接性“。

CLI 语法测试连通性：

# diagnose test authserver ldap-direct
[IP] [port number]

CLI 语法测试用户和密码是否正确：

# diagnose test authserver ldap
<server_name> <username> <password>

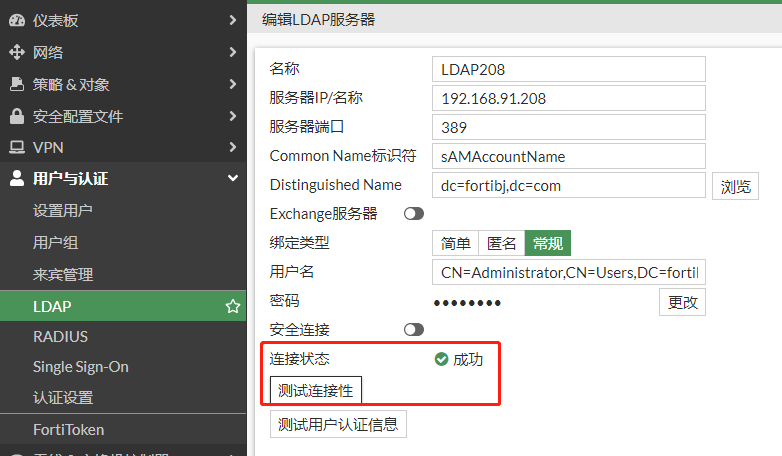

  • 如果连接状态是”成功“，则 FortiGate 与 LDAP 服务器之间通信正常。

    image-20230209162218047

    对应 CLI 的测试结果：

    # diagnose test authserver ldap-direct 192.168.91.208 389
LDAP server '192.168.91.208' status is OK

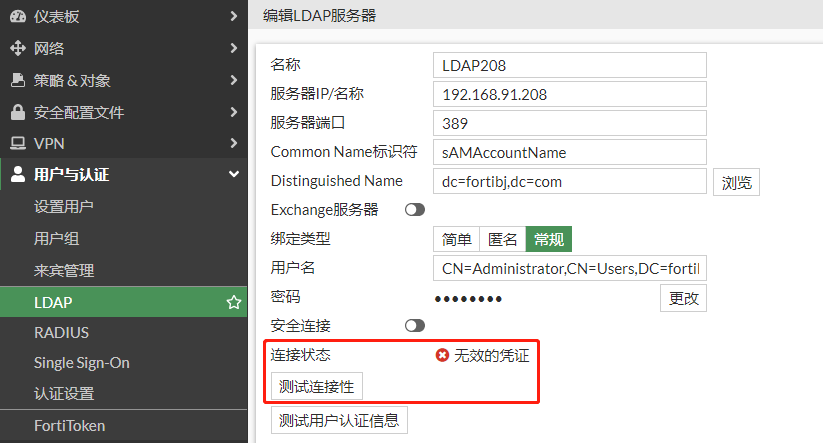

  • 如果连接状态是”无效的凭证“，则说明 LDAP 服务器的账号或者密码不正确。

    image-20230209162311642

    对应的命令行：

    # diagnose test authserver ldap LDAP208 administrator Test@123456
authenticate 'administrator' against 'LDAP208' succeeded!
Group membership(s) - CN=Group Policy Creator Owners,CN=Users,DC=fortibj,DC=com
                      CN=Domain Admins,CN=Users,DC=fortibj,DC=com
                      CN=Enterprise Admins,CN=Users,DC=fortibj,DC=com
                      CN=Schema Admins,CN=Users,DC=fortibj,DC=com
                      CN=Remote Desktop Users,CN=Builtin,DC=fortibj,DC=com
                      CN=Administrators,CN=Builtin,DC=fortibj,DC=com
                      CN=Domain Users,CN=Users,DC=fortibj,DC=com

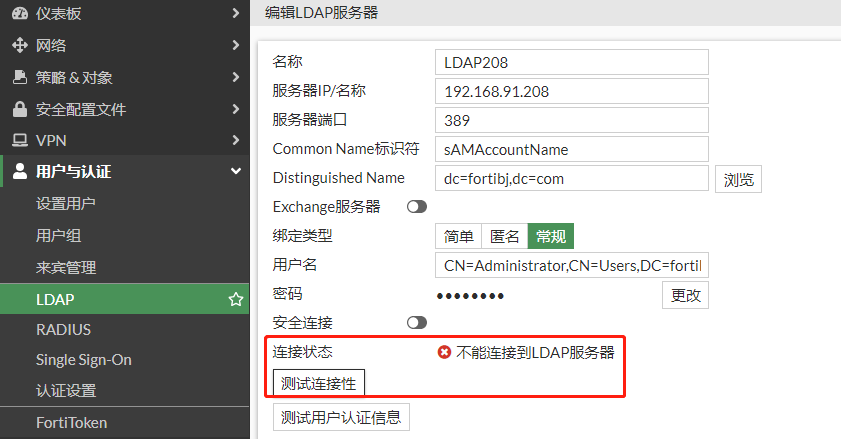

  • 如果连接状态是”不能连接到 LDAP 服务器“，则说明到 LDAP 服务器不可达。

    image-20230209165239604

    对应 CLI 的测试结果：

    # diagnose test authserver ldap-direct 192.168.91.208 389
LDAP server '192.168.91.208' status is Server unreachable

2.测试 LDAP 服务器中的用户及密码

GUI 编辑 Radius 服务器的配置界面，点击”测试用户认证信息“。

CLI 的语法：

# diagnose test authserver ldap
<server_name> <username> <password>

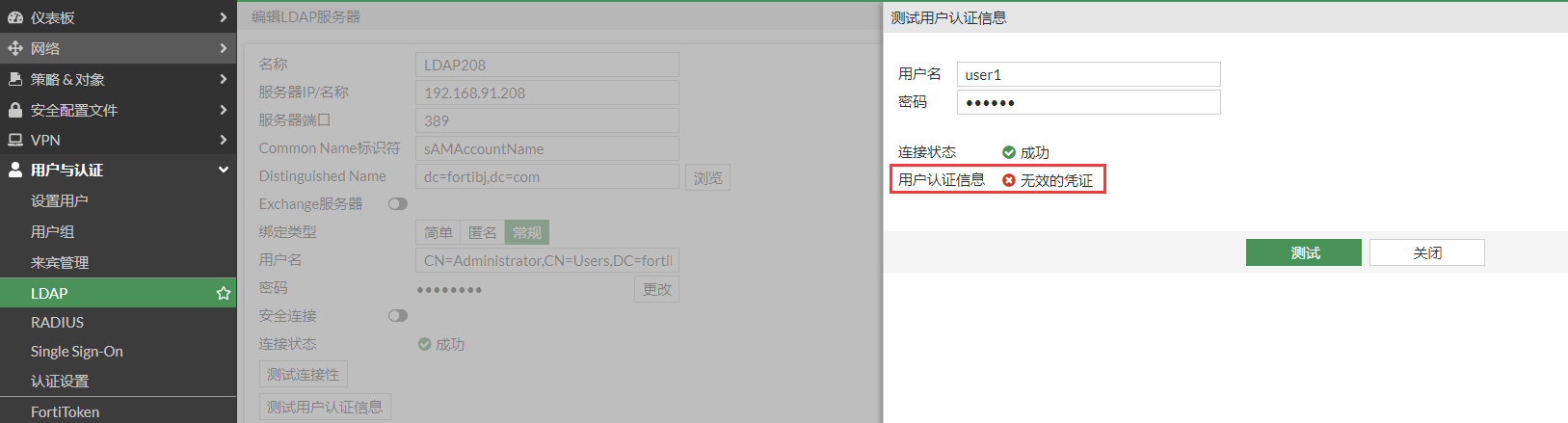

  • 用户名或者密码不正确

    image-20230209164903688

    对应的 CLI 测试结果如下：

    # diagnose test authserver ldap LDAP208 user1 123456
authenticate 'user1' against 'LDAP208' failed!

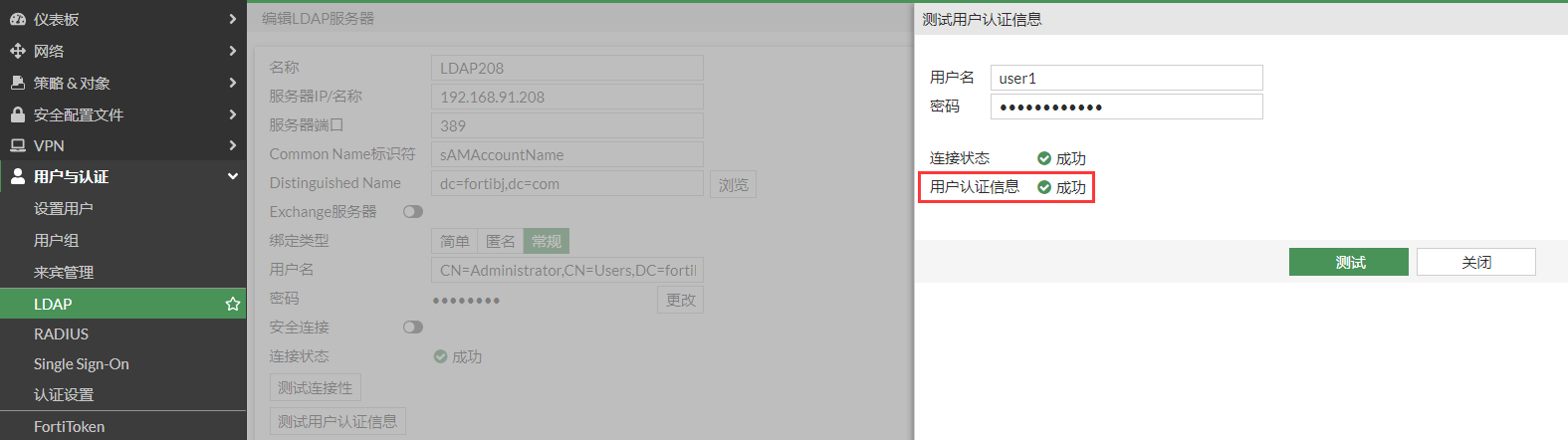

  • 用户名和密码正确

    image-20230209164959142

    对应的 CLI 测试结果如下，CLI 显示了用户 user1 所在的用户组信息。

    # diagnose test authserver ldap LDAP208 user1 Pass@123456
authenticate 'user1' against 'LDAP208' succeeded!
Group membership(s) - CN=grp1,CN=Users,DC=fortibj,DC=com
                      CN=Domain Users,CN=Users,DC=fortibj,DC=com

其他 LDAP 配置参数

1.修改 LDAP 端口

config user ldap
    edit LDAP208
        set port xx
    next
end

2.指定原 IP 地址

config user ldap
    edit LDAP208
        set source-ip x.x.x.x
    next
end

创建 ldap 用户

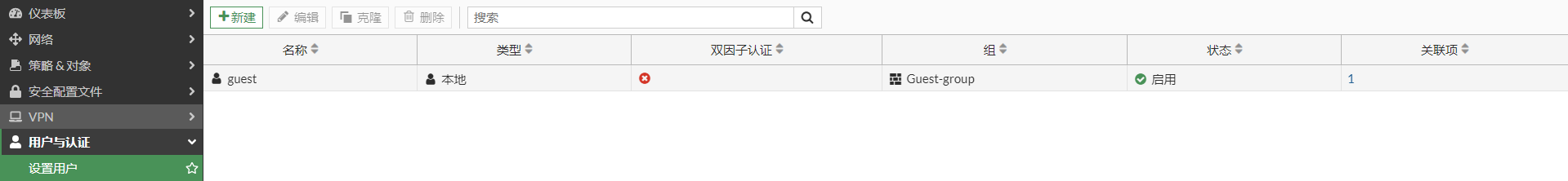

  1. 选择“用户与认证”-->“设置用户”，点击新建

    image-20230210160651447

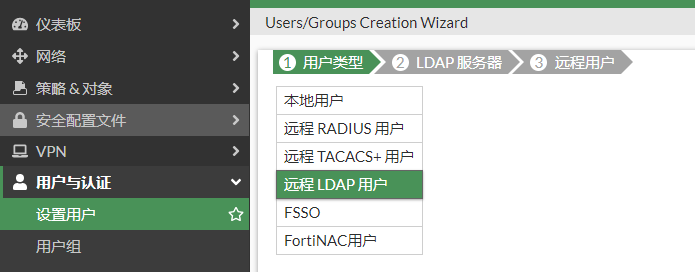

  2. 选择 LDAP 用户，点击“下一步”

    image-20230210160803618

  3. 选择配置好的 LDAP 服务器，点击“下一步”

    image-20230210160824132

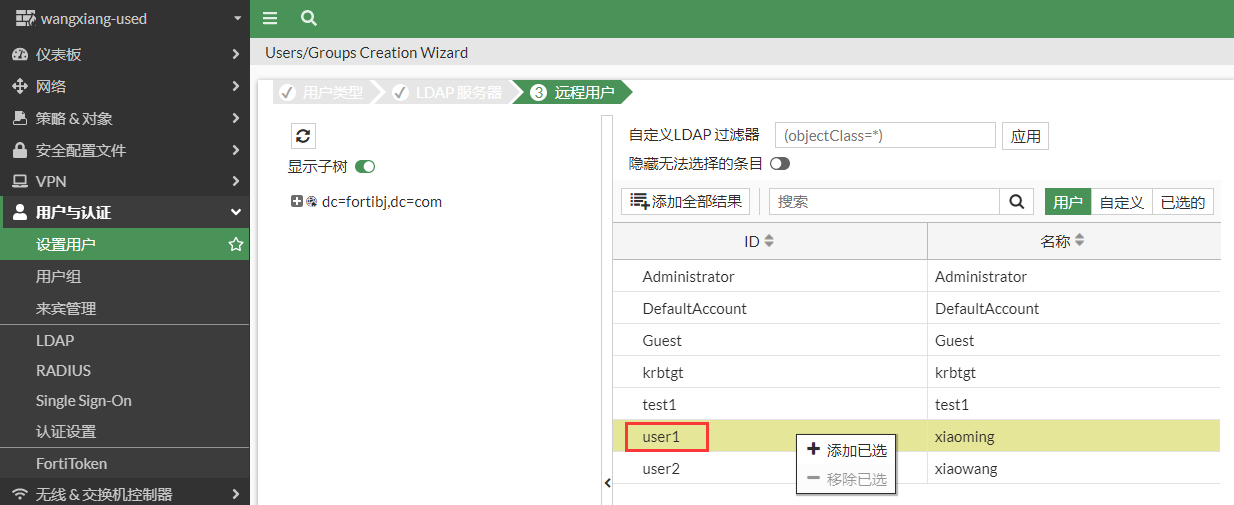

  4. 这里添加 user1，右击 user1，点击“添加已选”

    image-20230210160915040

    点击“已选的”，查看选中的用户，确认无误后，点击“提交”。

    image-20230210161015313

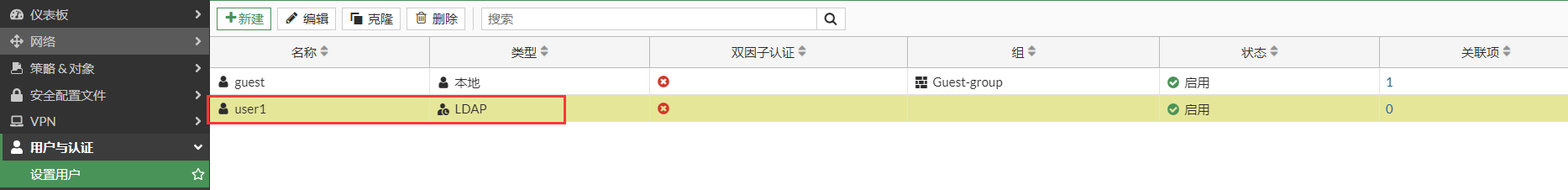

  5. 完成 LDAP 用户创建

    image-20230210161121757

创建 ldap 用户组

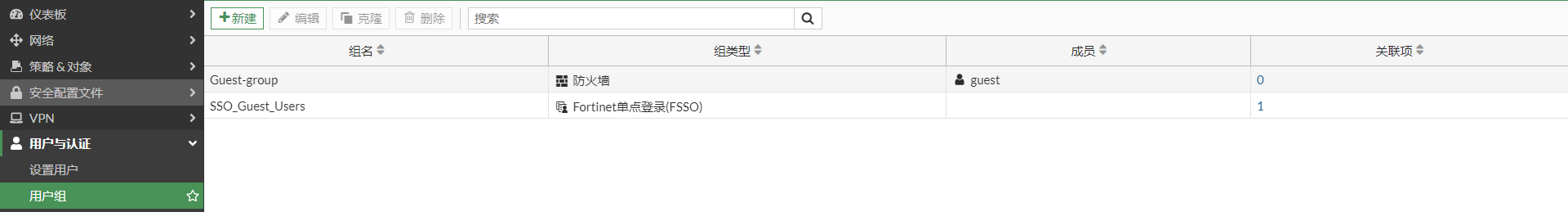

  1. 选择“用户与认证”-->“用户组”，点击“新建”

    image-20230210161153662

  2. 配置 LDAP

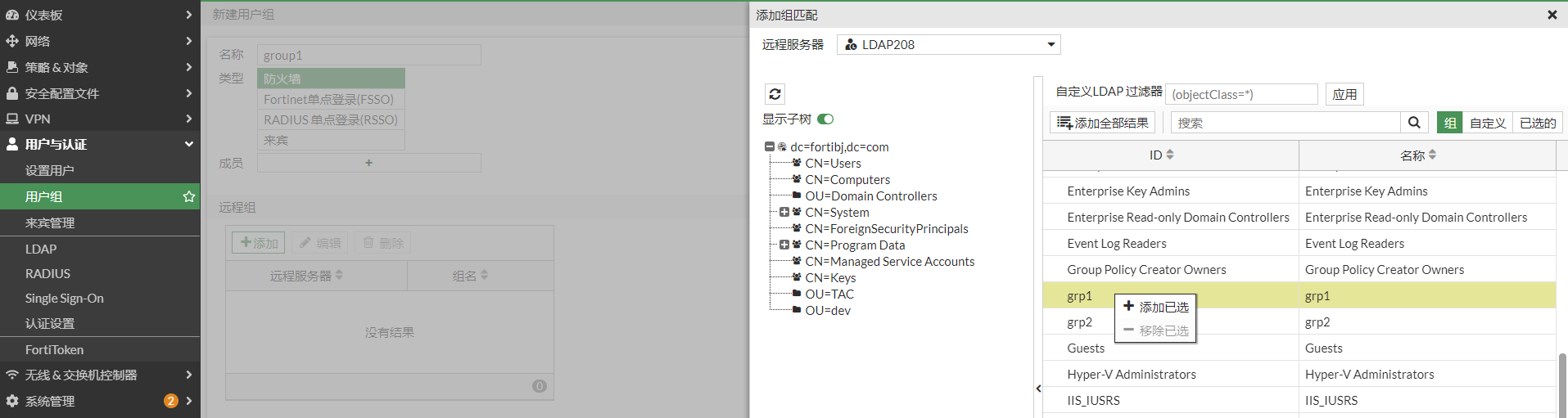

    设置 FortiGate 用户组名称 group1，在远程组中，点击“添加”，选择配置好的远程服务器，会自动显示出目录树，找到需要添加的用户组，这里选择 grp1，右击“添加已选”，那么 group1 匹配远端 LDAP 用户组 grp1 中的用户。可以添加多个用户组，如再增加 grp2，那么 group1 匹配远端 LDAP 用户组 grp1 和 grp2 中的用户。

    image-20230210161500003

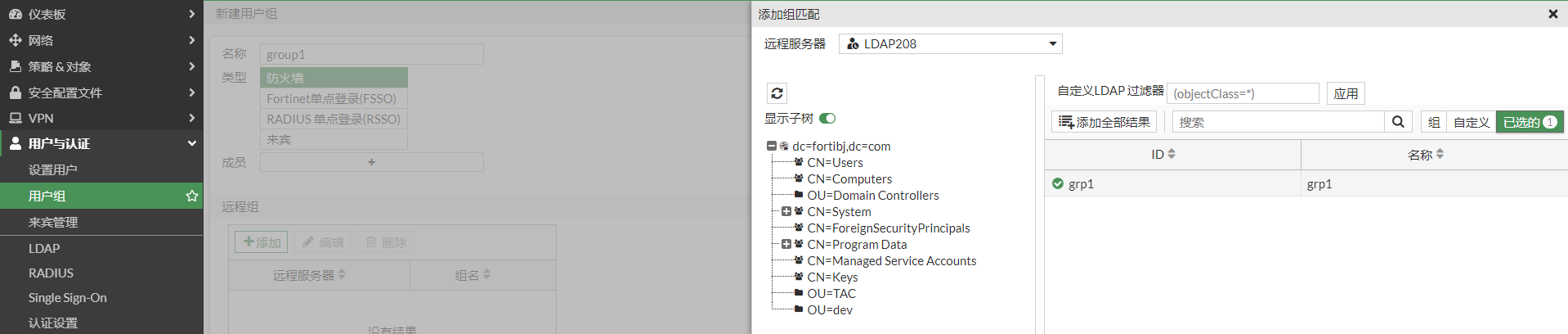

    点击“已选的”，查看选中的用户组，确认无误后，点击“确认”。

    image-20230210161813433

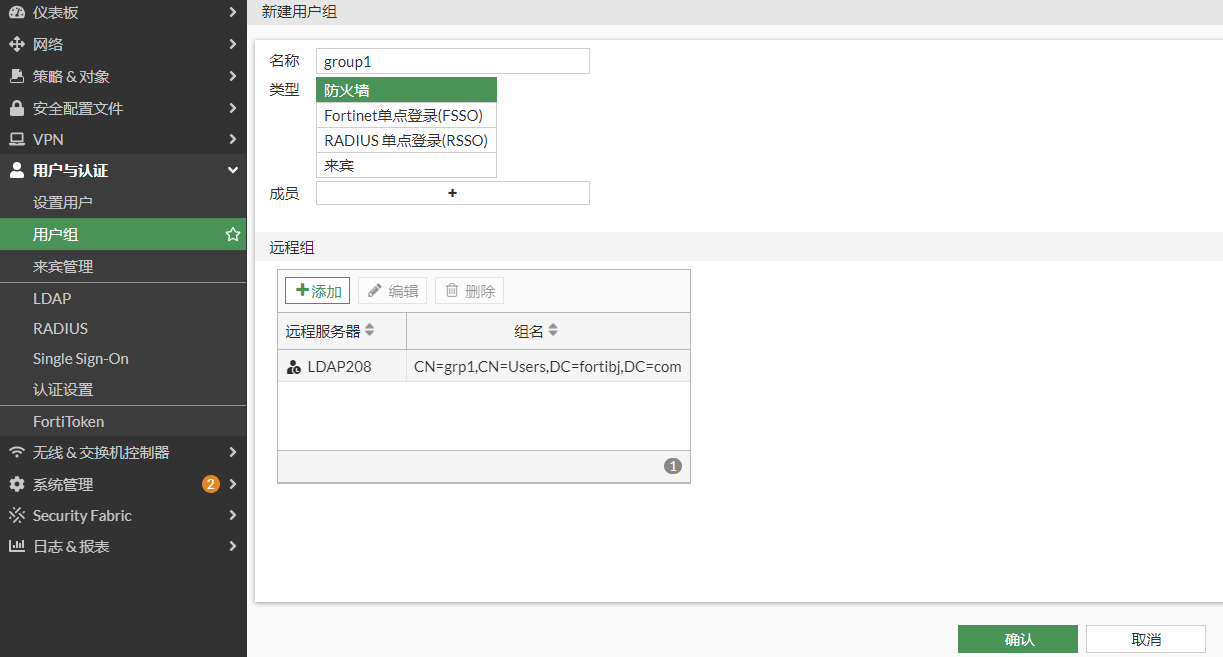

  3. 点击确认

    image-20230210162041295

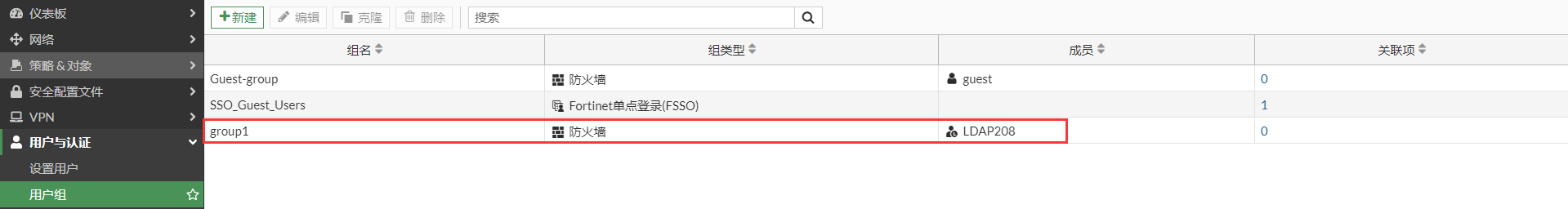

  4. 配置完成

    image-20230210162157351

重要

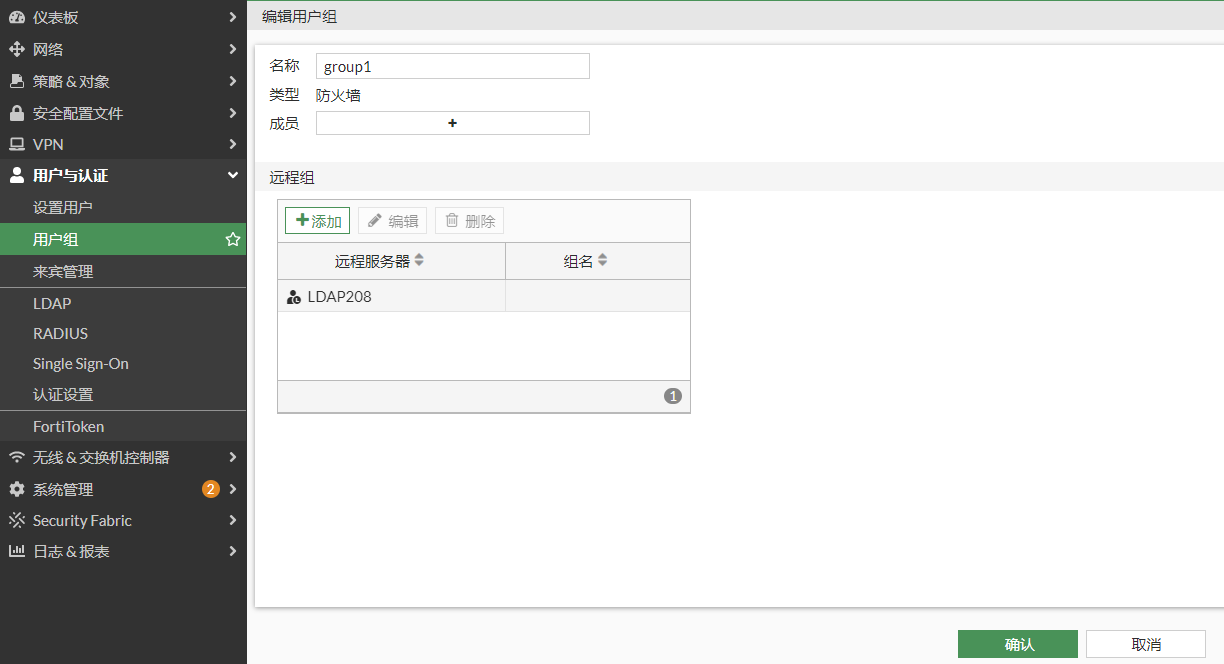

如果在 group1 用不选择任何用户组，那么 group1 匹配 LDAP 服务器配置的 DN 目录下的所有用户。

image-20230210162246690

LDAP 认证 debug

认证成功

  1. 准备查询的用户名 user1 和 base DN。

    # diagnose debug application fnbamd -1
# diagnose debug  enable

[1906] handle_req-Rcvd auth req 730526726 for user1 in LDAP208 opt=0000001b prot=0
[466] __compose_group_list_from_req-Group 'LDAP208', type 1
[616] fnbamd_pop3_start-user1
[989] __fnbamd_cfg_get_ldap_list_by_server-
[995] __fnbamd_cfg_get_ldap_list_by_server-Loaded LDAP server 'LDAP208'
[1150] fnbamd_cfg_get_ldap_list-Total ldap servers to try: 1

[1717] fnbamd_ldap_init-search filter is: sAMAccountName=user1
[1727] fnbamd_ldap_init-search base is: dc=fortibj,dc=com

[1149] __fnbamd_ldap_dns_cb-Resolved LDAP208:192.168.91.208 to 192.168.91.208, cur stack size:1
[924] __fnbamd_ldap_get_next_addr-
[1154] __fnbamd_ldap_dns_cb-Connection starts LDAP208:192.168.91.208, addr 192.168.91.208
[879] __fnbamd_ldap_start_conn-Still connecting 192.168.91.208.
[633] create_auth_session-Total 1 server(s) to try
[1107] __ldap_connect-tcps_connect(192.168.91.208) is established.

  2. LDAP 管理员账号绑定。

    [985] __ldap_rxtx-state 3(Admin Binding)
[363] __ldap_build_bind_req-Binding to 'CN=Administrator,CN=Users,DC=fortibj,DC=com'
[1083] fnbamd_ldap_send-sending 69 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 1

[985] __ldap_rxtx-state 4(Admin Bind resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:1, type:bind
response-ret=0    //绑定成功
[1023] fnbamd_ldap_parse_response-ret=0

  3. 查询 user1 的 DN。

    [1052] __ldap_rxtx-Change state to 'DN search'
[985] __ldap_rxtx-state 11(DN search)
[750] fnbamd_ldap_build_dn_search_req-base:'dc=fortibj,dc=com' filter:sAMAccountName=user1
[1083] fnbamd_ldap_send-sending 73 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 2

[985] __ldap_rxtx-state 12(DN search resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 51
[1306] fnbamd_ldap_recv-Response len: 53, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-entry

  4. 查询成功，获得 user1 的 DN 是 xiaoming,OU = TAC,DC = fortibj,DC = com。

    response-ret=0    //查询成功，获得user1的DN是 xiaoming,OU=TAC,DC=fortibj,DC=com
[1023] fnbamd_ldap_parse_response-ret=0
[1225] __fnbamd_ldap_dn_entry-Get DN 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'

[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 62
[1306] fnbamd_ldap_recv-Response len: 64, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-result
[1023] fnbamd_ldap_parse_response-ret=0

  5. 用户 user1 绑定请求成功。

    [1052] __ldap_rxtx-Change state to 'User Binding'
[985] __ldap_rxtx-state 5(User Binding)
[596] fnbamd_ldap_build_userbind_req-Trying DN 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'
[363] __ldap_build_bind_req-Binding to 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'
[1083] fnbamd_ldap_send-sending 93 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 3

[985] __ldap_rxtx-state 6(User Bind resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:3, type:bind

response-ret=0 //绑定成功
[1023] fnbamd_ldap_parse_response-ret=0

  6. memberOf 属性查询。

    [1052] __ldap_rxtx-Change state to 'Attr query'
[985] __ldap_rxtx-state 7(Attr query)
[649] fnbamd_ldap_build_attr_search_req-Adding attr 'memberOf'
[661] fnbamd_ldap_build_attr_search_req-base:'CN=xiaoming,OU=TAC,DC=fortibj,DC=com' filter:cn=*
[1083] fnbamd_ldap_send-sending 112 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 4

[985] __ldap_rxtx-state 8(Attr query resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 195
[1306] fnbamd_ldap_recv-Response len: 197, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:4, type:search-entry

  7. 查询成功，获得 user1 的用户组 CN = grp1,CN = Users,DC = fortibj,DC = com。

    [1023] fnbamd_ldap_parse_response-ret=0
[556] __get_member_of_groups-Get the memberOf groups.
[522] __retrieve_group_values-Get the memberOf groups.
[532] __retrieve_group_values- attr='memberOf', found 1 values
[542] __retrieve_group_values-val[0]='CN=grp1,CN=Users,DC=fortibj,DC=com'

[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:4, type:search-result
[1023] fnbamd_ldap_parse_response-ret=0
[1305] __fnbamd_ldap_attr_next-Entering CHKPRIMARYGRP state

  8. Primary group 属性查询。

    [1052] __ldap_rxtx-Change state to 'Primary group query'
[985] __ldap_rxtx-state 13(Primary group query)
[685] fnbamd_ldap_build_primary_grp_search_req-starting primary group check...
[689] fnbamd_ldap_build_primary_grp_search_req-number of sub auths 5
[707] fnbamd_ldap_build_primary_grp_search_req-base:'dc=fortibj,dc=com' filter:(&(objectclass=group)(objectSid=\01\05\00\00\00\00\00\05\15\00\00\00\b8\17\0b\a2\b5\db\a4\d8\c0\a2\54\19\01\02\00\00))
[1083] fnbamd_ldap_send-sending 121 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 5

[985] __ldap_rxtx-state 14(Primary group query resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 110
[1306] fnbamd_ldap_recv-Response len: 112, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:5, type:search-entry

  9. 获得 Primary group 是 CN = Domain Users,CN = Users,DC = fortibj,DC = com。

    [1023] fnbamd_ldap_parse_response-ret=0
[472] __get_one_group-group: CN=Domain Users,CN=Users,DC=fortibj,DC=com

[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:5, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:5, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 62
[1306] fnbamd_ldap_recv-Response len: 64, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:5, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:5, type:search-result
[1023] fnbamd_ldap_parse_response-ret=0
[1433] __fnbamd_ldap_primary_grp_next-Auth accepted

  10. 查询完成。

    [1052] __ldap_rxtx-Change state to 'Done'
[985] __ldap_rxtx-state 23(Done)
[1083] fnbamd_ldap_send-sending 7 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 6
[785] __ldap_done-svr 'LDAP208'
[755] __ldap_destroy-
[724] __ldap_stop-Conn with 192.168.91.208 destroyed.

  11. 查询的结果。

    [2678] fnbamd_ldap_result-Result for ldap svr 192.168.91.208(LDAP208) is SUCCESS
[401] ldap_copy_grp_list-copied CN=grp1,CN=Users,DC=fortibj,DC=com
[401] ldap_copy_grp_list-copied CN=Domain Users,CN=Users,DC=fortibj,DC=com

[2693] fnbamd_ldap_result-Skipping group matching
[216] fnbamd_comm_send_result-Sending result 0 (nid 0) for req 730526726, len=2227
[789] destroy_auth_session-delete session 730526726
[755] __ldap_destroy-
[1764] fnbamd_ldap_auth_ctx_free-Freeing 'LDAP208' ctx

认证失败

  1. 准备查询的用户名 user1 和 base DN。

    # diagnose debug application fnbamd -1
# diagnose debug  enable

[1906] handle_req-Rcvd auth req 730526741 for user1 in LDAP208 opt=0000001b prot=0
[466] __compose_group_list_from_req-Group 'LDAP208', type 1
[616] fnbamd_pop3_start-user1
[989] __fnbamd_cfg_get_ldap_list_by_server-
[995] __fnbamd_cfg_get_ldap_list_by_server-Loaded LDAP server 'LDAP208'
[1150] fnbamd_cfg_get_ldap_list-Total ldap servers to try: 1

[1717] fnbamd_ldap_init-search filter is: sAMAccountName=user1
[1727] fnbamd_ldap_init-search base is: dc=fortibj,dc=com

[1149] __fnbamd_ldap_dns_cb-Resolved LDAP208:192.168.91.208 to 192.168.91.208, cur stack size:1
[924] __fnbamd_ldap_get_next_addr-
[1154] __fnbamd_ldap_dns_cb-Connection starts LDAP208:192.168.91.208, addr 192.168.91.208
[879] __fnbamd_ldap_start_conn-Still connecting 192.168.91.208.
[633] create_auth_session-Total 1 server(s) to try
[1107] __ldap_connect-tcps_connect(192.168.91.208) is established.

  2. LDAP 管理员账号绑定成功。

    [985] __ldap_rxtx-state 3(Admin Binding)
[363] __ldap_build_bind_req-Binding to 'CN=Administrator,CN=Users,DC=fortibj,DC=com'
[1083] fnbamd_ldap_send-sending 69 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 1

[985] __ldap_rxtx-state 4(Admin Bind resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:1, type:bind

response-ret=0    //绑定成功
[1023] fnbamd_ldap_parse_response-ret=0

  3. 查询 user1 的 DN。

    [1052] __ldap_rxtx-Change state to 'DN search'
[985] __ldap_rxtx-state 11(DN search)
[750] fnbamd_ldap_build_dn_search_req-base:'dc=fortibj,dc=com' filter:sAMAccountName=user1
[1083] fnbamd_ldap_send-sending 73 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 2

[985] __ldap_rxtx-state 12(DN search resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 51
[1306] fnbamd_ldap_recv-Response len: 53, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-entry

  4. 查询成功，获得 user1 的 DN 是 xiaoming,OU = TAC,DC = fortibj,DC = com。

    response-ret=0    //查询成功，获得user1的DN是 xiaoming,OU=TAC,DC=fortibj,DC=com
[1023] fnbamd_ldap_parse_response-ret=0
[1225] __fnbamd_ldap_dn_entry-Get DN 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'

[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 78
[1306] fnbamd_ldap_recv-Response len: 80, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 62
[1306] fnbamd_ldap_recv-Response len: 64, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-reference
[1023] fnbamd_ldap_parse_response-ret=0
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 14
[1306] fnbamd_ldap_recv-Response len: 16, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:2, type:search-result
[1023] fnbamd_ldap_parse_response-ret=0

  5. 用户 user1 绑定请求。

    [1052] __ldap_rxtx-Change state to 'User Binding'
[985] __ldap_rxtx-state 5(User Binding)
[596] fnbamd_ldap_build_userbind_req-Trying DN 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'
[363] __ldap_build_bind_req-Binding to 'CN=xiaoming,OU=TAC,DC=fortibj,DC=com'
[1083] fnbamd_ldap_send-sending 88 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 3

[985] __ldap_rxtx-state 6(User Bind resp)
[1127] __fnbamd_ldap_read-Read 8
[1233] fnbamd_ldap_recv-Leftover 2
[1127] __fnbamd_ldap_read-Read 102
[1306] fnbamd_ldap_recv-Response len: 104, svr: 192.168.91.208
[987] fnbamd_ldap_parse_response-Got one MESSAGE. ID:3, type:bind

  6. 绑定失败，响应码 49，响应消息 52e，即密码不对。

    [1009] fnbamd_ldap_parse_response-Error 49(80090308: LdapErr: DSID-0C0903D3, comment: AcceptSecurityContext error, data 52e, v3839)
[1023] fnbamd_ldap_parse_response-ret=49

[262] fnbamd_ldap_more_dn_left-idx:0, total:1
[1052] __ldap_rxtx-Change state to 'Done'
[985] __ldap_rxtx-state 23(Done)
[1083] fnbamd_ldap_send-sending 7 bytes to 192.168.91.208
[1096] fnbamd_ldap_send-Request is sent. ID 4
[785] __ldap_done-svr 'LDAP208'
[755] __ldap_destroy-
[724] __ldap_stop-Conn with 192.168.91.208 destroyed.
[216] fnbamd_comm_send_result-Sending result 1 (nid 0) for req 730526741, len=2148
[789] destroy_auth_session-delete session 730526741
[755] __ldap_destroy-
[1764] fnbamd_ldap_auth_ctx_free-Freeing 'LDAP208' ctx
最近更新:
