生成树 (STP) 与虚拟接口对

2025/10/29大约 7 分钟

生成树 (STP) 与虚拟接口对

网络需求

SW1 和 SW2 之间运行了 STP 协议，防火墙以虚拟接口对方式运行在两台 SW 之间，SW 和 SW 之间原本存在环路，通过 STP 进行隔离阻断了环路接口，在加入虚拟接口对的 FGT 之后，需要继续确保 STP 工作正常。

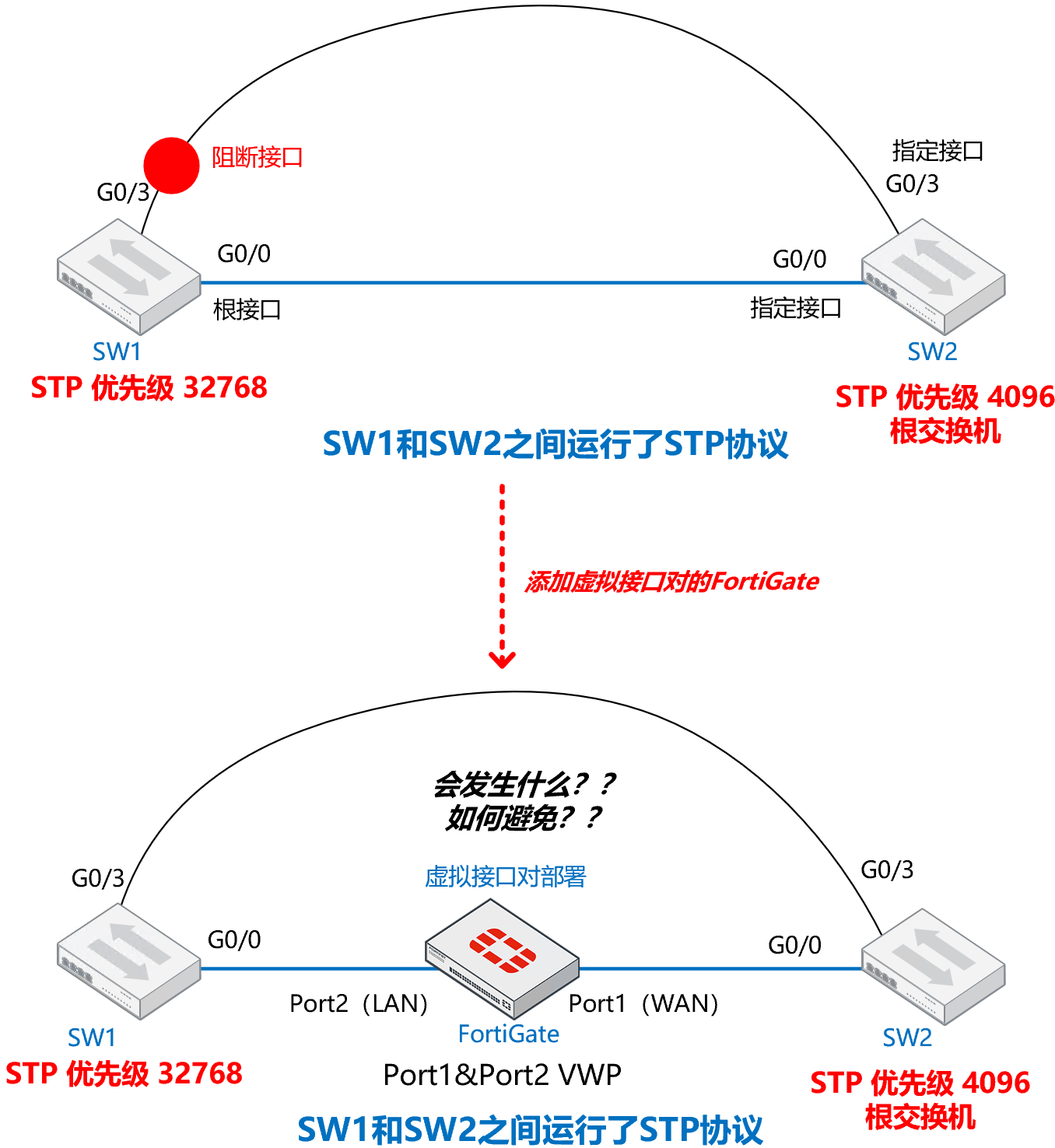

网络拓扑

image-20240103113421345

配置要点

  • Router1/Router2 路由器的基础配置

  • 将防火墙配置为虚拟接口对并开启网管

  • 默认情况下，观察 STP BPDU 报文与收敛情况

  • 配置 stpforward 解决 STP 流量转发问题

配置步骤与结果验证

  1. SW1/SW2 交换机的基础配置和 STP 状态确认。

    SW1：

    hostname SW1
spanning-tree vlan 1 priority 32768

    SW2：

    hostname SW2
!
spanning-tree vlan 1 priority 4096

    没有加入虚拟接口对的 FortiGate 之前 STP 状态：

    SW1#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             Cost        4
             Port        1 (GigabitEthernet0/0)
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    32769  (priority 32768 sys-id-ext 1)
             Address     5000.0007.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Root FWD 4         128.1    Shr
Gi0/3               Altn BLK 4         128.4    Shr     // G0/3 被阻断，STP工作正常

SW2#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    4097   (priority 4096 sys-id-ext 1)
             Address     5000.0008.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Desg FWD 4         128.1    Shr
Gi0/3               Desg FWD 4         128.4    Shr

  2. 将防火墙的 port1 和 port2 配置为虚拟接口对并加入到 SW1 和 SW2 之间，防火墙处于路由模式的情况下，直接创建虚拟接口对：将 port1 和 port2 加入到虚拟接口对中并开启通配符 VLAN，识别 VLAN-Tag 的数据（推荐开启通配符 VLAN）。

    image-20221115145740726image-20221115145809633image-20221115145836776

  3. 虚拟接口对通道正式打通，可以认为 port1 和 port2 之间可以透明的传输数据了（需策略放通），对应的命令行如下。

    config system virtual-wire-pair
    edit "VWP1"
        set member "port1" "port2"
        set wildcard-vlan enable
    next
end

  4. 加入 FGT 在没有任何配置的情况下，观察 STP 的运行情况，一旦 FGT 加入到 SW1 和 SW2 之间，很明显网络中出现了环路，设备操作很卡顿，SW1 和 SW2 基本上不再响应请求，三台设备均出现了异常情况（默认情况下虚拟接口对的 FGT 只转发 ARP 报文，因此只需要一个 arp 报文就会产生广播风暴，引起环路导致设备、业务中断）。

    FortiGate_VWP # diagnose sniffer packet any "none" 4
interfaces=[any]
filters=[none]
0.814720 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.814733 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.817141 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.817148 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.818761 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.818771 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.819709 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.819720 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.821533 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.821544 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.825484 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.825492 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.827856 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.827866 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.828752 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.828762 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.829235 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.829244 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.831930 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.831947 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.834842 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.834853 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.836686 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.836694 port1 out arp who-has 192.168.1.99 tell 192.168.1.100
0.838965 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.838972 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.841965 port1 in arp who-has 192.168.1.99 tell 192.168.1.100
0.841974 port2 out arp who-has 192.168.1.99 tell 192.168.1.100
0.843858 port2 in arp who-has 192.168.1.99 tell 192.168.1.100
0.843866 port1 out arp who-has 192.168.1.99 tell 192.168.1.100

  5. SW1/SW2 的 STP 状态均异常，所有接口都处于转发状态。

    SW1#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             Cost        4
             Port        4 (GigabitEthernet0/3)
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    32769  (priority 32768 sys-id-ext 1)
             Address     5000.0007.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Desg FWD 4         128.1    Shr
Gi0/3               Root FWD 4         128.4    Shr     //SW1的两个接口都处于转发状态

SW2#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    4097   (priority 4096 sys-id-ext 1)
             Address     5000.0008.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Desg FWD 4         128.1    Shr
Gi0/3               Desg FWD 4         128.4    Shr  //SW2的两个接口都处于转发状态

  6. 在 FGT 上抓包可以看到 STP 的 BPDU 报文没有被转发，而是被默认丢弃，这是引起环路的根本原因。STP BPDU 数据默认不会被虚拟接口对的 FGT 所转发，因此 STP 计算不正确，会计算不出网络中的环路，从而引起广播风暴。

    FortiGate_VWP # diagnose sniffer packet any "none" 4
interfaces=[any]
filters=[none]
1.234590 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
2.182694 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
3.247650 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
4.193908 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
5.260154 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
6.204003 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
7.278226 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
8.210732 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
9.294582 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
10.223021 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
11.302829 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
12.232585 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001
13.310023 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
14.242616 port1 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 8001.50:00:00:07:00:00.8001

  7. 那么要如何解决此情况呢？在 FGT 的二层接口下配置 set stpforward enable 即可！

    FortiGate_VWP # config system interface
FortiGate_VWP (interface) # edit port1
FortiGate_VWP (port1) # set stpforward enable

FortiGate_VWP (port1) # next
FortiGate_VWP (interface) # edit port2
FortiGate_VWP (port2) # set stpforward enable
FortiGate_VWP (port2) # end

  8. 再次抓包查看，此时 FGT 可以转发 STP BPDU 报文了。

    FortiGate_VWP # diagnose sniffer packet any "stp" 4
interfaces=[any]
filters=[stp]
2.070782 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
2.070797 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

4.085338 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
4.085355 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

6.097429 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
6.097444 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

8.107806 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
8.107822 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

10.114977 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
10.114993 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

12.123637 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
12.123651 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

14.131744 port2 in stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001
14.131757 port1 out stp 802.1w, rapid stp, flags [learn, forward], bridge-id 1001.50:00:00:08:00:00.8001

  9. 此时再次查看 STP 的状态，恢复正常选举状态。

    SW1#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             Cost        4
             Port        1 (GigabitEthernet0/0)
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    32769  (priority 32768 sys-id-ext 1)
             Address     5000.0007.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Root FWD 4         128.1    Shr
Gi0/3               Altn BLK 4         128.4    Shr    // G0/3 被阻断，STP工作正常

SW2#show spanning-tree
VLAN0001
  Spanning tree enabled protocol rstp
  Root ID    Priority    4097
             Address     5000.0008.0000
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
  Bridge ID  Priority    4097   (priority 4096 sys-id-ext 1)
             Address     5000.0008.0000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec
Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Gi0/0               Desg FWD 4         128.1    Shr
Gi0/3               Desg FWD 4         128.4    Shr

    重要

    要特别注意此情况！避免虚拟接口对的 FGT 一上线引起 STP 计算异常，引起广播风暴，造成重大业务故障。
