非 IP 流量 (PPPOE) 与虚拟接口对
2025/10/29大约 3 分钟
非 IP 流量 (PPPOE) 与虚拟接口对
网络需求
路由器 1 和路由器 2 之间运行了 PPPOE 协议（非 IP 协议），防火墙以虚拟接口对运行在两台路由器之间，需要确保路由器 1 的 PPPOE 拨号正常。

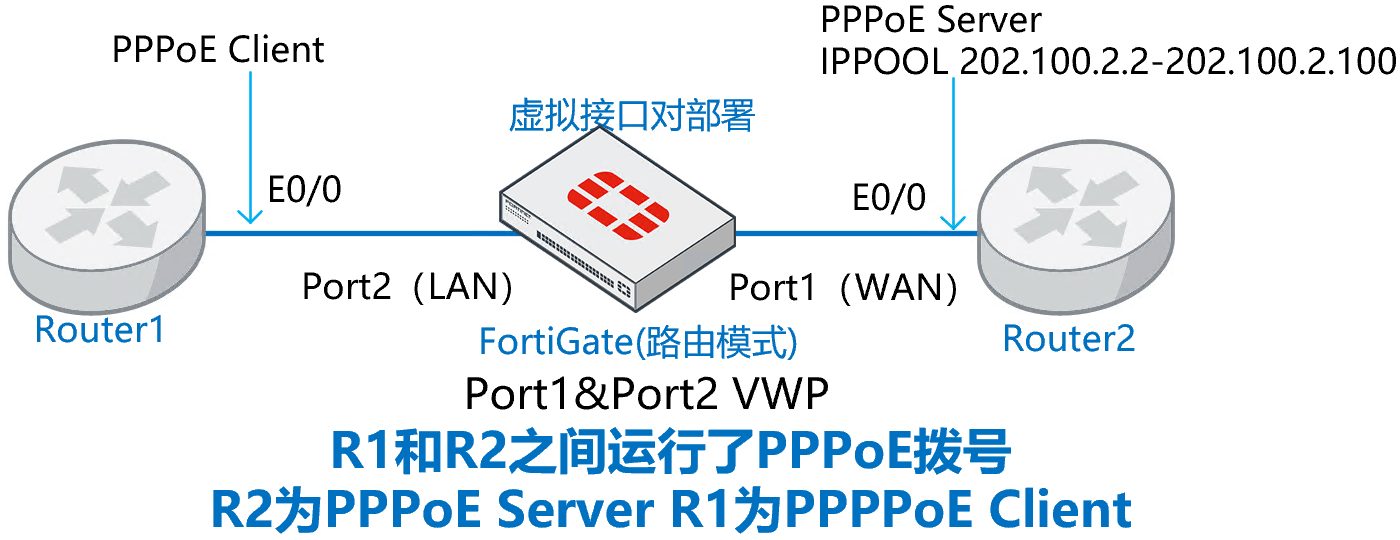

网络拓扑
配置要点
Router1/Router2 路由器的基础配置
将防火墙的 port1 和 port2 配置为虚拟接口对
默认情况下，观察 PPPOE 拨号的情况
配置 l2forward 解决非 IP 流量转发问题
配置步骤与结果验证
Router1/Router2 路由器的基础配置。
Router1：
interface Loopback0 ip address 1.1.1.1 255.255.255.255 ! interface Ethernet0/0 no ip address no shutdown pppoe enable group global pppoe-client dial-pool-number 1 ! interface Dialer1 mtu 1492 ip address negotiated encapsulation ppp dialer pool 1 ppp pap sent-username pppoeuser1 password 0 fortinet ppp ipcp route defaultRouter2：

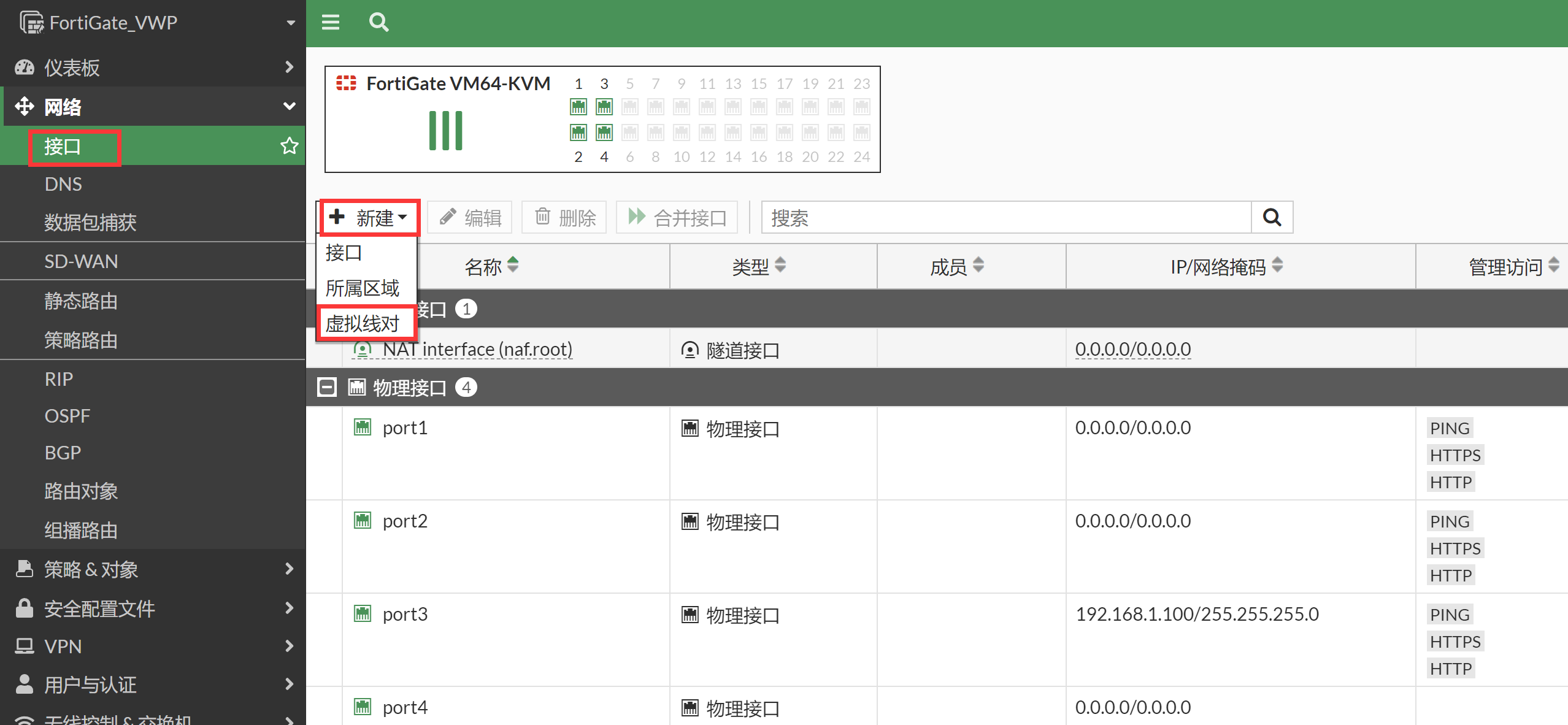

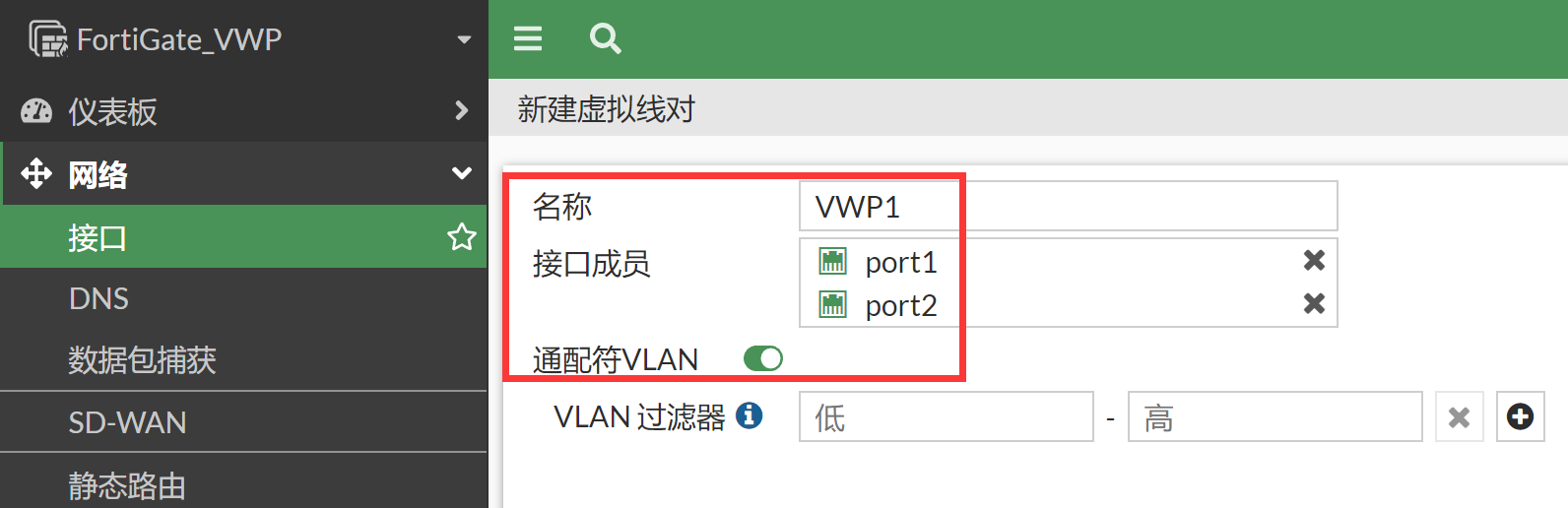

interface Loopback0 ip address 2.2.2.2 255.255.255.255 ! username pppoeuser1 password 0 fortinet ! bba-group pppoe bba1 virtual-template 1 ! interface Loopback1 ip address 202.100.2.1 255.255.255.0 ! interface Ethernet0/0 no ip address no shutdown pppoe enable group bba1 ! interface Virtual-Template1 description PPPOE bba1 mtu 1492 ip unnumbered Loopback1 peer default ip address pool pool1 ppp authentication pap ! ip local pool pool1 202.100.2.2 202.100.2.100将防火墙的 port1 和 port2 配置为虚拟接口对，防火墙处于路由模式的情况下，直接创建虚拟接口对：将 port1 和 port2 加入到虚拟接口对中并开启通配符 VLAN，识别 VLAN-Tag 的数据（推荐开启通配符 VLAN）。

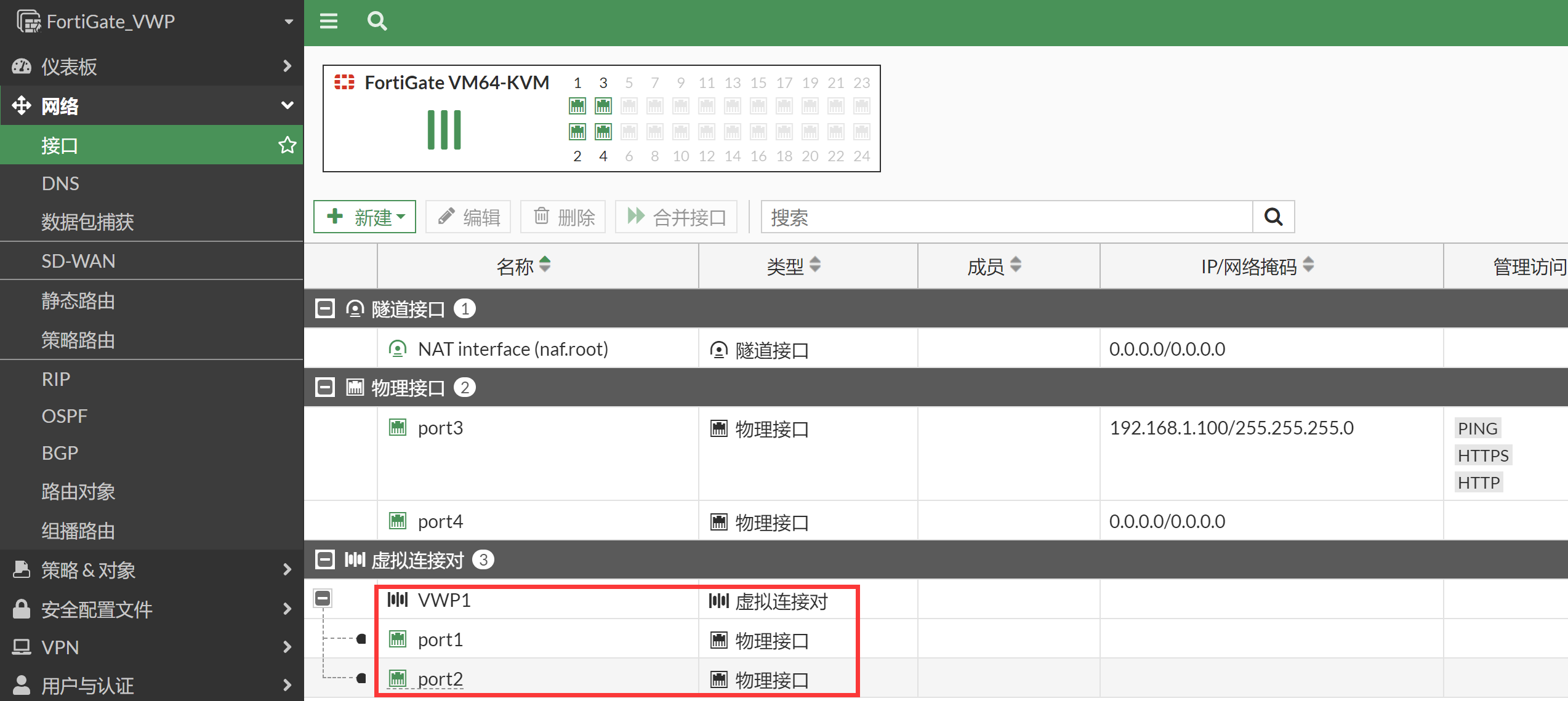

虚拟接口对通道正式打通，可以认为 port1 和 port2 之间可以透明的传输数据了（需策略放通），对应的命令行如下。
config system virtual-wire-pair edit "VWP1" set member "port1" "port2" set wildcard-vlan enable next end默认情况下，观察 PPPOE 拨号的情况，Router1（PPPOE Client）无法 PPPPOE 拨号成功。

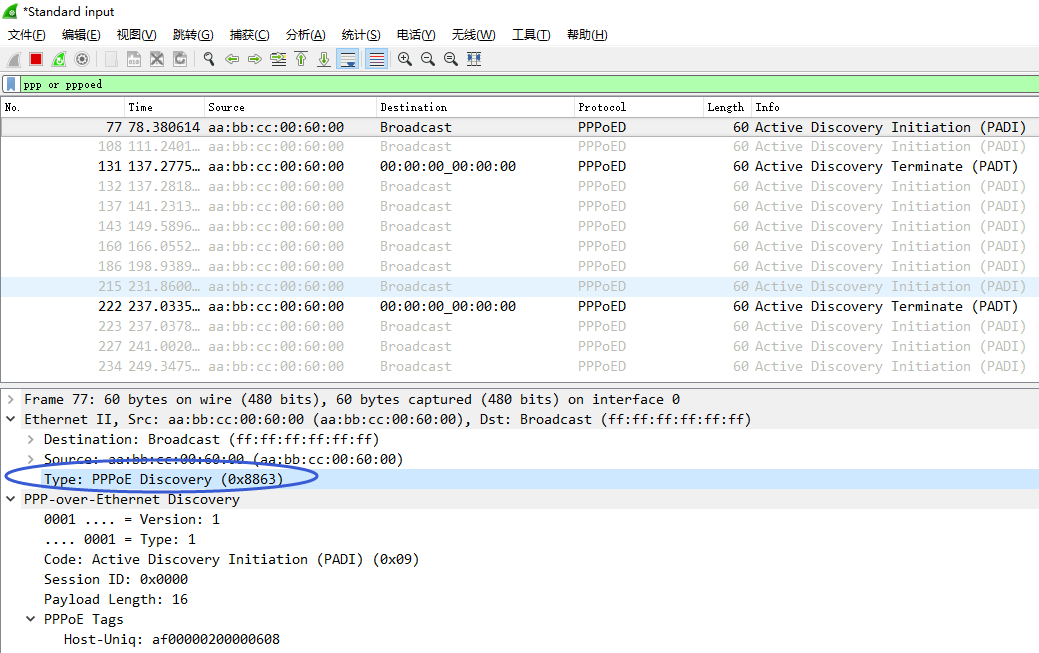

Router1#show ip route ... Gateway of last resort is not set 1.0.0.0/32 is subnetted, 1 subnets C 1.1.1.1 is directly connected, Loopback0 Router1#show ip int brief ... Dialer1 unassigned YES IPCP up up ...通过在 FGT 上抓包可以看到 FGT 并不转发 PPPOE 的报文，非 IP 的 PPPOE 数据默认不会被 FGT 所转发。
FortiGate_VWP # diagnose sniffer packet any "pppoed" 4 interfaces=[any] filters=[pppoed] 4.124126 port1 in pppoe printer hasn't been added to sniffer 37.014209 port1 in pppoe printer hasn't been added to sniffer 69.908430 port1 in pppoe printer hasn't been added to sniffer 102.798634 port1 in pppoe printer hasn't been added to sniffer 135.705063 port1 in pppoe printer hasn't been added to sniffer
那么要如何解决此情况呢？在 FGT 的虚拟接口对的具体接口下配置 set l2forward enable 即可！

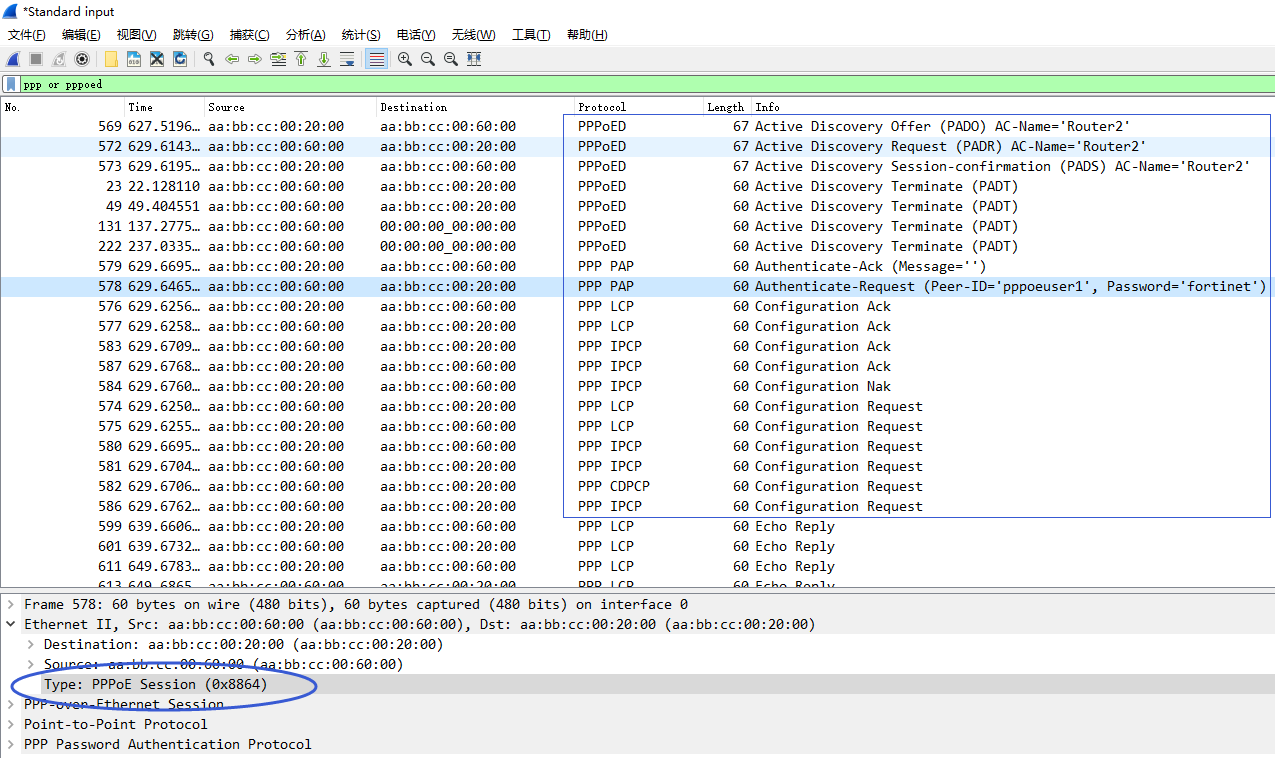

FortiGate_VWP # config system interface FortiGate_VWP (interface) # edit port1 FortiGate_VWP (port1) # set l2forward enable FortiGate_VWP (port1) # next FortiGate_VWP (interface) # edit port2 FortiGate_VWP (port2) # set l2forward enable FortiGate_VWP (port2) # end再次抓包查看，此时 FGT 可以转发 PPPOE 请求了。
FortiGate_VWP # diagnose sniffer packet any "pppoed" 4 interfaces=[any] filters=[pppoed] 5.324865 port2 in pppoe printer hasn't been added to sniffer 5.324880 port1 out pppoe printer hasn't been added to sniffer 5.325468 port1 in pppoe printer hasn't been added to sniffer 5.325474 port2 out pppoe printer hasn't been added to sniffer 7.420329 port2 in pppoe printer hasn't been added to sniffer 7.420342 port1 out pppoe printer hasn't been added to sniffer 7.425307 port1 in pppoe printer hasn't been added to sniffer 7.425313 port2 out pppoe printer hasn't been added to sniffer
路由器 1 PPPOE 拨号成功。
Router1#show ppp all Interface/ID OPEN+ Nego* Fail- Stage Peer Address Peer Name ------------ --------------------- -------- --------------- -------------------- Vi2 LCP+ IPCP+ CDPCP- LocalT 202.100.2.1 Router1#show pppoe session 1 client session Uniq ID PPPoE RemMAC Port VT VA State SID LocMAC VA-st Type N/A 2 aabb.cc00.2000 Et0/0 Di1 Vi2 UP aabb.cc00.6000 UP Router1#show ip route ... Gateway of last resort is 202.100.2.1 to network 0.0.0.0 S* 0.0.0.0/0 [1/0] via 202.100.2.1 ... Router1# Router1#show ip int brief Interface IP-Address OK? Method Status Protocol ... Dialer1 202.100.2.3 YES IPCP up up ...
