非 IP 流量 (PPPOE) 与透明模式
2025/10/29大约 3 分钟
非 IP 流量 (PPPOE) 与透明模式
网络需求
路由器 1 和路由器 2 之间运行了 PPPOE 协议（非 IP 协议），防火墙以透明模式运行在两台路由器之间，需要确保路由器 1 的 PPPOE 拨号正常。

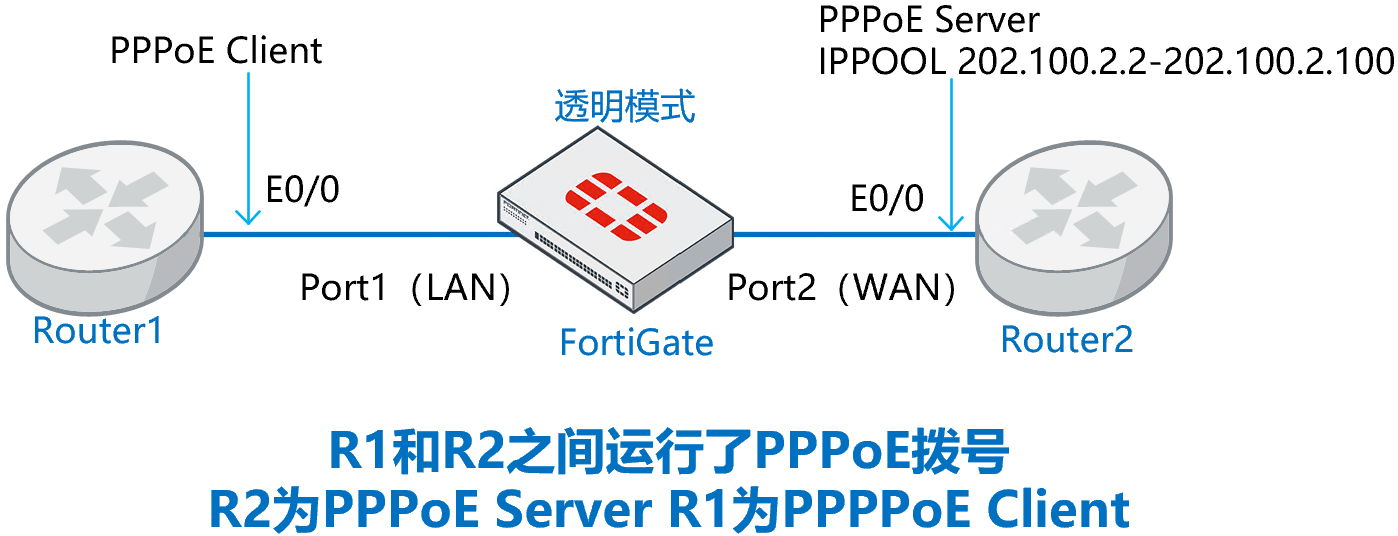

网络拓扑
配置要点
Router1/Router2 路由器的基础配置
将防火墙配置为透明模式并开启网管
默认情况下，观察 PPPOE 拨号的情况
配置 l2forward 解决非 IP 流量转发问题
配置步骤与结果验证
Router1/Router2 路由器的基础配置。
Router1 (PPPOE Client)：
interface Loopback0 ip address 1.1.1.1 255.255.255.255 ! interface Ethernet0/0 no ip address no shutdown pppoe enable group global pppoe-client dial-pool-number 1 ! interface Dialer1 mtu 1492 ip address negotiated encapsulation ppp dialer pool 1 ppp pap sent-username pppoeuser1 password 0 fortinet ppp ipcp route defaultRouter2 (PPPOE Server):
interface Loopback0 ip address 2.2.2.2 255.255.255.255 ! username pppoeuser1 password 0 fortinet ! bba-group pppoe bba1 virtual-template 1 ! interface Loopback1 ip address 202.100.2.1 255.255.255.0 ! interface Ethernet0/0 no ip address no shutdown pppoe enable group bba1 ! interface Virtual-Template1 description PPPOE bba1 mtu 1492 ip unnumbered Loopback1 peer default ip address pool pool1 ppp authentication pap ! ip local pool pool1 202.100.2.2 202.100.2.100将防火墙配置为透明模式，进入设备命令行（CLI）中进行配置，修改 FGT 的运行模式为透明模式（默认为 NAT 路由模式）。注意切换透明模式防火墙需要防火墙没有相关接口、策略、路由等配置。配置可以管理防火墙的本地 IP 和网关。
config system global set hostname FortiGate_Transparent end config system settings set opmode transparent set manageip 192.168.1.100 255.255.255.0 set gateway 192.168.1.99 endMGMT 口默认有管理权限，要通过 port1（LAN）接口管理设备为例，开启 port1（LAN）管理 FGT 的命令如下。允许网管协议从 Port1 接口通过 https/http/SSH/Ping 访问透明模式的 FortiGate。
config system interface edit port1 edit allowaccess https http ping ssh end默认情况下，观察 PPPOE 拨号的情况，Router1（PPPOE Client）无法 PPPPOE 拨号成功。
Router1#show ip route ... 1.0.0.0/32 is subnetted, 1 subnets C 1.1.1.1 is directly connected, Loopback0 ... Router1#show ip int brief Interface IP-Address OK? Method Status Protocol Ethernet0/0 unassigned YES manual up up Ethernet0/1 unassigned YES unset administratively down down Ethernet0/2 unassigned YES unset administratively down down Ethernet0/3 unassigned YES unset administratively down down Dialer1 unassigned YES IPCP up up Loopback0 1.1.1.1 YES manual up up Virtual-Access1 unassigned YES unset up up Virtual-Access2 unassigned YES unset down down通过在 FGT 上抓包可以看到 FGT 并不转发 PPPOE 的报文，非 IP 的 PPPOE 数据默认不会被 FGT 所转发。
FortiGate_Transparent # diagnose sniffer packet any "pppoed" 4 interfaces=[any] filters=[pppoed] 4.124126 port1 in pppoe printer hasn't been added to sniffer 37.014209 port1 in pppoe printer hasn't been added to sniffer 69.908430 port1 in pppoe printer hasn't been added to sniffer 102.798634 port1 in pppoe printer hasn't been added to sniffer 135.705063 port1 in pppoe printer hasn't been added to sniffer
解决非 IP 流量转发问题，在 FGT 的二层接口下配置 set l2forward enable 即可！
FortiGate_Transparent # config system interface FortiGate_Transparent (interface) # edit port1 FortiGate_Transparent (port1) # set l2forward enable FortiGate_Transparent (port1) # next FortiGate_Transparent (interface) # edit port2 FortiGate_Transparent (port2) # set l2forward enable FortiGate_Transparent (port2) # end再次抓包查看，此时 FGT 可以转发 PPPOE 请求了。
FortiGate_Transparent # diagnose sniffer packet any "pppoed" 4 interfaces=[any] filters=[pppoed] 5.324865 port1 in pppoe printer hasn't been added to sniffer 5.324880 port2 out pppoe printer hasn't been added to sniffer 5.325468 port2 in pppoe printer hasn't been added to sniffer 5.325474 port1 out pppoe printer hasn't been added to sniffer
查看 Router1 的 Router1 PPPOE 拨号情况，可以看到拨号成功了。
Router1#show ppp all Interface/ID OPEN+ Nego* Fail- Stage Peer Address Peer Name ------------ --------------------- -------- --------------- -------------------- Vi2 LCP+ IPCP+ CDPCP- LocalT 202.100.2.1 Router1#show pppoe session 1 client session Uniq ID PPPoE RemMAC Port VT VA State SID LocMAC VA-st Type N/A 2 aabb.cc00.2000 Et0/0 Di1 Vi2 UP aabb.cc00.6000 UP Router1#show ip route ... Gateway of last resort is 202.100.2.1 to network 0.0.0.0 S* 0.0.0.0/0 [1/0] via 202.100.2.1 ... C 202.100.2.1 is directly connected, Dialer1 C 202.100.2.3 is directly connected, Dialer1 Router1#show ip int brief Interface IP-Address OK? Method Status Protocol ... Dialer1 202.100.2.3 YES IPCP up up ...
