基于轮询的 Maximize Bandwidth (SLA)

重要

ADVPN 目前不支持 Maximize Bandwidth (SLA) 模式。

概念介绍

SLA

Service-Level Agreement，服务品质协议，是服务提供者和客户之间的一个协议，用来保证可计量的网络性能达到所定义的服务品质。SD-WAN 的选路基于这个 SLA 品质标准来判断，SD-WAN 规则保障让流量一直走符合 SLA 品质的链路出去。从而达到业务/客户的 SLA 品质要求。

SLA-Target

  1. SD-WAN 可定义 SLA-Targets 设置最低保障的延迟、抖动和丢包率，一旦超过 SLA-Targets 提供的保障最低值，则立即切换另外一条线路，以确保持续提供 SLA-Targets 品质级别的服务。

  2. SLA Target 有三种类型的判断阈值：

    • Latency (ms)

    • Jitter (ms)

    • Packet Loss (%)

    image-20230104113020731
    config system sdwan
	config health-check
    edit "114_Check"
        set server "114.114.114.114"
        set members 0
        config sla
            edit 1
                set latency-threshold 200
                set packetloss-threshold 2
            next
            edit 2
                set latency-threshold 250
                set jitter-threshold 10
                set packetloss-threshold 5
            next
            edit 3
                set latency-threshold 300
                set jitter-threshold 15
                set packetloss-threshold 8
            next
        end
    next
end

3.Lowest Cost (SLA) 和 Maximize Bandwidth (SLA) 都需要调用 SLA Target，基于 SLA Target 进行相关的判断和选路。

选路原则

  1. 只有满足 SLA-Targets 的出接口才有机会被选中，如果低于 SLA-Targets 的接口将会被移除选中列表中。

  2. 如果有多个接口满足 SLA-Targets，这些接口将按照配置的负载方式进行负载均衡来转发 SD-WAN 的流量，以便达到带宽最大利用率的效果。

  3. 负载方法支持 round-robin（默认）、source-ip-based、source-dest-ip-based、inbandwidth、outbandwidth、bibandwidth。

  4. 本文使用 round-robin 模式为例，所有流量将按循环顺序等量分配到 SD-WAN 规则中的成员接口（前提是该接口满足 SLA target）。

  5. Maximize Bandwidth (SLA) 基于 SLA-Targets 进行工作，因此首先需要在 SD-WAN 状态检查里面配置具体的 SLA-Targets 标准，然后再 SD-WAN 规则中选择相应的 SLA-Targets，只有符合选择的 SLA-Targets 标准的出口，才会被 SD-WAN 规则所计算并用于出口数据的转发，符合 SLA-Targets 的接口都会被用于数据的转发，多个接口按照配置的负载方式进行负载均衡处理。

配置举例

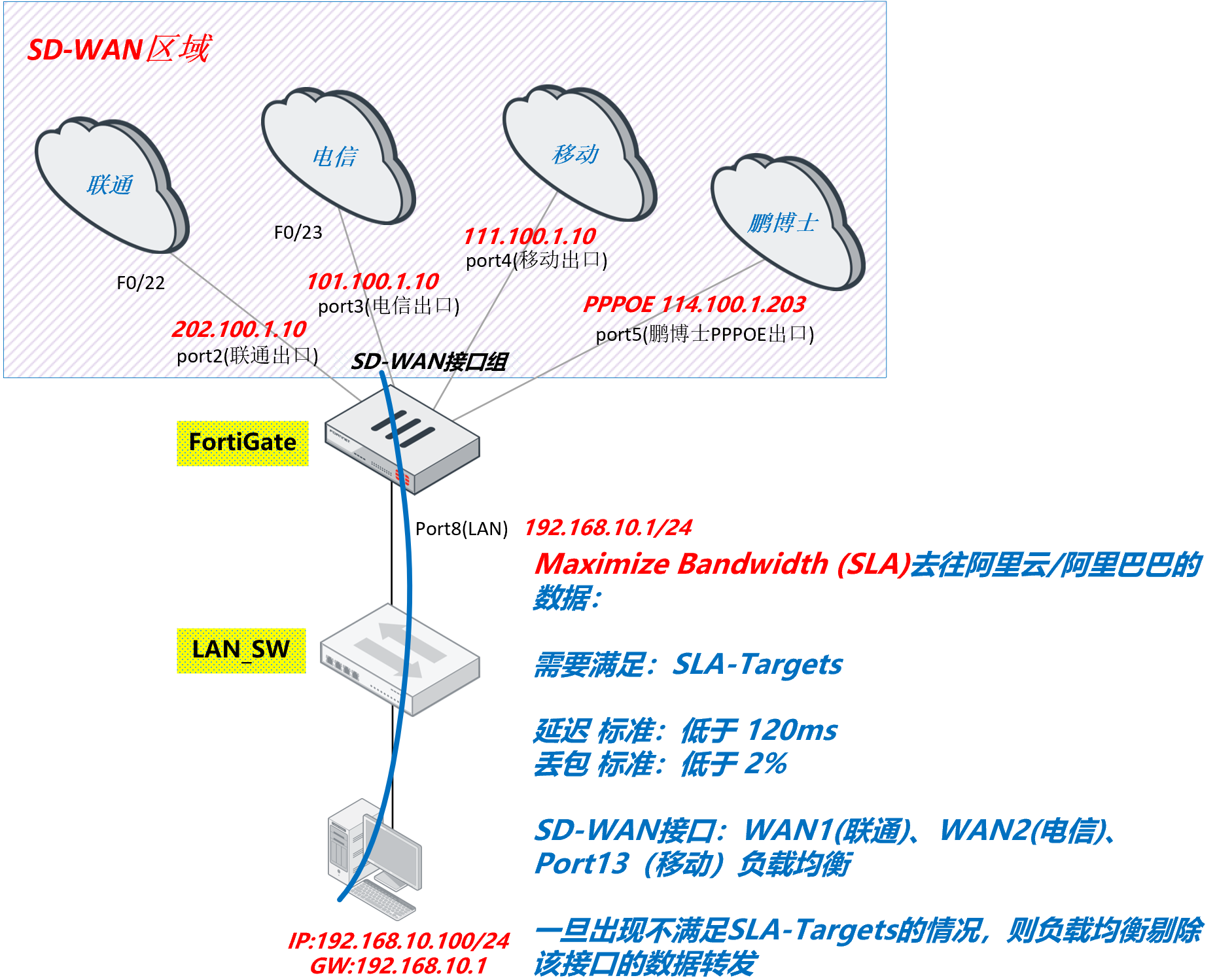

网络拓扑

image-20230104154112158

配置步骤

  1. 不需要配置 SD-WAN 成员接口的预估带宽，当 Maximize Bandwidth (SLA) 类型的 SD-WAN 规则使用round-robin作为 hash-mode 时（默认配置），SD-WAN 不会考虑接口的带宽使用率，SD-WAN 会以轮询的方式将流量送至满足 SLA target 的成员接口。

  2. SD-WAN 接口成员定义。

    image-20230103184552085
    config system sdwan
    set status enable
    config zone
        edit "virtual-wan-link"
        next
    end
    config members
        edit 1
            set interface "port2"
            set gateway 202.100.1.192
        next
        edit 2
            set interface "port3"
            set gateway 101.100.1.192
        next
        edit 3
            set interface "port4"
            set gateway 111.100.1.192
        next
        edit 4
            set interface "PPPOE1_DR_PENG"
        next
    end
 end

  3. 配置 SD-WAN 关联的默认路由。

    image-20230103184652006
    config router static
    edit 1
        set distance 1
        set sdwan-zone "virtual-wan-link"
    next
end

  4. 配置健康检查，SLA 目标监控阿里云的延迟及丢包率。

    image-20230104141022511
    config system sdwan
config health-check
    edit "Aliyun"
        set server "cn.aliyun.com"
        set members 1 2 3
        config sla
            edit 1
                set link-cost-factor latency packet-loss
                set latency-threshold 120
                set packetloss-threshold 2
            next
        end
    next
end
    image-20230104141249855

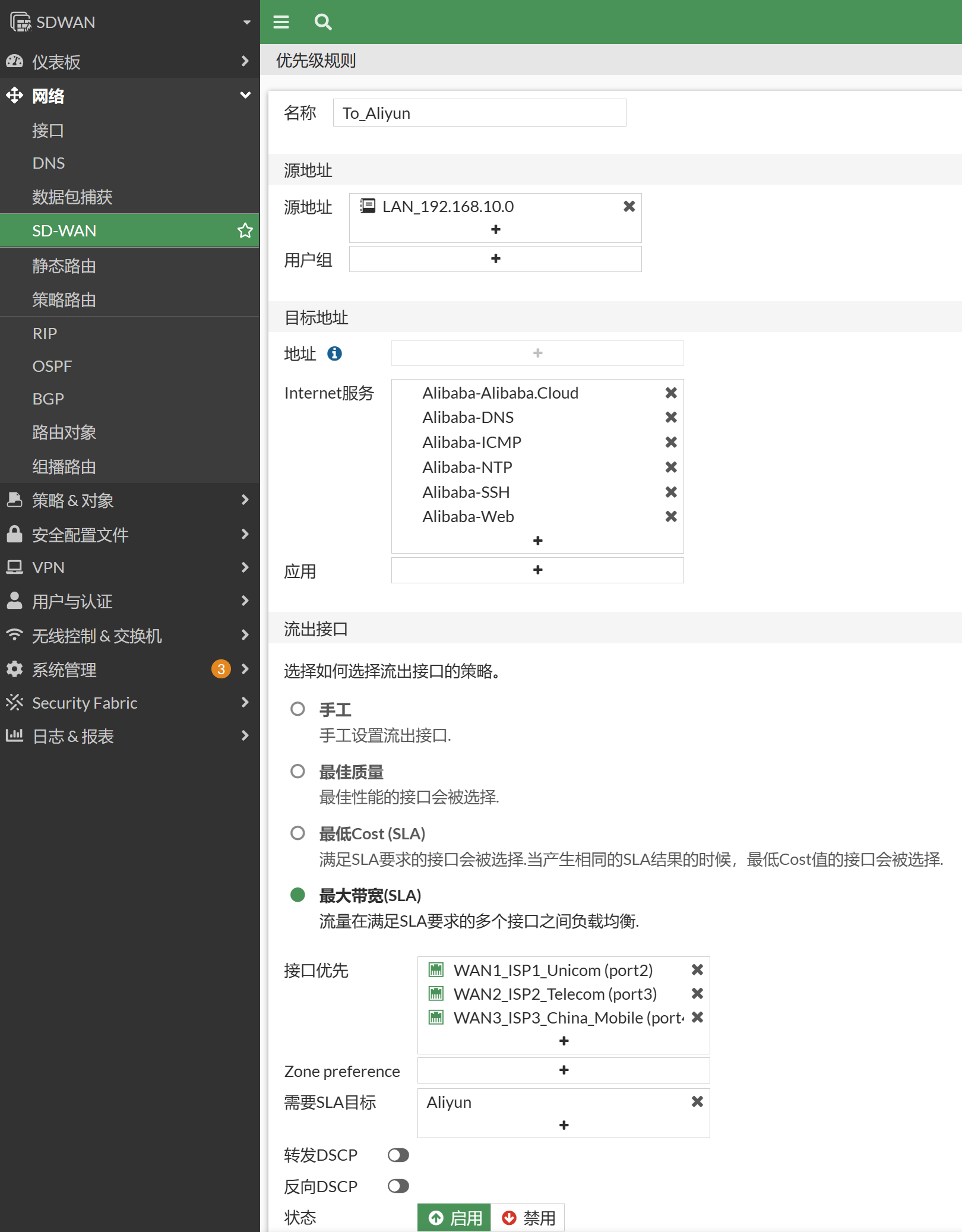

  5. 配置 SD-WAN 规则，目标为阿里云相关 Internet 服务，引用上步配置的 SLA Target，默认的负载方式为轮询，负载方式只能在 CLI 下修改。

    image-20230104154559405
    config system sdwan
config service
    edit 1
        set name "To_Aliyun"
        set mode load-balance
        set hash-mode round-robin    //默认负载方式为轮询，即基于会话的负载
        set src "LAN_192.168.10.0"
        set internet-service enable
        set internet-service-name "Alibaba-Alibaba.Cloud" "Alibaba-DNS" "Alibaba-ICMP" "Alibaba-NTP" "Alibaba-SSH" "Alibaba-Web"
        config sla
            edit "Aliyun"
                set id 1
            next
        end
        set priority-members 1 2 3
    next
end

  6. 配置安全策略允许 SD-WAN 流量。

    重要

    如果使用 ippool 的方式做 SNAT，在 SD-WAN 环境下，一定要在 ippool 下配置绑定接口，防止 ippool 在 SD-WAN 成员中转换错误。

    config firewall ippool
       edit xxxx
           set associated-interface port2
       next
end
    image-20230104141849533
    config firewall policy
    edit 1
        set name "To_Internet"
        set srcintf "port8"
        set dstintf "virtual-wan-link"
        set action accept
        set srcaddr "LAN_192.168.10.0"
        set dstaddr "all"
        set schedule "always"
        set service "ALL"
        set utm-status enable
        set ssl-ssh-profile "certificate-inspection"
        set webfilter-profile "default"
        set application-list "default"
        set logtraffic all
        set nat enable
    next
end

结果验证

  1. 查看健康检查状态，三条链路均为 alive 状态。

    SDWAN # diagnose sys sdwan health-check
Health Check(Aliyun):
Seq(1 port2): state(alive), packet-loss(0.000%) latency(29.467), jitter(1.361), bandwidth-up(9999998), bandwidth-dw(9999998), bandwidth-bi(19999996) sla_map=0x1
Seq(2 port3): state(alive), packet-loss(0.000%) latency(29.235), jitter(1.343), bandwidth-up(9999997), bandwidth-dw(9999995), bandwidth-bi(19999992) sla_map=0x1
Seq(3 port4): state(alive), packet-loss(0.000%) latency(29.169), jitter(1.304), bandwidth-up(9999998), bandwidth-dw(9999998), bandwidth-bi(19999996) sla_map=0x1

  2. 查看 SD-WAN 规则状态。

    SDWAN # diagnose sys sdwan service

Service(1): Address Mode(IPV4) flags=0x200 use-shortcut-sla
  Gen(1), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(load-balance  hash-mode=round-robin)
  Members(3):
    1: Seq_num(1 port2), alive, sla(0x1), gid(2), num of pass(1), selected
    2: Seq_num(2 port3), alive, sla(0x1), gid(2), num of pass(1), selected
    3: Seq_num(3 port4), alive, sla(0x1), gid(2), num of pass(1), selected
  Internet Service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
  Src address(1):
        192.168.10.0-192.168.10.255

  3. 查看策略路由中 SD-WAN 规则的列表，符合 SLA 目标的接口就会用于基于会话的负载均衡。

    SDWAN # diagnose firewall proute list
list route policy info(vf=root):

id=2133458945(0x7f2a0001) vwl_service=1(To_Aliyun) vwl_mbr_seq=1 2 3 dscp_tag=0xff 0xff flags=0x10 load-balance hash-mode=round-robin  tos=0x00 tos_mask=0x00 protocol=0 sport=0-65535 iif=0(any) dport=1-65535 path(3) oif=4(port2) num_pass=1 oif=5(port3) num_pass=1 oif=6(port4) num_pass=1
source(1): 192.168.10.0-192.168.10.255
destination wildcard(1): 0.0.0.0/0.0.0.0
internet service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
hit_count=25 last_used=2023-01-03 22:49:28

  4. 查看路由表。

    SDWAN # get router info routing-table all
...

S*      0.0.0.0/0 [1/0] via 101.100.1.192, port3, [1/0]
                  [1/0] via 111.100.1.192, port4, [1/0]
                  [1/0] via 114.100.1.196, PPPOE1_DR_PENG, [1/0]
                  [1/0] via 202.100.1.192, port2, [1/0]
...

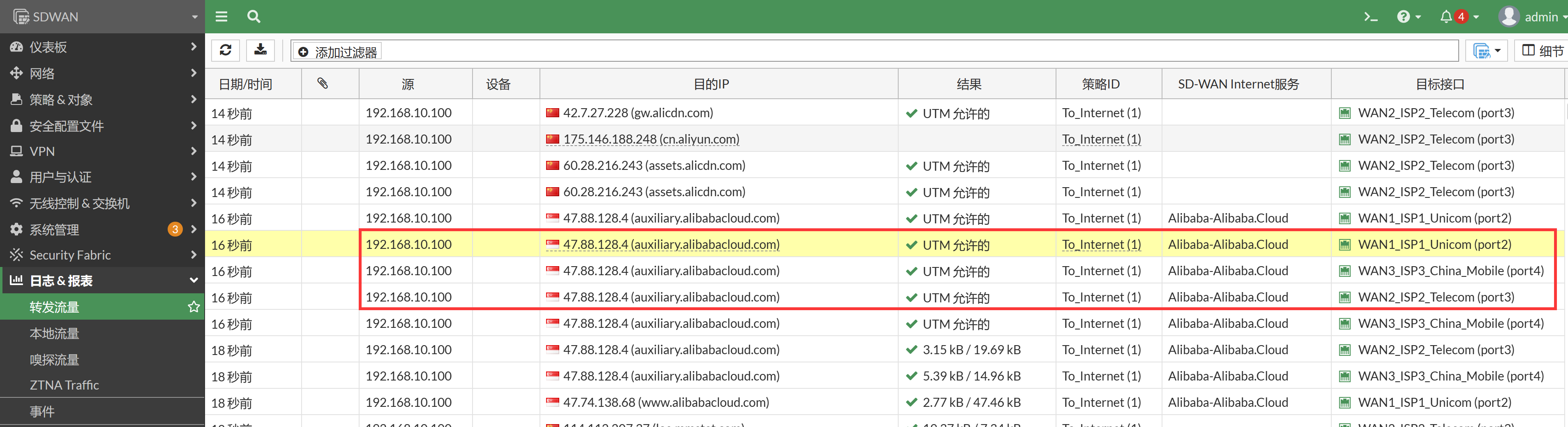

  5. 查看 SD-WAN 设备的流量日志，可以看到客户端访问阿里云相关的业务时，会根据轮询算法负载到三条线路上。

    image-20230104160244313

线路切换测试

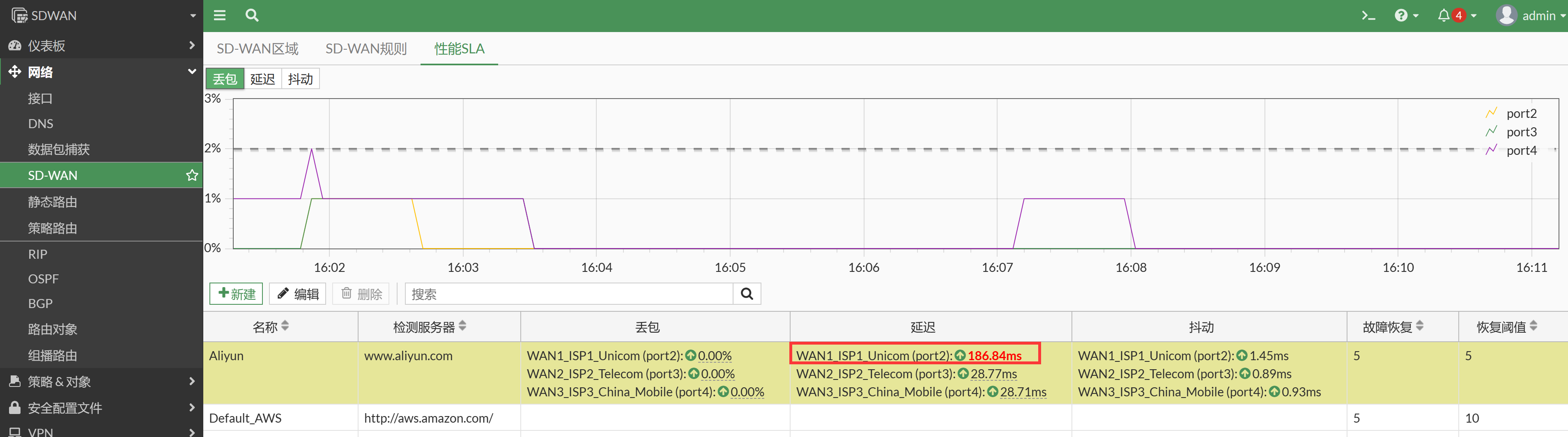

  1. 让 port2 的延迟超过 SLA-Target。

    SDWAN # diagnose sys sdwan health-check
Health Check(Aliyun):
Seq(1 port2): state(alive), packet-loss(0.000%) latency(187.104), jitter(0.777), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x0    //超过SLA的目标值
Seq(2 port3): state(alive), packet-loss(0.000%) latency(28.857), jitter(0.705), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(3 port4): state(alive), packet-loss(0.000%) latency(28.824), jitter(0.750), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
    image-20230104161134990

  2. 查看 SD-WAN 规则状态，port2 不符合 SLA 目标，从接口列表中剔除，SLA 置位为 0x0。

    SDWAN # diagnose sys sdwan service

Service(1): Address Mode(IPV4) flags=0x200 use-shortcut-sla
  Gen(1), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(load-balance  hash-mode=round-robin)
  Members(3):
    1: Seq_num(2 port3), alive, sla(0x1), gid(2), num of pass(1), selected
    2: Seq_num(3 port4), alive, sla(0x1), gid(2), num of pass(1), selected
    3: Seq_num(1 port2), alive, sla(0x0), gid(2), num of pass(0), selected  //不符合SLA目标，从接口列表中剔除，SLA置位为0x0
  Internet Service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
  Src address(1):
        192.168.10.0-192.168.10.255

  3. 查看策略路由列表，port2 的 num_pass 为 0，不用于数据转发。

    SDWAN # diagnose firewall proute list
list route policy info(vf=root):

id=2133458945(0x7f2a0001) vwl_service=1(To_Aliyun) vwl_mbr_seq=2 3 1 dscp_tag=0xff 0xff flags=0x10 load-balance hash-mode=round-robin  tos=0x00 tos_mask=0x00 protocol=0 sport=0-65535 iif=0(any) dport=1-65535 path(3) oif=5(port3) num_pass=1 oif=6(port4) num_pass=1 oif=4(port2) num_pass=0    //port2不用于数据转发
source(1): 192.168.10.0-192.168.10.255
destination wildcard(1): 0.0.0.0/0.0.0.0
internet service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
hit_count=86 last_used=2023-01-04 00:02:56

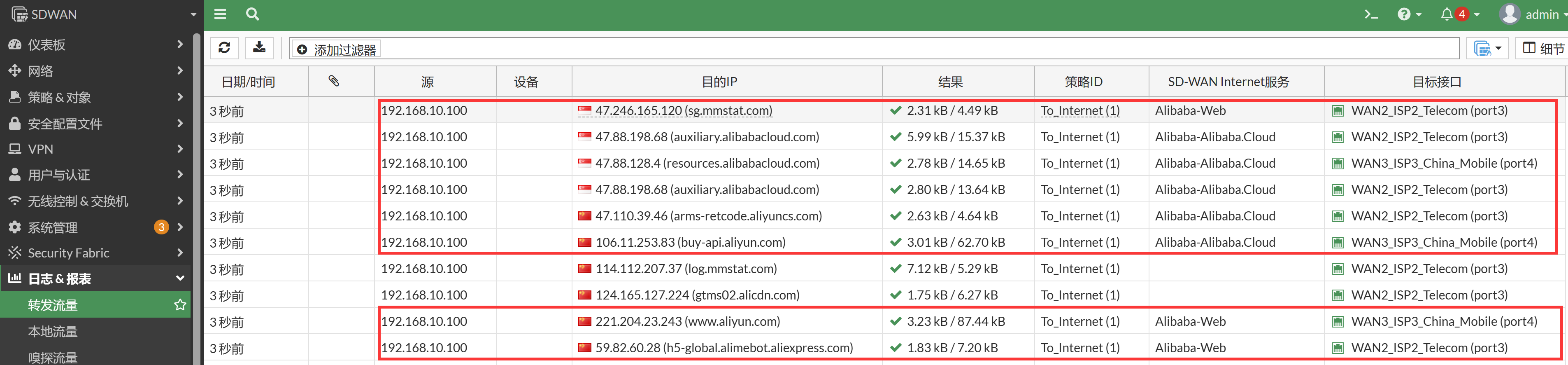

  4. 查看 SD-WAN 设备的流量日志，客户端访问阿里云的流量被负载均衡到 port3 和 port4 上，不会负载到 port2 上。

    image-20230104161826674

  5. 如果 port2、port3、port4 三者都无法满足 SLA 目标了，那么 SD-WAN 规则如何选择出接口呢？将三条链路的延迟均调整为无法满足 SLA Target。

    SDWAN # diagnose sys sdwan health-check
Health Check(Aliyun):
Seq(1 port2): state(alive), packet-loss(0.000%) latency(182.008), jitter(2.069), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x0
Seq(2 port3): state(alive), packet-loss(0.000%) latency(139.951), jitter(2.078), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x0
Seq(3 port4): state(alive), packet-loss(0.000%) latency(168.968), jitter(2.055), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x0
    image-20230104150725105

  6. 答案是：如果三者都无法满足 SLA 目标值了，那么还是将会以 port2、port3、port4 进行基于会话的负载均衡转发。

  7. 查看 SD-WAN 规则状态，三条链路均被选中。

    SDWAN # diagnose sys sdwan service

Service(1): Address Mode(IPV4) flags=0x200 use-shortcut-sla
  Gen(4), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(load-balance  hash-mode=round-robin)
  Members(3):
    1: Seq_num(1 port2), dead, sla(0x0), gid(1), num of pass(0), selected
    2: Seq_num(2 port3), alive, sla(0x0), gid(2), num of pass(0), selected
    3: Seq_num(3 port4), alive, sla(0x0), gid(2), num of pass(0), selected
  Internet Service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
  Src address(1):
        192.168.10.0-192.168.10.255

  8. 查看策略路由列表。

    SDWAN # diagnose firewall proute list
list route policy info(vf=root):

id=2133458945(0x7f2a0001) vwl_service=1(To_Aliyun) vwl_mbr_seq=1 2 3 dscp_tag=0xff 0xff flags=0x10 load-balance hash-mode=round-robin  tos=0x00 tos_mask=0x00 protocol=0 sport=0-65535 iif=0(any) dport=1-65535 path(3) oif=4(port2) num_pass=0 oif=5(port3) num_pass=0 oif=6(port4) num_pass=0
source(1): 192.168.10.0-192.168.10.255
destination wildcard(1): 0.0.0.0/0.0.0.0
internet service(6): Alibaba-Alibaba.Cloud(6881402,0,0,0) Alibaba-DNS(6881283,0,0,0) Alibaba-ICMP(6881282,0,0,0) Alibaba-NTP(6881288,0,0,0) Alibaba-SSH(6881286,0,0,0) Alibaba-Web(6881281,0,0,0)
hit_count=25 last_used=2023-01-03 22:49:28

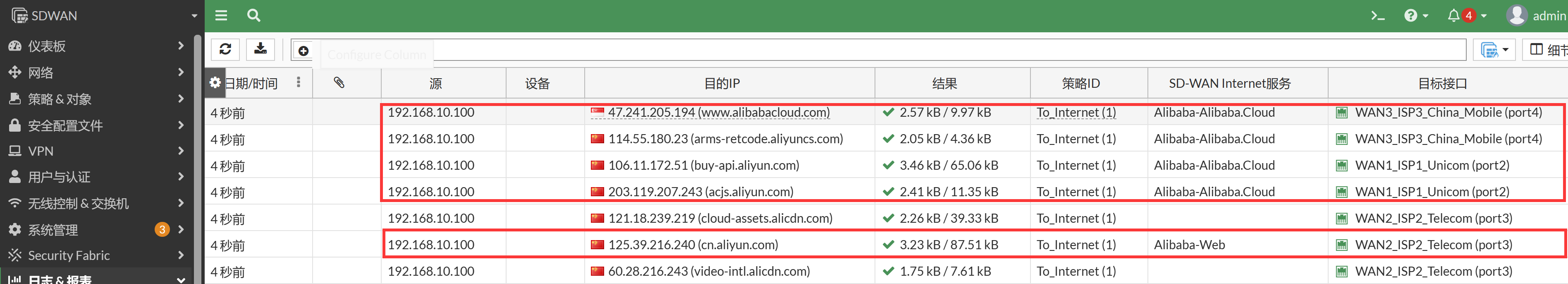

  9. 查看 SD-WAN 设备的流量日志，依旧会在三条链路进行负载均衡。

    image-20230104162933497
