SD-WAN 接口成员组

2025/10/29大约 12 分钟

SD-WAN 接口成员组

静态 IP 接口成员配置

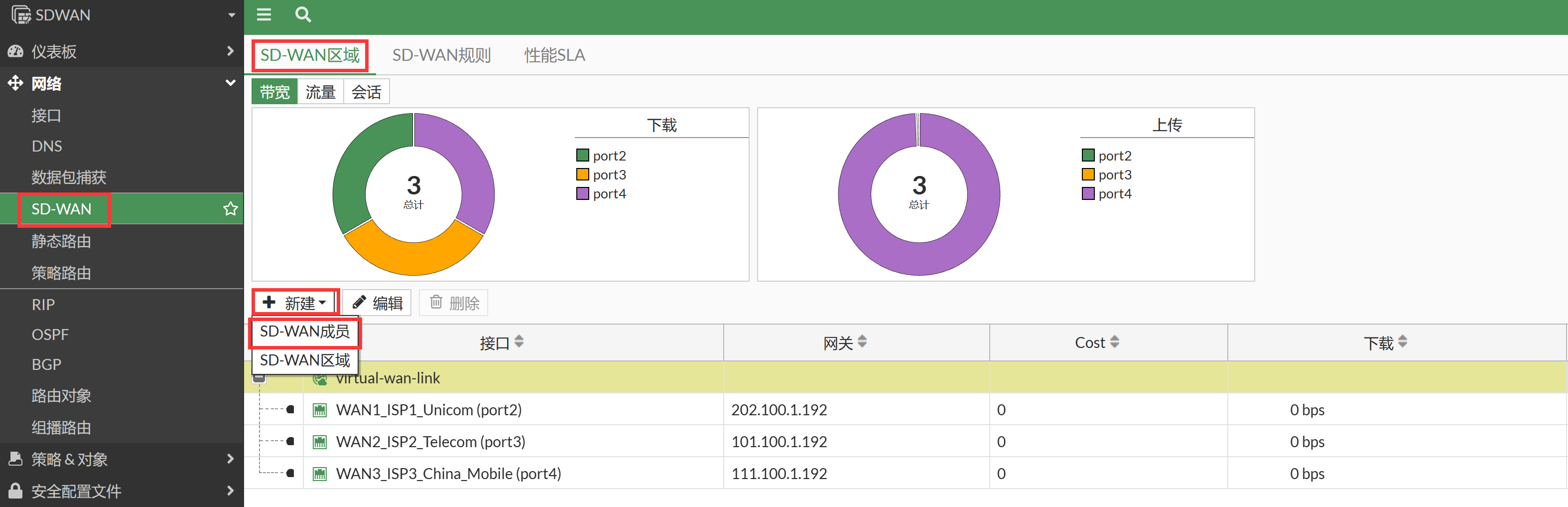

  1. 进入网络 → SD-WAN → SD-WAN 区域，选择默认的 SD-WAN 区域（virtual-wan-link）或新建 SD-WAN 区域。

  2. 点击新建 → SD-WAN 成员，将想要加入 SD-WAN 成员的接口依次加入 SD-WAN 区域。

    image-20230103153838171

  3. 对应 CLI：

    SDWAN # config system sdwan
SDWAN (sdwan) # config members
SDWAN (members) # show
config members
    edit 1
        set interface "port2"
        set zone "virtual-wan-link"
        set gateway 202.100.1.192
        set source 0.0.0.0
        set gateway6 ::
        set source6 ::
        set cost 0
        set priority 1
        set priority6 1024
        set status enable
        set comment ''
    next
    edit 2
        set interface "port3"
        set zone "virtual-wan-link"
        set gateway 101.100.1.192
        set source 0.0.0.0
        set gateway6 ::
        set source6 ::
        set cost 0
        set priority 1
        set priority6 1024
        set status enable
        set comment ''
    next
    edit 3
        set interface "port4"
        set zone "virtual-wan-link"
        set gateway 111.100.1.192
        set source 0.0.0.0
        set gateway6 ::
        set source6 ::
        set cost 0
        set priority 1
        set priority6 1024
        set status enable
        set comment ''
    next
end

参数说明

  1. set gateway 202.100.1.192：

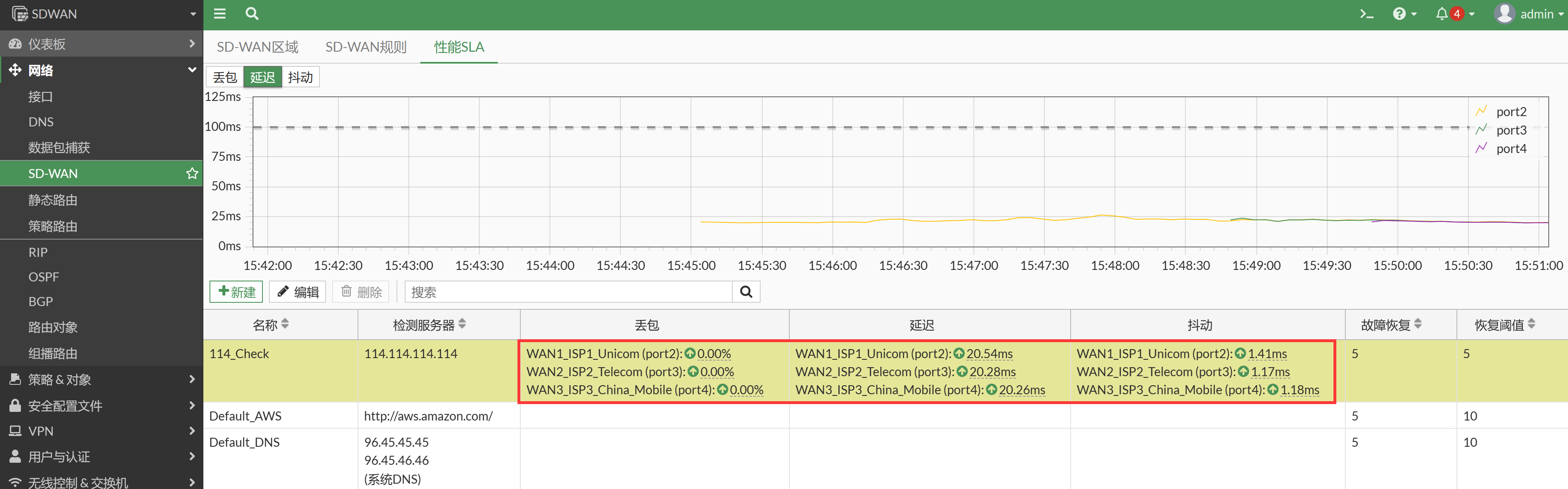

    • 作用 1：这个参数会被用在 SD-WAN 健康检查目的 IP 的下一跳地址，比如我们检测 114.114.114.114 的 SD-WAN 健康检查，实际后台会在内核下发去往 114.114.114.114 的明细路由，以便 port2/port3/Port13 可以各自发起去往 114.114.114.114 的探测报文。

      image-20230103155123854
      SDWAN # get router info kernel | grep 114.114.114.114
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 111.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=111.100.1.192 dev=6(port4)
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 101.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=101.100.1.192 dev=5(port3)
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 202.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=202.100.1.192 dev=4(port2)

# get router info routing-table  all | grep 114.114.114.114

      路由表是看不到 114.114.114.114 的路由的，而这个 kernel 路由的 gwy 地址就是在 sd-wan 接口成员组中所配置的 gateway 所得来的。

    • 作用 2：配置 SD-WAN 的路由的时候，也会借用 SD-WAN 接口组的网关作为 SD-WAN 路由的下一跳 IP。

      image-20230103145940281

      对应 CLI：

      config router static
    edit 1
        set distance 1
        set sdwan-zone "virtual-wan-link"
    next
end

      静态路由借用下一跳 SD-WAN 接口成员组里下一跳 IP 的效果：

      SDWAN # get router info routing-table all
...
S*      0.0.0.0/0 [1/0] via 101.100.1.192, port3, [1/0]
                  [1/0] via 111.100.1.192, port4, [1/0]
                  [1/0] via 202.100.1.192, port2, [1/0]
...

动态 IP 接口成员配置

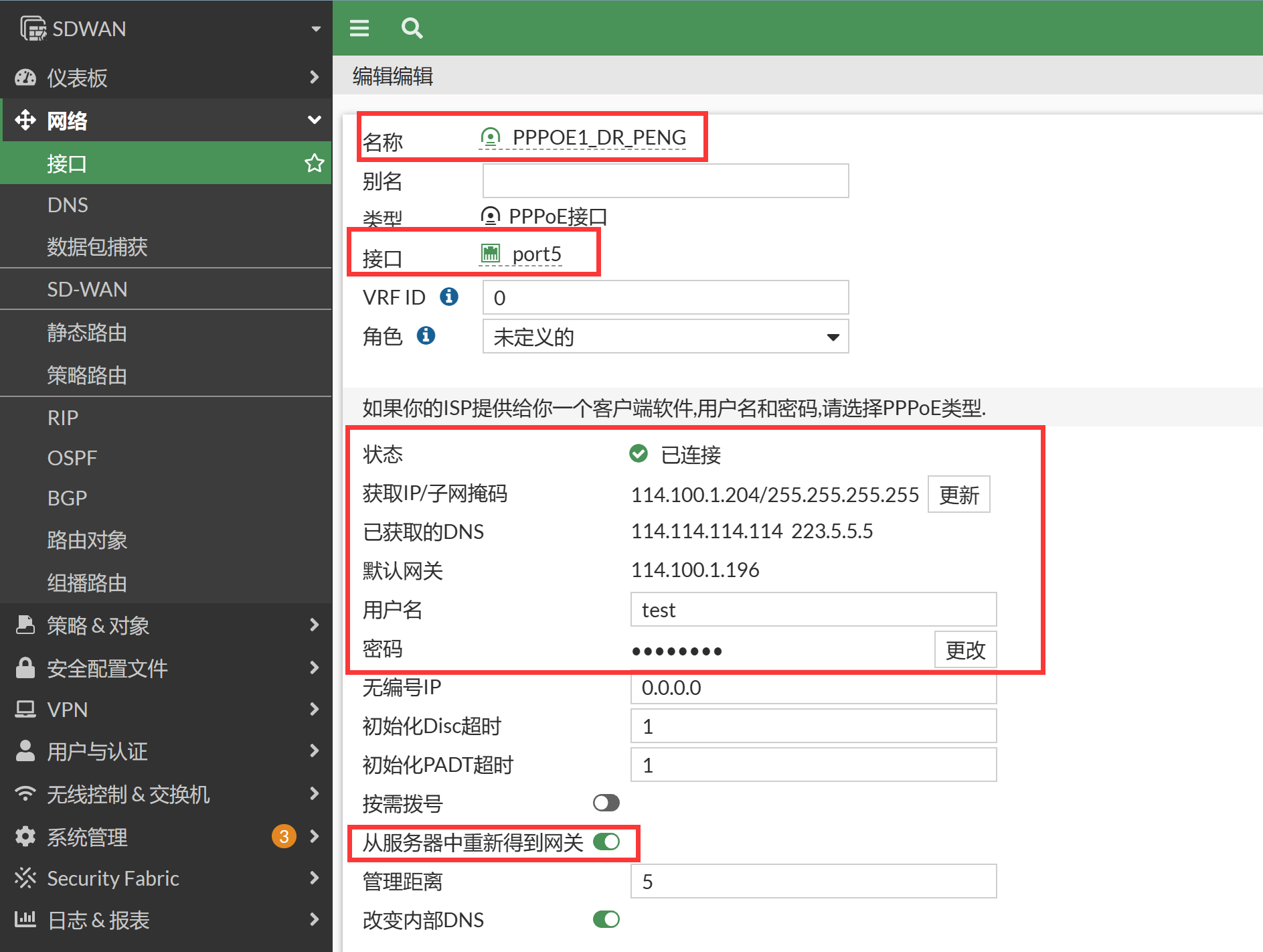

  1. 如果是 PPPOE/DHCP 这种动态接口，在 SD-WAN 接口组的时候，通常需要保持 set gateway 0.0.0.0，SD-WAN 的路由会自动去查找到 PPPOE/DHCP 接口的动态的默认网关 IP 地址。

    image-20230103161619940image-20230103161721674

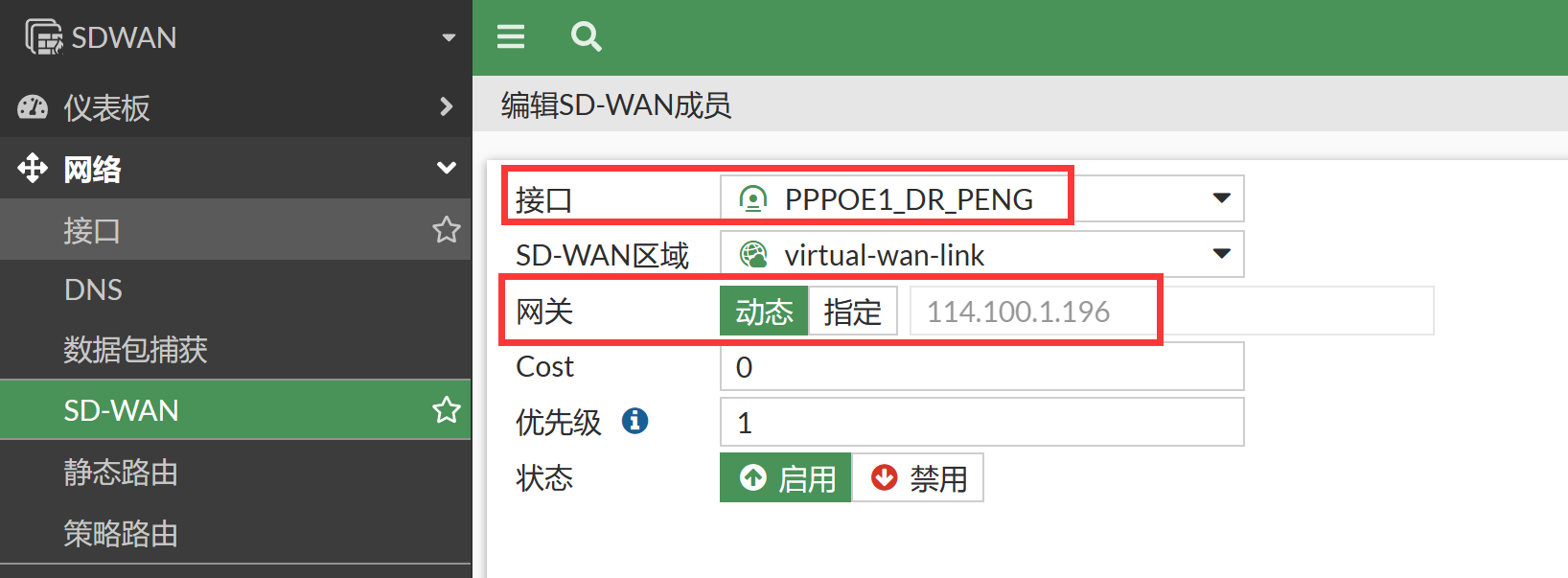

  2. SD-WAN 接口成员中的 PPPOE 接口网关配置为动态，由于 PPPOE 接口下面的默认参数：defaultgw 为 enable 状态，因此 SD-WAN 接口成员里面会自动去迭代查询到 PPPOE 默认路由的真实下一跳 IP 地址。

    SDWAN # config system interface
SDWAN (interface) # edit PPPOE1_DR_PENG
SDWAN (PPPOE1_DR_PENG) # show
config system interface
    edit "PPPOE1_DR_PENG"
        set vdom "root"
        set mode pppoe
        set type tunnel
        set snmp-index 13
        set interface "port5"
    next
end

SDWAN (PPPOE1_DR_PENG) # show full-configuration | grep default
        set defaultgw enable    //默认为enable状态

  3. 效果：SD-WAN 健康检查的内核路由下发会找到 PPP 接口默认路由的真实下一跳 IP。

    SDWAN # get router info kernel  | grep 114.114.114.114
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 114.100.1.204/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=114.100.1.196 dev=19(PPP)
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 111.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=111.100.1.192 dev=6(port4)
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 101.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=101.100.1.192 dev=5(port3)
tab=254 vf=0 scope=0 type=1 proto=17 prio=0 202.100.1.10/255.255.255.255/0->114.114.114.114/32 pref=0.0.0.0 gwy=202.100.1.192 dev=4(port2)

  4. SD-WAN PPPOE 接口的静态路由也会自动找到 PPP 接口默认路由的真实下一跳 IP。

    SDWAN # get router info routing-table all
...
S*      0.0.0.0/0 [1/0] via 101.100.1.192, port3, [1/0]
                  [1/0] via 111.100.1.192, port4, [1/0]
                  [1/0] via 114.100.1.196, PPPOE1_DR_PENG, [1/0]
                  [1/0] via 202.100.1.192, port2, [1/0]
...

  5. 补充：PPPOE 接口的推荐配置方式（只能命令行配置）。

    config system pppoe-interface
    edit "PPPOE1_DR_PENG"
        set device "port5"
        set username "test"
        set password ENC yPSGPPFbTeo7o9/FjjzgRe9vBUUkYXXXHxKlvsLj3Gk9cgS88ik8ifl5yhclIvjJ0XRAJGW5A4PqL3nczbmg/FgLTJCad4OmtjBuly1fjdwcdODr=
    next
end

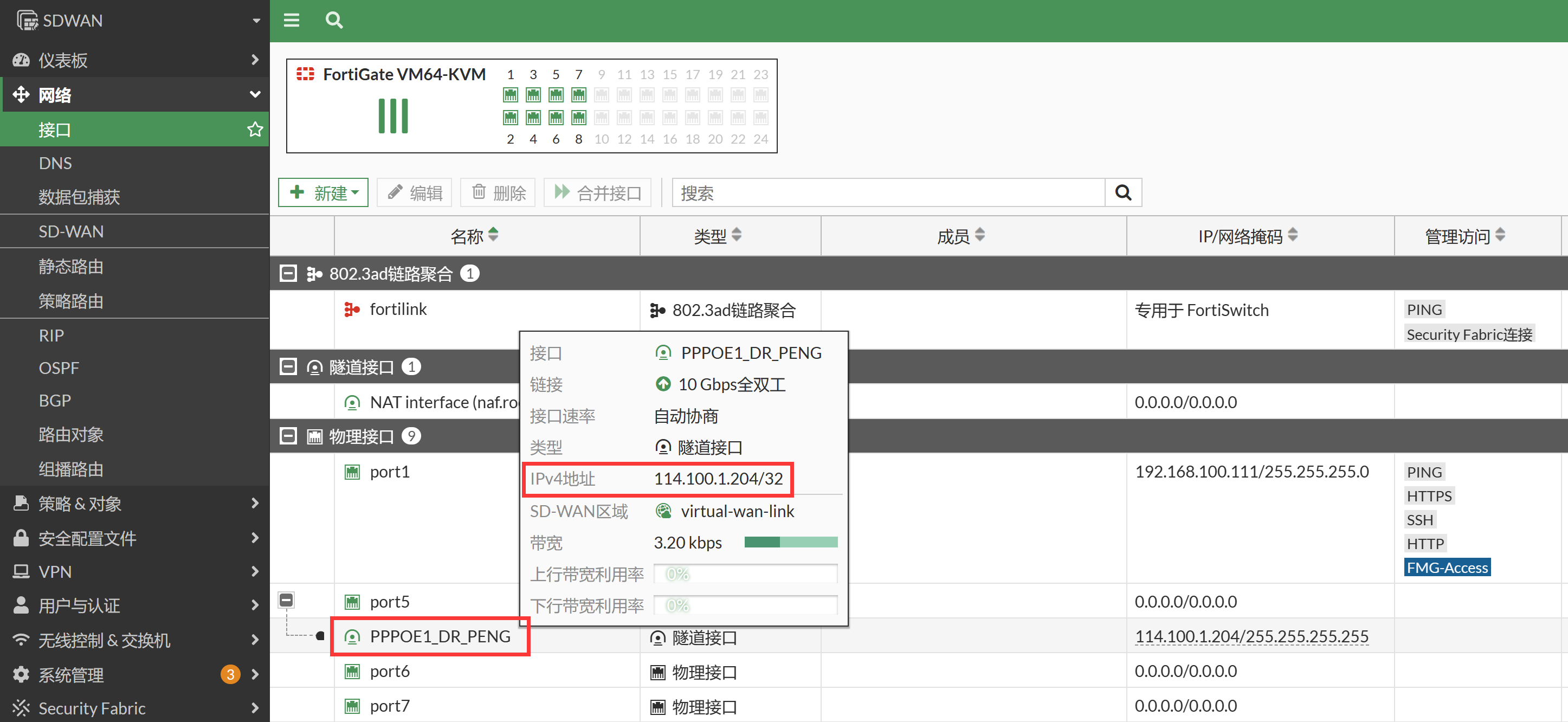

    然后会自动产生“PPPOE1_DR_PENG”接口：

    config system interface
    edit "PPPOE1_DR_PENG"
        set vdom "root"
        set mode pppoe
        set type tunnel
        set snmp-index 13
        set interface "port5"
    next
end

SDWAN (PPPOE1_DR_PENG) # show full-configuration | grep def
        set defaultgw enable
    image-20230103162443431

参数说明

  1. set source 0.0.0.0：SD-WAN 健康监控的源 IP 会借用 set source 里面设置的 IP，默认为 0.0.0.0，则是选择 SD-WAN 接口的主 IP 作为源 IP 进行发送健康检查探测报文。

    重要

    IPsec VPN 隧道、GRE 隧道等 VPN 接口默认情况下接口是没有 IP 地址的，进行 SD-WAN 健康监控探测的时候默认是没有办法发送探测报文的，这种情况下监控检测会失败的。

    解决办法：

    • 给 VPN 隧道接口配置上 IP 地址（推荐）。

    • 在 SD-WAN 接口成员配置的时候，命令行添加 set source ip，手工给没有 IP 的隧道指定一个 IP 地址，用于 sd-wan 监控检测发送探测包的源 IP 地址。

  2. set cost 0：用在“Lowest Cost & Maximize Bandwidth (SLA) rules”里面。用于 SD-WAN 算法中的出接口选择使用。具体可见 网络管理 → SD-WAN → SD-WAN 介绍 → SD-WAN 健康状态检查章节。

  3. set priority 0：和静态路由中的 priority 参数一致，用于浮动静态路由时候，让备份的路由也存在于路由表，但是不用于出接口流量的路由转发，效果如下：

    SDWAN # config system sdwan
SDWAN (sdwan) # config members
SDWAN (members) # show
config members
    edit 1
        set interface "port2"
        set gateway 202.100.1.192
    next
    edit 2
        set interface "port3"
        set gateway 101.100.1.192
    next
    edit 3
        set interface "port4"
        set gateway 111.100.1.192
    next
    edit 4
        set interface "PPPOE1_DR_PENG"
    next
end

SDWAN (members) # edit 2
SDWAN (2) # set priority 100
SDWAN (2) # next

SDWAN (members) # show
config members
    edit 1
        set interface "port2"
        set gateway 202.100.1.192
    next
    edit 2
        set interface "port3"
        set gateway 101.100.1.192
        set priority 100
    next
    edit 3
        set interface "port4"
        set gateway 111.100.1.192
    next
    edit 4
        set interface "PPPOE1_DR_PENG"
    next
end

SDWAN (members) # end
SDWAN (sdwan) # end

    当没匹配到 SD-WAN 自定义规则（策略路由），同时有存在 SD-WAN 的默认路由的时候，就会去匹配 SD-WAN 的负载路由（最后一条隐藏默认 SD-WAN 规则），这时候 priority 参数会生效（priority 效果和普通路由一致）。port3 的路由 priority 是 100，此路由存在于路由表中，但是不用于出方向的路由转发（策略路由可以使用此路由），仅仅存在路由表中，以便入方向的 RPF（反向路径检测）可以正常工作。

    SDWAN # get router info routing-table all
...
S*      0.0.0.0/0 [1/0] via 111.100.1.192, port4, [1/0]
                  [1/0] via 114.100.1.196, PPPOE1_DR_PENG, [1/0]
                  [1/0] via 202.100.1.192, port2, [1/0]
                  [1/0] via 101.100.1.192, port3, [100/0]     //priority为100，对于出方向的策略路由是生效的，不用于出方向的FIB路由的转发。可以解决入方向的RPF问题
...

成员序号与接口 index 的关系

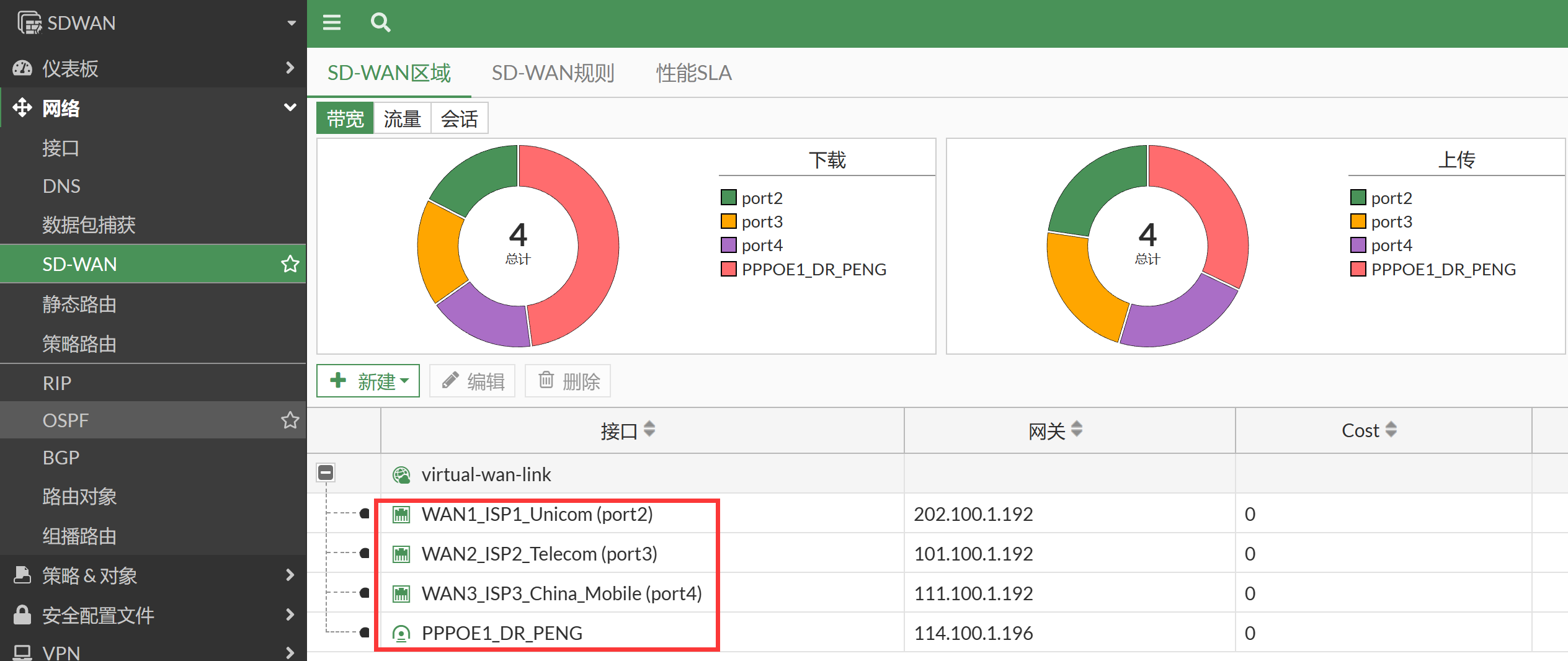

  1. 查看 SD-WAN 成员的序号。

    image-20230103170040297
    config system sdwan
    set status enable
    config zone
        edit "virtual-wan-link"
        next
    end
    config members
        edit 1
            set interface "port2"
            set gateway 202.100.1.192
        next
        edit 2
            set interface "port3"
            set gateway 101.100.1.192
            set priority 100
        next
        edit 3
            set interface "port4"
            set gateway 111.100.1.192
        next
        edit 4
            set interface "PPPOE1_DR_PENG"
        next
    end

SDWAN # diagnose sys sdwan member    //SD-WAN接口组成员
Member(1): interface: port2, flags=0x0 , gateway: 202.100.1.192, priority: 1 1024, weight: 0
Member(2): interface: port3, flags=0x0 , gateway: 101.100.1.192, priority: 100 1024, weight: 0
Member(3): interface: port4, flags=0x0 , gateway: 111.100.1.192, priority: 1 1024, weight: 0
Member(4): interface: PPPOE1_DR_PENG, flags=0x8 , gateway: 114.100.1.196, priority: 1 1024, weight: 0

  2. 在 SD-WAN SLA 监控中查看 SD-WAN 成员序号。

    SDWAN # diagnose sys sdwan health-check status    //SD-WAN健康检查
Health Check(114_Check):
Seq(1 port2): state(alive), packet-loss(0.000%) latency(20.472), jitter(0.790), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(2 port3): state(alive), packet-loss(0.000%) latency(20.289), jitter(0.750), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(3 port4): state(alive), packet-loss(0.000%) latency(20.199), jitter(0.746), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1
Seq(4 PPPOE1_DR_PENG): state(alive), packet-loss(0.000%) latency(20.371), jitter(0.861), bandwidth-up(9999999), bandwidth-dw(9999999), bandwidth-bi(19999998) sla_map=0x1

  3. 在 SD-WAN 规则中查看 SD-WAN 成员序号。

    SDWAN # diagnose sys sdwan service 1

Service(1): Address Mode(IPV4) flags=0x260 use-shortcut-sla
  Gen(1), TOS(0x0/0x0), Protocol(0: 1->65535), Mode(priority), link-cost-factor(latency), link-cost-threshold(10), heath-check(114_Check)
  Members(4):
    1: Seq_num(1 port2), alive, latency: 21.736, selected
    2: Seq_num(4 PPPOE1_DR_PENG), alive, latency: 21.599, selected
    3: Seq_num(2 port3), alive, latency: 21.524, selected
    4: Seq_num(3 port4), alive, latency: 21.507, selected
  Internet Service(1): Microsoft-Office365(327782,0,0,0)
  Src address(1):
        192.168.1.0-192.168.1.255

  4. 查看策略路由中对应的 service 1 的条目，记录其中的 oif 参数。

    SDWAN # diag firewall proute list
list route policy info(vf=root):

id=2097676289(0x7d080001) vwl_service=1(OFFICE_365) vwl_mbr_seq=1 4 2 3 dscp_tag=0xff 0xff flags=0x0 tos=0x00 tos_mask=0x00 protocol=0 sport=0-65535 iif=0(any) dport=1-65535 path(4) oif=4(port2) gwy=202.100.1.192 oif=19(PPPOE1_DR_PENG) gwy=114.100.1.196 ot
source(1): 192.168.1.0-192.168.1.255
destination wildcard(1): 0.0.0.0/0.0.0.0
internet service(1): Microsoft-Office365(327782,0,0,0)
hit_count=0 last_used=2023-01-03 00:00:13

  5. 查看接口索引与具体接口的对应关系。

    SDWAN # diag ip address list
...
IP=202.100.1.10->202.100.1.10/255.255.255.0 index=4 devname=port2
IP=101.100.1.10->101.100.1.10/255.255.255.0 index=5 devname=port3
IP=111.100.1.10->111.100.1.10/255.255.255.0 index=6 devname=port4
...
IP=114.100.1.204->114.100.1.196/255.255.255.255 index=19 devname=PPPOE1_DR_PENG

  6. 综上所述可以得出 SD-WAN 接口组成员序号与各个功能模块里面的接口调用关系。

    接口索引 4     --- 对应 port2 ---对应SD-WAN接口成员组序号1
接口索引 5    --- 对应 port3 ---对应SD-WAN接口成员组序号2
接口索引 6  --- 对应 port4 ---对应SD-WAN接口成员组序号3
接口索引 19  --- 对应 PPPOE1_DR_PENG ---对应SD-WAN接口成员组序号4

其他

  1. 统计 SD-WAN 成员接口最近 10 分钟流量的命令。

    SDWAN # diagnose sys sdwan intf-sla-log port2
Timestamp: Tue Jan  3 01:04:04 2023, used inbandwidth: 877bps, used outbandwidth: 877bps, used bibandwidth: 1754bps, tx bytes: 422346bytes, rx bytes: 422106bytes.
Timestamp: Tue Jan  3 01:04:14 2023, used inbandwidth: 877bps, used outbandwidth: 877bps, used bibandwidth: 1754bps, tx bytes: 423468bytes, rx bytes: 423228bytes.
Timestamp: Tue Jan  3 01:04:24 2023, used inbandwidth: 877bps, used outbandwidth: 877bps, used bibandwidth: 1754bps, tx bytes: 424590bytes, rx bytes: 424350bytes.
Timestamp: Tue Jan  3 01:04:34 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 425712bytes, rx bytes: 425472bytes.
Timestamp: Tue Jan  3 01:04:44 2023, used inbandwidth: 875bps, used outbandwidth: 884bps, used bibandwidth: 1759bps, tx bytes: 426792bytes, rx bytes: 426498bytes.
Timestamp: Tue Jan  3 01:04:54 2023, used inbandwidth: 882bps, used outbandwidth: 882bps, used bibandwidth: 1764bps, tx bytes: 427860bytes, rx bytes: 427620bytes.
Timestamp: Tue Jan  3 01:05:04 2023, used inbandwidth: 875bps, used outbandwidth: 875bps, used bibandwidth: 1750bps, tx bytes: 428940bytes, rx bytes: 428700bytes.
Timestamp: Tue Jan  3 01:05:14 2023, used inbandwidth: 882bps, used outbandwidth: 882bps, used bibandwidth: 1764bps, tx bytes: 430104bytes, rx bytes: 429864bytes.
Timestamp: Tue Jan  3 01:05:24 2023, used inbandwidth: 875bps, used outbandwidth: 875bps, used bibandwidth: 1750bps, tx bytes: 431184bytes, rx bytes: 430944bytes.
Timestamp: Tue Jan  3 01:05:34 2023, used inbandwidth: 890bps, used outbandwidth: 882bps, used bibandwidth: 1772bps, tx bytes: 432306bytes, rx bytes: 432066bytes.
Timestamp: Tue Jan  3 01:05:44 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 433386bytes, rx bytes: 433146bytes.
Timestamp: Tue Jan  3 01:05:54 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 434508bytes, rx bytes: 434268bytes.
Timestamp: Tue Jan  3 01:06:04 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 435630bytes, rx bytes: 435390bytes.
Timestamp: Tue Jan  3 01:06:14 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 436752bytes, rx bytes: 436512bytes.
Timestamp: Tue Jan  3 01:06:24 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 437832bytes, rx bytes: 437592bytes.
Timestamp: Tue Jan  3 01:06:34 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 438954bytes, rx bytes: 438714bytes.
Timestamp: Tue Jan  3 01:06:44 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 440034bytes, rx bytes: 439794bytes.
Timestamp: Tue Jan  3 01:06:54 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 441198bytes, rx bytes: 440958bytes.
Timestamp: Tue Jan  3 01:07:04 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 442278bytes, rx bytes: 442038bytes.
Timestamp: Tue Jan  3 01:07:14 2023, used inbandwidth: 890bps, used outbandwidth: 892bps, used bibandwidth: 1782bps, tx bytes: 443412bytes, rx bytes: 443160bytes.
Timestamp: Tue Jan  3 01:07:24 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 444480bytes, rx bytes: 444240bytes.
Timestamp: Tue Jan  3 01:07:34 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 445560bytes, rx bytes: 445320bytes.
Timestamp: Tue Jan  3 01:07:44 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 446724bytes, rx bytes: 446484bytes.
Timestamp: Tue Jan  3 01:07:54 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 447804bytes, rx bytes: 447564bytes.
Timestamp: Tue Jan  3 01:08:04 2023, used inbandwidth: 890bps, used outbandwidth: 888bps, used bibandwidth: 1778bps, tx bytes: 448968bytes, rx bytes: 448728bytes.
Timestamp: Tue Jan  3 01:08:14 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 450048bytes, rx bytes: 449808bytes.
Timestamp: Tue Jan  3 01:08:24 2023, used inbandwidth: 904bps, used outbandwidth: 904bps, used bibandwidth: 1808bps, tx bytes: 451212bytes, rx bytes: 450972bytes.
Timestamp: Tue Jan  3 01:08:34 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 452292bytes, rx bytes: 452052bytes.
Timestamp: Tue Jan  3 01:08:44 2023, used inbandwidth: 897bps, used outbandwidth: 897bps, used bibandwidth: 1794bps, tx bytes: 453414bytes, rx bytes: 453174bytes.
Timestamp: Tue Jan  3 01:08:54 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 454536bytes, rx bytes: 454296bytes.
Timestamp: Tue Jan  3 01:09:04 2023, used inbandwidth: 897bps, used outbandwidth: 897bps, used bibandwidth: 1794bps, tx bytes: 455658bytes, rx bytes: 455418bytes.
Timestamp: Tue Jan  3 01:09:14 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 456738bytes, rx bytes: 456498bytes.
Timestamp: Tue Jan  3 01:09:24 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 457860bytes, rx bytes: 457620bytes.
Timestamp: Tue Jan  3 01:09:34 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 458982bytes, rx bytes: 458742bytes.
Timestamp: Tue Jan  3 01:09:44 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 460062bytes, rx bytes: 459822bytes.
Timestamp: Tue Jan  3 01:09:54 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 461226bytes, rx bytes: 460986bytes.
Timestamp: Tue Jan  3 01:10:04 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 462306bytes, rx bytes: 462066bytes.
Timestamp: Tue Jan  3 01:10:14 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 463428bytes, rx bytes: 463188bytes.
Timestamp: Tue Jan  3 01:10:24 2023, used inbandwidth: 882bps, used outbandwidth: 882bps, used bibandwidth: 1764bps, tx bytes: 464496bytes, rx bytes: 464256bytes.
Timestamp: Tue Jan  3 01:10:34 2023, used inbandwidth: 880bps, used outbandwidth: 888bps, used bibandwidth: 1768bps, tx bytes: 465618bytes, rx bytes: 465324bytes.
Timestamp: Tue Jan  3 01:10:44 2023, used inbandwidth: 866bps, used outbandwidth: 875bps, used bibandwidth: 1741bps, tx bytes: 466698bytes, rx bytes: 466404bytes.
Timestamp: Tue Jan  3 01:10:54 2023, used inbandwidth: 873bps, used outbandwidth: 882bps, used bibandwidth: 1755bps, tx bytes: 467820bytes, rx bytes: 467526bytes.
Timestamp: Tue Jan  3 01:11:04 2023, used inbandwidth: 873bps, used outbandwidth: 882bps, used bibandwidth: 1755bps, tx bytes: 468942bytes, rx bytes: 468648bytes.
Timestamp: Tue Jan  3 01:11:14 2023, used inbandwidth: 873bps, used outbandwidth: 890bps, used bibandwidth: 1763bps, tx bytes: 470064bytes, rx bytes: 469716bytes.
Timestamp: Tue Jan  3 01:11:24 2023, used inbandwidth: 875bps, used outbandwidth: 884bps, used bibandwidth: 1759bps, tx bytes: 471144bytes, rx bytes: 470796bytes.
Timestamp: Tue Jan  3 01:11:34 2023, used inbandwidth: 888bps, used outbandwidth: 897bps, used bibandwidth: 1785bps, tx bytes: 472308bytes, rx bytes: 471960bytes.
Timestamp: Tue Jan  3 01:11:44 2023, used inbandwidth: 882bps, used outbandwidth: 890bps, used bibandwidth: 1772bps, tx bytes: 473388bytes, rx bytes: 473040bytes.
Timestamp: Tue Jan  3 01:11:54 2023, used inbandwidth: 882bps, used outbandwidth: 890bps, used bibandwidth: 1772bps, tx bytes: 474510bytes, rx bytes: 474162bytes.
Timestamp: Tue Jan  3 01:12:04 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 475632bytes, rx bytes: 475284bytes.
Timestamp: Tue Jan  3 01:12:14 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 476712bytes, rx bytes: 476364bytes.
Timestamp: Tue Jan  3 01:12:24 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 477834bytes, rx bytes: 477486bytes.
Timestamp: Tue Jan  3 01:12:34 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 478956bytes, rx bytes: 478608bytes.
Timestamp: Tue Jan  3 01:12:44 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 480078bytes, rx bytes: 479730bytes.
Timestamp: Tue Jan  3 01:12:54 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 481158bytes, rx bytes: 480810bytes.
Timestamp: Tue Jan  3 01:13:04 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 482280bytes, rx bytes: 481932bytes.
Timestamp: Tue Jan  3 01:13:14 2023, used inbandwidth: 890bps, used outbandwidth: 890bps, used bibandwidth: 1780bps, tx bytes: 483402bytes, rx bytes: 483054bytes.
Timestamp: Tue Jan  3 01:13:24 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 484482bytes, rx bytes: 484134bytes.
Timestamp: Tue Jan  3 01:13:34 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 485604bytes, rx bytes: 485256bytes.
Timestamp: Tue Jan  3 01:13:44 2023, used inbandwidth: 890bps, used outbandwidth: 892bps, used bibandwidth: 1782bps, tx bytes: 486738bytes, rx bytes: 486378bytes.
Timestamp: Tue Jan  3 01:13:54 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 487806bytes, rx bytes: 487458bytes.
Timestamp: Tue Jan  3 01:14:04 2023, used inbandwidth: 884bps, used outbandwidth: 884bps, used bibandwidth: 1768bps, tx bytes: 488928bytes, rx bytes: 488580bytes.
最近更新:
统计数据加载中…
Copyright © 2025 Fortinet Inc. All rights reserved. Powered by Fortinet TAC Team.
