导出日志

通过 GUI 导出

提示

通过 GUI 单次最多可以下载最近的 400,000 条日志条目。如日志条目数超过 400,000，需导出全部日志，请使用 FTP/TFTP/USB 方式导出。

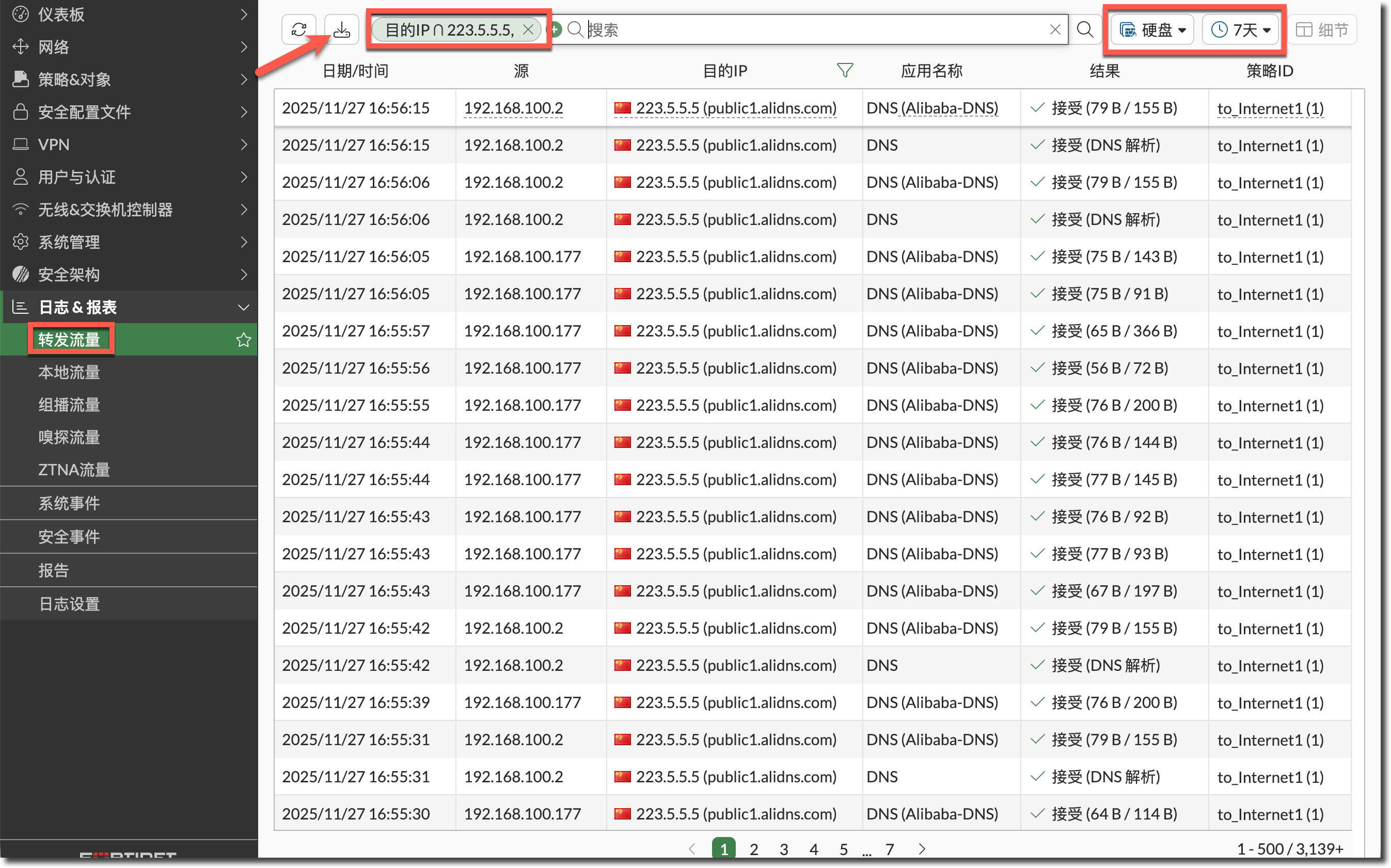

1. 在“日志 & 报表”中进入想要下载的日志类型页面，这里以转发流量为例。

2. 过滤想要下载的特定日志（这里以目标 IP 223.5.5.5 为例），在右上角选择存储日志的位置（这里以硬盘为例），选择日志时间范围（这里以最近 7 天为例）。



3. 点击左上角的下载按钮，即可下载明文日志文件，后缀为.log，如disk-traffic-forward-2025-11-27_17-00.log。

通过 FTP/TFTP/USB 导出

1. 通过如下 CLI 命令可以以 LZ4 压缩格式导出当前硬盘/内存的全部/单类日志到 FTP/TFTP/USB。

   execute backup [disk | memory] alllogs [ftp | tftp | usb] <ftp server>[:ftp port] <user> <passwd> uncompressed
   execute backup [disk | memory] log [ftp | tftp | usb] <ftp server>[:ftp port] <user> <passwd> <log_type> uncompressed

   • alllogs：备份所有以下类型日志。

   • log：可在<log_type>字段定义要备份的一种日志类型，包含traffic、event、virus、webfilter、ips、emailfilter、anomaly、voip、dlp、app-ctrl、waf、dns、ssh、ssl、file-filter、icap、sctp-filter、forti-switch、virtual-patch、casb、debug。

   • uncompressed：表示以未压缩方式备份日志。

     提示

     如果日志备份命令不携带uncompressed参数，或使用compressed，则会以 LZ4 压缩格式备份日志，需要使用解压工具进行解压才能看到原始日志（详见 https://community.fortinet.com/t5/FortiAnalyzer/Technical-Tip-Transferring-historical-logs-from-a-FortiGate-hard/ta-p/193850 ）。

2. 在导出日志前，使用如下 CLI 可以查看预估导出特定分类日志的大小（包含压缩大小和未压缩大小），并根据日志文件大小规划 FTP/TFTP 服务器或 USB 的剩余空间。如下所示，查看系统日志（1: event）的日志文件大小（未压缩大小为 4 MB，压缩大小为 400 KB）。

   execute log list <category>
   Available categories:
    0: traffic
    1: event
    2: utm-virus
    3: utm-webfilter
    4: utm-ips
    5: utm-emailfilter
    7: utm-anomaly
    8: utm-voip
    9: utm-dlp
   10: utm-app-ctrl
   12: utm-waf
   15: utm-dns
   16: utm-ssh
   17: utm-ssl
   19: utm-file-filter
   20: utm-icap
   22: utm-sctp-filter
   23: forti-switch
   24: utm-virtual-patch
   25: utm-casb
   26: debug

   FortiGate # execute log list 1
   elog.65447         106538        18156   Thu Nov 20 00:00:00 2025
   elog.65446         108001        18558   Fri Nov 21 00:00:00 2025
   elog.65445         105451        17813   Sat Nov 22 00:00:00 2025
   elog.65444         113756        20098   Sun Nov 23 00:00:00 2025
   elog.65443         106007        17791   Mon Nov 24 00:00:00 2025
   elog.65442         105157        17607   Tue Nov 25 00:00:00 2025
   elog.65441         162282        32429   Wed Nov 26 00:00:00 2025
   elog.65440         132276        25886   Thu Nov 27 00:00:00 2025
   elog.65439        3286179       241574   Thu Nov 27 18:03:17 2025
   9 elog file(s) found.
   Uncompressed Total:  4 MB       Compressed Total:  400 KB

3. 这里以备份硬盘中的系统日志到 FTP 服务器为例，FortiGate 会将所有系统日志分段（如需）发送到 FTP 服务器（未压缩日志体积大于压缩文件，系统会给出提示信息，按y继续导出）。

   提示

   并非所有型号包含硬盘，可以通过execute disk list命令查看。如设备不包含硬盘，可以选择memory或usb方式。

   FortiGate # execute backup disk log ftp 192.168.90.253 user1 password event uncompressed

   WARNING: The size of uncompressed log files can be very large.
   Please check uncompressed log size for each log category
   before uploading to FTP server by command "execute log list [logcategory].
   And uploading uncompressed files to FTP server could take hours.
   Do you want to continue? (y/n)y

   Upload uncompressed log to FTP server!

   Connect to ftp server 192.168.90.253 ...
   Please wait...
   uploading 24255B/241001B(10%)
   uploading 50519B/241001B(20%)
   uploading 75236B/241001B(31%)
   uploading 102429B/241001B(42%)
   uploading 125595B/241001B(52%)
   uploading 150578B/241001B(62%)
   uploading 174505B/241001B(72%)
   uploading 197624B/241001B(82%)
   uploading 224653B/241001B(93%)
   uploading 241001B/241001B(100%)
   uploaded file size:241001B
   Sent log file elog.65439 to ftp server as disk-event_FG101FTK20007637_root_20251127_175317_65439 OK.

   Connect to ftp server 192.168.90.253 ...
   Please wait...
   uploading 4081B/25886B(15%)
   uploading 6522B/25886B(25%)
   uploading 12769B/25886B(49%)
   uploading 15420B/25886B(59%)
   uploading 20131B/25886B(77%)
   uploading 23349B/25886B(90%)
   uploading 25886B/25886B(100%)
   uploaded file size:25886B
   Sent log file elog.65440 to ftp server as disk-event_FG101FTK20007637_root_20251127_000000_65440 OK.
   ......

4. 导出的日志可以直接使用文本工具打开查看。
