系统动作

简介

系统动作针对FortiGate包含备份配置(到Flash)、重新启动和关机。

即使FortiGate处于内存保护模式,系统动作也能完成,自动化流程会自动绕过CLI命令确认提示(手动在CLI脚本执行这些操作时需要确认执行)。

CLI配置

3种系统动作的配置已经内置在FortiGate默认配置中。

config system automation-action
    edit "Backup Config Disk"
        set action-type system-actions
        set system-action backup-config
    next
    edit "Reboot FortiGate"
        set action-type system-actions
        set system-action reboot
    next
    edit "Shutdown FortiGate"
        set action-type system-actions
        set system-action shutdown
    next
end

网络需求

当FortiGate进入内存保护模式时,自动备份配置文件到Flash,随后重启设备。

配置步骤

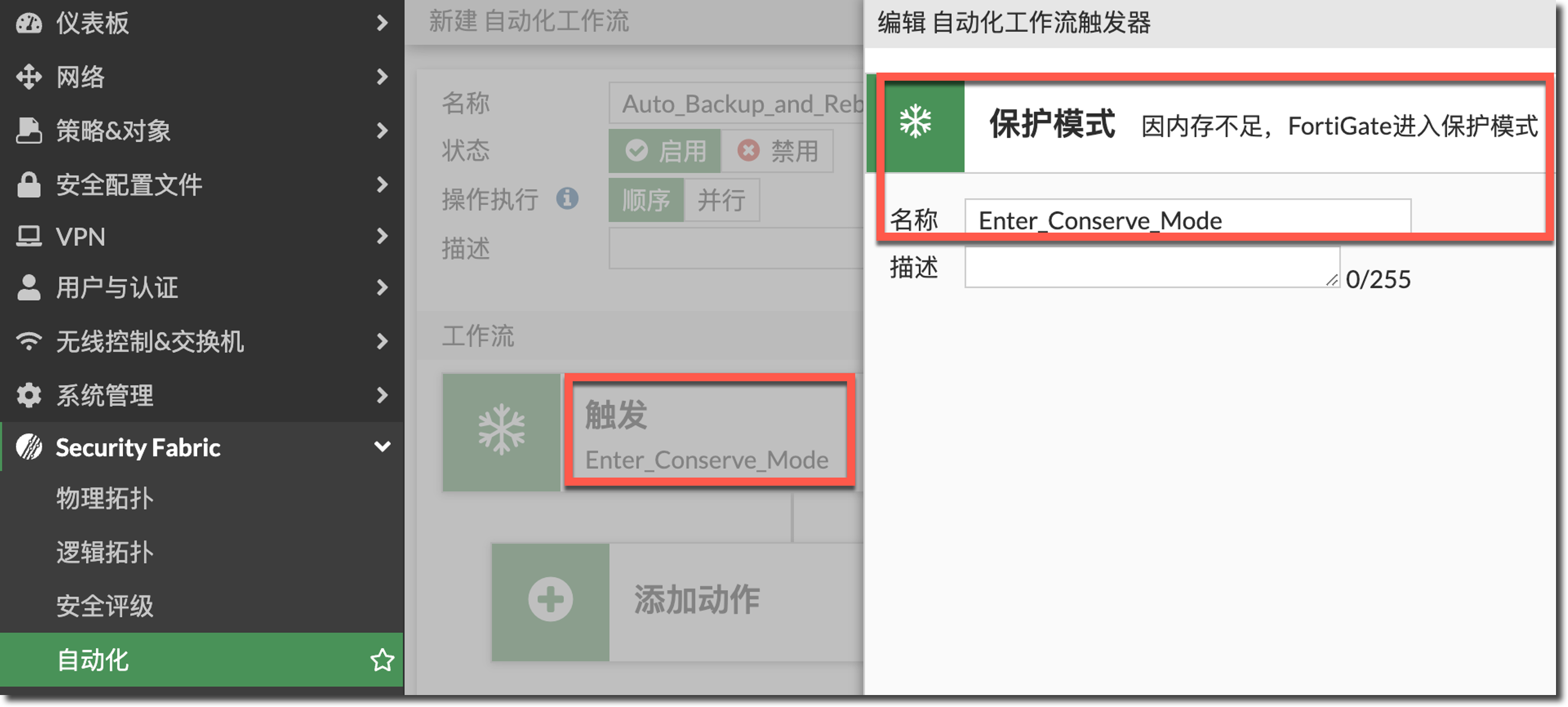

  1. 配置设备进入保护模式后自动备份配置并重启。在Security Fabric→自动化中新建自动化工作流,触发条件新建并选择系统分类中的保护模式。

    image-20240315161528473

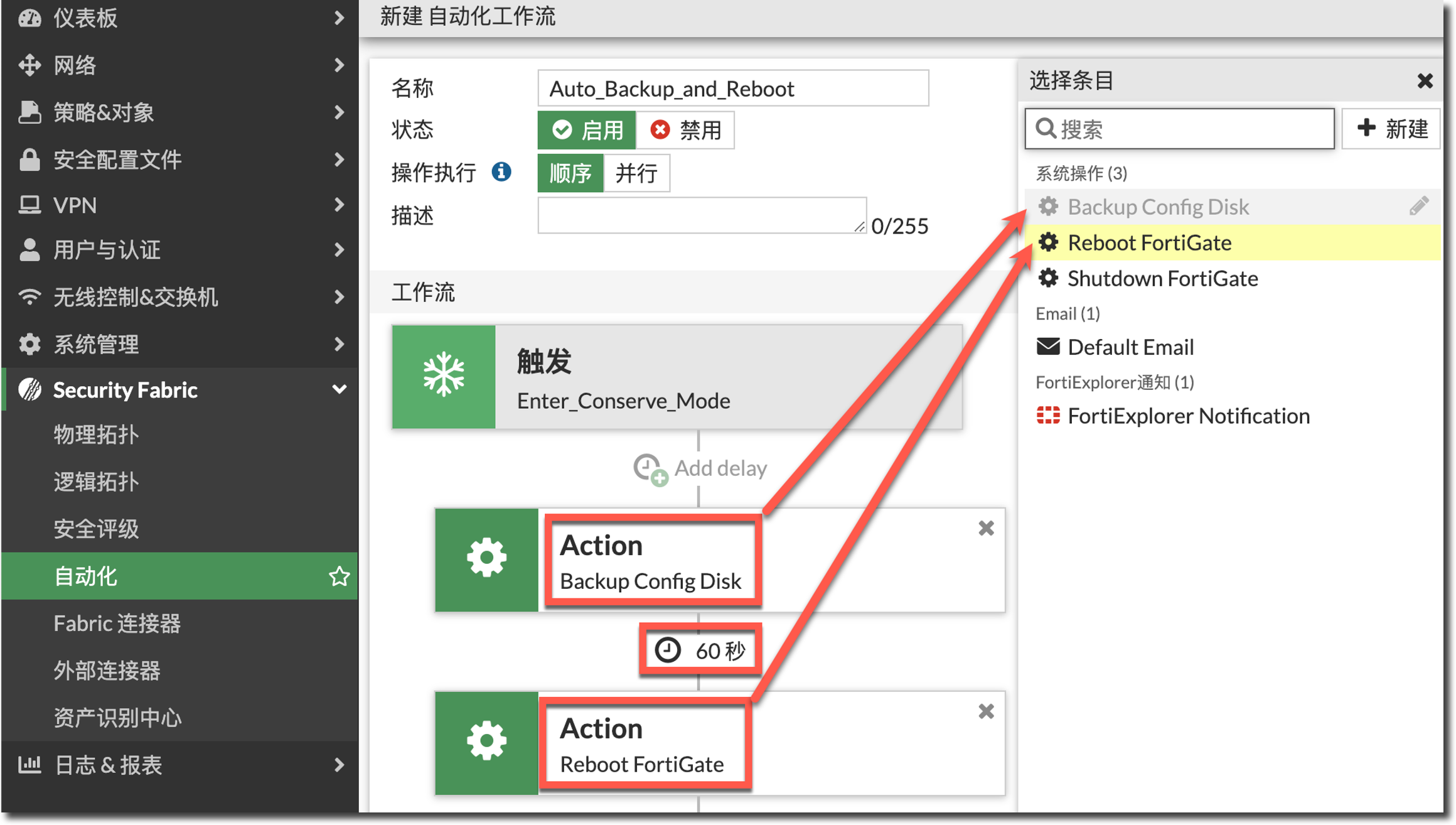

  2. 添加第一个动作为预置的Backup Config Disk,第二个动作为Reboot FortiGate,中间添加60s的间隔,然后下发该工作流配置。

    image-20240315161604373

  3. 相关CLI如下,配置了Reboot动作的最小间隔为300s,防止频繁重启。

    config system automation-trigger
        edit "Enter_Conserve_Mode"
            set event-type low-memory
        next
    end

    config system automation-action
        edit "Reboot FortiGate"
            set action-type system-actions
            set system-action reboot
            set minimum-interval 300
        next
        edit "Backup Config Disk"
            set action-type system-actions
            set system-action backup-config
        next
    end

    config system automation-stitch
        edit "Auto_Backup_and_Reboot"
            set trigger "Enter_Conserve_Mode"
            config actions
                edit 1
                    set action "Backup Config Disk"
                    set required enable
                next
                edit 2
                    set action "Reboot FortiGate"
                    set delay 60
                    set required enable
                next
            end
        next
    end


配置验证

  1. 触发FortiGate进入内存保护模式。

    FortiGate # diagnose hardware sysinfo conserve
    memory conserve mode:                        on
    total RAM:                                         1465 MB
    memory used:                                       1293 MB   88% of total RAM
    memory freeable:                                    150 MB   10% of total RAM
    memory used + freeable threshold extreme:          1392 MB   95% of total RAM
    memory used threshold red:                         1289 MB   88% of total RAM
    memory used threshold green:                       1201 MB   82% of total RAM

  2. 查看autod进程的debug信息,可以看到FortiGate进入保护模式后,触发了配置的Trigger,自动执行配置备份到Flash Disk,60s后重启设备。

    FortiGate # diagnose debug application autod -1
    ......
    __dump_action_msg()-26: System will backup config, msg: Autod backup config by stitch: Auto_Backup_and_Reboot
    ......
    __dump_action_msg()-26: System will reboot, msg: Autod reboot by stitch: Auto_Backup_and_Reboot

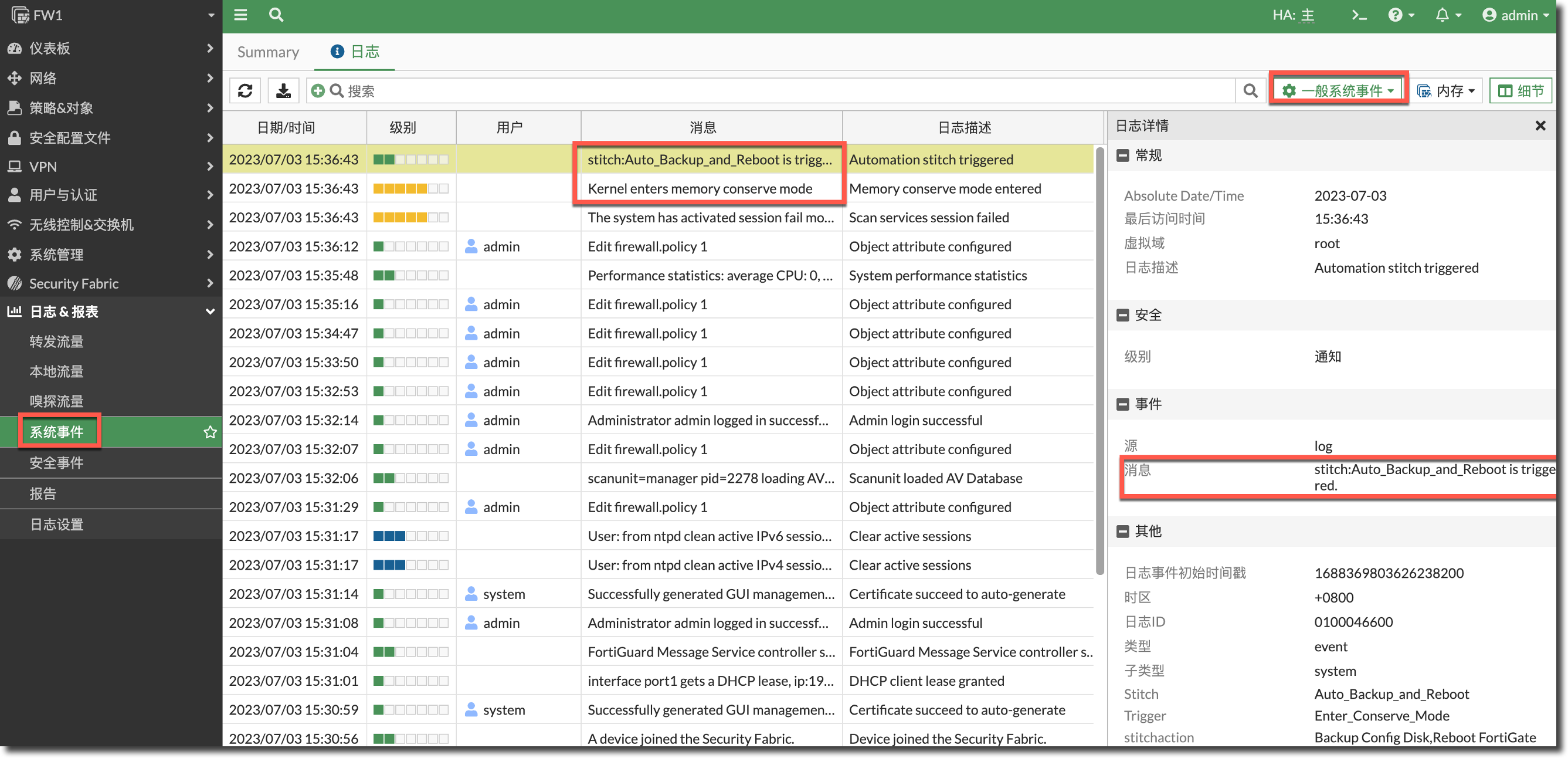

  3. 查看自动化触发的系统日志。

    image-20240315162007380

  4. 查看自动备份的配置文件。

    FortiGate # execute revision list config
    Last Firmware Version: V0.0.0-build000-REL0

    ID  TIME                   ADMIN             FIRMWARE VERSION           COMMENT
    6   2023-07-03 15:36:44    daemon_admin      V7.2.5-build1517-REL0      Autod backup config by stitch: Auto_Backup_and_Reboot

  5. 查看该自动化流程的的配置和触发统计(使用2可以看统计和配置)。

    FortiGate # diagnose test application autod 3
    stitch: Auto_Backup_and_Reboot
            local hit: 3 relayed to: 0 relayed from: 0
            last trigger:Mon Jul  3 15:58:03 2023
            last relay:
            actions:
                    Backup Config Disk:
                            done: 3 relayed to: 0 relayed from: 0
                            last trigger:Mon Jul  3 15:57:03 2023
                            last relay:
                    Reboot FortiGate:
                            done: 3 relayed to: 0 relayed from: 0
                            last trigger:Mon Jul  3 15:57:03 2023
                            last relay:

  6. 在HA环境下,自动化中备份配置的动作是不会同步的,只有触发了自动化的那台设备会备份配置到Flash Disk。

    FortiGate1 # execute revision list config
    Last Firmware Version: V0.0.0-build000-REL0
    ID  TIME                   ADMIN             FIRMWARE VERSION           COMMENT
    6   2023-07-03 15:36:44    daemon_admin      V7.2.5-build1517-REL0      Autod backup config by stitch: Auto_Backup_and_Reboot

    FortiGate2 # execute revision list config
    Last Firmware Version: V0.0.0-build000-REL0
